Hole Diameter: 90-219 mm
Hole depth: 0-70 m
Drilling Method: Air Drilling
>> Application

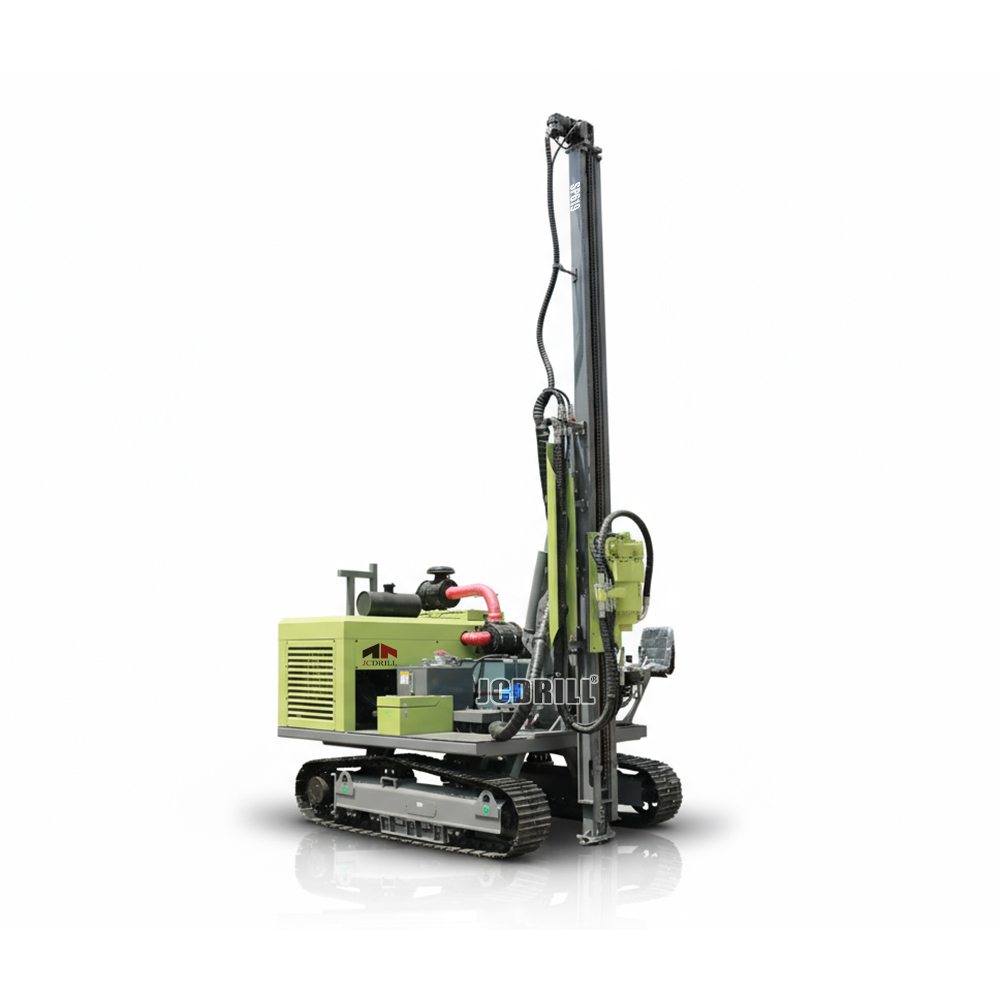

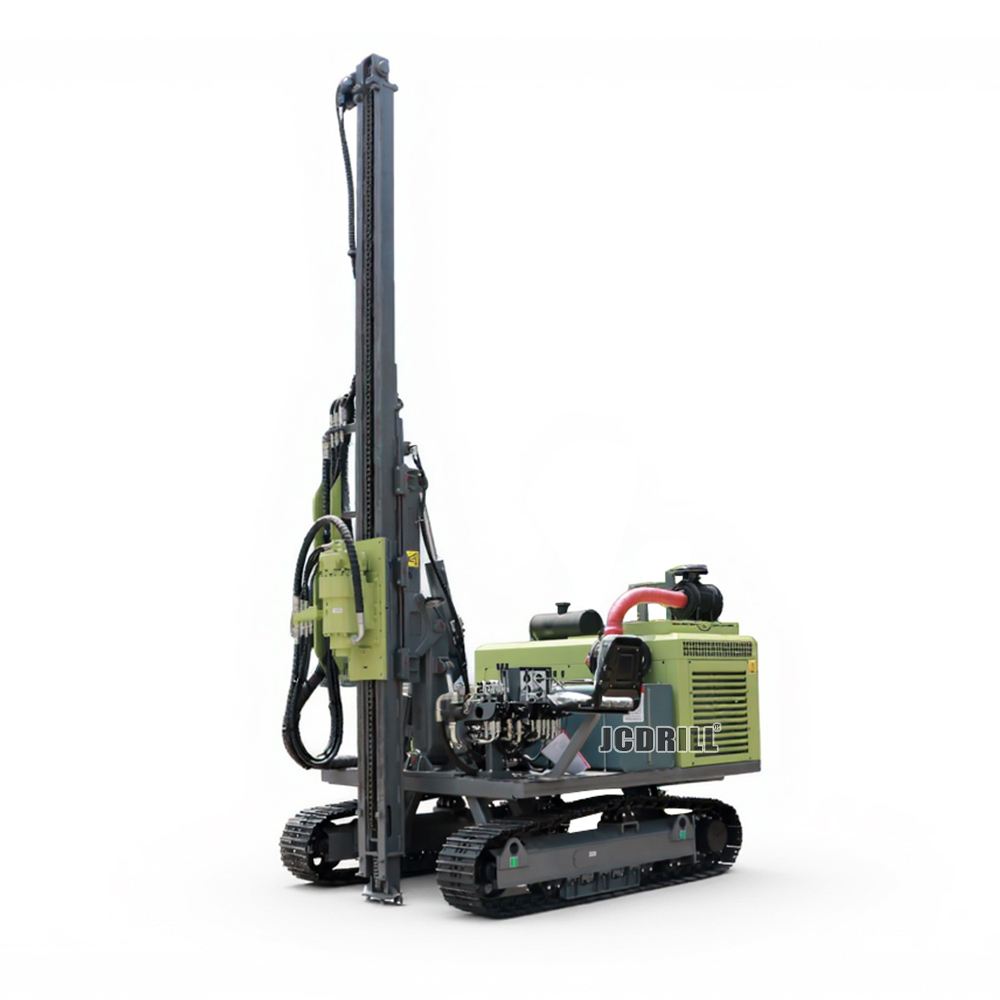

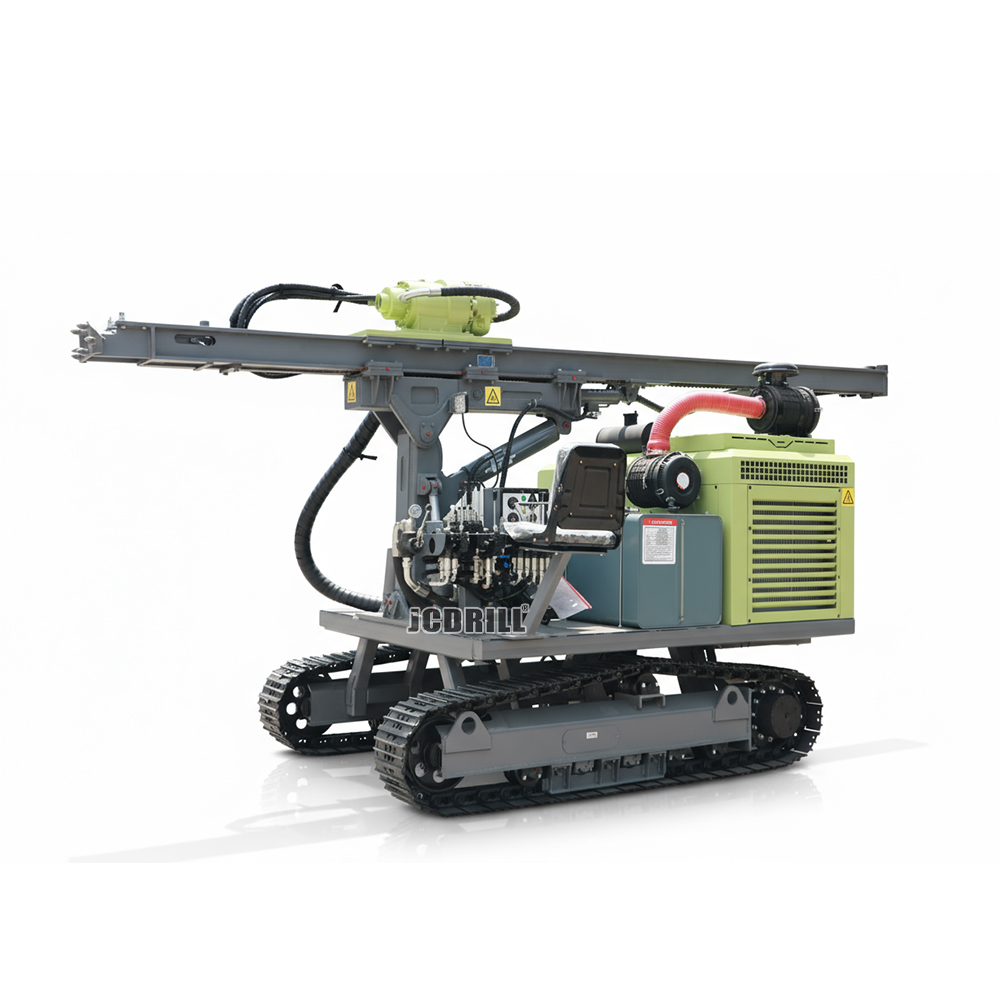

The SP619 is a compact yet powerful down-the-hole drilling rig designed for flexible deployment across diverse drilling environments, tailored for shallow large-diameter hole applications. Its capable structure and high adaptability make it ideal for manifold construction, geothermal drilling, small-scale quarries, and pipeline foundation projects. Supporting a wide hole diameter range from φ90 to φ400 mm, it is highly versatile across unconsolidated layers and mixed formations.
Share
PRODUCT DESCRIPTION
>> Characteristics
Robust Power & Fuel Efficiency:
Equipped with an optional Yuchai or Cummins engine, delivering stable output. The large 250-liter enclosed fuel tank extends working hours and reduces refueling frequency.
High-Performance Rotary & Feed System:
The high-torque rotary head delivers up to 13,000 N·m with a variable speed of 0-80 rpm. The motor-driven feed system offers a 5000 mm stroke and 18 kN thrust, providing reliable penetration.
Excellent Mobility & Terrain Capability:
The whole machine weighs only 6.0 tons with a compact structure. The crawler-type drive allows a tramming speed of 0-2 km/h and a 30° climbing capacity, coupled with 700 mm ground clearance, ensuring strong off-road capability on rugged job sites.
Wide Compatibility:
Suitable for both DTH Hammer and Auger drilling. Air compressor demand ranges from 15 to 50 m³/min and 1.0-2.4 MPa, ensuring compatibility with a wide range of pneumatic setups.
Centralized Control:
Rear-mounted centralized control system enables streamlined operation. The optimized layout improves operator visibility and access, ensuring a smooth workflow in confined environments.
>> Specification
| Category | Item | Specification | Unit |
| General | Hole Depth | 30 | m |
| Hole Diameter | φ90 - 400 | mm | |
| Drilling Rod Diameter | φ76, φ98 | mm | |
| Drilling Rod Length | 3000 | mm | |
| Rotation System | Maximum Rotary Torque | 13000 | N·m |
| Rotary Speed | 0 - 80 | rpm | |
| Pull-back Force | 20 | kN | |
| Feed System | Feed Type | Motor | |
| Feed Stroke | 5000 | mm | |
| Feed Extension | 900 | mm | |
| Feeding Force | 18 | kN | |
| Engine | Engine Brand | Yuchai/Cummins (Optional) | |
| Engine Model | YCB61502-Cov / 4BTA3.9-G125 | ||
| Rated Power | 150/185 | Hp | |
| Fuel Tank Capacity | 250 | L | |
| Air Compressor Demand | Working Pressure | 1.0 - 2.4 | MPa |
| Air Consumption | 15 - 50 | m³/min | |
| Weight & Dimensions | Weight | 6000 | kg |
| Transport Dimensions (L×W×H) | 6300 × 2200 × 2850 | mm | |
| Tramming Specification | Tramming Speed | 0 - 2 | km/h |
| Climbing Capacity | 30 | ° | |
| Ground Clearance | 700 | mm |
