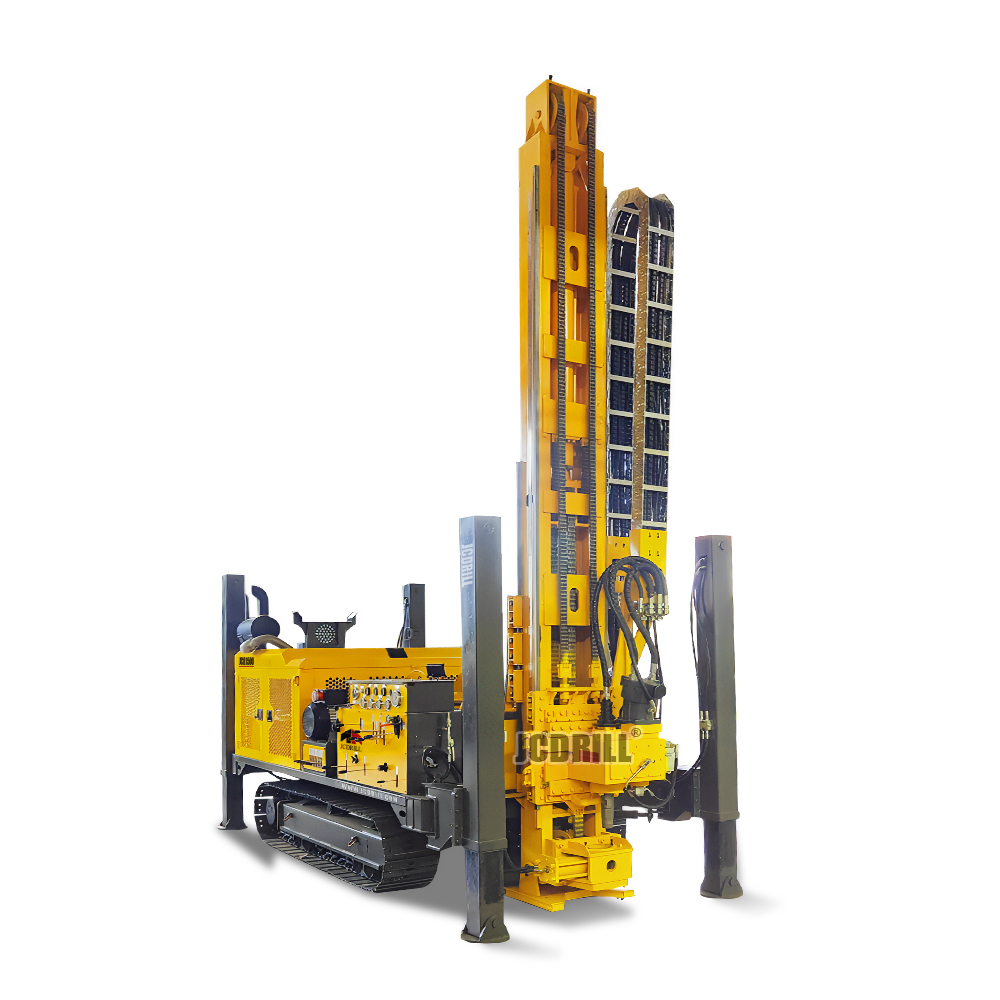

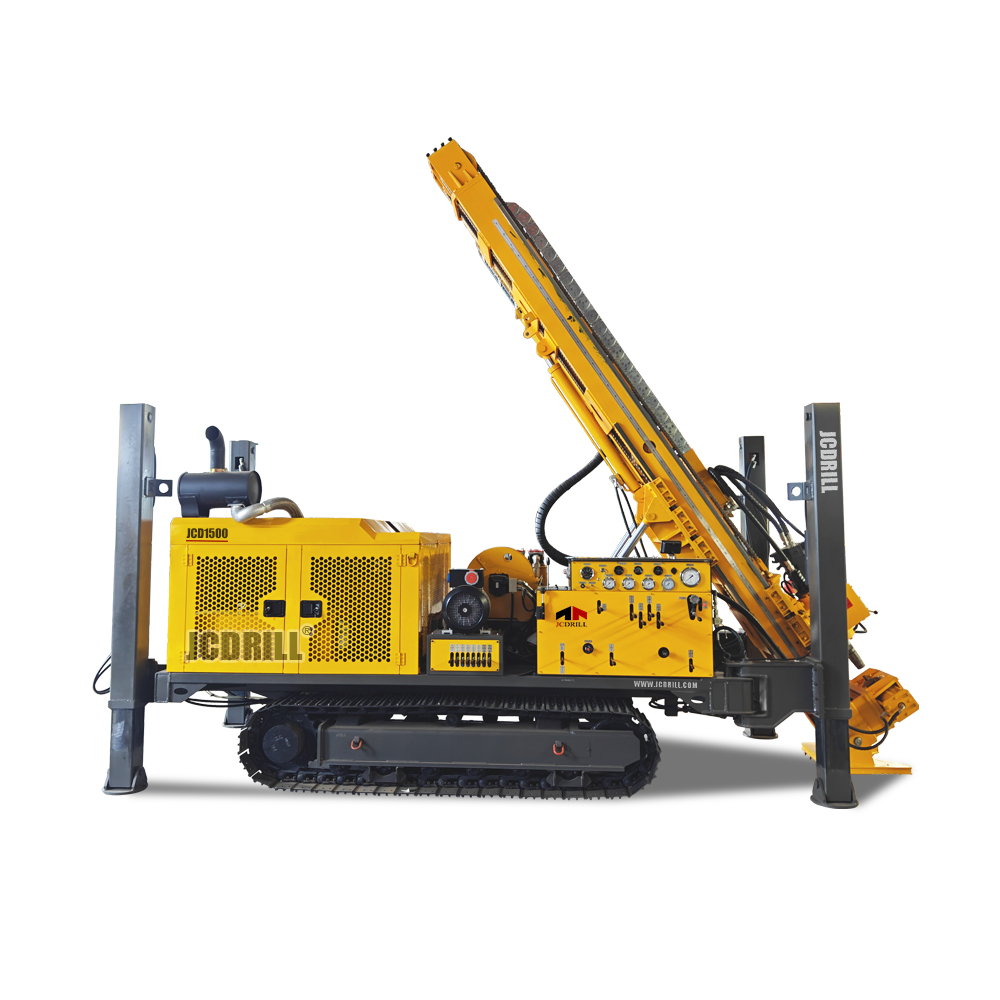

JCD1500 Mineral Exploration Drilling Rig Surface Core Drilling rig

Drilling Diameter: NQ,HQ,PQ

Max. Drilling Depth: 700,1000,1500m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD1500 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter.It is mainly suitable for diamond drilling with wire line coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc.



JCD1500 can be operated in unconsolidated layer, and the slag can be discharged under by mud,It suitable for drilling complicated geological conditions.

The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>> Characteristics

>> Full Hydraulic and Drill Head model. The drill head rotation is realized with hydraulic pumps driven by diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a 164KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> With Good dismantlability. The rig is adopted split type in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section,The rig can be applied and performed in narrow space for drilling of hole at 45°-90° with stronger adaptability.

>> Specification

GeneralDrilling Method
Wireline Diamond Core Drilling
Drill depthm700,1000,1500
Drilling Diameter
Drill system and operation
Steel Crawler
Mast compensation
Drive HeadRotation torque Gear-1 Nm3930-1840
Gear-2 Nm2060-970
Speed Gear-1 Rpm10-520
Gear-2 Rpm20-1000
Drill TowerTower Heightmm9960
Load CapacityKgs30000
Max. Drill pipe lengthm6
Drilling angle°45-90
Feeding mode
Hydraulic Cylinder
Feeding Strokemm3500
Feeding ForceKN65
Lifting CapacityKN170
Main WinchDia. Of wireropemm20
Reel capacitym26
Lifting Capacity-Single ropeKN95
Lifting Capacity-Double ropeKN190
Lifting Speed-Single ropeM/Min40
Lifting Speed-Double ropeM/Min20
Wireline Coring WinchDia. Of wireropemm6
Reel capacitym1500
Lifting Capacitykn18
Lifting SpeedM/Min110-200
Diesel enginePowerKW164
Drill PipeDrill pipe length m3-6
Drill pipe diameter
Mud pumpMax.Flow capacity L/Min250
Max. working pressure Mpa3
Weight &DimensionsWeightKgs11000
