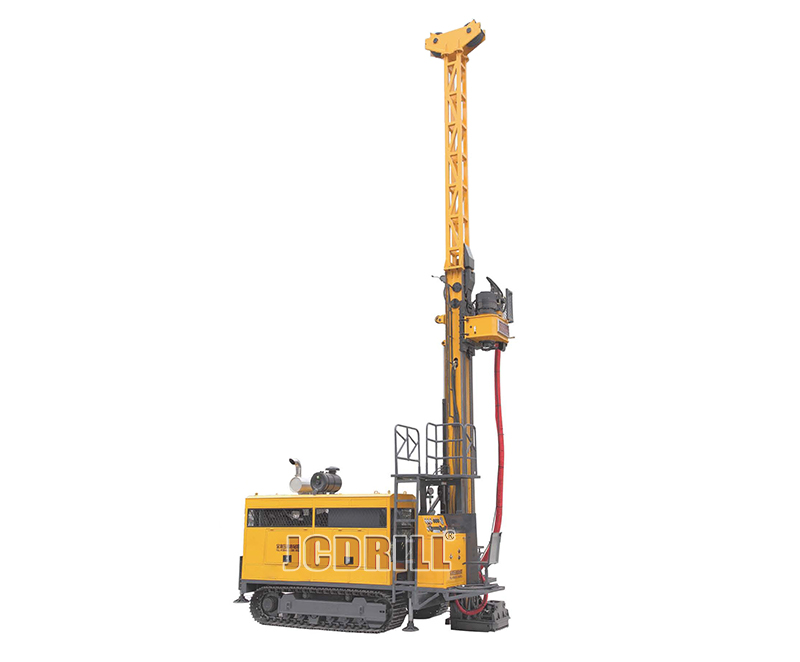

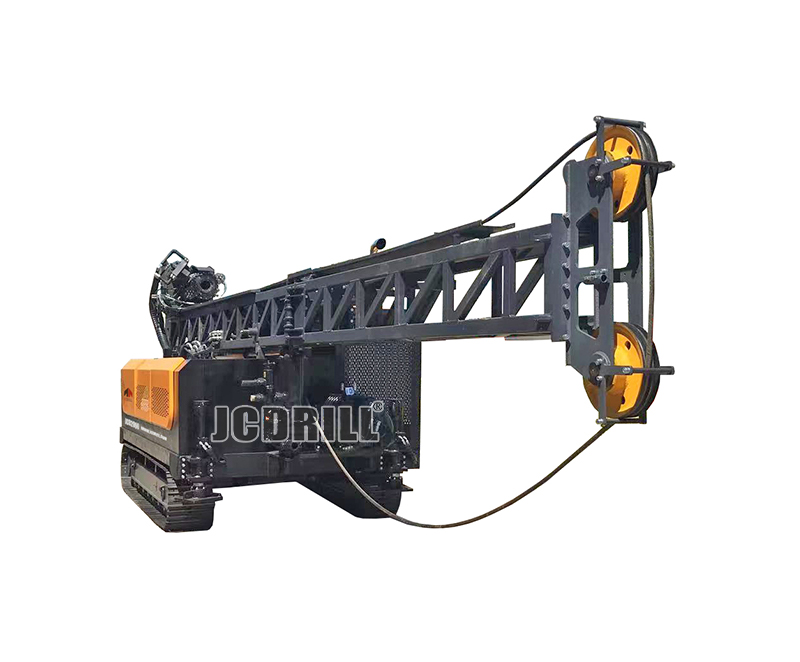

JCD2000 Full Hydraulic Core Fast Drilling Speed Rig Mineral Exploration for Slope and Straight Holes Drilling

Hold Diameter: 121 mm

Drilling Depth: 2000 1600 1300 1000 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD2000 Hydraulic Core Drilling Rig is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.JCD2000 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.

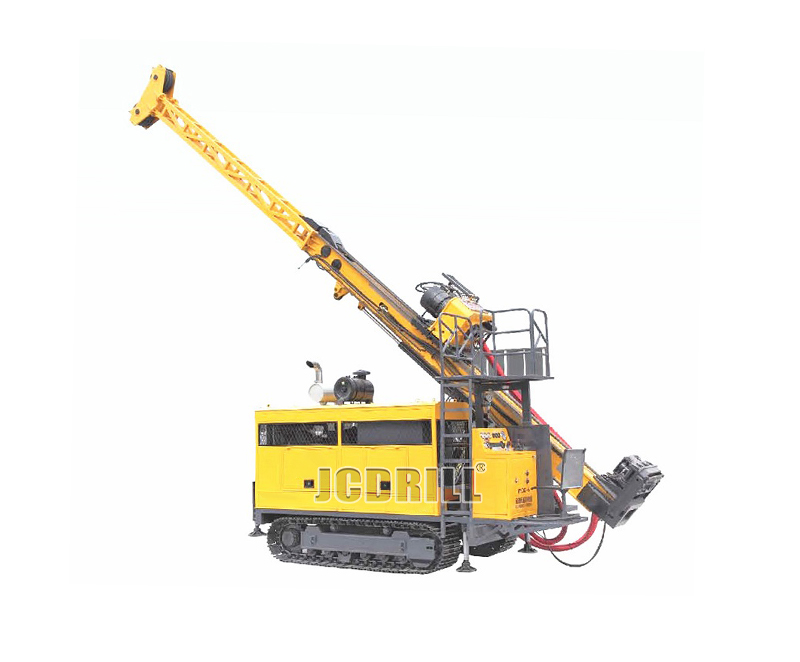

JCD2000 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling,
it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.

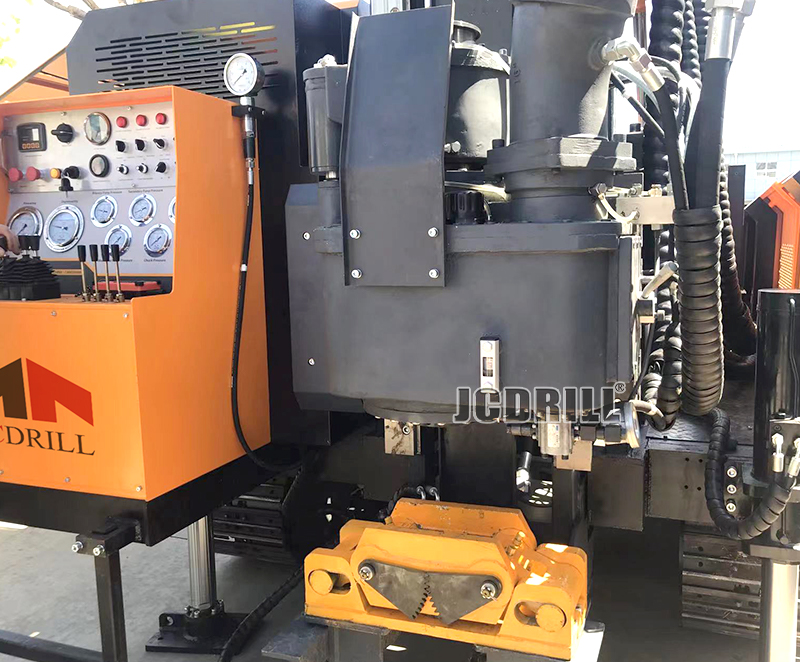

>> Characteristics

>> Reliable Quality

The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves

and hydraulic accessories, are all products with well-known brands.

>> High Efficiency

Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet)

drilling rod guarantee the high operation efficiency of the rig.

>> Environmental Protection

The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which

makes the rig proper to be operated in urban areas.

>> Energy Saving

The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge

to the minimum extent.

JCD2000 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system.

All these factors have made the rig the best choice among the same products in both domestic and abroad markets.

>> Specification

Diesel EngineModelCummins 6CTA (turbocharged and charge water cooled)Capacity of Wireline HoistHoisting Force (single wire)15 kN(3372 lbf) (bare drum)
Displacement8.3L (2.19 US Gallons)Steel Wire Diameter6 mm(0.24 inch)
Power179kW (240HP)Steel Wire Length2000 m(6560 feet)
Rated RPM(Factory setting)2200rpmMastMast Height11.2 m(37.74 feet)
Drilling CapacityBQ2000 m(6560 feet)Mast Adjusting Angle0°—90°
NQ1600 m(5248 feet)Drilling Angle45º off horizontal to 90ºvertical down
HQ1300 m(4264 feet)Feeding Stroke3800 mm(150 inch)
PQ1000 m(3280 feet)Slippage Stroke1100 mm(43.3 inch)
Drill HeadRotation MotorDouble Hydraulic MotorFeed Pull22000kg(48510 lb)
-variable and ReversibleFeed Thrust11000kg(24255 lb)
Maker: SAUER-DANFOSSMud PumpTypeReciprocating Pump Triplex Plunger
RPMTwo Shifts/ Stepless Change 0-1100 RPMModelBW320
Ratios1st      8.776:1Stroke110mm(4.3 inch)
2nd      2.716:1Output volume320,230,165,118 L/min
Head Openersidewise sliding way with hydraulic drive(84.5, 61, 44, 31 US Gallons/min)
Max. Torque6400 N·m(4717 lbf·ft)Discharge pressure4.0, 5.0, 6.0, 8.0 Mpa
Hold Diameter121 mm(4.76 inch)(580, 725, 870, 1160 psi)
Max. Lifting capacity of Spindle220 kN(49456 lbf)Foot ClampClamping Scope55.5-117.5 mm(2.18-4.63 inch)
Max. Feeding Power110 kN(24728 lbf)through hole Ф154mm(6.06 inch)
Primary PumpHydraulic pump:Maker:  DANFOSSOthersWeight14000 Kg(30864 lb)
Axial Piston variable displacement Triplex1st Pump:200LPM at 32MPaTransport Dimensions (L × W ×H )6250×2240×2750mm
With load sensing system.2nd Pump:120LPM at 28MPa(20.5×7.34×9.02 ft)
3rd Pump: 120 LPM at 28MPaTransport WaySteel Crawler
Capacity of Main HoistHoisting Speed (single wire)44m/min(bare drum)Hydraulic TankCapacity420 L (111 US Gallons)
Hoisting force (single wire)120kN(26976 lbf)

Steel Wire Diameter22 mm(0.86 inch)

Steel Wire Length60 m(196.85 feet)
