Model: TR45
Drilling Diameter:21-41mm
Drilling Method: Hydraulic & Top Hammer Drilling
>> Introduction

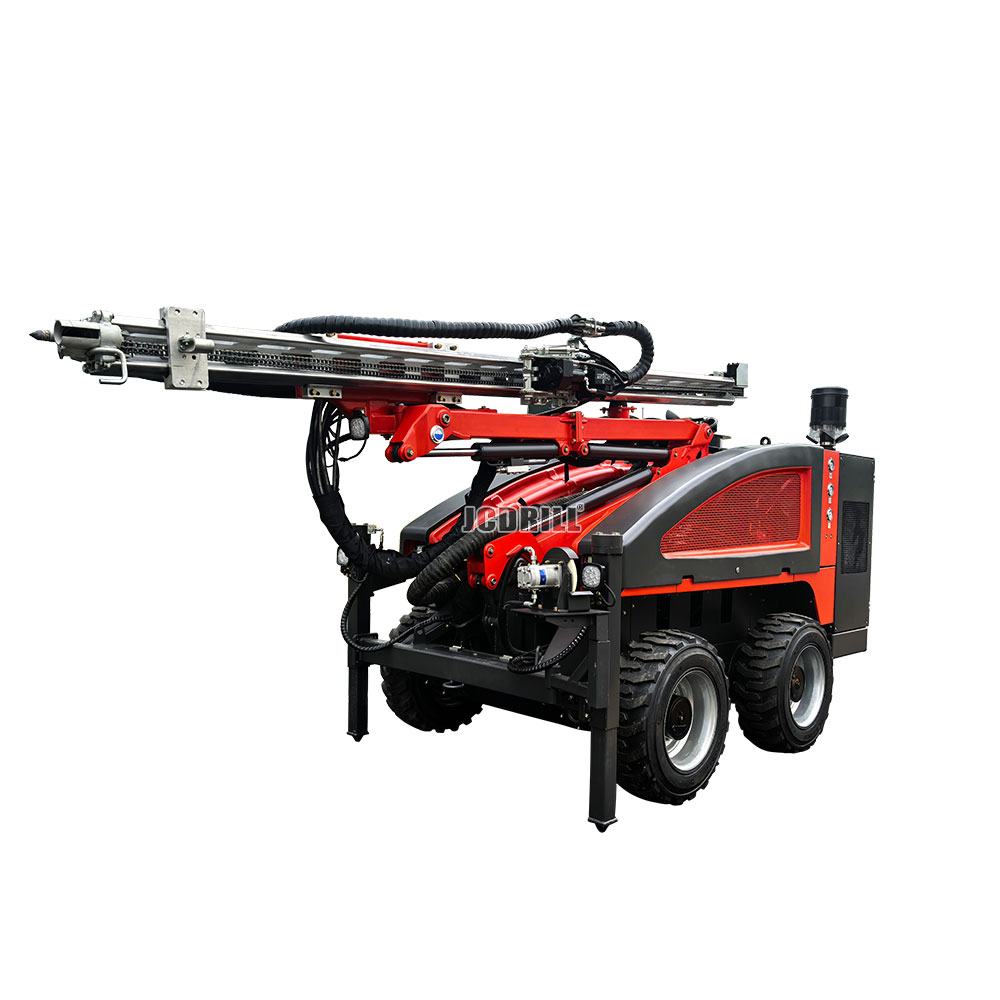

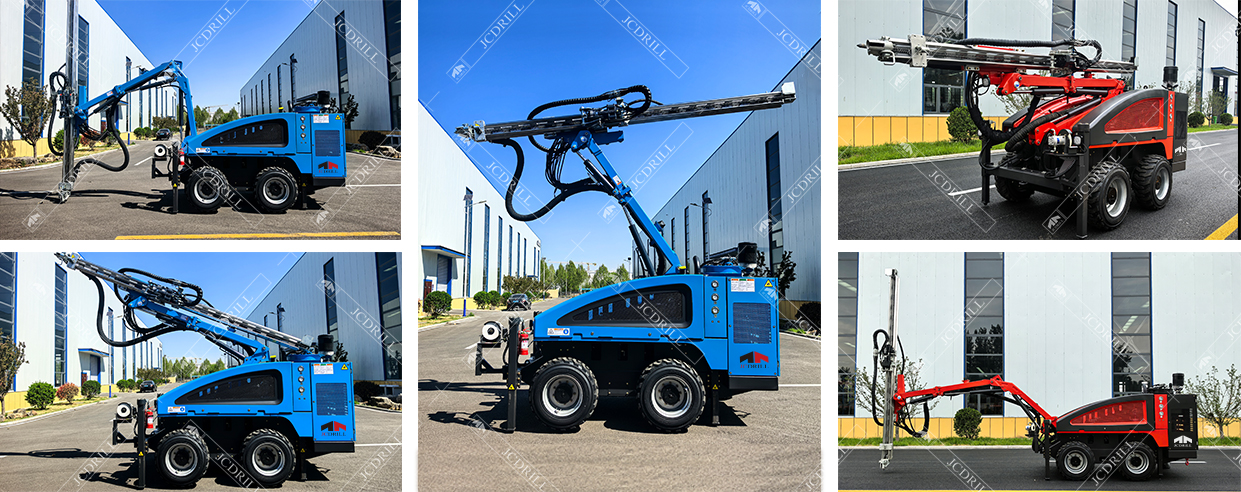

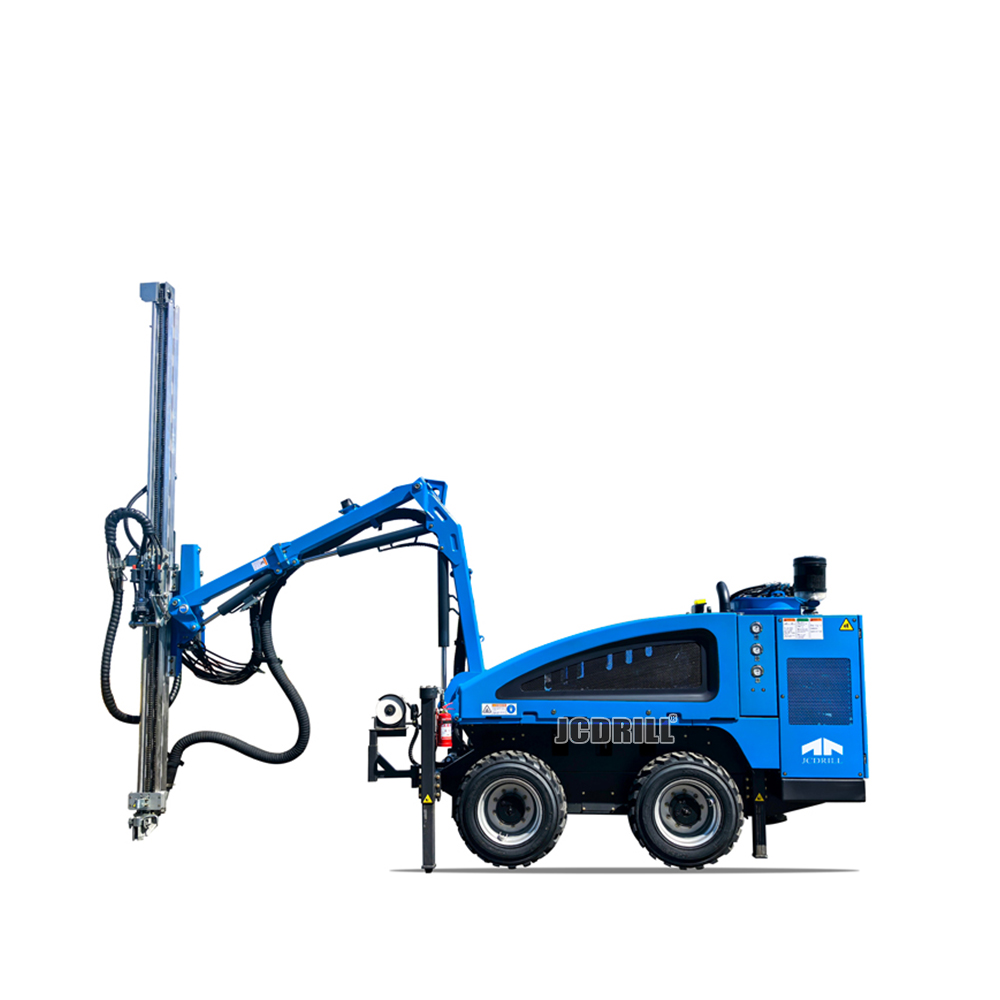

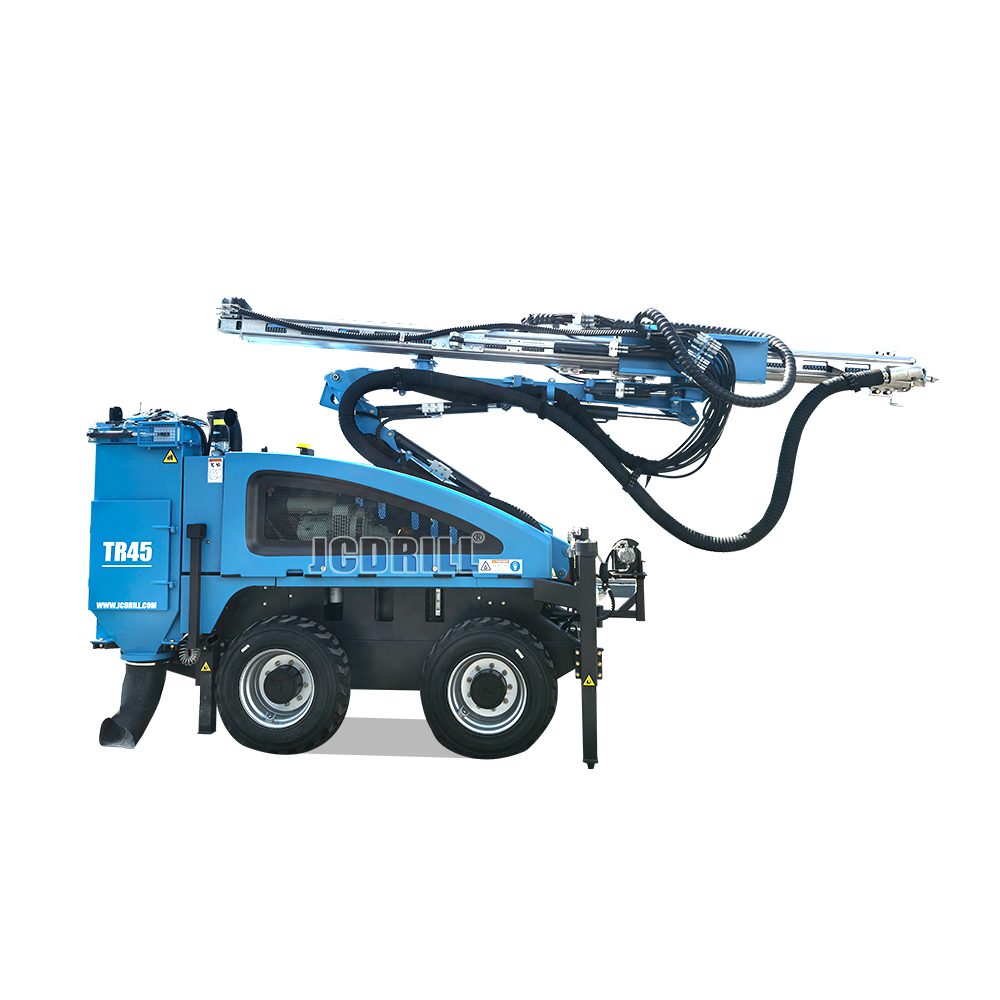

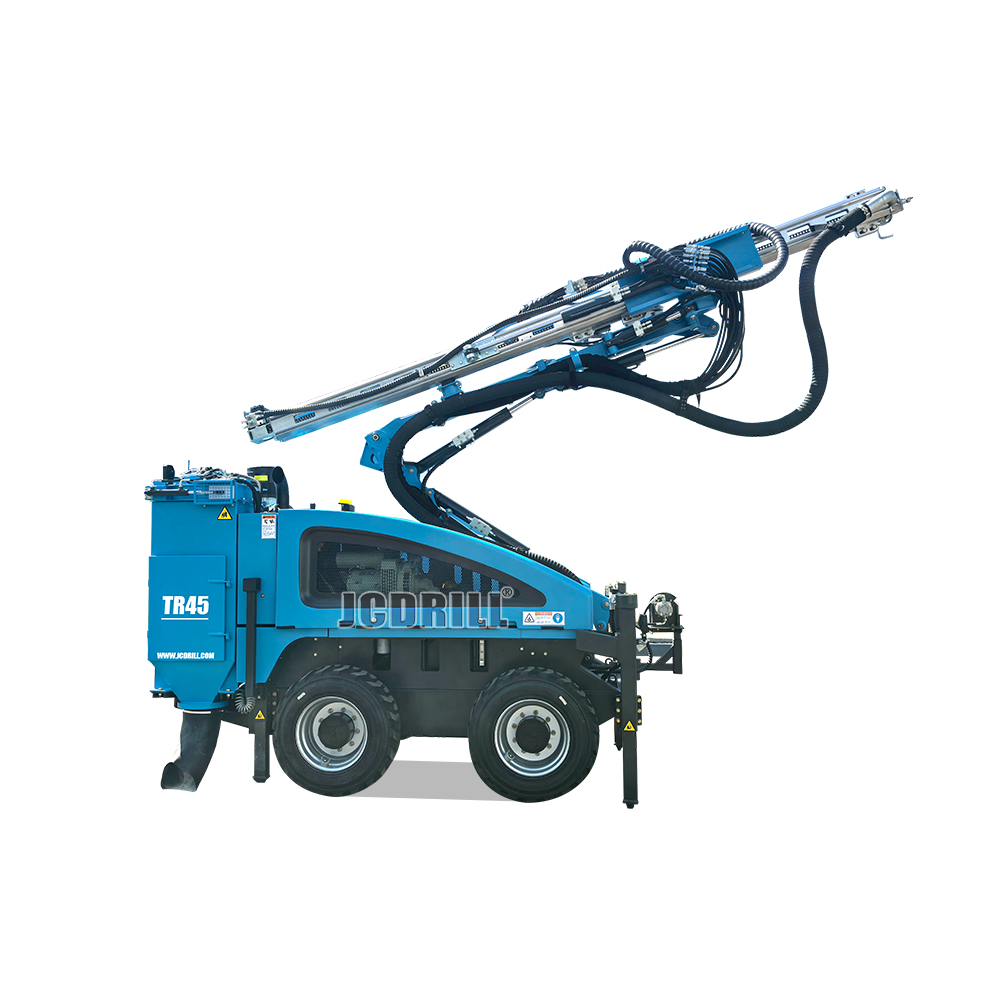

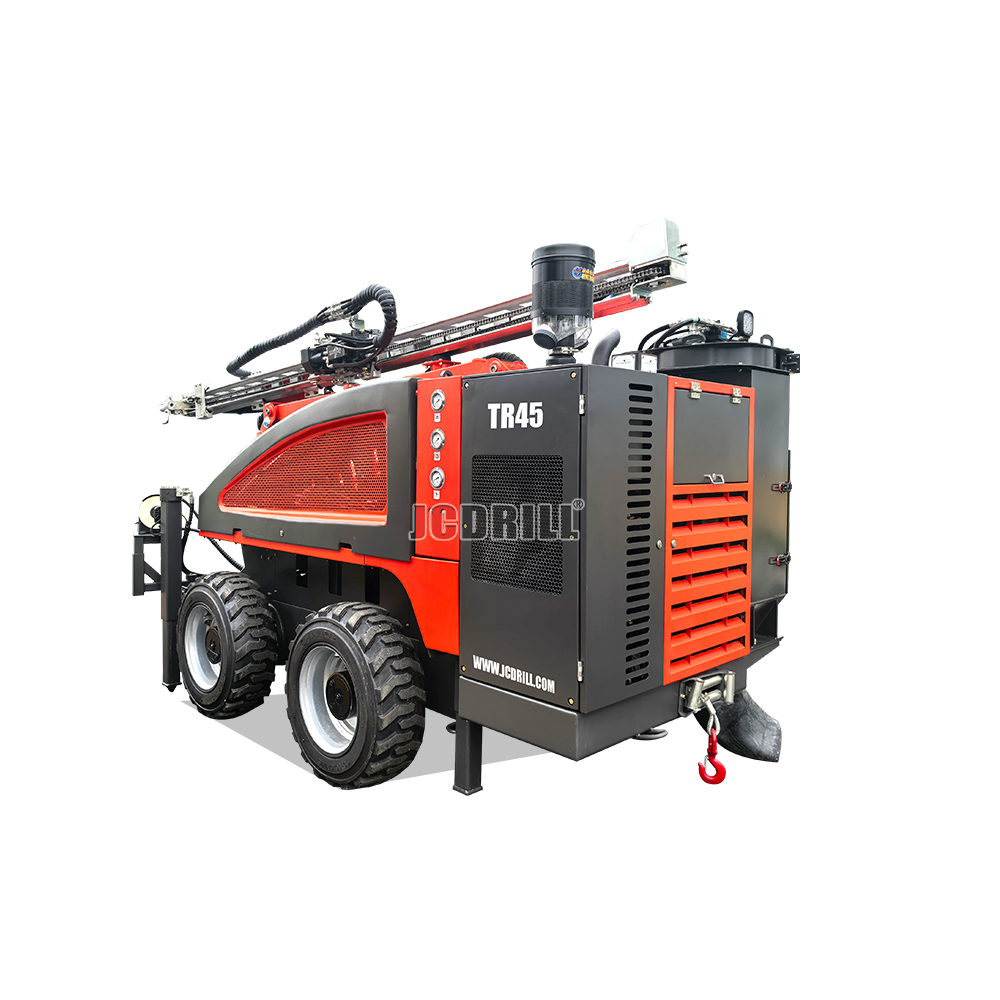

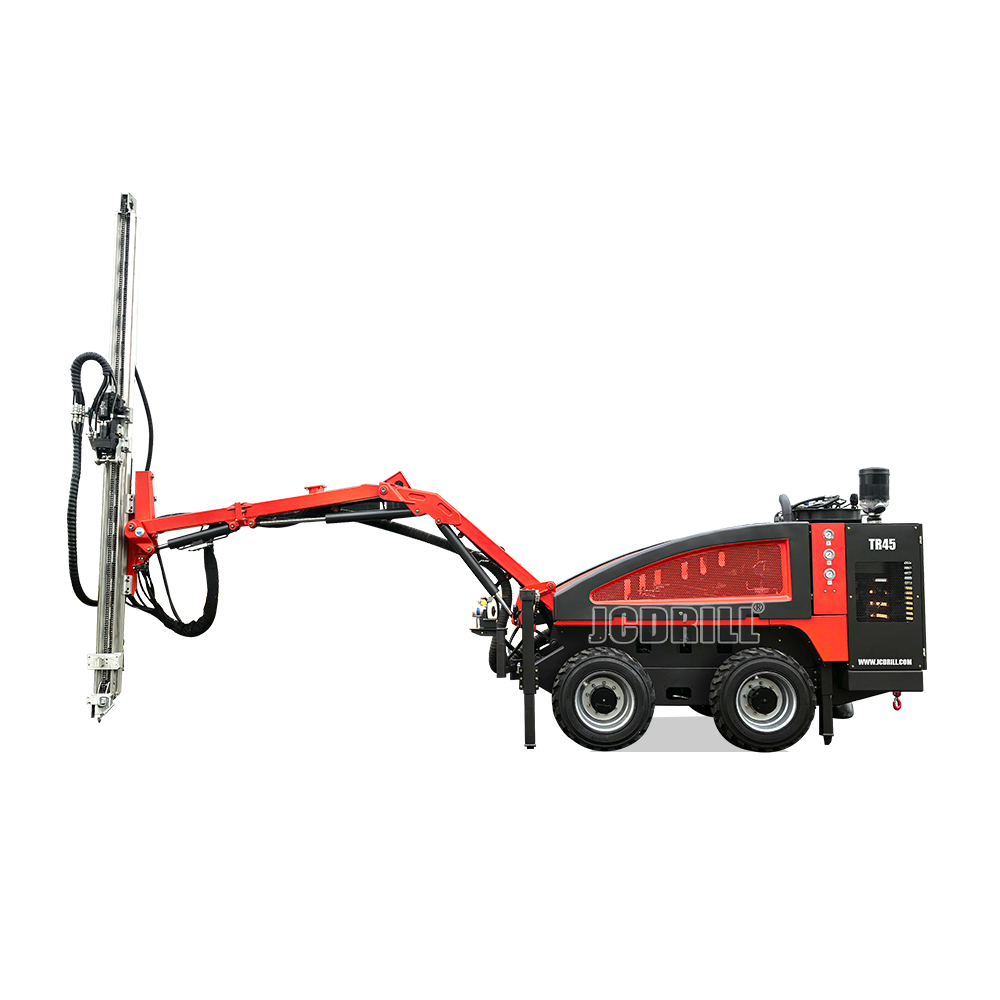

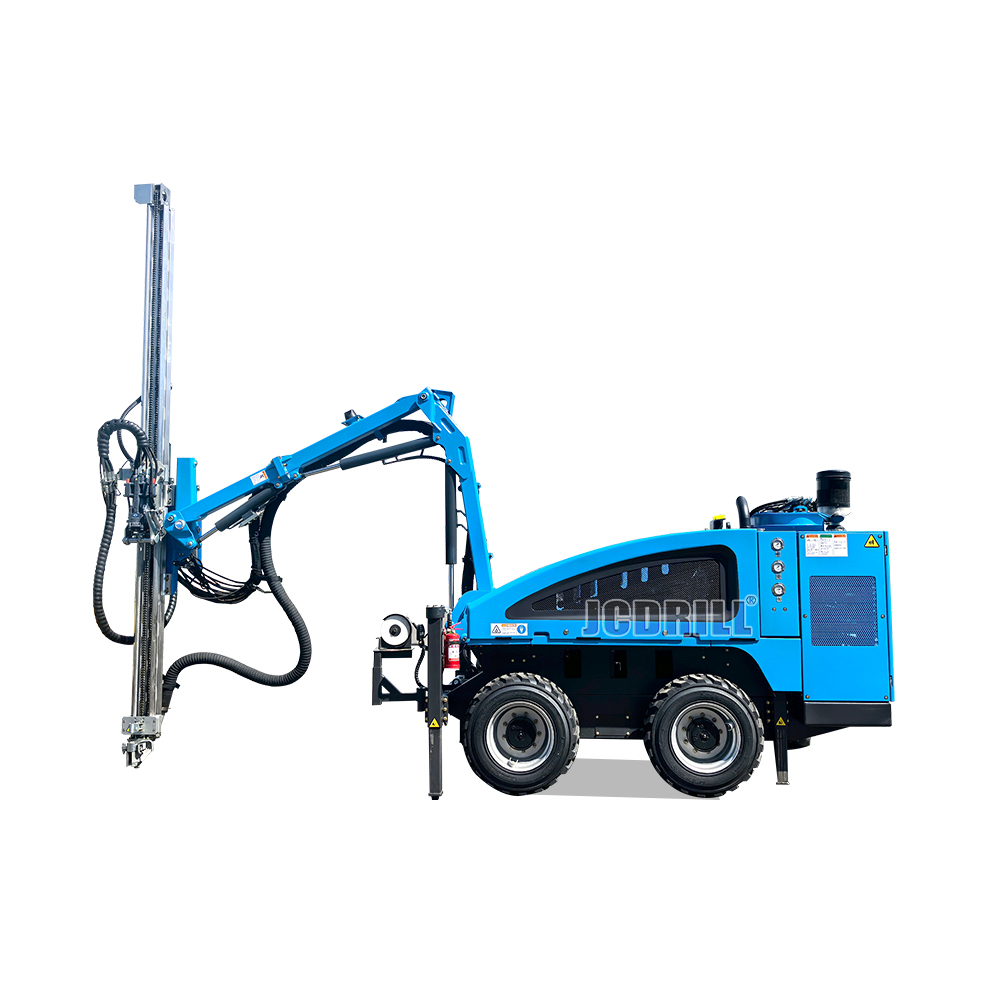

TR45 The Hydraulic Rock Jumbo Drilling Rig is a state-of-the-art mining machine designed to address the challenges of traditional mining operations. With advanced hydraulic systems, remote control capabilities, and energy-efficient performance, this equipment significantly enhances productivity, safety, and precision in underground mining and tunneling projects.
Share
PRODUCT DESCRIPTION
TR45 The Hydraulic Rock Jumbo Drilling Machine is the ideal solution for modern mining challenges, offering unmatched efficiency, safety, and innovation. Upgrade your operations today with this next-generation equipment!
>> Characteristics
>>High Efficiency & Energy-Saving
Equipped with a premium engine and hydraulic system to ensure powerful performance while reducing energy consumption.
>>Remote Control Operation
Allows operators to control the machine from a safe distance, improving working conditions and safety in hazardous environments.
>>Intelligent Mining Solutions
Supports automation and robotics integration, aligning with the future trends of smart mining and unmanned operations.
>>Seamless Drilling Performance
Precision-engineered for smooth and continuous drilling, minimizing resource waste and maximizing output.
>>Robust System Design
Features a modular structure with over 200 system components, ensuring durability, easy maintenance, and adaptability to various mining conditions.
>> Applications
Underground mining
Tunneling and construction
Quarrying and mineral extraction
>> Specification
| SPC. | Unit | TR45 | Cooling Capacity | ° | 50 |
| Power System | Hydraulic Oil Tank | L | 85 | ||
| Engine Power | Kw | 48 | Control System | ||
| Fuel Consumption per Hour | 0.8m³/min-8 bar | Model | Drilling Software System | ||
| Air Compressor | ERY504HS | Anti-jamming System | Comparison Type | ||
| Flushing Flow Rate | m³/min | 0.8 | Drilling Control | Wireless Remote Control | |
| Flushing Pressure | bar | 8 | Travel Control | Wireless Remote Control | |
| Drilling Performance | Travel Mechanism | ||||
| Hole Diameter | mm | 21-41 | Ground Clearance | mm | 230 |
| Drill Rod | mm | 19, 22 or 25 | Tractive Force | KN | 15 |
| Impact Power | Kw | 5 | Max Travel Speed | Km/h | 7 |
| Maximum Torque | N.M. | 194 | Support & Structure | ||
| Drifter Model | 430X | Support Arm | JT 120HD | ||
| Shank Size | Hex19-108 | Rod Holder / Sleeve | Mounted on Frame | ||
| Hex22-108 | Dust Collection & Safety | ||||
| Hex25-108 | Dust Collector | RDC-65 | |||
| Hydraulic System | Working Lights | Pcs | 6 | ||
| Hydraulic Type | Constant Power System | Safety Devices | Buzzer Alarm | ||
| Filtration Accuracy | μm | 10 | |||
>>Shipping
>> Why Choose Our Hydraulic Rock Jumbo Drilling RIG MACHINE?
Advanced Technology: Combines cutting-edge hydraulic systems with intelligent controls.
Safety First: Reduces human exposure to dangerous mining environments.
Sustainability: Energy-efficient design lowers operational costs and environmental impact.
Customizable: Adaptable to diverse project requirements and terrains.
Technical Specifications
Power Source: High-performance hydraulic system
Control Mode: Remote-operated with optional automation
Drilling Capacity: Optimized for hard rock conditions
Compliance: Meets international mining safety standards
