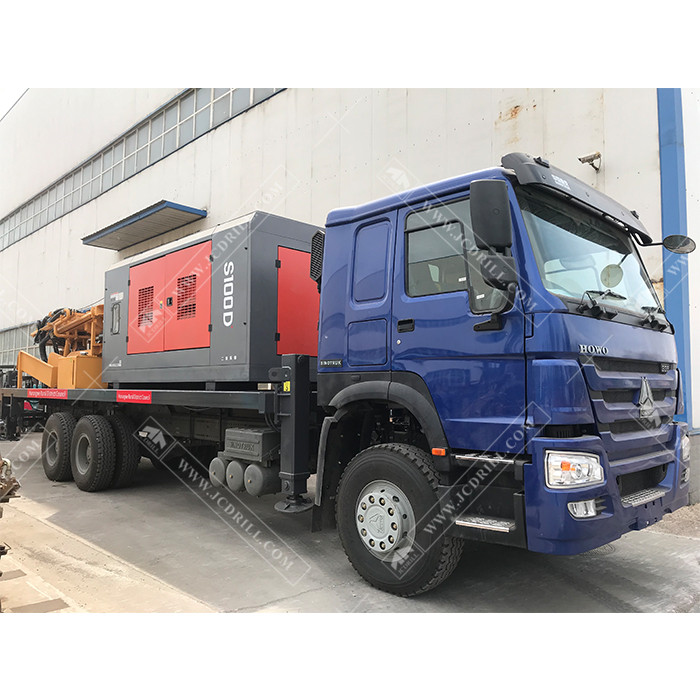

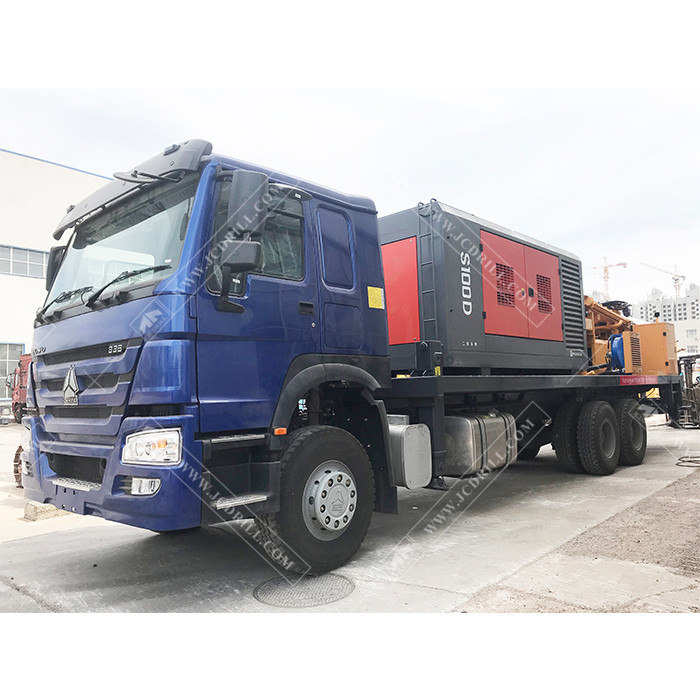

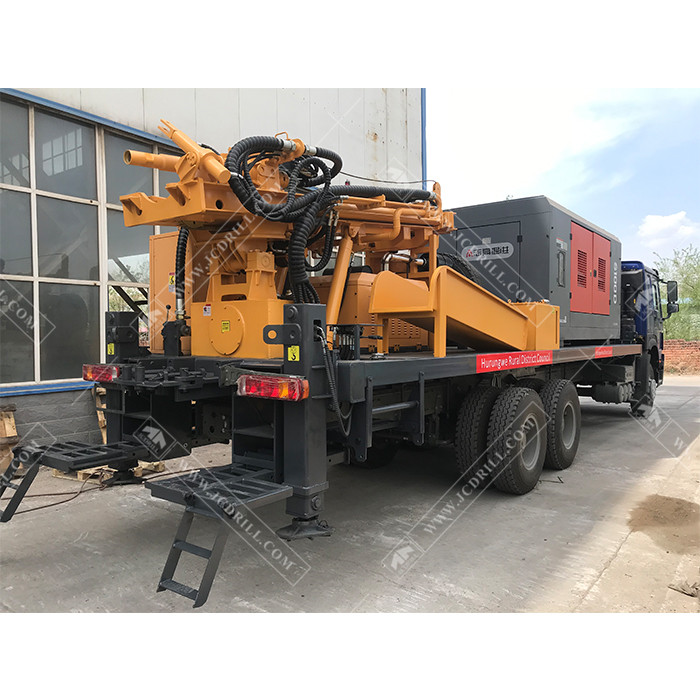

CSD200A Truck Mounted Water Well Drilling Rig with Air Compressor

Model: CSD200A

Type: Truck Mounted

Max.Drilling Depth: 200m

Drilling Method: Air Drilling & Mud Drilling

Share

PRODUCT DESCRIPTION

CSD200 Series Multi-Functional Truck Mounted Water Well Drilling Rig is a efficient, multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.


CSD200 Series truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling, DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.


CSD200 Series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Characteristics:

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 70KW Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 3050-6100Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

12. Competitive in price, low cost of maintain.

Specification:

1Geology drilled
All kinds
2Drilling Type
DTH & Mud Rotary
3Drill system and operation
Hydraulic
4Hole DiametermmΦ140—Φ450
5Hole Depthm300
6Rotation TorqueNm3050-6100
7Rotation Speedrpm60-120
8Drill pipe diametermm89/102/114
9Drill pipe lengthmm3000/4500
10Max.Pull down capacityT85KN
11 Max.Pull back capacityT16
Winch
12Lifting force of Main winch(Optional)T5
13Lifting force of hoistT1.5
14Length of steel wire rope(tool winch)m100
15Lifting height of tool winchm7.5
Engine
16Diesel Engine typeYUCHAI
17Rated Horse power Kw70
18 Electrical SystemVolt24
Compressor
19BrandKAISHANLGZJ18/17
20 Compressor TypeRotary Screw/Movable
21Pressure RequiredMpa17
22Air consumptionm³/min18
Truck
23Manufacturer
DONGFENG
24Model
EQ1208G7
25Engine
WD615.47
26Rated Horse powerkw273
27Discharge Standard
EU-2
28Drive type
6*4
29Max.SpeedKm/h93
30Steering wheel
left/right(Optional)
Mud Pump
31Type
Hydraulic
32Model
BW250
33Strokemm110
34DisplacementL/Min250
35Discharge pressure (Mpa)Mpa4
Dimension
36Net WeightT19.8
37 Shipping Lengthmm11500
38Shipping Widthmm2480
39Shipping Heightmm3550
40 Working size(L*W*H)mm11000*2480*6350
