CSD1000 Water Well Bore Hole Drilling Rig for 1000m

Model: CSD1000

Type: Truck Mounted

Max. Drilling Depth: 1000m

Drilling Method: Air Drilling & Mud Drilling

Inquire Now Chat Now

PRODUCT DESCRIPTION

Introduction

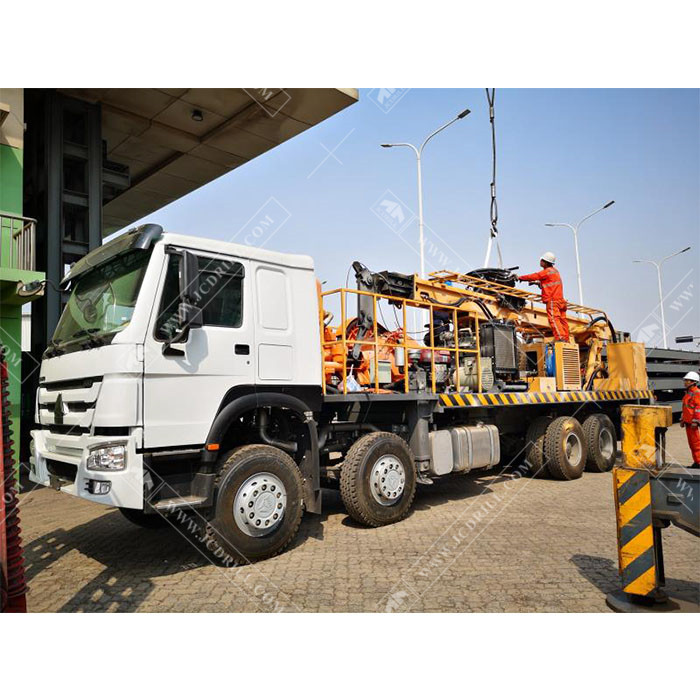

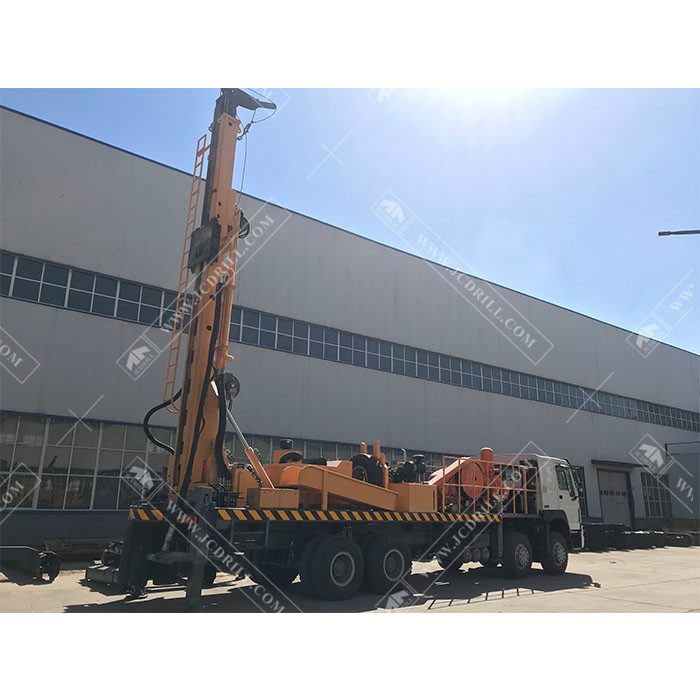

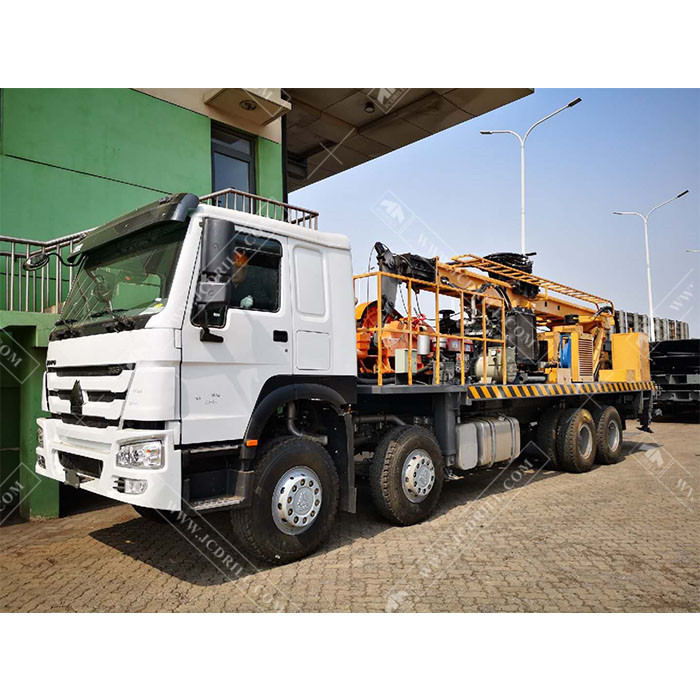

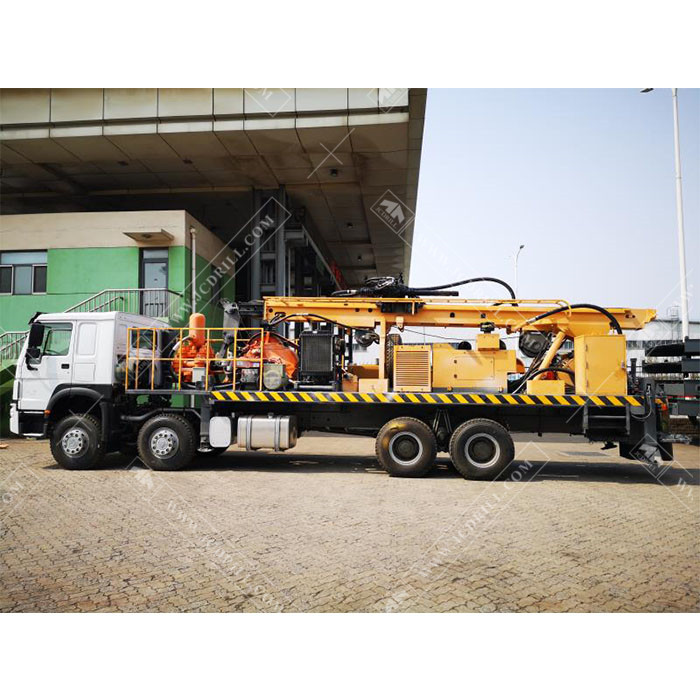

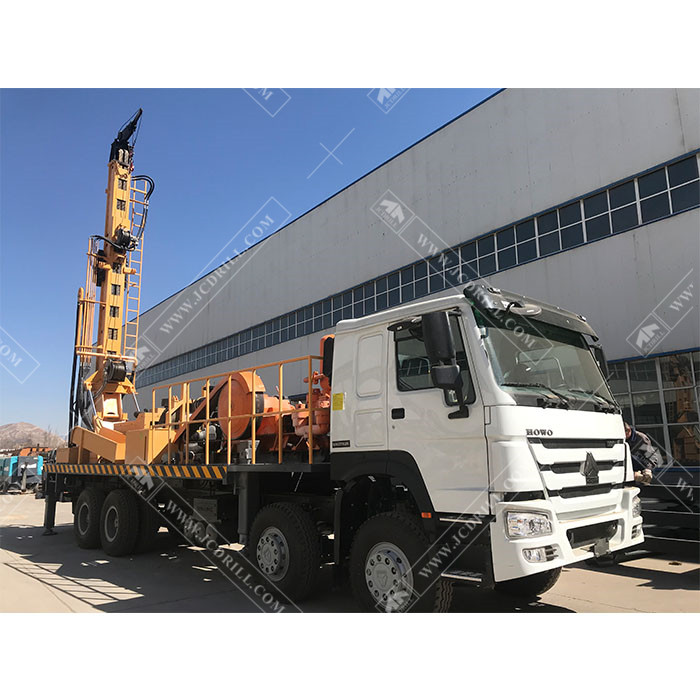

JCDRILL hydraulic portable truck mounted water well drilling rig is a versatile drilling equipment, which is mainly used for drilling wells, irrigation wells and other uses of the borehole, such as for mountain and rock formations of the water work. Using advanced technology and supporting high torque motor revolution. Using hydraulic system of plants to provide power for the engine. The hydraulic console is easy to operate. The truck chassis can be easily to move on kinds of road.

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ140—Φ650
5	Hole Depth	m	1000
6	Rotation Torque	Nm	9600 1st Gear
6	Rotation Torque	Nm	14500 2nd Ger
7	Rotation Speed	rpm	0-80 1st Gear
7	Rotation Speed	rpm	0-110 2nd Ger
8	Drill pipe diameter	mm	89/114
9	Drill pipe length	mm	4000/4500
10	Axial pressure	T	10
11	Max. Lifting force	T	37
Winch
12	Lifting force of Main winch(Optional)	T	4
13	Lifting force of hoist	T	1.5
14	Length of steel wire rope(tool winch)	m	100
15	Lifting height of tool winch	m	8
Engine
16	Diesel Engine type	CUMMINS
17	Rated Horse power	Kw	179
18	Electrical System	24	Volt
Compressor required
19	Compressor Type	Rotary Screw/Movable
20	Pressure Required	Mpa	1.05—6.9
21	Air consumption	m³/min	16—96
Truck
22	Manufacturer		SINOTRUCK HOWO
23	Model		ZZ1317M4661W
24	Engine		WD615.61A
25	Rated Horse power	Hp	245
26	Discharge Standard		EU-2
27	Drive type		6*4
28	Max.Speed	Km/h	102.9
29	Steering wheel		left/right(Optional)
Mud Pump
30	Type		Hydraulic
31	Model		BW850/5
32	Stroke	mm	260
33	Displacement	L/Min	850
34	Discharge pressure (Mpa)	Mpa	5
35	Suction tube diameter	mm	89
36	Discharge pipe diameter	mm	51
37	Liner Diameter	mm	150
Hydraulic Welder(Optional)
38	Mnufacturer		Finland Dynaset
39	Welding current	A	60-250
40	Hydraulic Min.oilflow	L/min	42
41	Nom/Max Pressure	Bar	190/210
42	Voltage	V	110/220VDC
43	Power	Kw	1or2
Generator
44	Generator		Optional
Dimension
45	Net Weight	T	22
46	Shipping Length	mm	10500
47	Shipping Width	mm	2480
48	Shipping Height	mm	3650
49	Working size（LWH）	mm	1100024807147

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 179KW COMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head,rotation speed is 0-110rpm stepless adjustment and the rotary torque is 9600-14500Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope length of 40m.

12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

13. Competitive in price, low cost of maintain.
