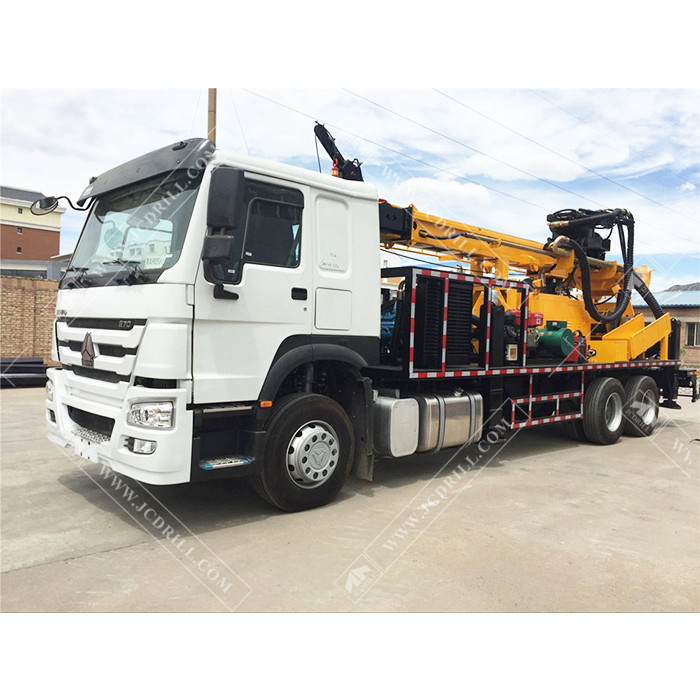

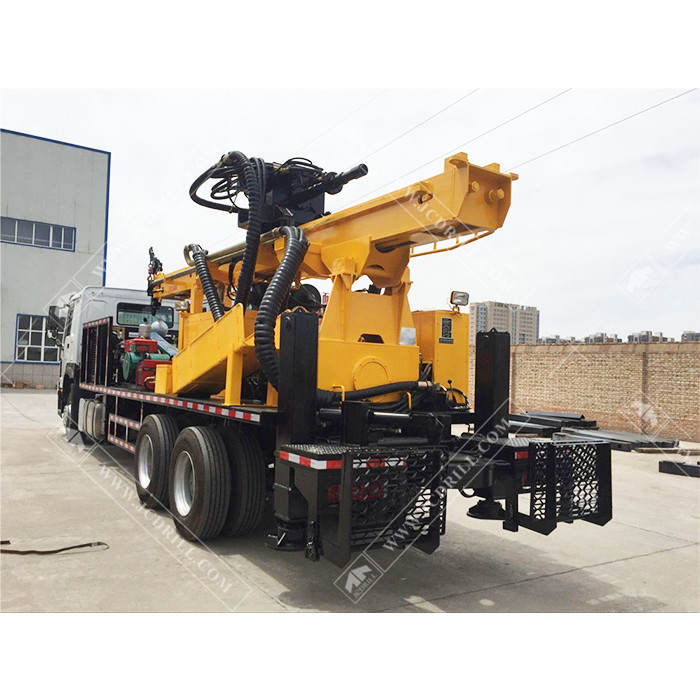

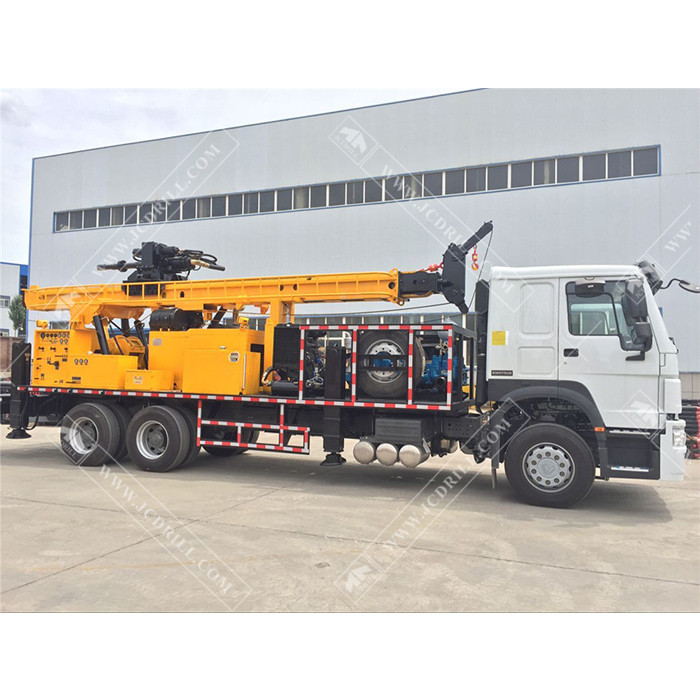

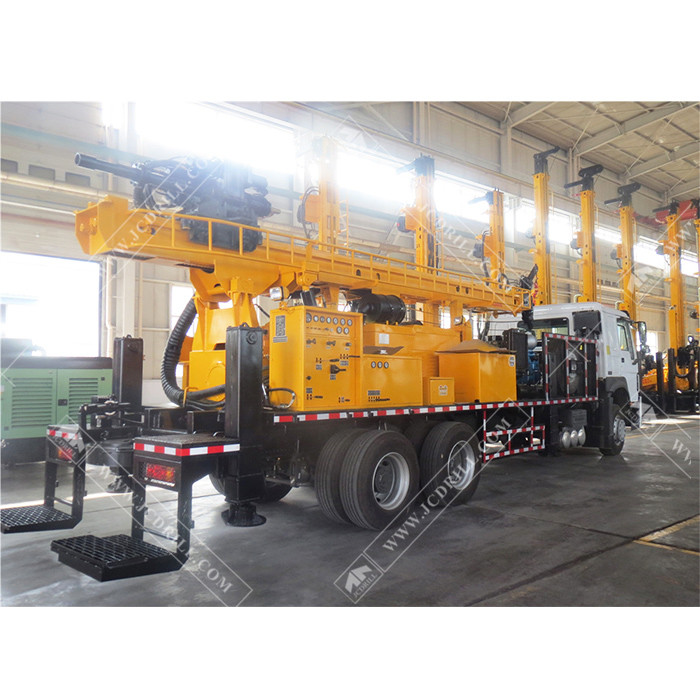

CSD600 Hydraulic Pneumatic Truck Rotary Water Well Drilling Rig

Model: CSD600

Type: Truck Mounted 6x6 (Portable)

Max. Drilling Depth: 600m

Drilling Method: Air Drilling & Mud Drilling

Share

PRODUCT DESCRIPTION

Introduction

The versatile truck water well drilling rig a new, efficient and multifunctional hydraulic drilling rig, mainly used to kinds of drilling wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam and so on. The drilling machine is with full powerful hydraulic motor, heavy duty hydraulic drilling arm and high pressure DTH percussive hammer. In addition, the water well drilling machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

hydraulic drilling rig

Specification

1Geology drilled
All kinds
2Drilling Type
DTH & Mud Rotary
3Drill system and operation
Hydraulic
4Hole DiametermmΦ140—Φ500
5Hole Depthm600
6Rotation TorqueNm6000-12000
7Rotation Speedrpm93-186
8Drill pipe diametermm89/114
9Drill pipe lengthmm4000/4500
10Pull down capacityT8
11Pull back capacityT28
12Fast lifting speedm/min29
13Fast forwarding speedm/min42
14Feed Strokemm5200
Winch
15Lifting force of Main winch(Optional)T4
16Lifting force of hoistT2.5
17Length of steel wire rope(tool winch)m100
18Lifting height of tool winchm8
Engine
19Diesel Engine typeCUMMINS
20Rated Horse power Kw132
21 Electrical System24Volt
Compressor required(Optional)
22 Compressor TypeRotary Screw/Movable
23Pressure RequiredMpa1.05—4.5
24Air consumptionm³/min16—60
Truck
25Manufacturer
SINOTRUCK HOWO
26Engine
 WD615.47
27Rated Horse powerkw273
28Discharge Standard
EU-2
29Drive type
6*6
30Max.SpeedKm/h100
31Steering wheel
left/right(Optional)
Mud Pump
32Type
Hydraulic
33Model
BW850/5
34Stroke Strokemm260
35DisplacementL/Min850
36Discharge pressure (Mpa)Mpa5
37Inlet pipe inner diametermm125
38Drain pipe inner diametermm65
39Return pipe inner diametermm40
Dimension
35Net WeightT22
36Shipping Lengthmm11800
37Shipping Widthmm2496
38Shipping Heightmm3750
39Working size(L*W*H)mm11000*2496*9800

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 132KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, rotation speed is 93-186rpm stepless adjustment and the rotary torque is 6000-12000Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

12. Competitive in price, low cost of maintain.

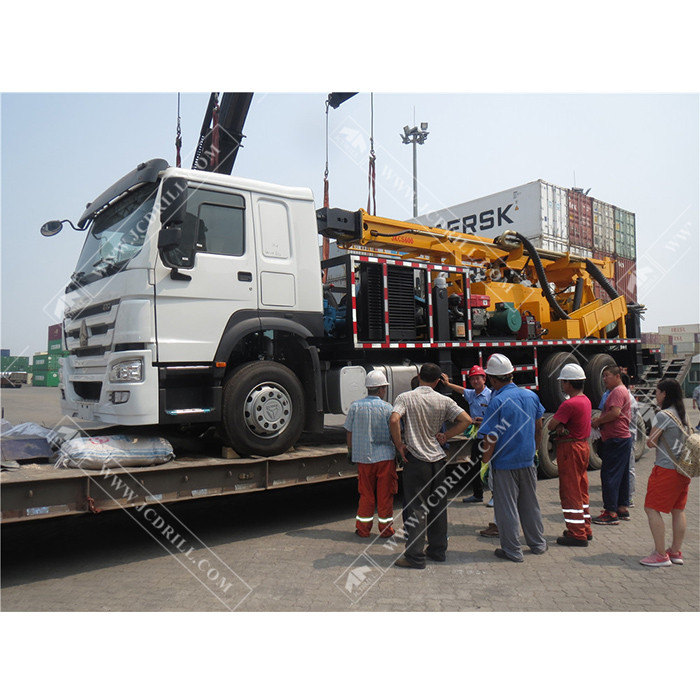

Shipping

truck water well drilling rig
