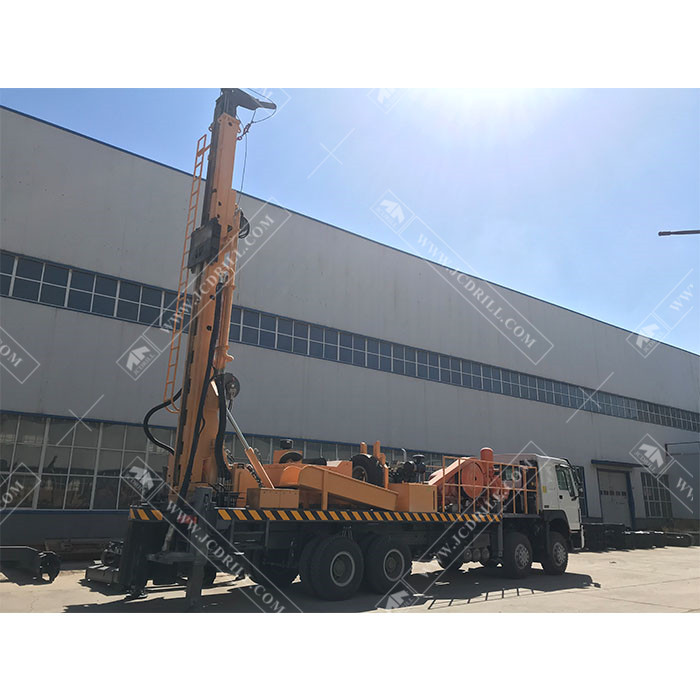

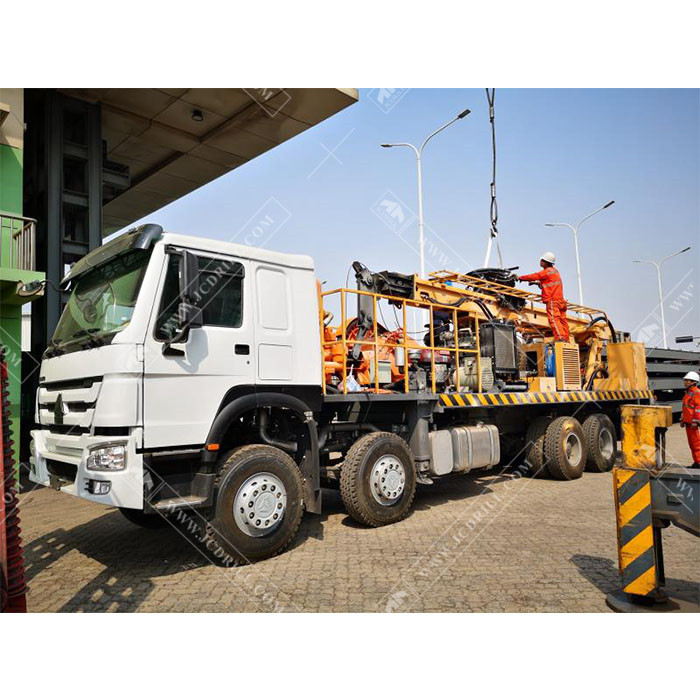

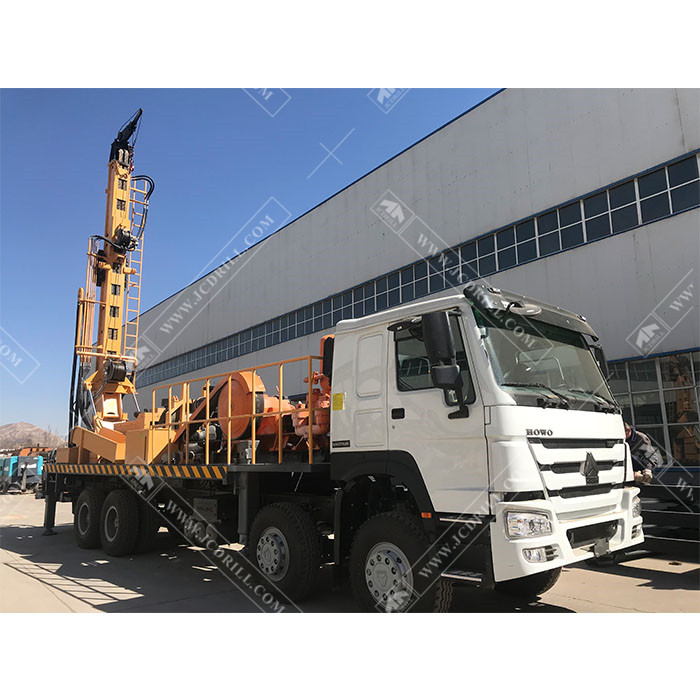

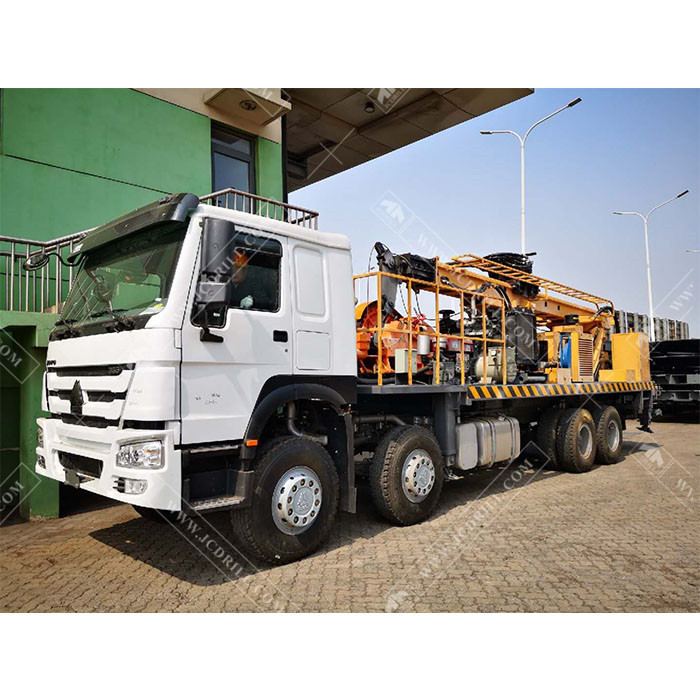

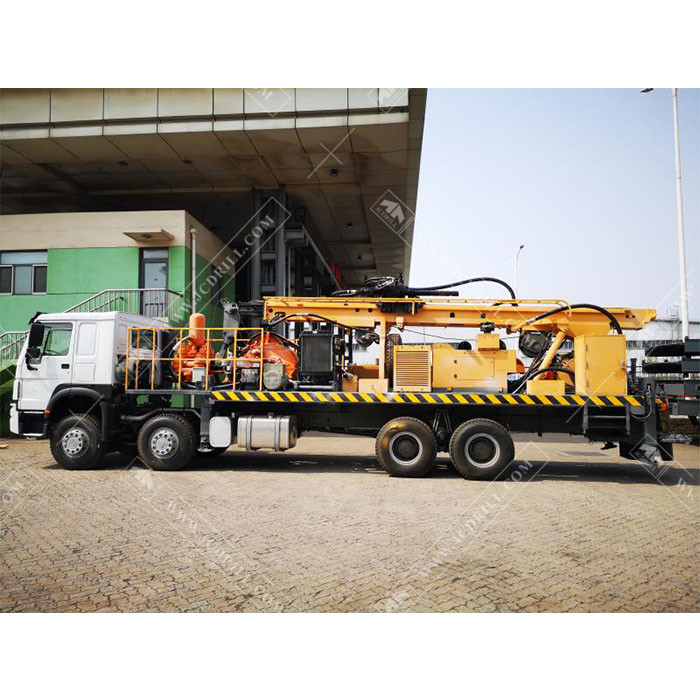

CSD800 Borehole Truck Water Well Drill Machine for Sale

Model: CSD800

Type: Truck Mounted 8x4 (Portable)

Max. Drilling Depth: 800m

Drilling Method: Air Drilling & Mud Drilling

Share

PRODUCT DESCRIPTION

Introduction

Truck mounted water well drilling rig is designed by our professional engineers with the advanced technology concept and it is a hydraulic rotary drilling rig. The truck chassis adopts the special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis. This rig is a rotary drilling rig with directional circulation and It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

borehole drilling rig

Specification

1Geology drilled
All kinds
2Drilling Type
DTH & Mud Rotary
3Drill system and operation
Hydraulic
4Hole DiametermmΦ140—Φ650
5Hole Depthm800
6Rotation TorqueNm9600    1st Gear
14500   2nd Ger
7Rotation Speedrpm0-80    1st Gear
0-110   2nd Ger
8Drill pipe diametermm89/114
9Drill pipe lengthmm4000/4500
10Axial pressureT10
11 Max. Lifting forceT37
Winch
12Lifting force of Main winch(Optional)T4
13Lifting force of hoistT1.5
14Length of steel wire rope(tool winch)m100
15Lifting height of tool winchm8
Engine
16Diesel Engine typeCUMMINS
17Rated Horse power Kw132
18 Electrical System24Volt
Compressor required
19 Compressor TypeRotary Screw/Movable
20Pressure RequiredMpa1.05—6.9
21Air consumptionm³/min16—96
Truck
22Manufacturer
SINOTRUCK HOWO
23Model
ZZ1317M4661W
24Engine
WD615.61A
25Rated Horse powerHp245
26Discharge Standard
EU-2
27Drive type
6*4
28Max.SpeedKm/h102.9
29Steering wheel
left/right(Optional)
Mud Pump
30Type
Hydrulic
31Model
BW850/5
32Strokemm260
33DisplacementL/Min850
34Discharge pressure (Mpa)Mpa5
35Suction tube diametermm89
36Discharge pipe diametermm51
37Liner Diametermm150
Hydraulic Welder(Optional)
38Mnufacturer
Finland Dynaset
39Welding currentA60-250
40Hydraulic Min.oilflowL/min42
41Nom/Max PressureBar190/210
42VoltageV110/220VDC
43PowerKw1or2
Generator
44Generator
Optional
Dimension
45Net WeightT22
46 Shipping Lengthmm10500
47Shipping Widthmm2480
48Shipping Heightmm3650
49 Working size(L*W*H)mm11000*2480*7147

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 76Hp Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, rotation speed is 0-100rpm stepless adjustment and the rotary torque is 4000-4800Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The tools winch winch is used for auxiliary lifting and casing, optional main winch force of 1.5T, rope length of 40m.

12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

13. Competitive in price, low cost of maintain.

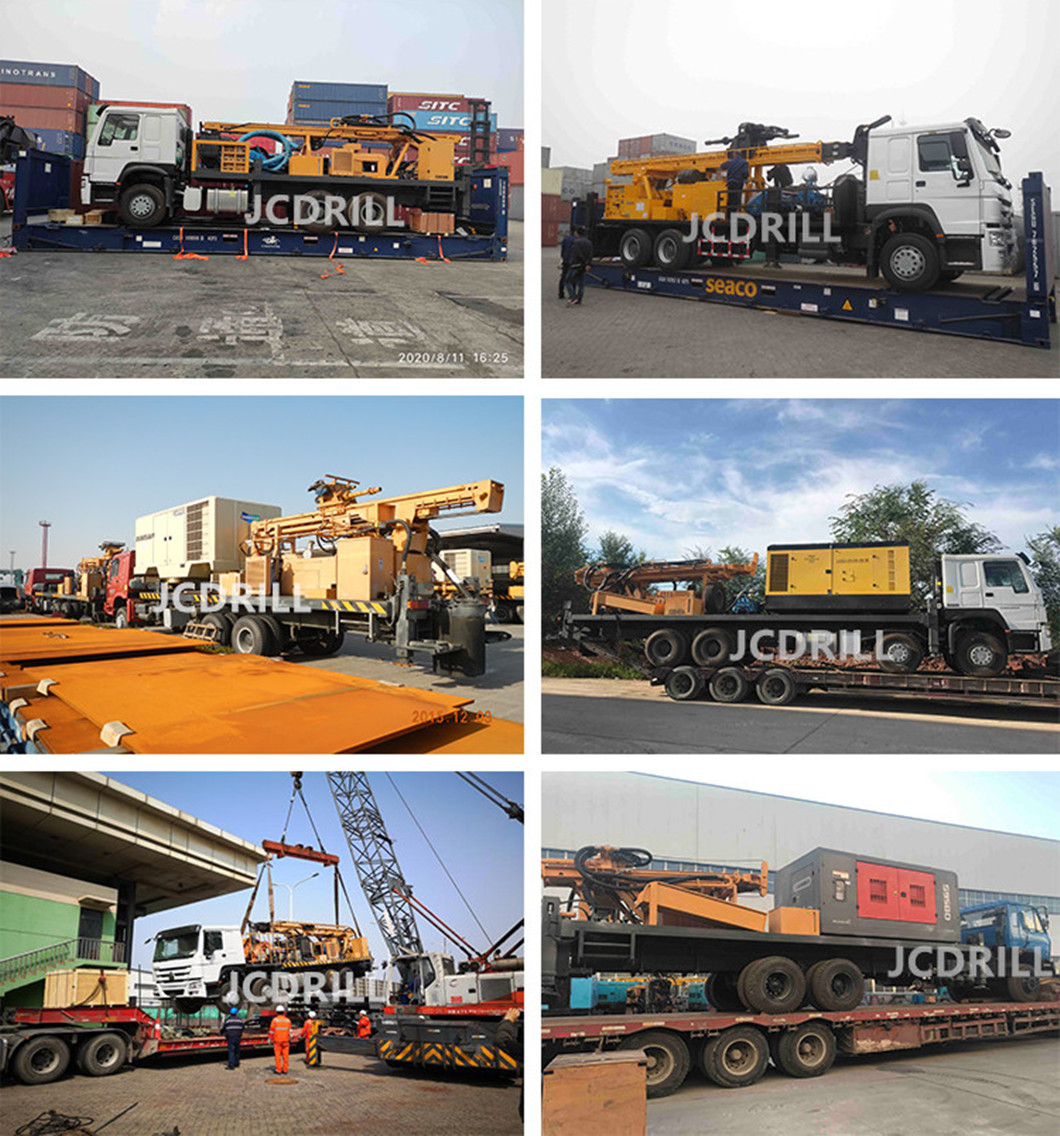

Shipping
