Model: JXY200C
Type: Truck Mounted
Max.Drilling Depth: 200m
Drilling Method: Mud Drilling
Share
PRODUCT DESCRIPTION
Introduction

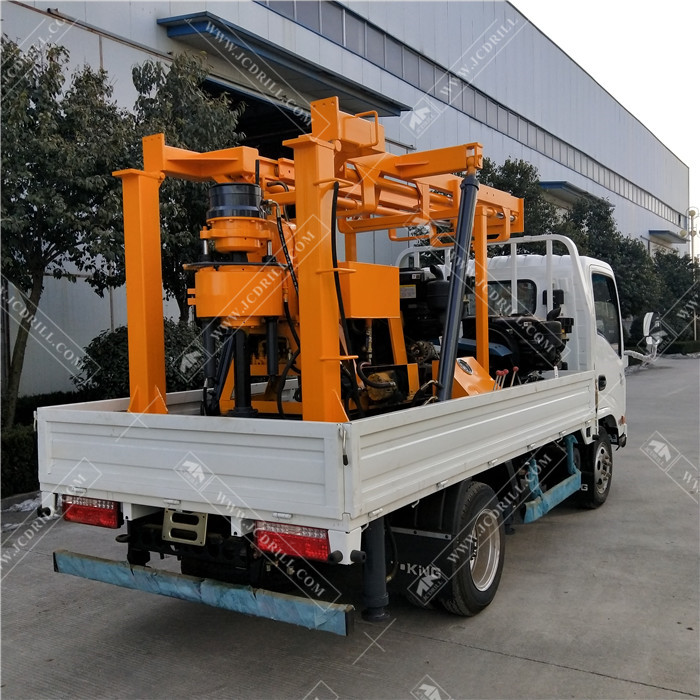

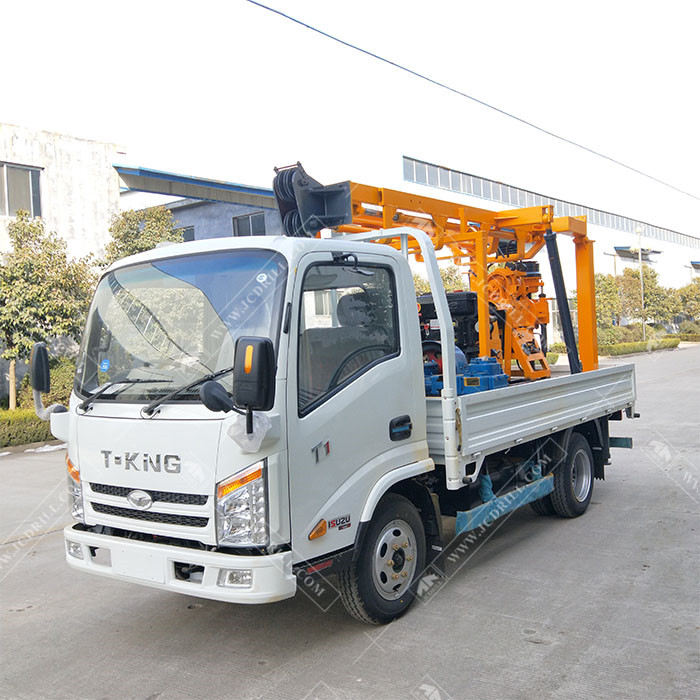

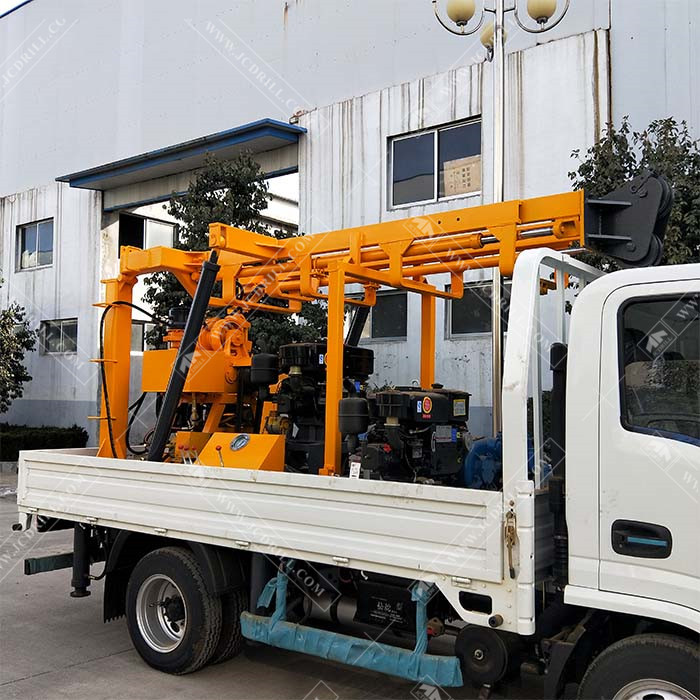

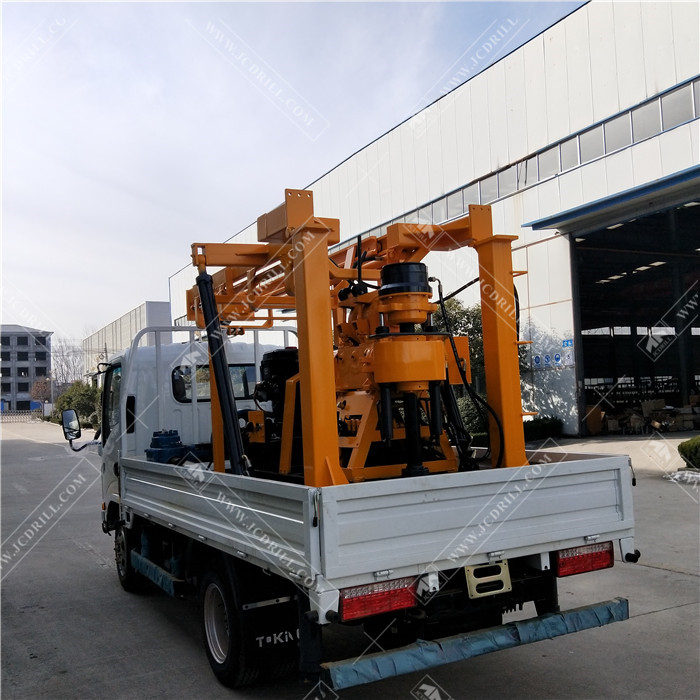

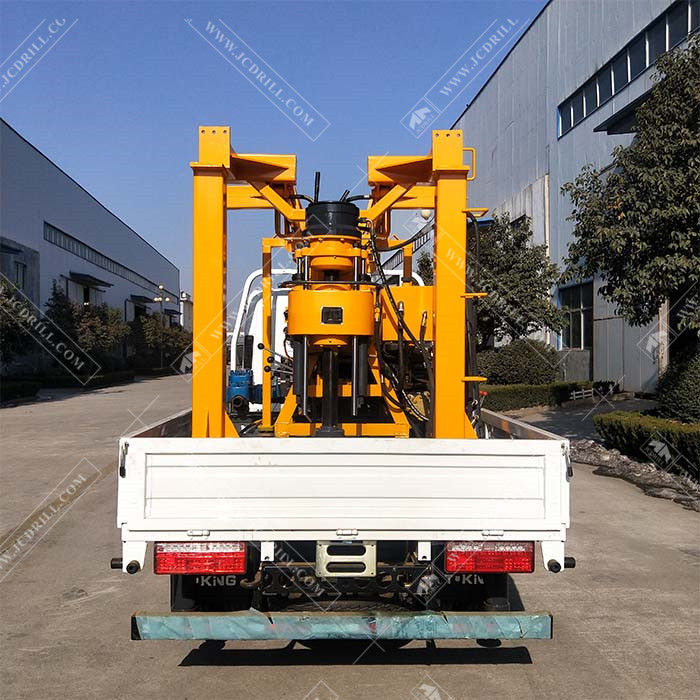

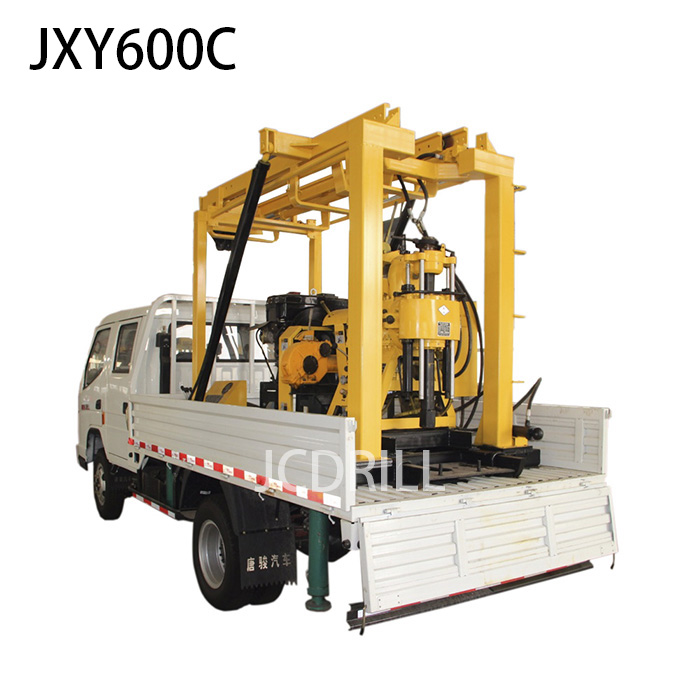

JXY200C Muntipurpose 4x2 Truck Mounted Hydraulic Spindle Core Bore Drilling Machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.The machine is reasonable in structure, simple in operation, convenient in maintenance and convenient in transportation, and no need to lift by crane after it is transported to the site.
Specification
Description | JXY200C |
![]() ![]() | 30-200m |
Drilling diameter | 300-75mm |
Max.Hole Diameter | 500mm |
Drilling Angel | 90-75° |
Mast height | 7000mm |
Mast effective height | 6500mm |
Kelly/active pipe | 59*53mm |
Weight(Without truck) | 1650kgs |
Spline | |
![]() | Ball bearing |
Spindle rotating speed | 64/128/287/557r/min |
Spindle stroke | 450mm |
Spline Max.Torque | 2400N.m |
Hoist | |
![]() | 1800kgf |
Tight rope cubic caliber | 26mm |
Hoisting speed | 17,35,75,151r/s |
Wireline diameter | 12.5mm |
Main hoisting line capacity | 35m |
Power Unit | |
![]() | ZS1115 diesel engine |
Rated power | 14.7kw/2200rpm |
Mud pump | |
![]() | 160L/min |
Rated pressure | 1.3Mpa |
Driving power | 5.15kw |
Main machine weight | 190kg |
Dimension | 1110*725*965mm |
Drill Pipe | |
![]() ![]() | 4.2m |
Drill pipe diameter | 42/50/60mm |
Chassis | |
![]() | 95Hp light truck |
Drive mode | 4X2 |
Power Model | ZS1115E2 |
Emission standard | Euro-5 |
Rated power | 70HP |
Rotating speed | 3200rpm |
![]() | |
2 front jacks and 2 rear jacks. | |
Type | Hydraulic |
Stroke | 350 mm |
Dimensions | |
![]() | 6300 mm |
Overall width | 2200 mm |
Overall height | 3200 mm |
Characteristics
1. The truck chassis is a double cap, which is enough to carry the rig team and allows them to have a good rest.
2. The truck mounted drilling rig has four hydraulic stands, which assists the rig to balance during drilling.
3. The rig is has the full hydraulic control drill mast, which increases drilling safety and efficiency, reduces labor usage and saves cost.
4. The rig has the electric engine starter, which allows the machine to work in extreme weather condition.
5. The rig has two hydraulic slide tracks, which makes it easier to lift up the rod without opening the gear box. The slide device extends the life span of the rig.
6. The hydraulic tube twist machine can be installed, which helps to unload the rod.
7. The truck mounted drilling rig is full automatic, which is easy to operate and free of maintenance.
