Product Name: JXY200T
Type: Truck Mounted
Max.Drilling Depth: 200m
Drilling Method: Mud Drilling
Share
PRODUCT DESCRIPTION
Introduction

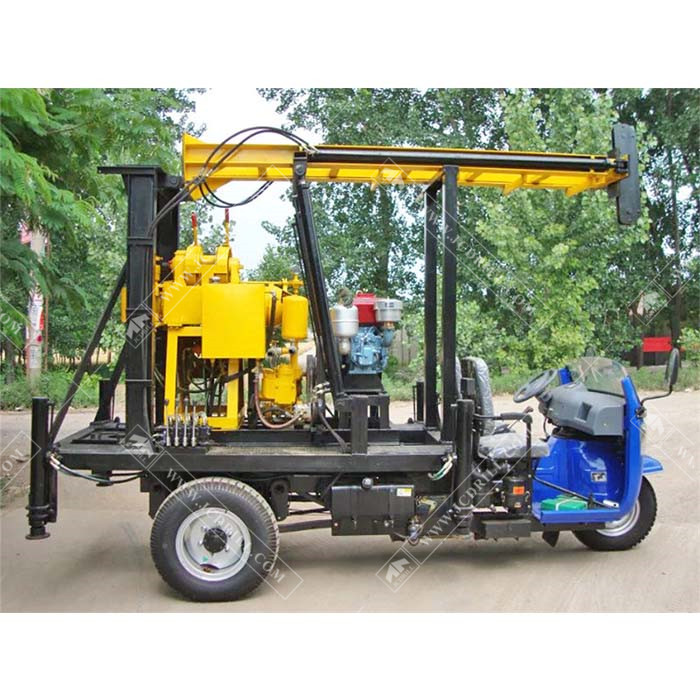

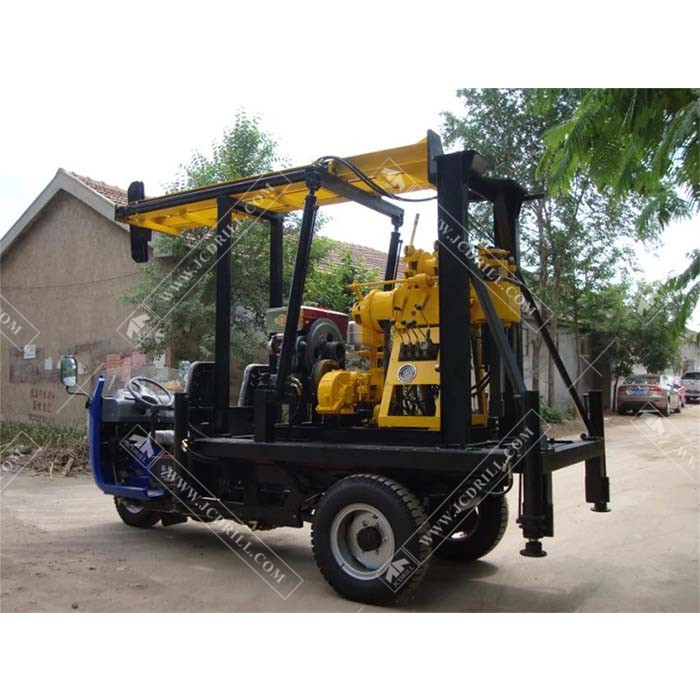

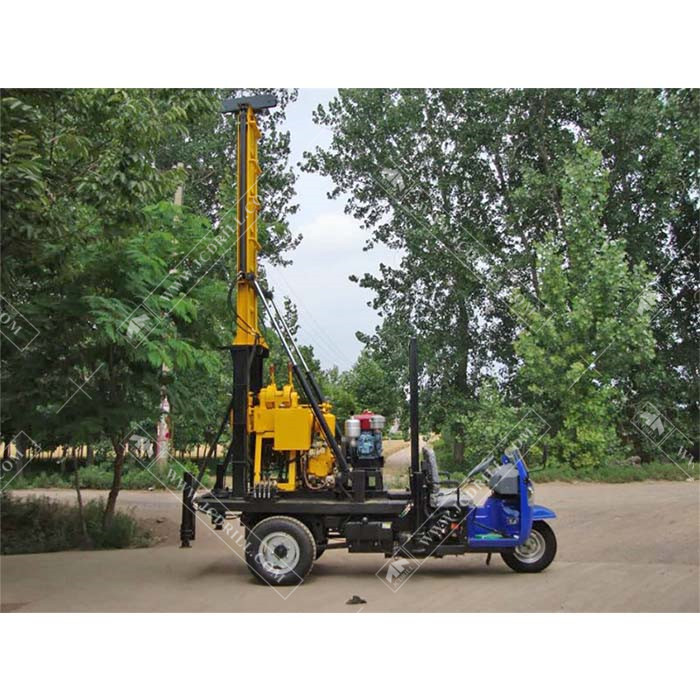

JXY200T Muntipurpose Three Wheel Vehicle Mounted Hydraulic Spindle Core Bore Drilling Machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.
JXY200T is a multi-function hydraulic vehicle mounted rotary spindle drilling rig
It adopts three-wheel chassis 7YP-1475D1, the drive systems, hoist and mud pump are mounted on this chassis, reasonably compacted layout, easy to operate
It configures BW-160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter
The rig has shifting device, it can move on the vehicle, convenient to operate while drilling

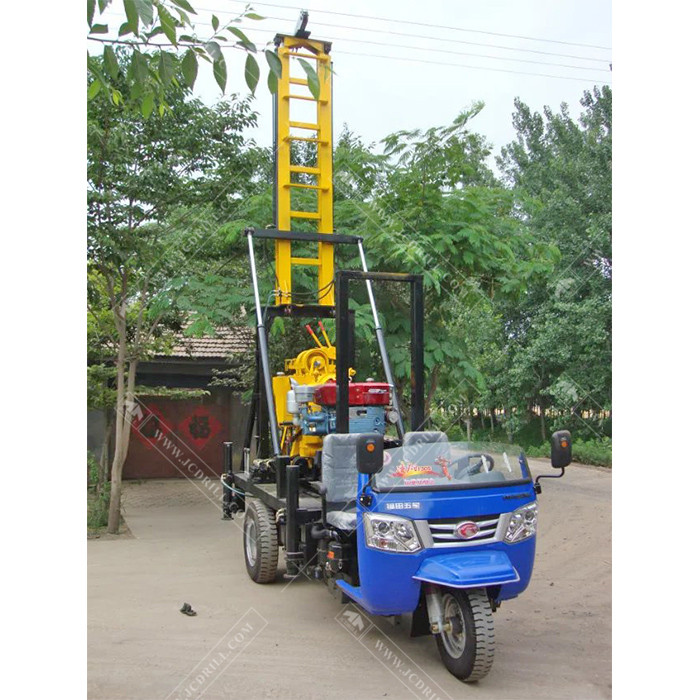

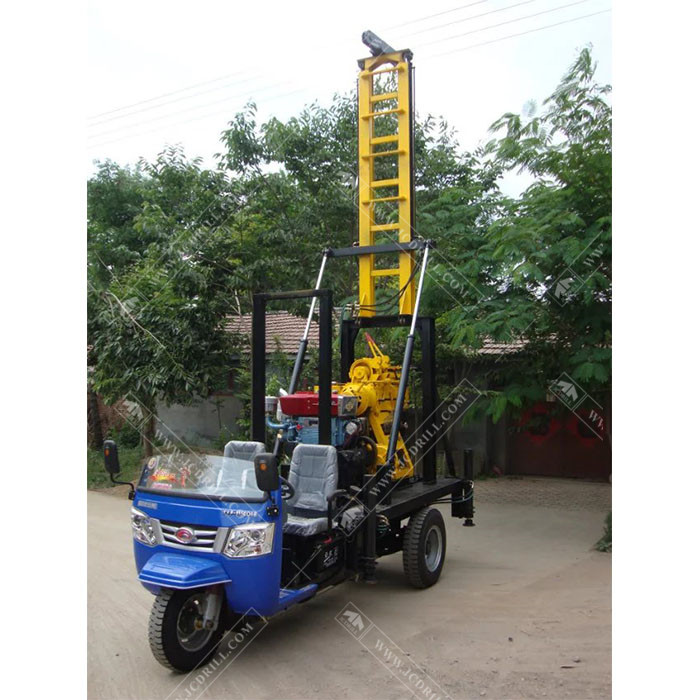

The hydraulic folding mast is safe and convenient to operate.
The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.
Specification
Description | JXY200T |
![]() ![]() | 30-200m |
Drilling diameter | 300-75mm |
Max.Hole Diameter | 500mm |
Drilling Angel | 90-75° |
Mast height | 7000mm |
Mast effective height | 6500mm |
Kelly/active pipe | 59*53mm |
Weight | 1950kgs |
Spline | |
![]() | Ball bearing |
Spindle rotating speed | 64/128/287/557r/min |
Spindle stroke | 450mm |
Spline Max.Torque | 2400N.m |
Hoist | |
![]() | 1800kgf |
Tight rope cubic caliber | 26mm |
hoisting speed | 17,35,75,151r/s |
Wireline diameter | 12.5mm |
Main hoisting line capacity | 35m |
Power Unit | |
![]() | ZS1115 diesel engine |
Rated power | 14.7kw/2200rpm |
Mud pump | |
![]() | 160L/min |
Rated pressure | 1.3Mpa |
Driving power | 5.15kw |
main machine weight | 190kg |
Dimension | 1110*725*965mm |
Drill Pipe | |
![]() ![]() | 4.2m |
Drill pipe diameter | 42/50/60mm |
Chassis | |
![]() | 7YP-1475D1 |
Drive mode | Rear-wheel drive |
Power Model | ZS1115E2 |
emission standard | GB18322-2002,GB19756-2005(Ⅱ) |
Rated power | 16.2kw |
Rotating speed | 2200rpm |
![]() | |
2 front jacks and 2 rear jacks. | |
Type | Hydraulic |
Stroke | 350 mm |
Dimensions | |
![]() | 4300 mm |
Overall width | 1600 mm |
Overall height | 2800 mm |
