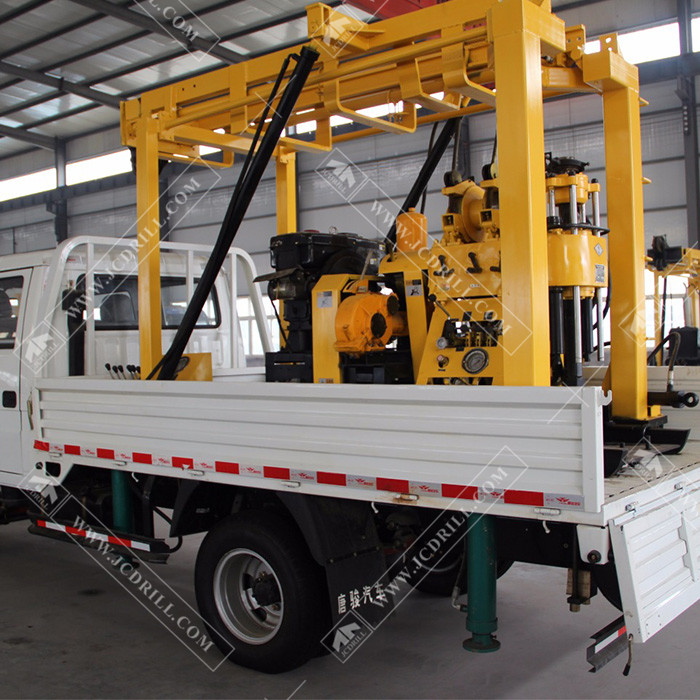

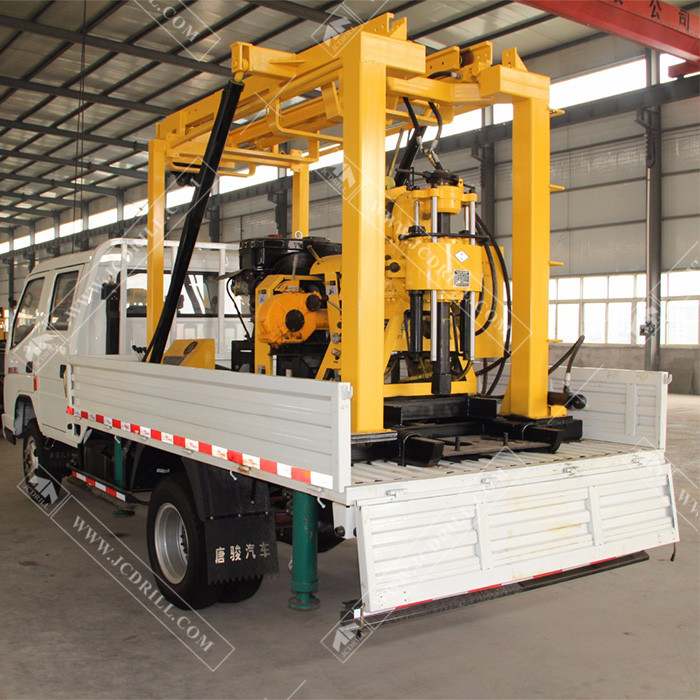

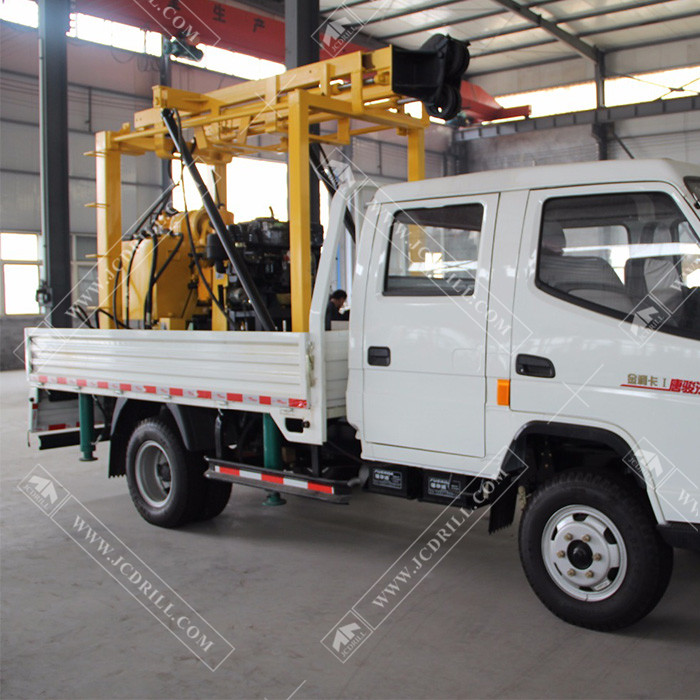

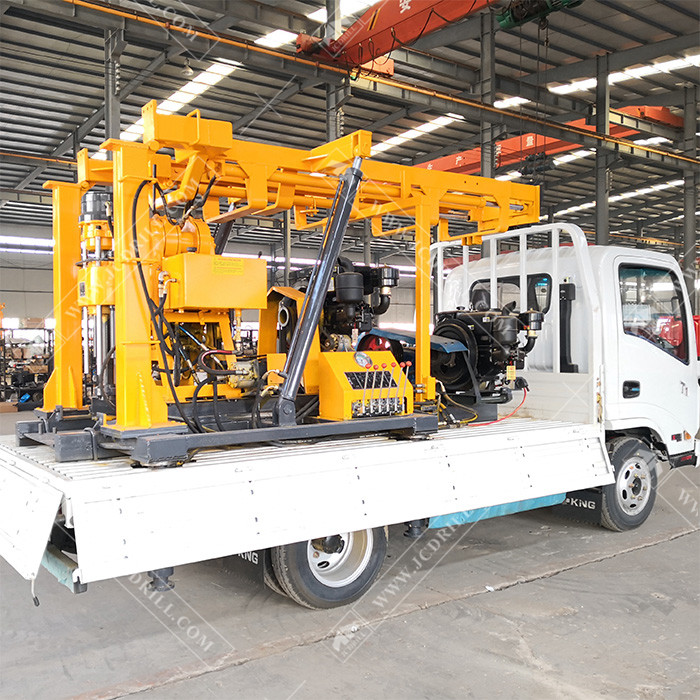

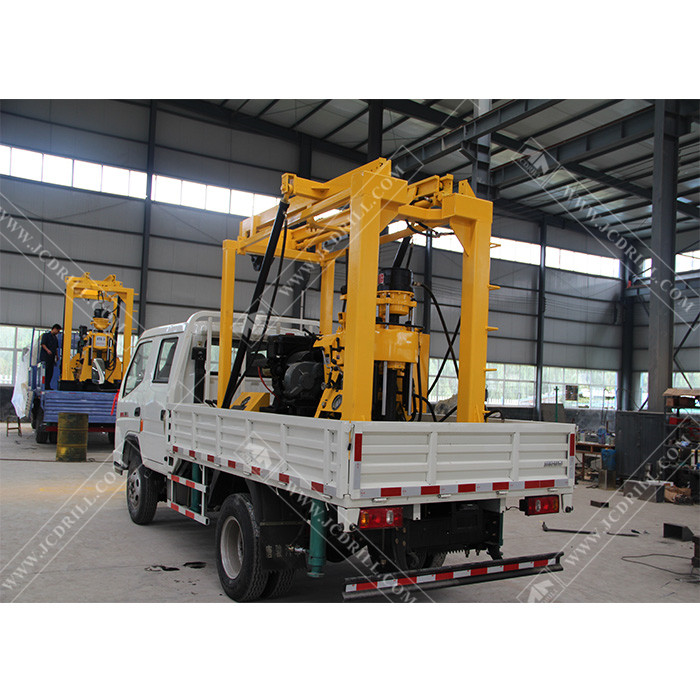

JXY400C Truck Mounted Spindle Core Drilling Machine

Model: JXY400C

Type: Truck Mounted

Max.Drilling Depth: 400m

Drilling Method: Mud Drilling

Share

PRODUCT DESCRIPTION

Introduction

JXY400C Muntipurpose 4x2 Truck Mounted Hydraulic Spindle Core Borehole Drilling Machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning. The machine is reasonable in structure, simple in operation, convenient in maintenance and convenient in transportation, and no need to lift by crane after it is transported to the site.

Specification

DescriptionJXY400C
Drilling depth30-400m
Drilling diameter300-75mm
Max.Hole Diameter500mm
Drilling Angel0-90°
Mast height7000mm
Mast effective height6500mm
Kelly/active pipe59*53mm
Weight(Without truck)2450kgs
Spline
StructureBall bearing
Spindle rotating speed-Forward50-1150rpm
Spindle rotating speed-revise29-137rpm
Spindle stroke600mm
Spline Max. Torque2850N.m
Hoist
Max.Hoisting Capacity4000kgs
Hoisting speed0.5-1.9m/s
Wireline diameter14mm
Main hoisting line capacity30m
Power Unit
Rated power-Diesel15kw/2200rpm
Rated power-Electric(Optional)17.8kw
Mud pump(Optional)
Rated flow160/200L/min
Rated pressure1.3/4Mpa
Driving power5.15kw
Main machine weight190kg
Dimension1110*725*965mm
Drill Pipe
Drill pipe length4.2m
Drill pipe diameter42/50/60/76mm
Chassis
Model95Hp light truck
Drive mode4X2
Power ModelZS1115E2
Emission standardEuro-5
Rated power70HP
Rotating speed3200rpm
Stabilizing Jack
2 front jacks and 2 rear jacks.
TypeHydraulic
Stroke350 mm
Dimensions
Overall length6300 mm
Overall width2200 mm
Overall height3200 mm

Characteristics

1. The truck chassis is a double cap, which is enough to carry the rig team and allows them to have a good rest.

2. The truck mounted drilling rig has four hydraulic stands, which assists the rig to balance during drilling.

3. The rig is has the full hydraulic control drill mast, which increases drilling safety and efficiency, reduces labor usage and saves cost.

4. The rig has the electric engine starter, which allows the machine to work in extreme weather condition.

5. The rig has two hydraulic slide tracks, which makes it easier to lift up the rod without opening the gear box. The slide device extends the life span of the rig.

6. The hydraulic tube twist machine can be installed, which helps to unload the rod.

7. The truck mounted drilling rig is full automatic, which is easy to operate and free of maintenance.
