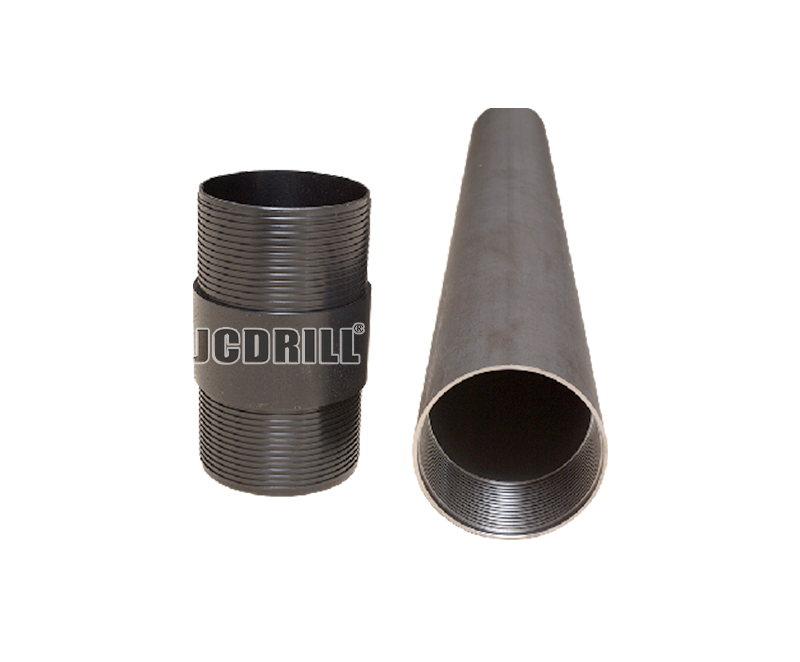

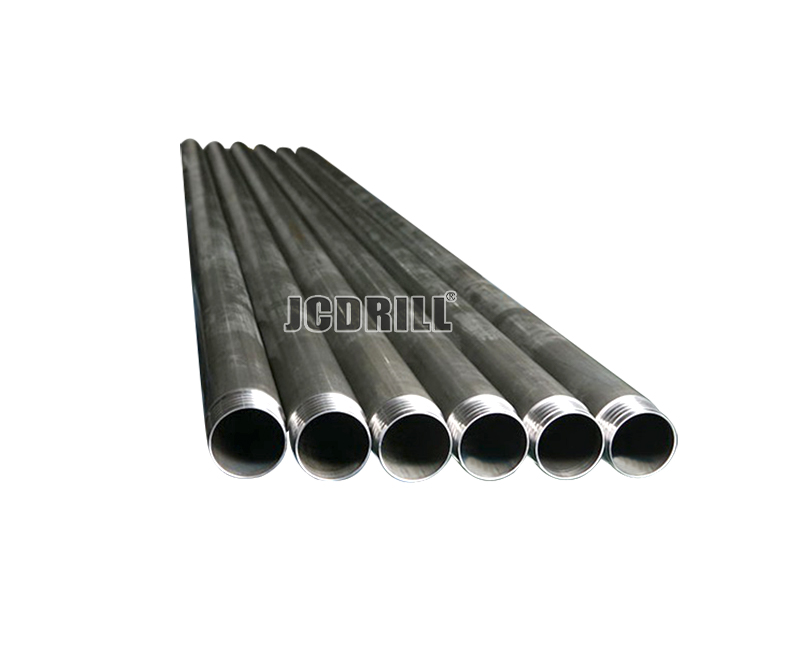

Type: Core Drilling Casing

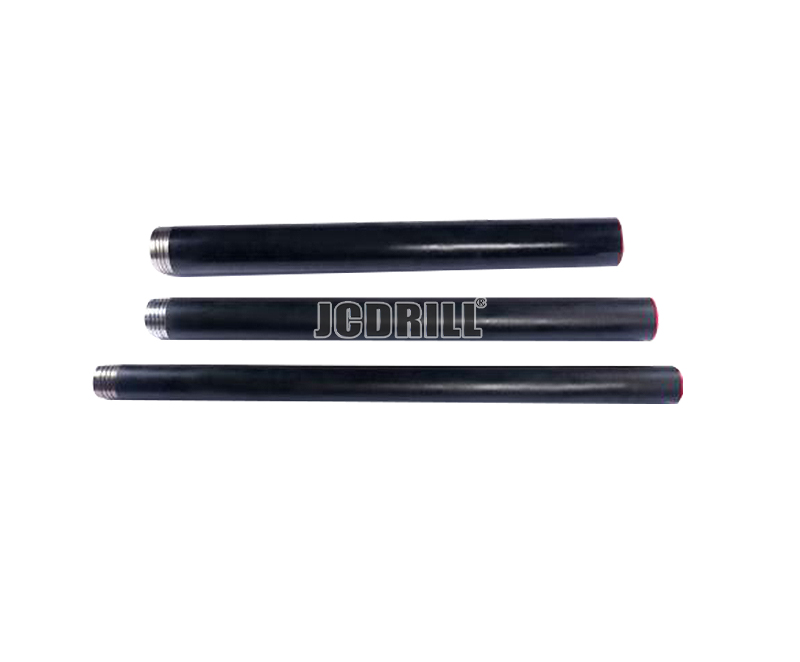

Length: 0.6m 1.5m 3m
>> Application
Casings are often used when there is need to stabilize the drill hole and protect it from leaking, collapsing or water-bearung stratum. Casings are flush joint type and available in X,W and WT threads.
Share
PRODUCT DESCRIPTION
It is drilling equipment with Core Barrel and Bit attached at its foremost part and is maintained by the Chuck of the Drill Rig.
It’s main role is conveying the rotation and pressure generated by the drilling machine and making the drilling water reach to the Bit, and also conveying the rapid cooling or slime.
>> Characteristics
Brief Introductions of Casing Pipe
It is used for protecting subsurface formations. It also protects the wellbore from collapsing. Owing to its functions, circulation and extraction of drilling fluid are allowed to take place. Geotec have years of experience in producing quality casing pipes, any of your requirements will be warlmly welcomed.
Features of Casing Pipe
>> Use optimized buttress thread so that the connecting strength can reach the strength of the pipe body.
>> High seal reliability: this product has the multi-seal configuration.
>> The joint has high capability to resist compression, bending and over-torque load with the reverse torque internal shoulder.
>> Energy loss reduction: the air and liquid turbulence are reduced by the inner flat design.
Available size for Casing Pipe
"W" Design: AW,BW,NW,HW,PW,SW /HWT,PWT
Metric Series: 46,56,66,76,86,101,116,131,146
"X" Design: AX,BX,NX,HX,PX,SX
>> Specification
| Std. | Length(m) | OD*WT(mm) | Thread pitch | Thread Length(mm) | Std. | Length(m) | OD*WT(mm) | Thread pitch | Thread Length(mm) |
| X Series Casing with Coupling | W Series Direct Connect Casing | ||||||||
| A Diameter | A Diameter | ||||||||
| AX | 1.5 | 57.1*4.35 | 8.0thread/inch | 57.5 | AW | 0.6 | 57.1*4.35 | 4.0thread/inch | 57.2 |
| AX | 3 | 57.1*4.35 | 8.0thread/inch | 57.5 | AW | 1.5 | 57.1*4.35 | 4.0thread/inch | 57.2 |
| AX | 57.2 | 8.0thread/inch | 57.5 | AW | 3 | 57.1*4.35 | 4.0thread/inch | 57.2 | |
| B Diameter | B Diameter | ||||||||
| BX | 1.5 | 73.0*4.5 | 8.0thread/inch | 60.5 | BW | 0.6 | 73.0*6.35 | 4.0thread/inch | 63.5 |
| BX | 3 | 73.0*4.5 | 8.0thread/inch | 60.5 | BW | 1.5 | 73.0*6.35 | 4.0thread/inch | 63.5 |
| BX | 73.2 | 8.0thread/inch | 60.5 | BW | 3 | 73.0*6.35 | 4.0thread/inch | 63.5 | |
| N Diameter | N Diameter | ||||||||
| NX | 1.5 | 89.0*4.5 | 8.0thread/inch | 64 | NW | 0.6 | 88.9*6.35 | 4.0thread/inch | 69.9 |
| NX | 3 | 89.0*4.5 | 8.0thread/inch | 64 | NW | 1.5 | 88.9*6.35 | 4.0thread/inch | 69.9 |
| NX | 89 | 8.0thread/inch | 64 | NW | 3 | 88.9*6.35 | 4.0thread/inch | 69.9 | |
| H Diameter | H Diameter | ||||||||
| HX | 1.5 | 114.3*6.35 | 5.0thread/inch | 67 | HW | 0.6 | 114.3*6.35 | 4.0thread/inch | 76.2 |
| HX | 3 | 114.3*6.35 | 5.0thread/inch | 67 | HW | 1.5 | 114.3*6.35 | 4.0thread/inch | 76.2 |
| HX | 114.5 | 5.0thread/inch | 67 | HW | 3 | 114.3*6.35 | 4.0thread/inch | 76.2 | |
| P Diameter | P Diameter | ||||||||
| PX | 1.5 | 139.7*7.1 | 5.0thread/inch | 70 | PW | 0.6 | 139.7*7.1 | 3.0thread/inch | 82.6 |
| PX | 3 | 139.7*7.1 | 5.0thread/inch | 70 | PW | 1.5 | 139.7*7.1 | 3.0thread/inch | 82.6 |
| PX | 140 | 5.0thread/inch | 70 | PW | 3 | 139.7*7.1 | 3.0thread/inch | 82.6 | |
| S Diameter | S Diameter | ||||||||
| SX | 1.5 | 168.0*6.5 | 5.0thread/inch | 76.5 | SW | 0.6 | 168.3*7.95 | 3.0thread/inch | 88.9 |
| SX | 3 | 168.0*6.5 | 5.0thread/inch | 76.5 | SW | 1.5 | 168.3*7.95 | 3.0thread/inch | 88.9 |
| SX | 168 | 5.0thread/inch | 76.5 | SW | 3 | 168.3*7.95 | 3.0thread/inch | 88.9 | |
| WT Series Direct Connect Casing | |||||||||
| P Diameter | |||||||||
| HWT | 0.6 | 114.3*6.35 | 2.5thread/inch | 62.74 | PWT | 0.6 | 139.7*7.1 | 2.5thread/inch | 62.74 |
| HWT | 1.5 | 114.3*6.35 | 2.5thread/inch | 62.74 | PWT | 1.5 | 139.7*7.1 | 2.5thread/inch | 62.74 |
| HWT | 3 | 114.3*6.35 | 2.5thread/inch | 62.74 | PWT | 3 | 139.7*7.1 | 2.5thread/inch | 62.74 |

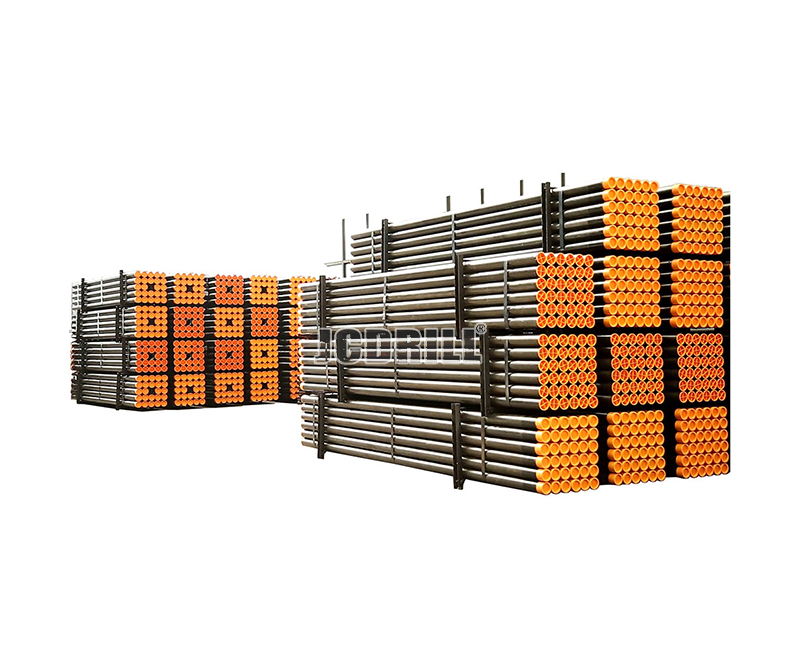

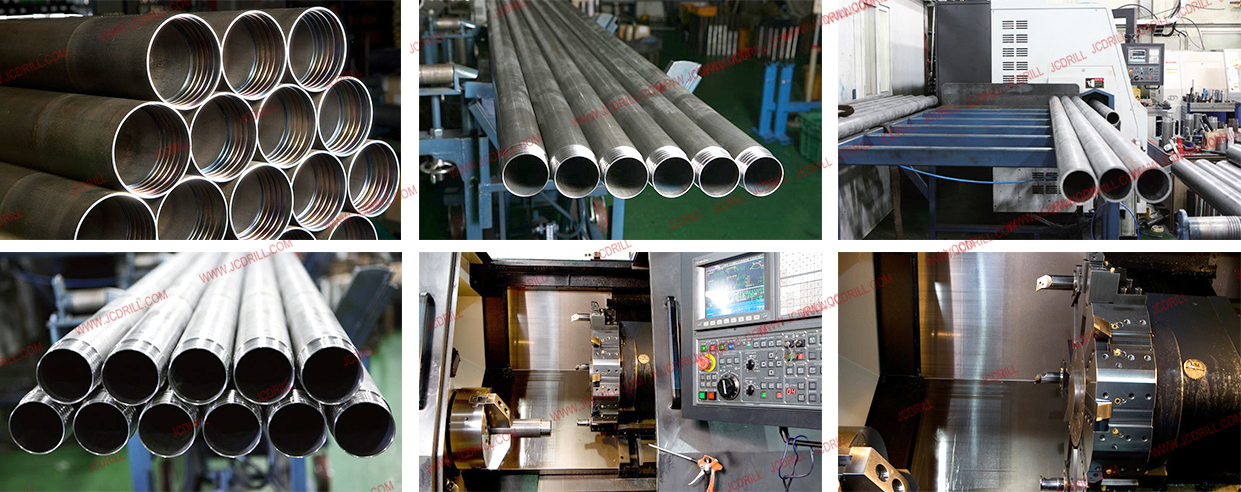

>> Production&Stock
