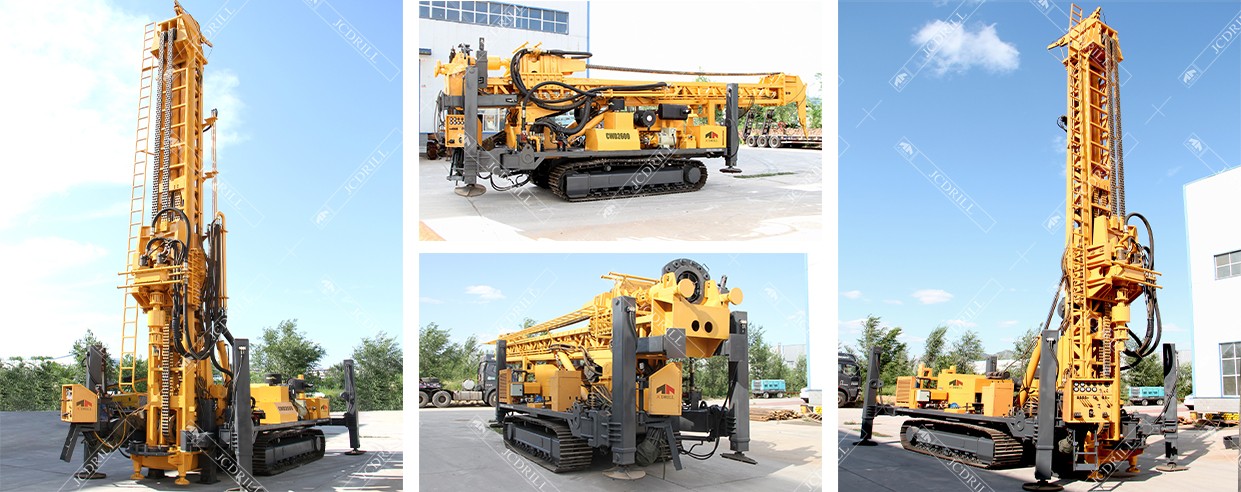

CWD2000 Crawler Hydraulic Borehole DTH Hard Formation Water Well Drilling Rig Machine

CWD2000 crawler-mounted drilling rig can drill in all kinds of formations by mud drilling in soft formations and air DTH hammer in rock drilling. DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than of traditional rotary drilling.

CWD2000 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW1500/12 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a diesel engine, 360hp CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>> Main winch are available on the rig so it is highly efficient when the rig drills on mud rock and the weathering formation.

>> The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>> Specification

>> Shipping
