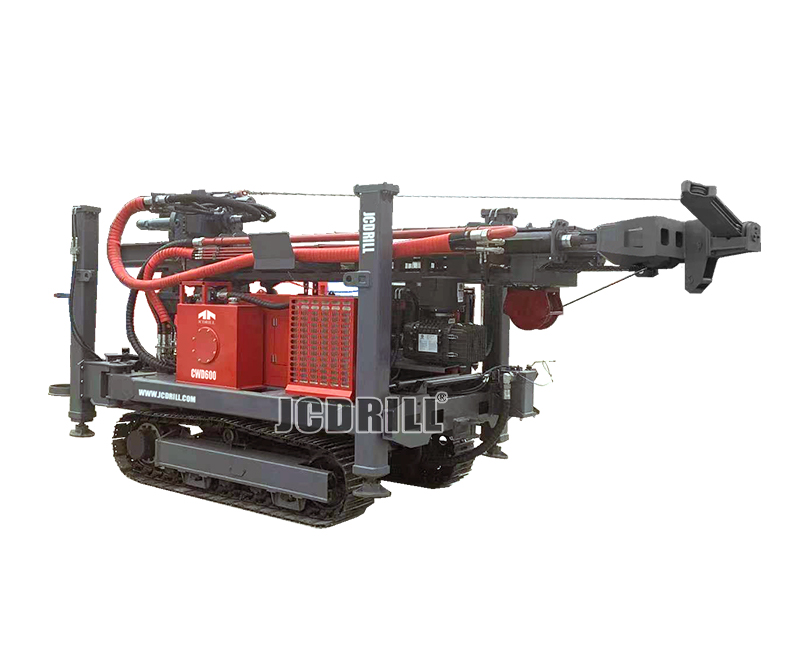

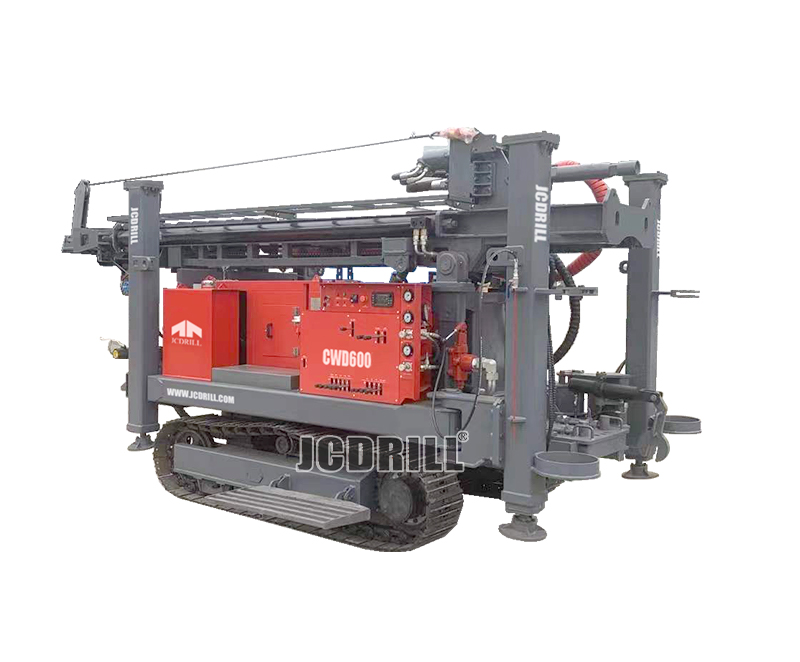

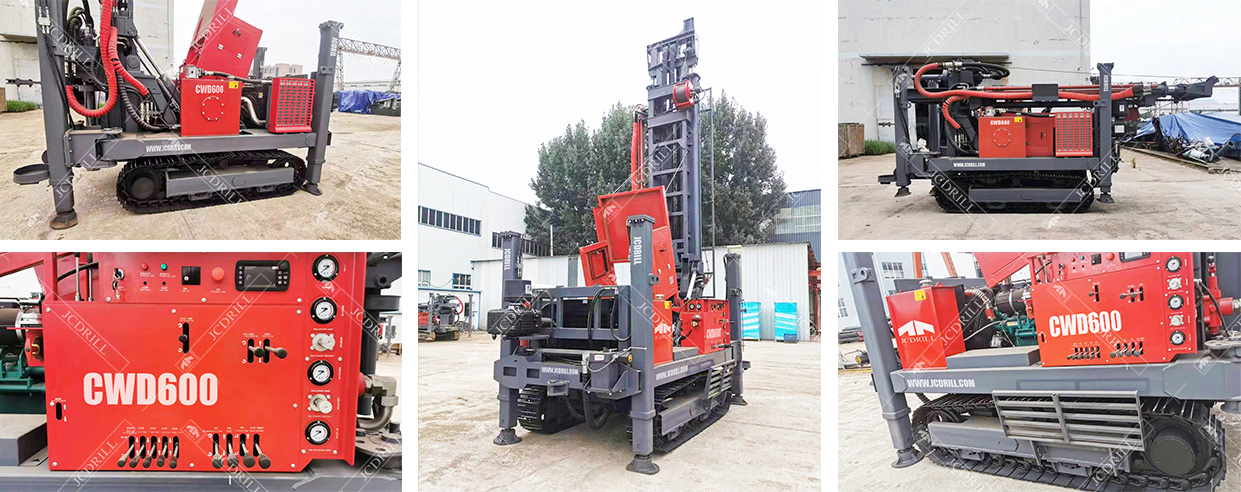

Hydraulic Crawler Water Well Drilling Rig for 600m

Model: CWD600

Chassis: Steel Track

Max. Drilling Depth: 600m

Drilling Method: Air Drilling & Mud Drilling

>> Application

CWD600 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.



CWD600 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD600 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

>> Characteristics

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a diesel engine,140kw Yunnei engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> Specification

GeneralGeology drilled
All Kind
Drilling Type
Drill system and operation
Hole DiametermmΦ90—Φ500
Hole Depthm600
RotationRotation TorqueNm5500-11000
Rotation Speedrpm70-140
Feeding SystemDrill pipe diametermm89/102/114
Drill pipe lengthmm6000
Max. Feed SpeedM/min60
Max. Lifting SpeedM/min25
Feed Strokemm6600
WinchMax. Pull back CapacityT32
Lifting force of WinchT1.5
EngineDiesel Engine type
6Cylinder,water cooling
Diesel Engine Brand
Rated Horse power Kw140
Compressor required(Optional)Pressure RequiredMpa2.0-3.5
Air consumptionm³/min15-30
Mud Pump(Optional/Separate)Model
Discharge pressure (Mpa)Mpa2/5
DimensionNet WeightT10.2
Transportation dimensionmm5780*1900*2610
Work Dimensionmm4100*3100*9690
Ground Clearancemm305
