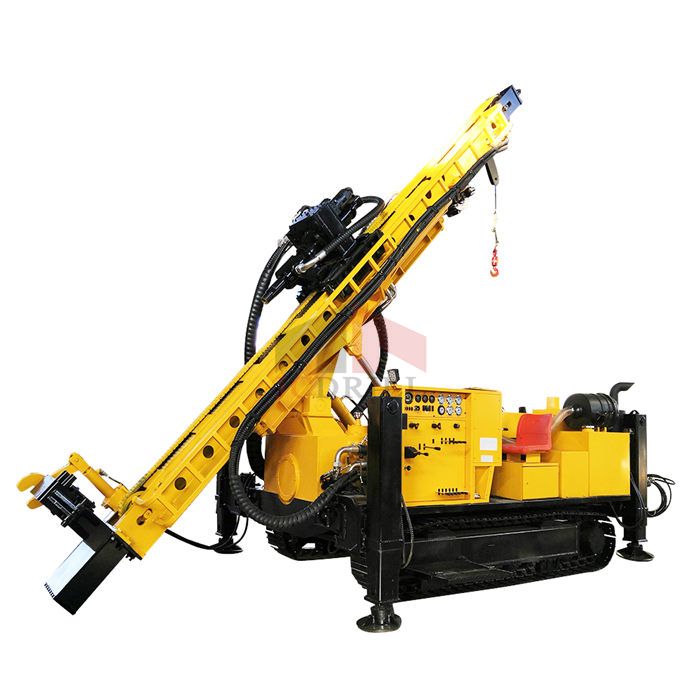

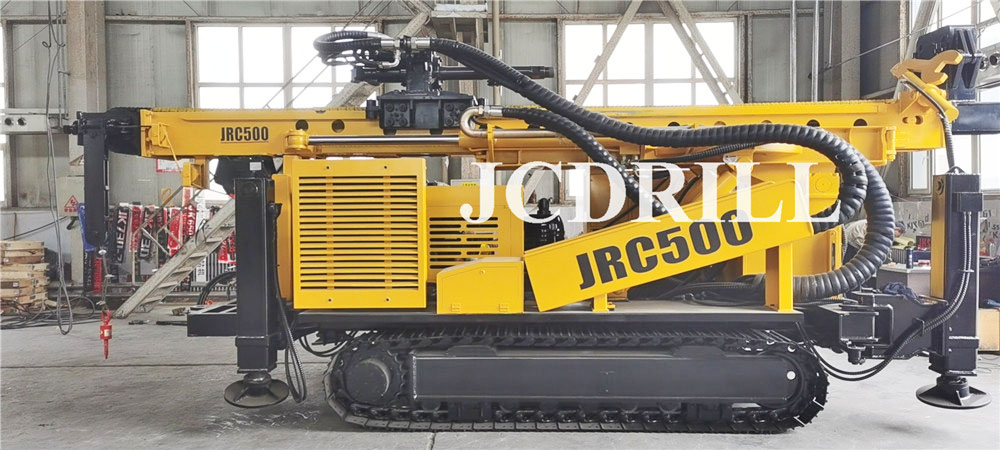

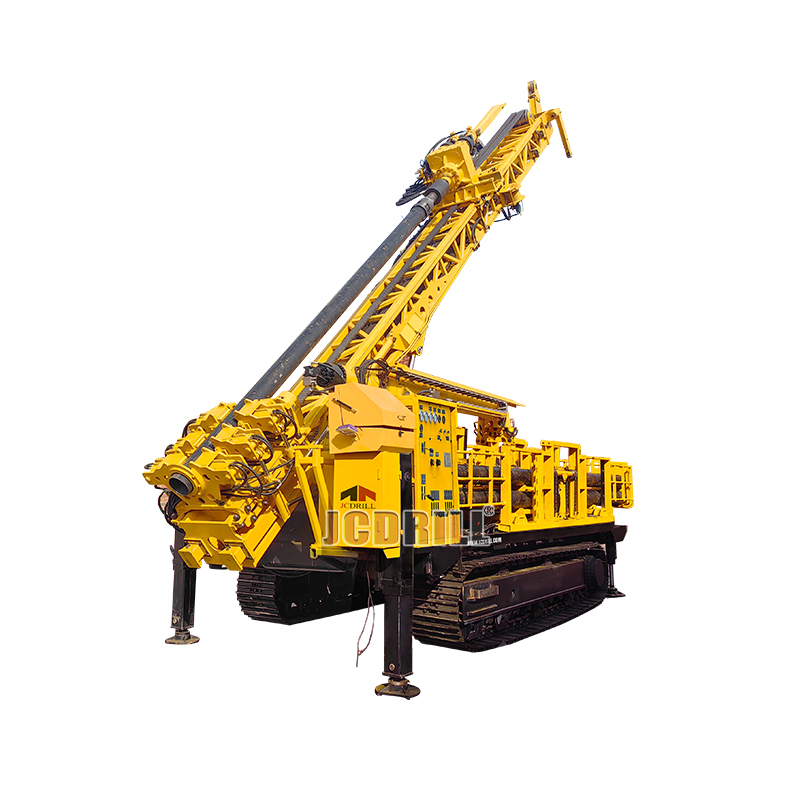

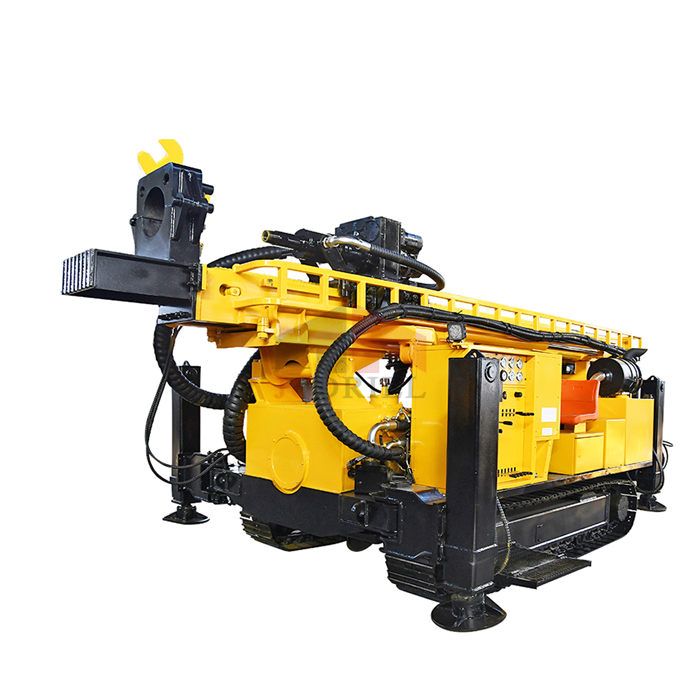

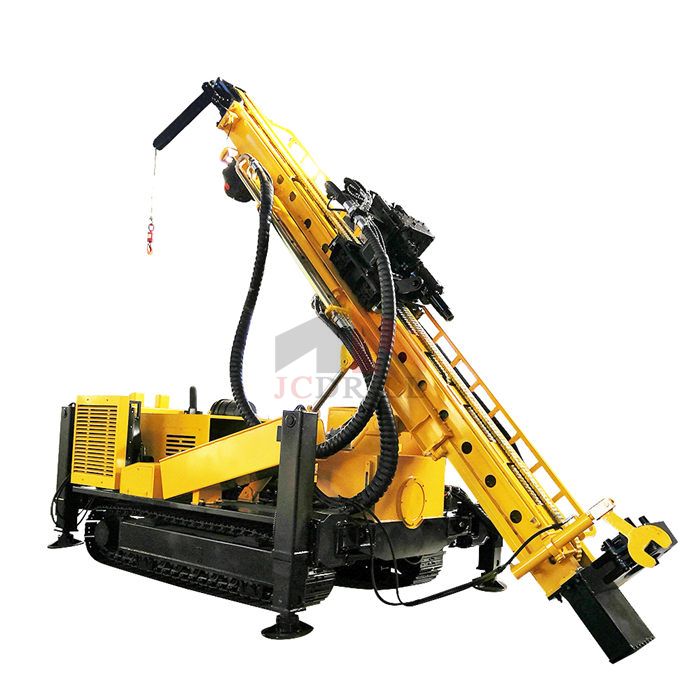

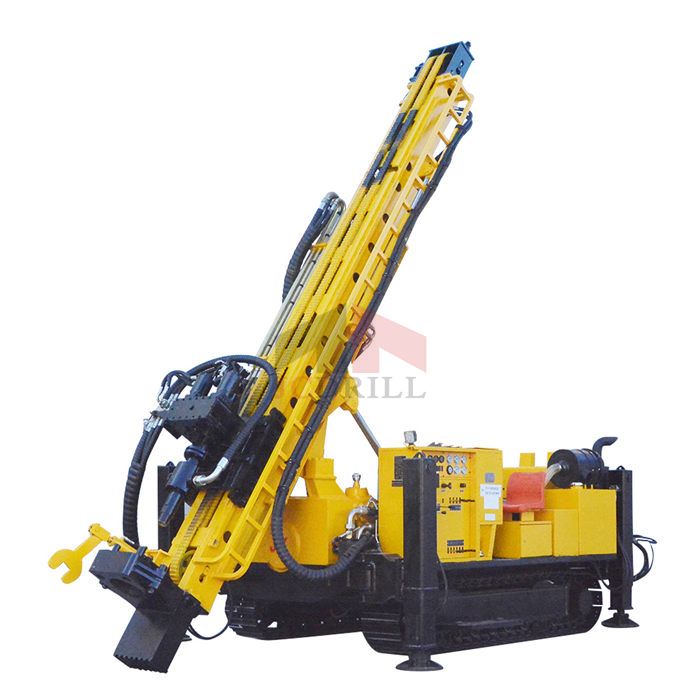

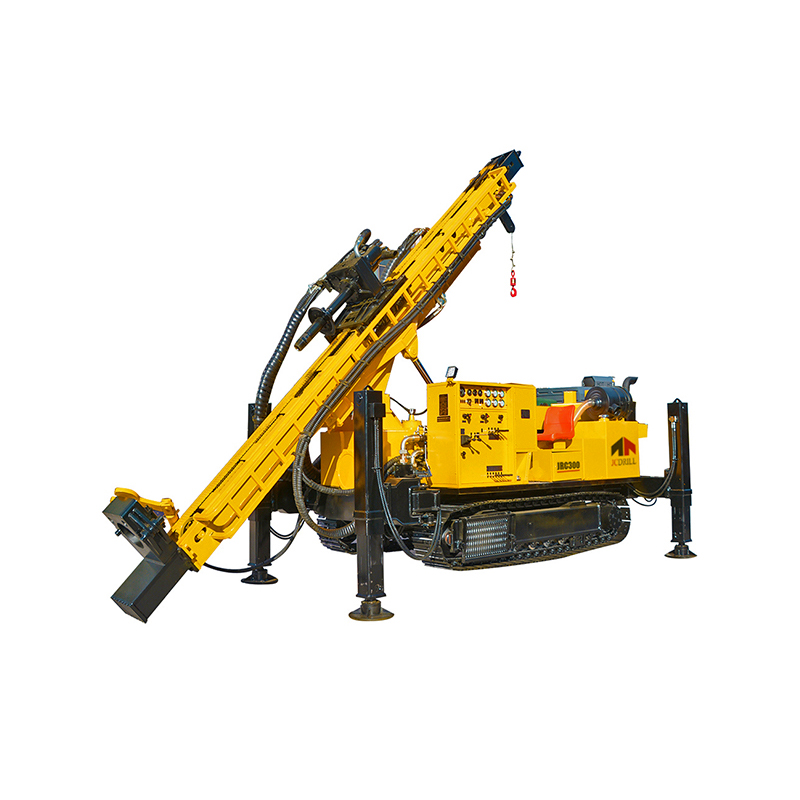

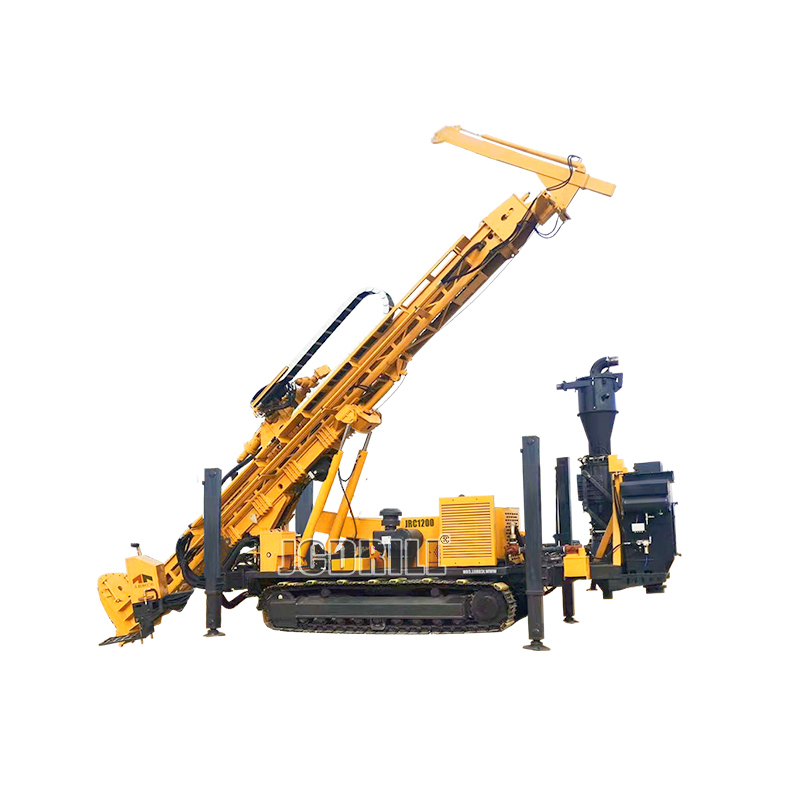

JRC500 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction .
Share

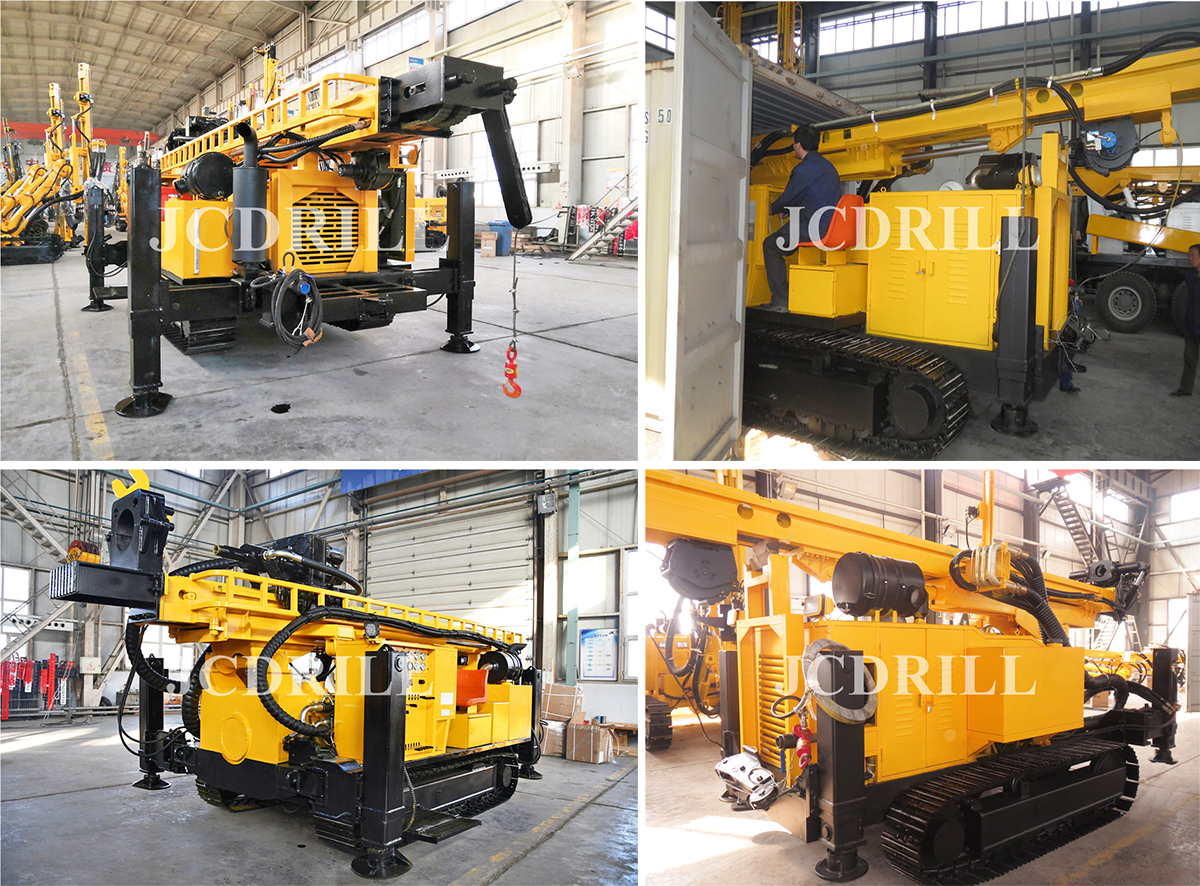

PRODUCT DESCRIPTION
Advantage

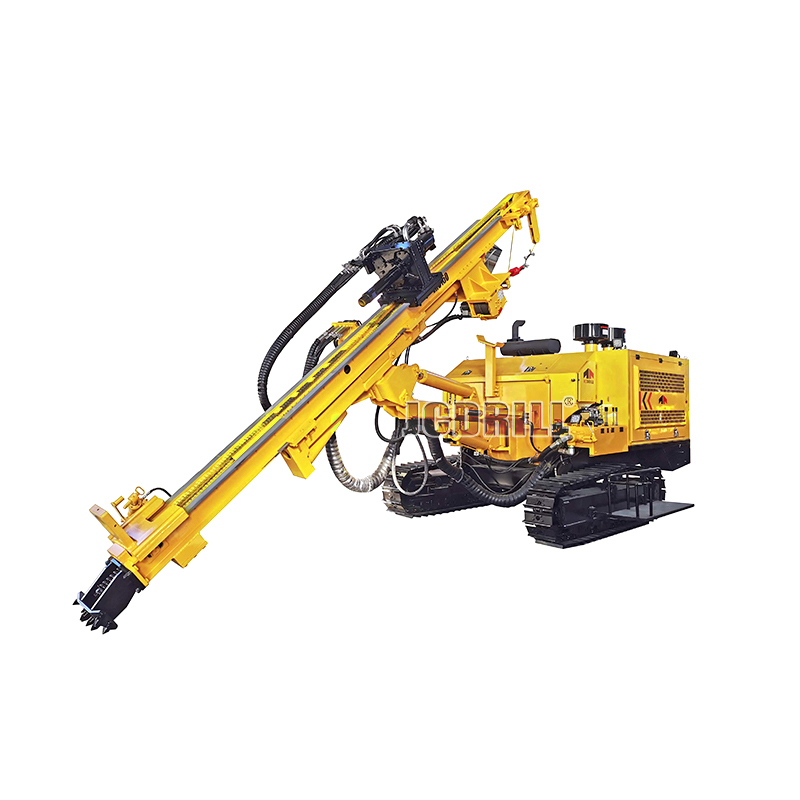

The reverse circulation rig(rc drilling machine) is a cost-effective, environmentally safe, energy-saving and efficient split-type down-the-hole drilling rig widely used in various open pit mines, quarries, engineering sites, etc. With a hole diameter ranging from 90 to 110 mm, the down hole drilling rig has a low body and a new casing design, which makes the product more stable and aesthetically pleasing than similar machines.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & RC | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90—Φ400 |
| 5 | Hole Depth | m | 500 |
| 6 | Rotation Torque | KN | 85-100 |
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger | |||
| 8 | Drill pipe diameter | mm | 76/89/114 |
| 9 | Drill pipe length | mm | 4/4500 |
| 10 | Max. Feed Speed | M/min | 18 |
| 11 | Max. Lifting Speed | M/min | 5-20 |
| 12 | Feed Stroke | mm | 3400 |
| 13 | Max. Lifting force | T | 28 |
| 14 | Lifting force of Main winch(Optional) | T | 4 |
| 15 | Lifting force of hoist | T | 1.5 |
| 16 | Lifting height of tool winch | m | 100 |
| 17 | Diesel Engine type | CUMMINS | |
| 18 | Rated Horse power | Kw | 180 |
| 19 | Electrical System | Volt | 24 |
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 1.05—4.5 |
| 22 | Air consumption | m³/min | 16—60 |
| 23 | Net Weight | T | 13 |
| 24 | Shipping Length | mm | 7550 |
| 25 | Shipping Width | mm | 2260 |
| 26 | Shipping Height | mm | 2700 |
| 27 | Ground Clearance | mm | 300 |
| 28 | Volume of Flow | mm | 20 |

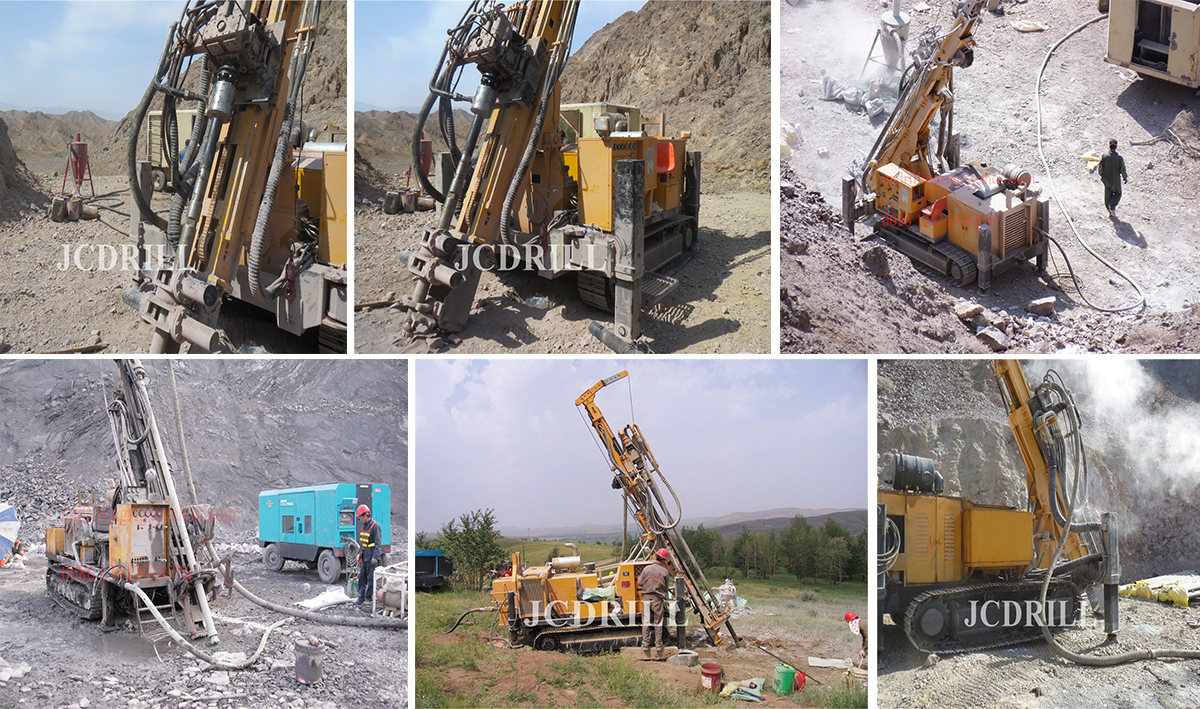

Application
Characteristics
1. Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2. Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3. During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4. Also it’s available to positive circulation use normal drilling tool.
5. The working system composed of feed system, guide(mast), rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6. Axes pressure, feed speed, rotary speed is adjustable.
7. The walking system is a self-walking system, convenient for moving, which could install four hydraulic leg, when load on truck, it doesn’t need hiking up, it can load on truck directly.
8. Four hydraulic leg use for keep the balance of the drilling during working.
9. The sub winding could hoisting Max.1ton drilling tool, it also could help to rod change.
10.The guide(mast) could working in 45°-90°, guide have a extention system, which ensure the guide could moving toward the drilling surface, to keep the balance of the guide.
11. Gradienter, angle label and centralizer to ensure the precision accuracy of hole.
12. The air system have a special lubrication system to lubricating the hammer to extend the service life.
