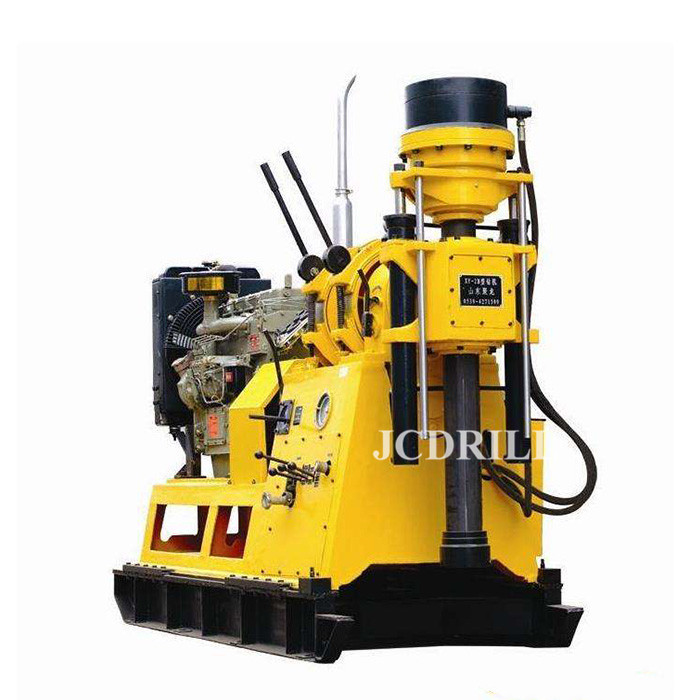

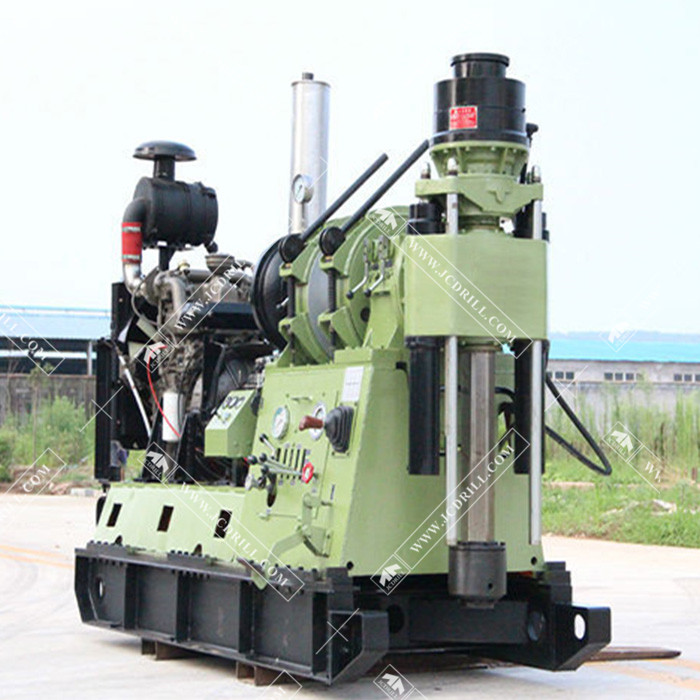

XY-5A Spindle Hydraulic Core Drilling Rig

Hold Diameter: 43-89 mm

Drilling Depth: 1800 to 900 m

Drilling Method: Spindle core drilling rig

>> Application

HXY-5A spindle type core drilling rig usually takes diamond bit or hard tungsten-carbide tipped bit. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It can also be used in the exploration of superficial-zone petroleum and natural gas, mines' ventilation and water discharge tunnel drilling as well as large-diameter foundation piling.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

XY-5A spindle-type core drilling rig incorporates the advantages and characteristics of various core drilling rigs home and abroad. It is a kind of hydraulic-driven, spindle, diamond-bit, and small-diameter core drill rig with fairly powerful drilling force.
The HXY-5A core drilling rig is compact in structure, reasonable in layout, moderate in light. It is easy to assemble. It has a broad range of rotary speed. Equipped with water brake, the drilling rig enjoys high hoisting force. As a result, it is convenient in low-position lift.

>> Specification

Sorts of Drill Rod		Drill Rod Spec.	Drilling Depth
Home made	Planer in and out	Φ43×6mm(Φ1.69×0.24 inch)	1,800 m (5904 feet)
		Φ54×6mm (Φ2.13×0.24 inch)	1,300 m (4264 feet)
		Φ67×6mm (Φ2.64×0.24 inch)	1,100 m (3608 feet)
	Thickened inner	Φ50×5.5mm (Φ1.97×0.22 inch)	1,500 m (4920 feet)
Drill Rod	Thickened inner	Φ60×6 mm (Φ2.36×0.24 inch)	1,200 m (3936 feet)
	Extracting core with wire line	Φ55.5×4.75 mm (Φ2.19×0.19 inch)	1,600 m (5248 feet)
		Φ71×5 mm (Φ2.80×0.20 inch)	1,300 m (4264 feet)
		Φ89×5 mm (Φ3.50×0.20 inch)	1,000 m (3280 feet)
DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod	Thickened inner	BW	1,500 m (4920 feet)
		NW	1,200 m (3936 feet)
		HW	900 m (2952 feet)
	Extracting core with wire line	BQ	1,800 m (5904 feet)
		NQ	1,300 m (4264 feet)
		HQ	1,000 m (3280 feet)
