Drill Collar Casing And Tubing Drill Collar For Water Well Drilling

Model:Drill Collar

Size:3 3/4~26″

Material:4145H


>> Application

Drill collar is mainly used for providing drill bits with required drilling pressure, ensuring pull force transmitted to drill pipe and centralize the drill bit. According to API Spec7-1 specifications, the material quality is 4145H that’s after heat treatment, thread hardening treatment and phosphate to better anti-seize. It also can be produced upon customers’Requirements.

Share

PRODUCT DESCRIPTION

>> Characteristics

Drill collar is mainly used for providing drill bits with required drilling pressure, ensuring pull force transmitted to drill pipe and centralize the drill bit. According to API Spec7-1 specifications, the material quality is 4145H that’s after heat treatment, thread hardening treatment and phosphate to better anti-seize. It also can be produced upon customers' requirements.

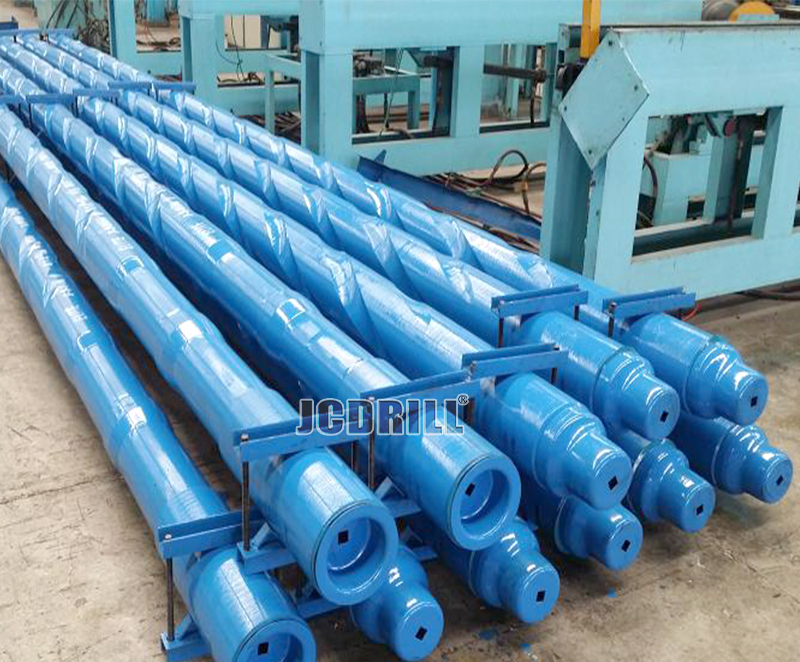

Heavy Weight Drill collar is an essential part of the performance of JCDRILL down hole drilling tools. Drill collars provide weight on bit for drilling through formations. Rig drillers are able to monitor weight applied to bit by monitoring through simple calculations, and a weight indicator scale, on rig floor. Drill collars are typically 31' feet in length, thick walled, and heavy steel. They come box by pin with like connections, in order to mate as many needed, to achieve desired weight. Drill collars come slick OD, or machined with helical grooves (spiral collars). Jink ekeeps a generous supply of carbon steel drill collars in stock. Lead Collar Lead collars purpose is to put a short amount of space between the drilling bit, and near bit stabilizer. This is just another way Jinke gives you the ability to tweak your performance needs as down hole challenges arise. By adding this short spacing between bit, and near bit stab, you stiffen the BHA wright at the bit, reducing bit walk, therefore, promoting a straighter hole. Jinke keeps a generous supply of carbon steel lead collars in stock.

>> Specification

Design
SizeLenghChamfer Diameter

in
mm
+1.6-0.0mm
+152.4mm+0.4mm
NC23-31
3 1/8
79.4
31.8
9.1576.2
NC26-35
3 1/2
88.9
38.1
9.1582.9
NC31-41
4 1/8
104.8
50.8
9.159.45100.4
NC35-47
4 3/4
120.7
50.8
9.159.45114.7
NC38-50
5
127
57.2
9.159.45121
NC44-60
6
152.4
57.2
9.159.45144.5
NC44-60
6
152.4
71.4
9.159.45144.5
NC44-62
6 1/4
158.8
57.2
9.159.45149.2
NC44-62
6 1/4
158.5
71.4
9.159.45150
NC46-65
6 1/2
165.1
57.2
9.159.45154.8
NC46-65
6 1/2
165.1
71.4
9.159.45154.8
NC46-67
6 3/4
171.5
57.2
9.159.45159.5
NC50-70
7
177.8
57.2
9.159.45164.7
NC50-70
7
177.8
71.4
9.159.45164.7
NC50-72
7 1/4
184.2
71.4
9.159.45169.5
NC56-77
7 3/4
196.9
71.4
9.159.45185.3
NC56-80
8
203.2
71.4
9.159.45190.1
6 5/8REG
8 1/4
209.6
71.4
9.159.45195.7
NC61-90
9
228.6
71.4
9.159.45212.7
7 5/8REG
9 1/2
241.3
76.2
9.159.45223.8
NC70-97
9 3/4
247.7
76.2
9.159.45232.6
NC70-100
10
254
76.2
9.159.45237.3
8 5/8REGc
11
279.4
76.2
9.159.45266.7
