Model: Underground Camera
Apply Depth:100M to 1500M
>> Application

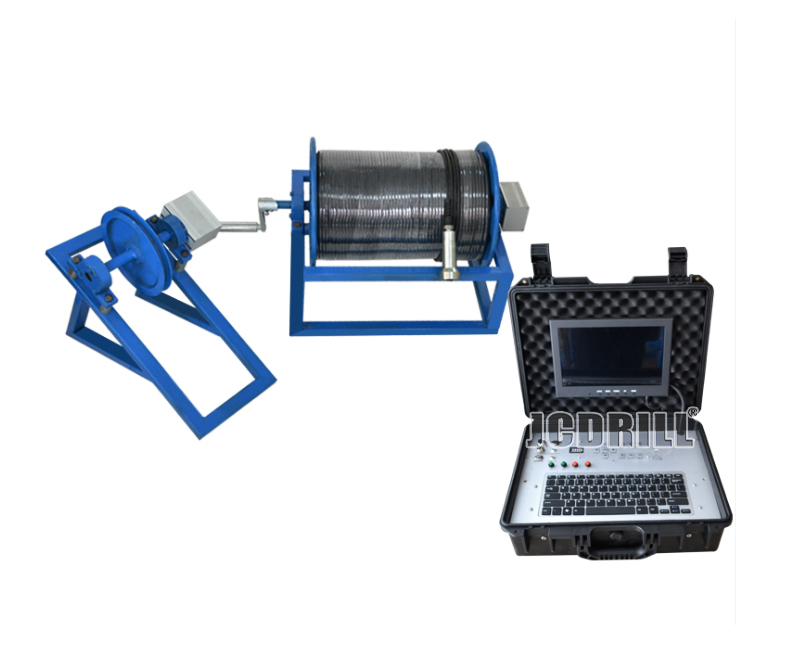

Dual Camera Underground Detection Television
Share
PRODUCT DESCRIPTION
>> Characteristics
>> Super high resolution color picture
>> Low light operation
>> Led underwater light
>> Stainless steel housing
>> Military grade water lightness cable
>> Ability to attach up to deep place and stand large pressure
>> Specification
| Dual Camera Underground Detection Television | |||||||
| Model | Configuration Parameter | ||||||
| Apply Depth | Control Box | Depth-Counting | Storage Mode | Winch | Well Pully | Camera Model(Dima.) | |
| UDM100 | 100m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(50 Optional) |
| UDE100 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(51 Optional) | |
| UDM200 | 200m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(52 Optional) |
| UDE200 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(53 Optional) | |
| UDM300 | 300m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(54 Optional) |
| UDE300 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(55 Optional) | |
| UDM400 | 400m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(56 Optional) |
| UDE400 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(57 Optional) | |
| UDE500 | 500m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(58 Optional) |
| UDE800 | 800m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(59 Optional) |
| UDE1000 | 1000m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(60 Optional) |
| UDE1500 | 1500m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(61 Optional) |
>> Parameters

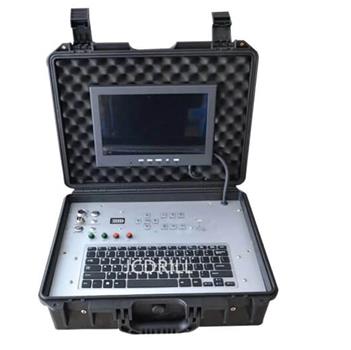

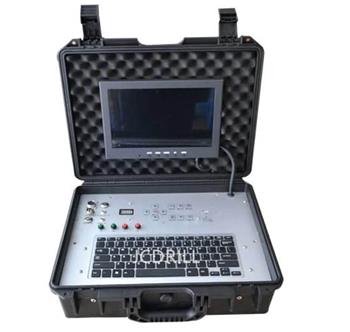

| APS Control Box Waterproof: IP68 Size: 415*340*144mm Working Voltage: 12V/22V Sound Recording Picture Recording(HD) Depth-Counting(adjustable) Keyboard Edit(well No...) Take Picture |
| 73mm Dual Camera Material: Chromate treatment Pressure Resistant: 20MPA, max.depth 2000m Picture Element: CCD camera, 750 Cable Light: Front Load 6W, highlight LED Lamp Size: Dia.73*Dia.50mm, dia.50mm(Optional) |

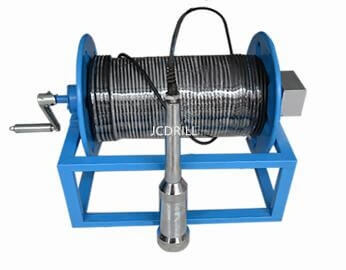

| Manual Winch for UDM Serials Winch: Heavy duty cable coil Material: Steel |

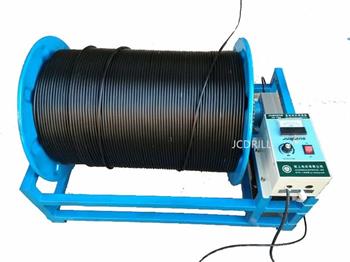

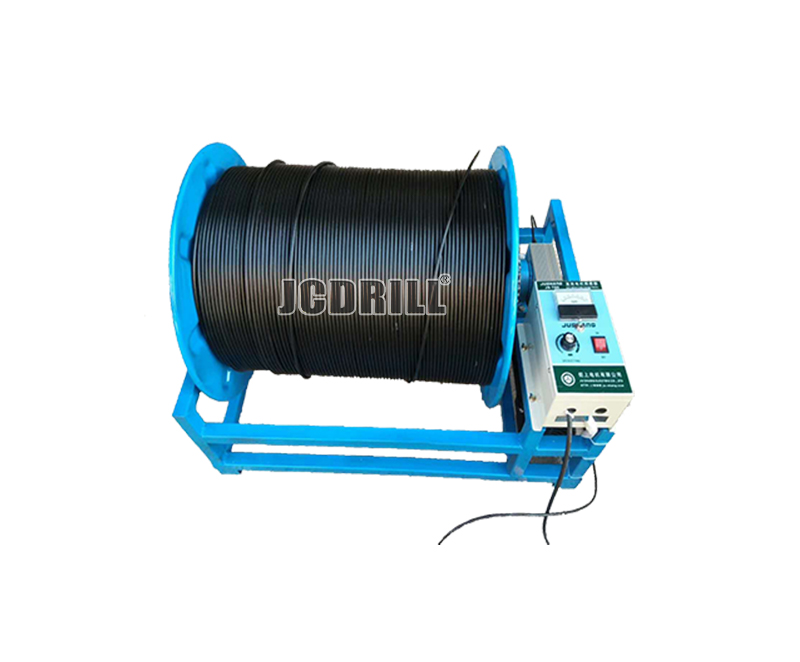

| Electric Winch for UDE Serials Winch: Heavy duty cable coil Material: Steel |
| Display Size: 10.1 inch LCD screens Aspect Ratio: 4:3 Contrast Ratio: 450:1 Lightness: 500cd/m2 Resolution Ratio: 1024*768 Power: DC 12V |

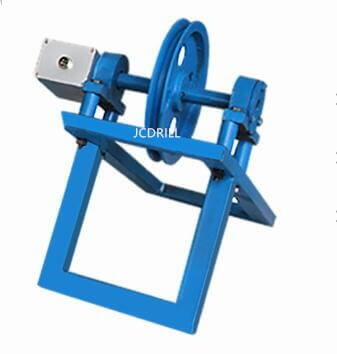

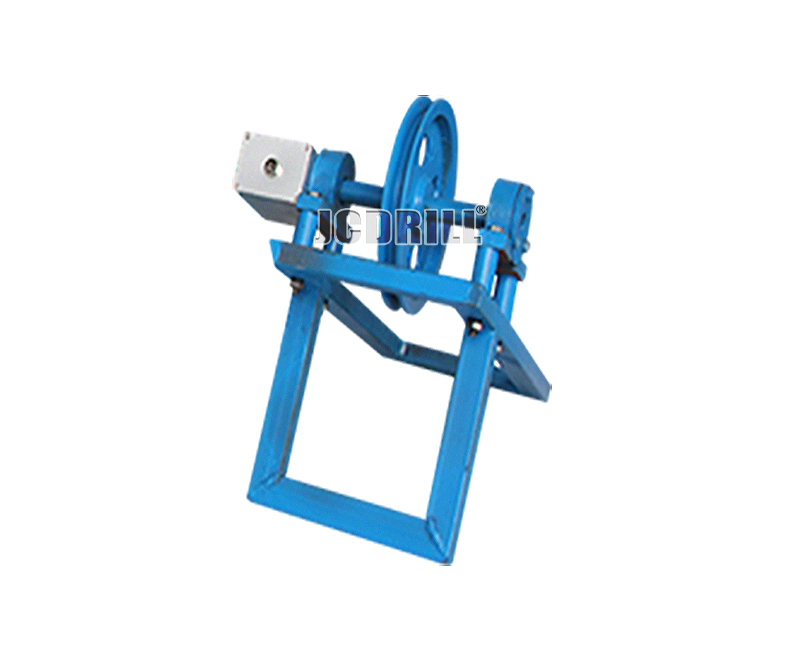

| Pulley Pulley: With depth counting Depth Counting: Accurate to 0.05 m Pulse: 100 |

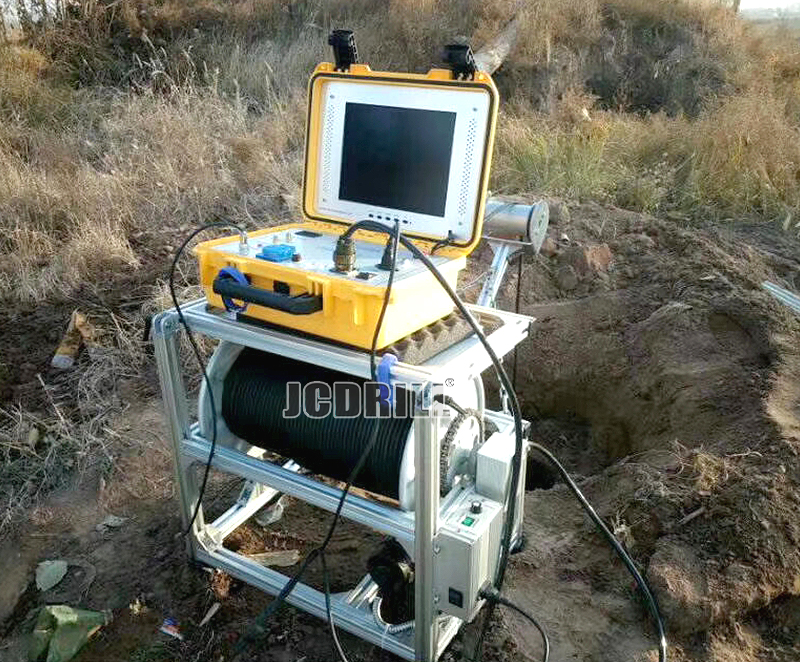

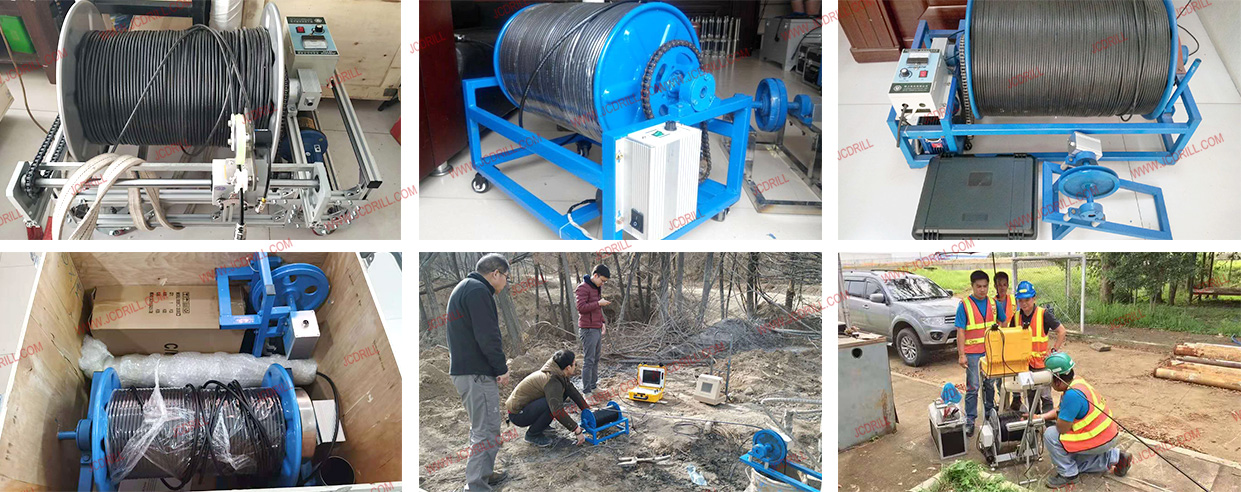

>> Project
