Hole Diameter: 250-110 mm
Hole depth: 60-120 m
Drilling Method: Air Drilling & Mud Drilling
>> Application

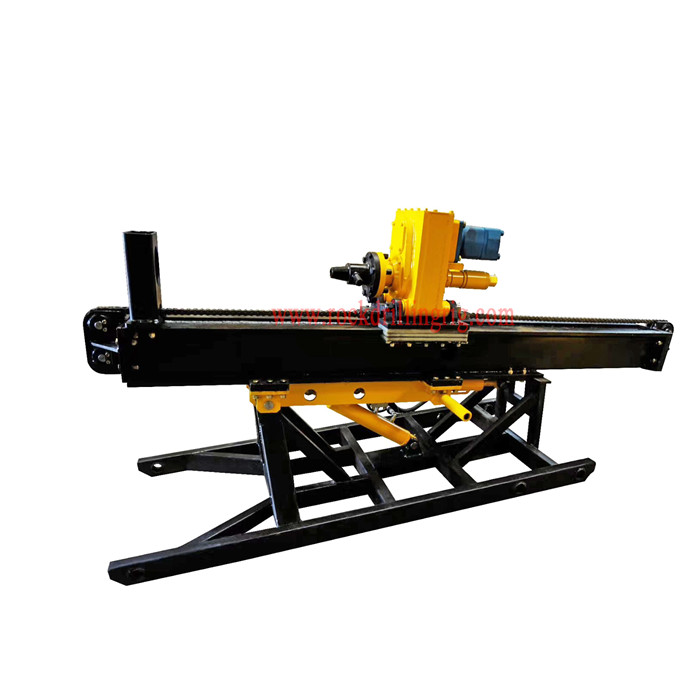

AK100 anchoring drilling rig is a complete hydraulic power head machine.The engineering drilling rig applies to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.This construction drilling rig is also used to drill small size water well and high-pressure jet grouting hole.
Share
PRODUCT DESCRIPTION
>> Characteristics

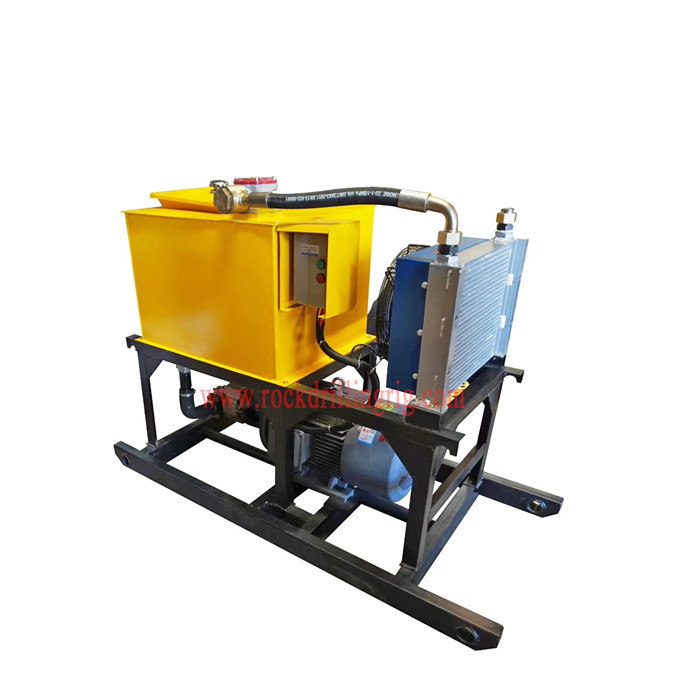

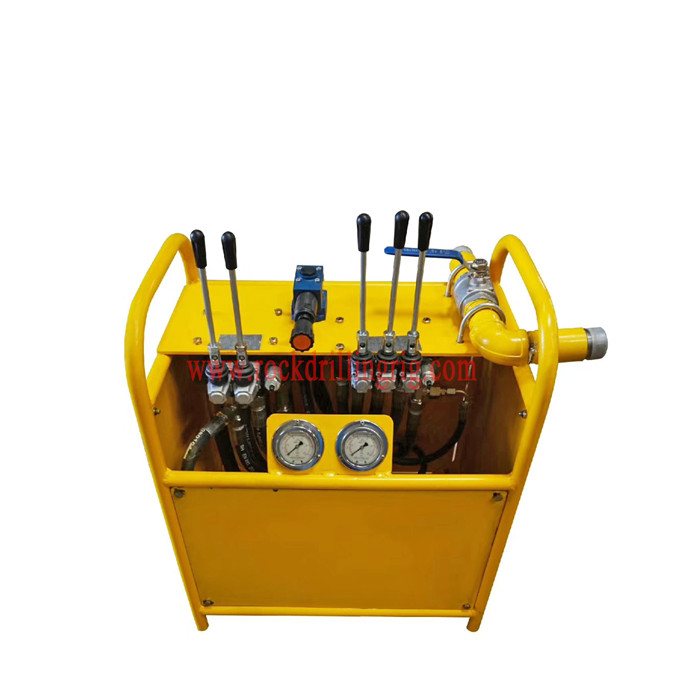

>> Use hydraulic transmission, the body is separated from power pack, operation desk is separately mounted, to lighten the drill body.

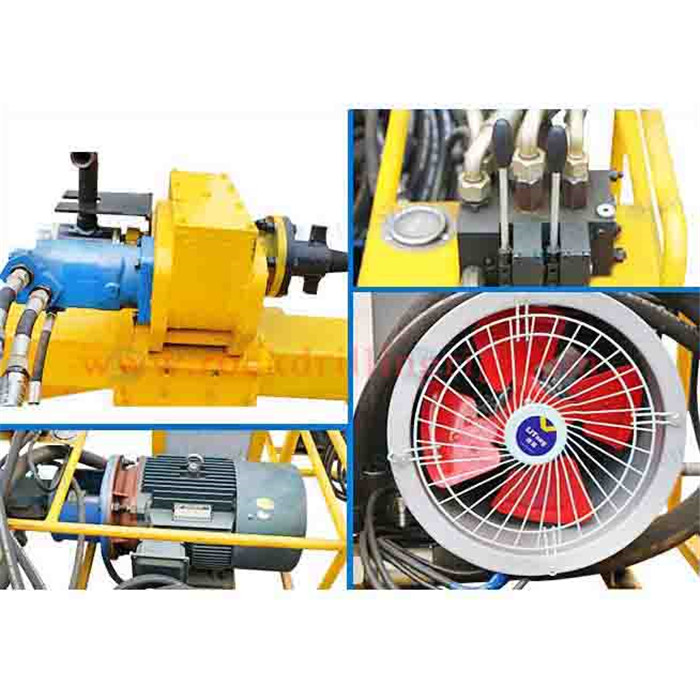

>> Main hydraulic components such as oil motor, oil pump, quick joint so on are imported from US to make the drilling machine stable and reliable
>> Equipped with hydraulic holder and hand-powered unscrewer, to untighten the drill rod easily.
>> Good detach ability, easy moving, special for high place work.
>> Simple design, compact arrangement, easy operation.

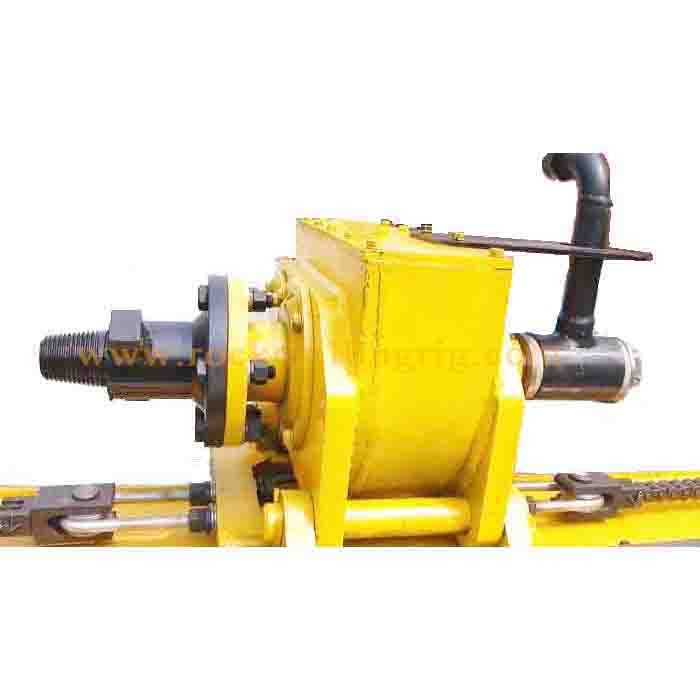

>> The top-head has large torque, wide range of speed, big pull force.
>> Specification
| Drilling Capacity | AK100E | ||
| Drilling depth | 60-120m | ||
| Drilling diameter | ¢ 250- ¢ 110mm | ||
| drill diameter | ¢ 114 × 1500, ¢ 89 × 1500 (mm) | ||
| Drilling dip | 0-180 ° | ||
| power head output speed (positive and negative) | 5-42 (low) r / min 5-90 (upscale) r / min | ||
| Rated output torque of the power head | 6000NM | ||
| Power head stroke | 1800 mm | ||
| mast slip stroke | 500 mm | ||
| Power head lifting force | 55KN | ||
| Power Head biggest feeding force | 40KN | ||
| hydraulic system rated pressure | 18Mpa | ||
| Motor Power | 37KW | ||
| Host Dimension | 3450 × 1750 × 1500 (mm) | ||
| Rig weight | 2500Kg | ||
| maximum disintegration weight | 300Kg | ||

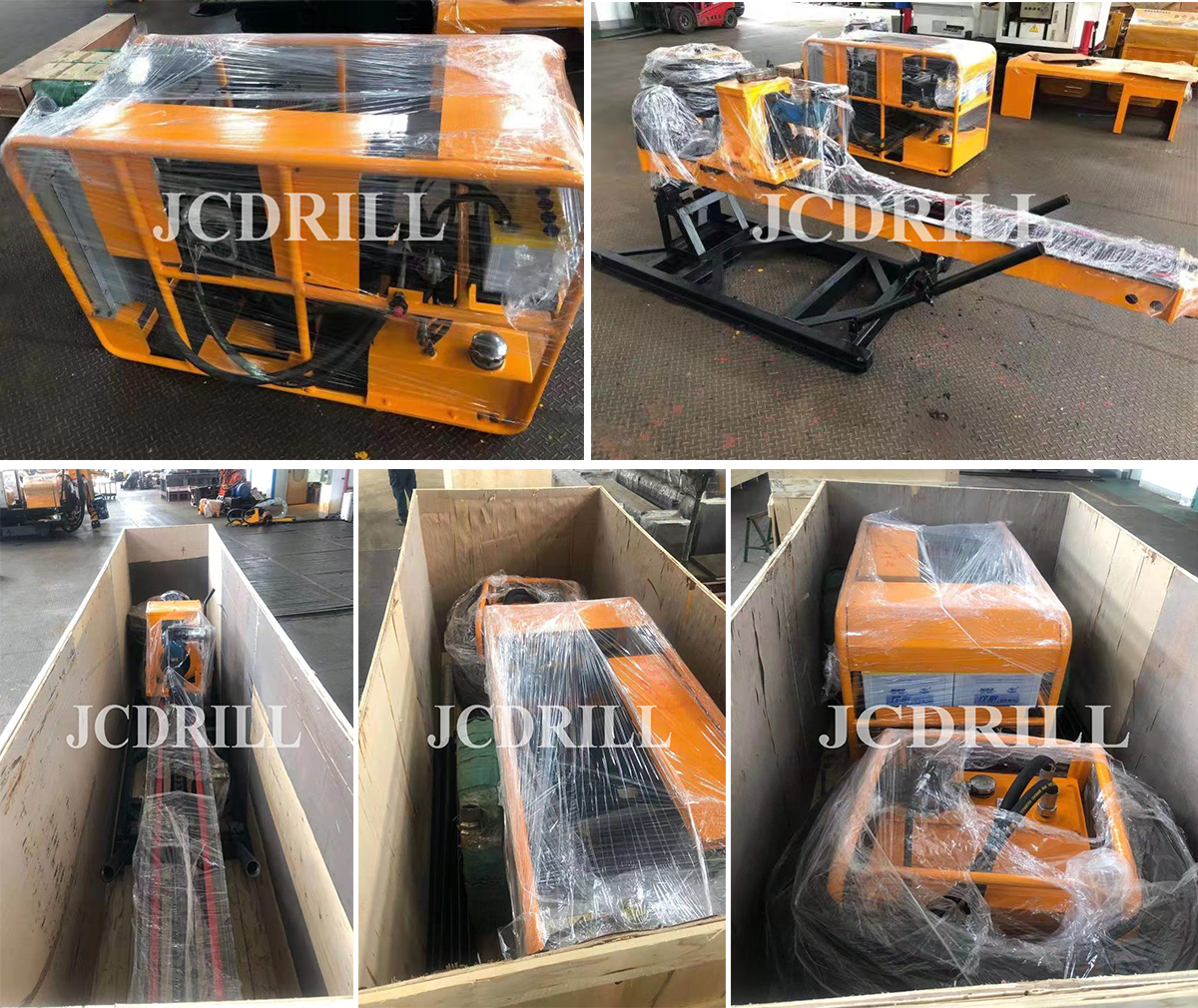

>> Shipping
