Hole Diameter: 100-168 mm
Hole depth: 40-60 m
Drilling Method: Air Drilling & Mud Drilling
>> Application

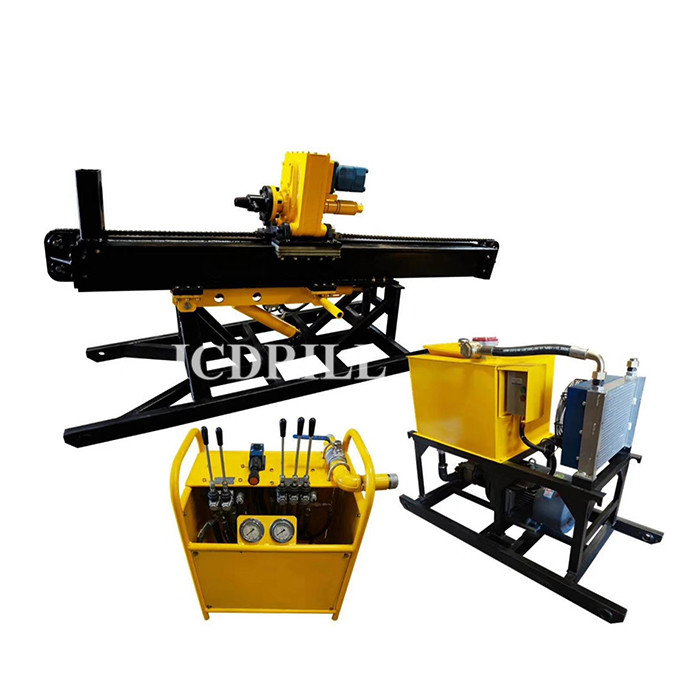

AK50 anchoring drilling rig is a complete hydraulic power head machine.The engineering drilling rig applies to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.This construction drilling rig is also used to drill small size water well and high-pressure jet grouting hole.
Share
PRODUCT DESCRIPTION

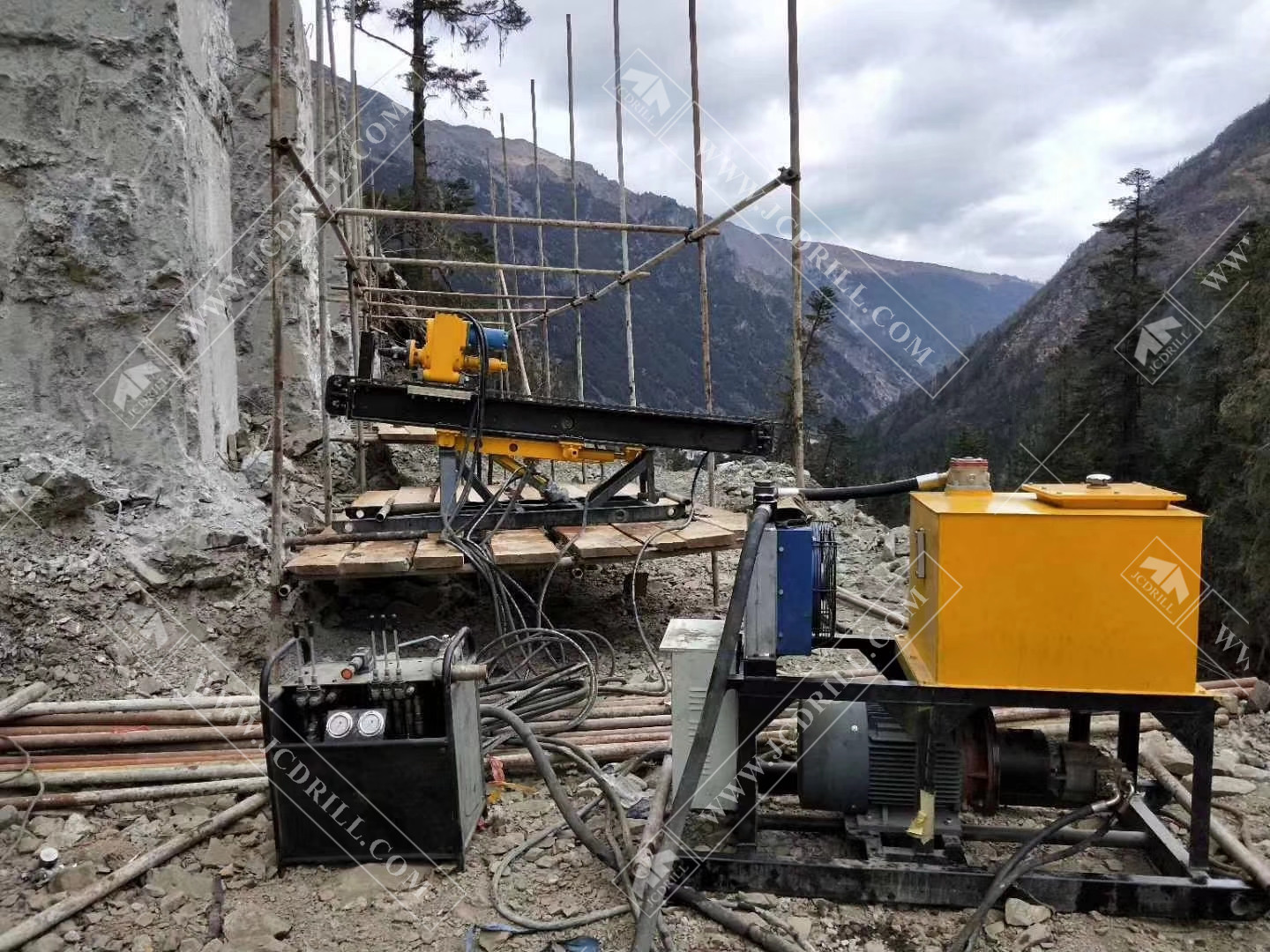

Hydraulic anchoring drilling rig of AK50 is mainly used in landslid, rock anchoring, anchoring bar, strengthening retaining wall, supporting in deep foundation pit, mini-pile hole drilling, hydrography well drilling and high pressure jet-grouting for hydroelectric power station, communication, energy and capital construction.
>> Characteristics
>> It has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.

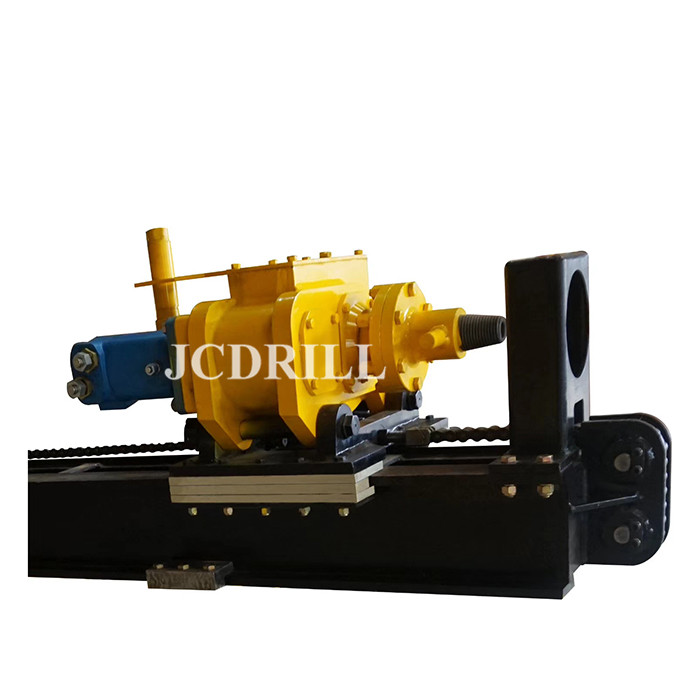

>> Extension mechanism in the output spindle of top drive power head protects drilling tools
effectively. It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive power head and hole top plate toward the
opposite direction.

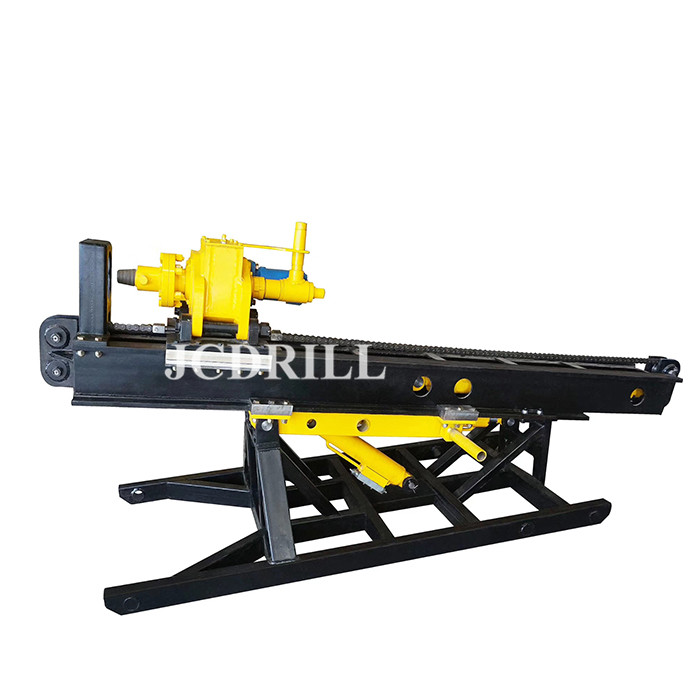

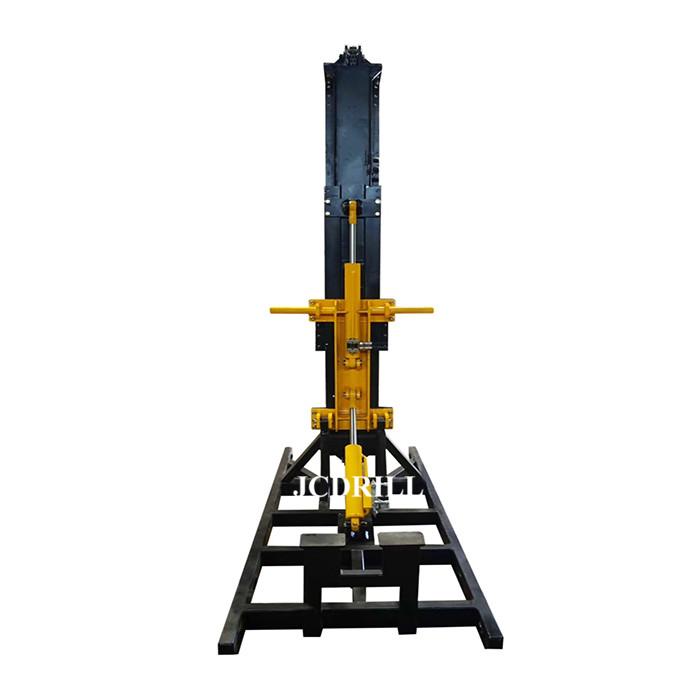

>> A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with working position.
>> Rig structure is separate group design, it assures good disassembility , rapid and convenient mount and transport, best working environment and lower labor strength as well as remote control and
operation.
>> Rig structure is separate group design, it assures good disassembility , rapid and convenient mount
and transport, better working environment and lower labor strength as well as remote control and operation.
>> The imported hydraulic motor, other main assembly preferentially selected home made reputed and high quality products ensure its stable running performance, reliable product quality and long service life.
It has good interchangeability due to the high grade of standardization and seriesization of wearing parts.
>> Full hydraulic drive and operate, stepless shift, simple operate, convenient maintain and few wearing parts.
>> It can be used with various drilling method such as carbide bit drilling, anger drilling, DTH hammer drilling, follow-up casing drilling etc.
>> Specification
| Drilling Capacity | AK50(Engine Power) | ||
| Type | Hydraulic(4part) | ||
| Hole depth | 40-60 m | ||
| Hole diameter | Φ100-Φ168 mm | ||
| Drilling rod(Diameter×Length ) | 76mm*1500m/89×1500 mm | ||
| Hole angle range | 0-120° | ||
| Output speed of top drive power head (forward and reverse) | 5-120 r/min,continuous speed regulation | ||
| Output torque of top drive power head | 2000 Nm | ||
| Feeding stroke of top drive power head | 1800 mm | ||
| Mast slide stroke | 500 mm | ||
| Maximum lifting capacity of top drive power head | 30 kN | ||
| Maximum thrust force of top drive power head | 15 kN | ||
| Rated pressure of hydraulic system | 20 Mpa | ||
| Drilling guide type | Hydraulic Cylinder feed | ||
| Hydraulic Clamp | Available | ||
| Parts Max.Weight | 200Kgs | ||
| Size | 3100×1000×1500mm | ||
| Engine/Motor | Changchai | ||
| Type | 4-stroke,direct injection | ||
| Cylinder | Four cylinder | ||
| Cooling System | Water cooled | ||
| Model | ZN485Q | ||
| Power | 27kW | ||
| Working Speed | 2200rpm | ||
| Hydraulic system | Gear pump | ||
| Type | Gear pump(3 union pump) | ||
| Flow rate | 16/12/5L/min | ||
| Pressure | 18MPa | ||
