Maximum torque: 10000 Nm
Given progress: 900-1900 mm
Power type: Diesel engine
>> Application
Disassembling a multi-function drilling rig for the limited-access place is designed for grouting. anchor, micro-pile as well as core drilling at lowhead room working sites such as basements, garages, bomb shelters, culverts, small tunnels, etc. With its high rotating speed rotary head (top hammer optional) and separated drill rig and power pack, lt is flexible and more convenient in usage.
Share
PRODUCT DESCRIPTION
>> Characteristics

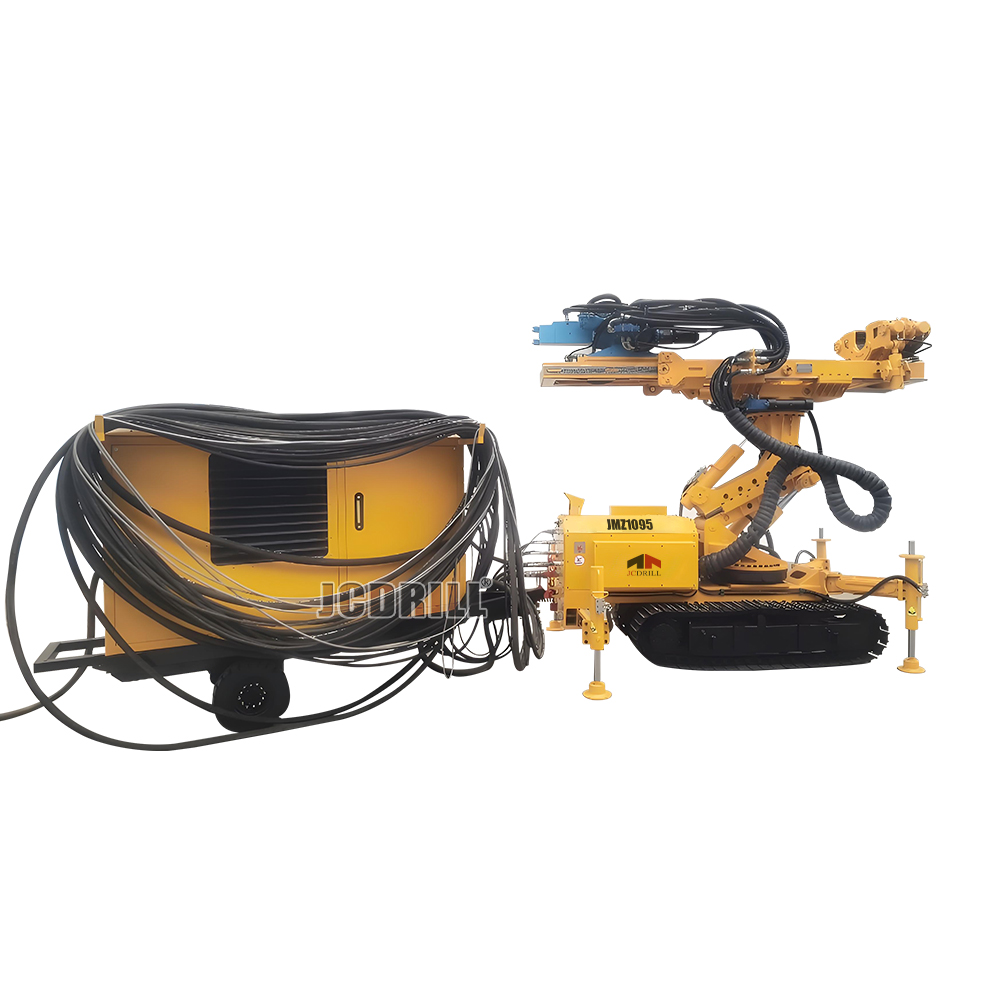

JMZ1095 Disassemble multi-function drilling rig for limited access place is elaborately designed for grouting. anchor, micro-pile as well as core drilling at lowhead room working sites such as basements, garages, bomb shelters, culverts, small tunnels, etc. With its high rotating speed rotary head (top hammer optional) and separated drill rig and power pack, lt is flexible and more convenient in usage.
Ultra-low height: The minimum working height is only 2.5 meters, suitable for narrow Spaces such as underground garages and pipe galleries
Dual-speed power head: Freely switch between 0-44rpm (high torque) and 0-410rpm (high rotational speed)
Modular design: The main unit and the pumping station are separated, flexibly adapting to various restricted sites
Multi-functional expansion: An optional impact hammer can be installed to achieve various processes such as grouting, anchor bolt, and core sampling
>> Specification
| Model | JMZ1095 | Model | JMZ1095 |
| Rated power (kW) | 55+37+2.2 | Mast | Slide extension mast |
| Caterpillar Band Model No. | LG-101 | Feed stroke(mm) | 900-1900 |
| Tramming Motor | Double-speed | Feed force(kN) | 63 |
| Tramming speed (km/h) | 1.8/3. 3 | Retraction force(kN) | 95 |
| Ground pressure (N/cm²) | 5.5 | Feed rate(m/min) | 0.9.2 0.28.5 |
| Gradeability(°) | 20 | Retraction rate(m/min) | 0-6.1 0-18.5 |
| Rotary head | Rotation with pereussion | Feeding Pattern | Hydraulicsylinder |
| Rotation rate at low gear (r/min) | 0-35 | Clamp range(mm) | 60-200 |
| Rotation rate at high gear(r/min) | 0-110 | Maximum passing diameter(mm) | 220 |
| Torque range at high gear (Nm) | 5000 | Transportation dimension of drill rig(mm) | 3353x1200x2300 |
| Torque range at low gear (Nm) | 10000 | Power pack dimension(mm) | 3200x1200x2000 |
| lmpact work (N m) | 750 | Weight(T) | 5.5+2.4 |
| Percussion frequency(min') | 1100 |
