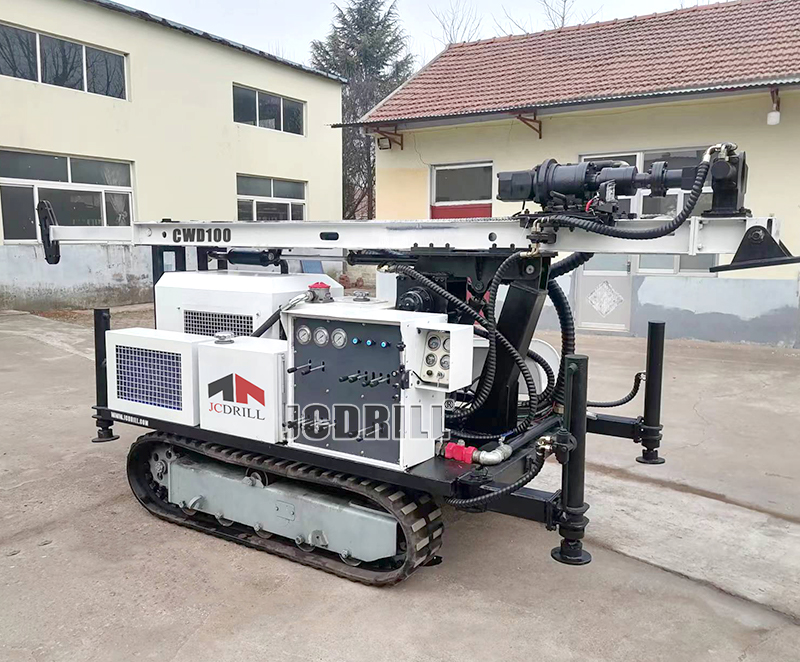

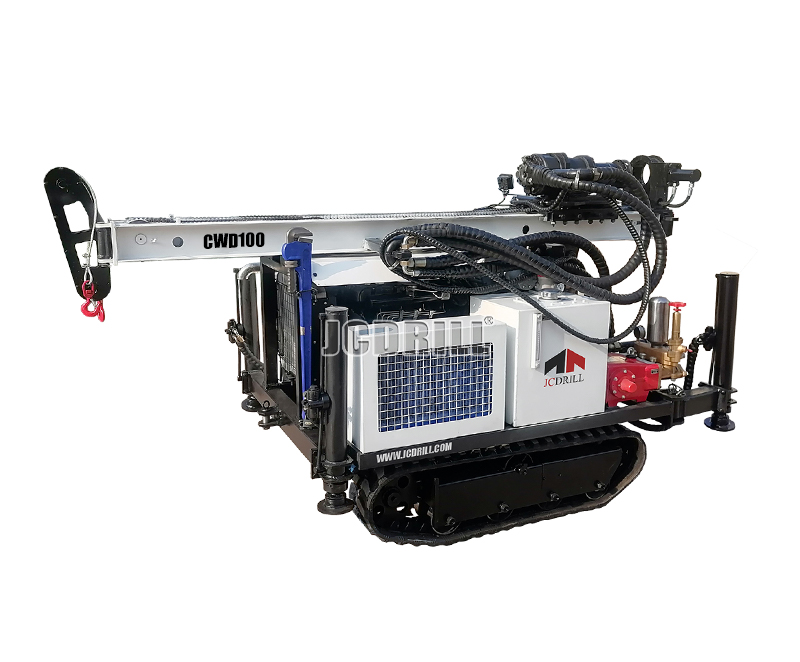

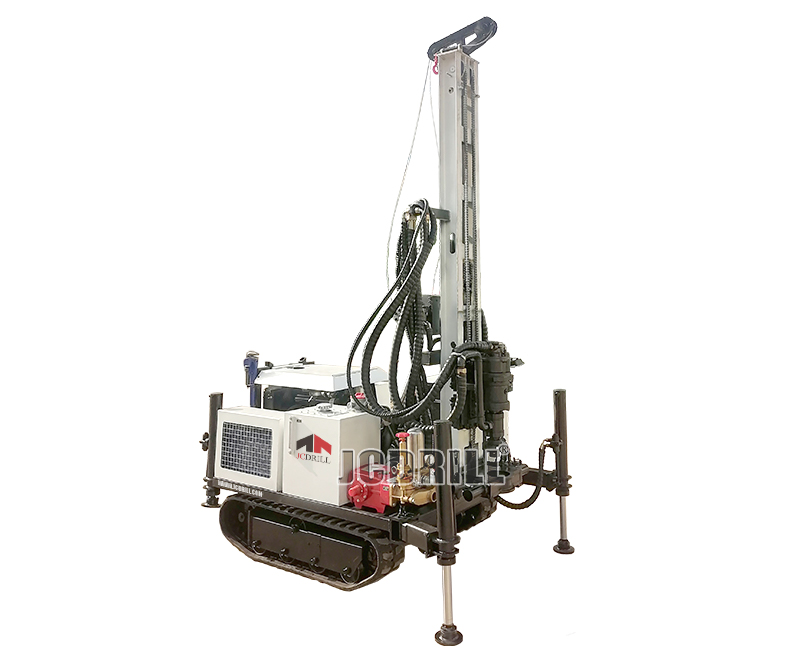

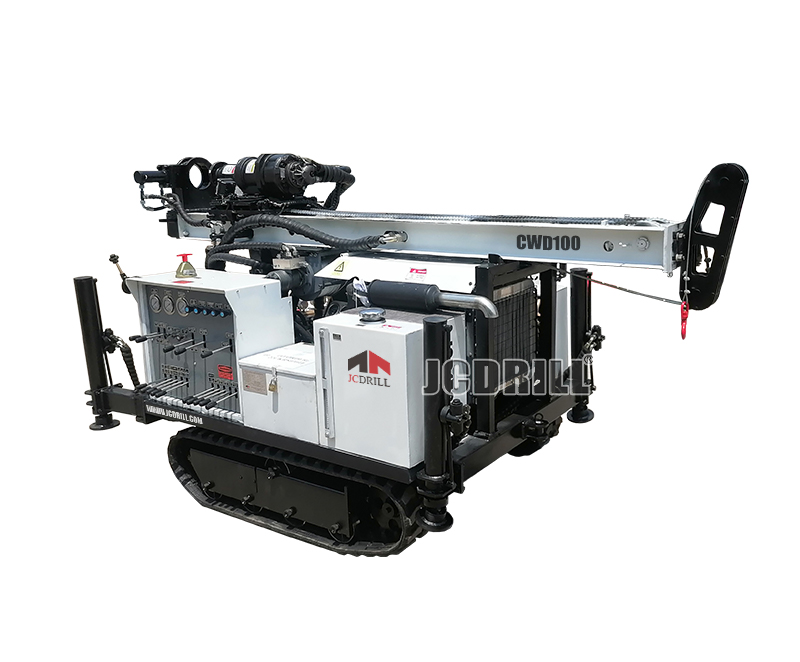

CWD100 Crawler Moving Multi-Functional Water Well Drilling Rig

Model: CWD100

Chassis: Rubber Track,Steel Track

Max. Drilling Depth: 100m

Drilling Method: Air Drilling & Mud Drilling

>> Application

CWD100 Multi-Functional Track Mounted Water Well Drilling Rig is a efficient,multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.



CWD100 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD100 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristics

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if equipped with suitable drilling bit.

>> The power of drilling rig comes from a diesel engine, 55kw Quanchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 0-100rpm and the rotary torque is 4200-5600Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>> Specification

GeneralGeology drilled
All kinds
Drilling Method
Mud & Air Drilling
Drill depthm0-110
Drilling Diametermm90 - 220
Drill system and operation
Rubber crawler
Hydraulic Jacks
2x rear+2xback
Drill pipe (diameter x length)mm60*2000
Mud pump
Rotation & Feed SystemRotation torqueNm1800
Pull-up capacityKgs5000
Pull-down CapacityKgs3000
Diesel enginePowerKw45
Mud pumpFlow capacityL/Min160
Max. working pressureBar1.3
Air SystemMax. pressureBar20
Oil tank capacityL4
Optional PartsHydraulic WinchHydraulic clampFoam Pump

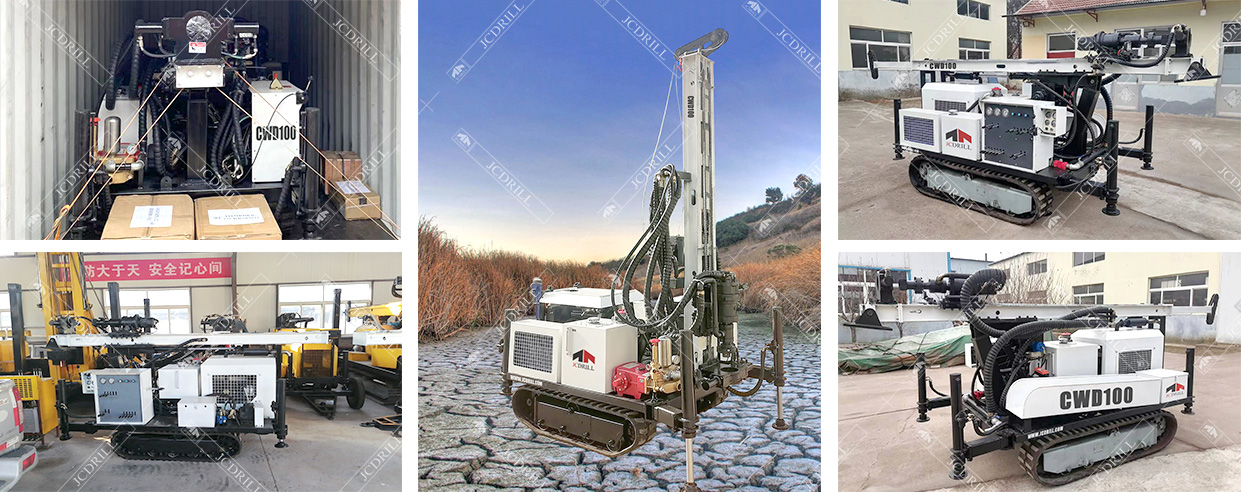

>> Shipping

Crawler Moving Multi-Functional Water Well Drilling Rig
