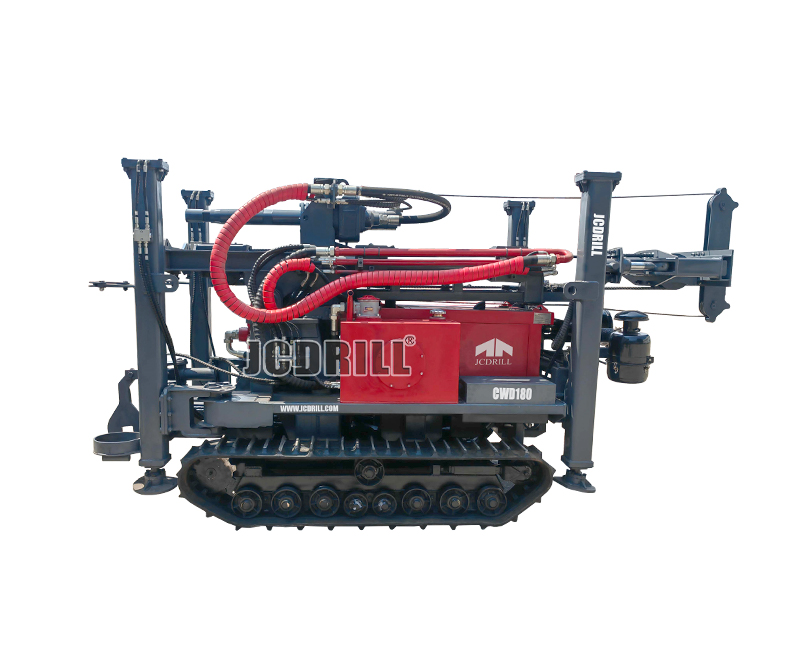

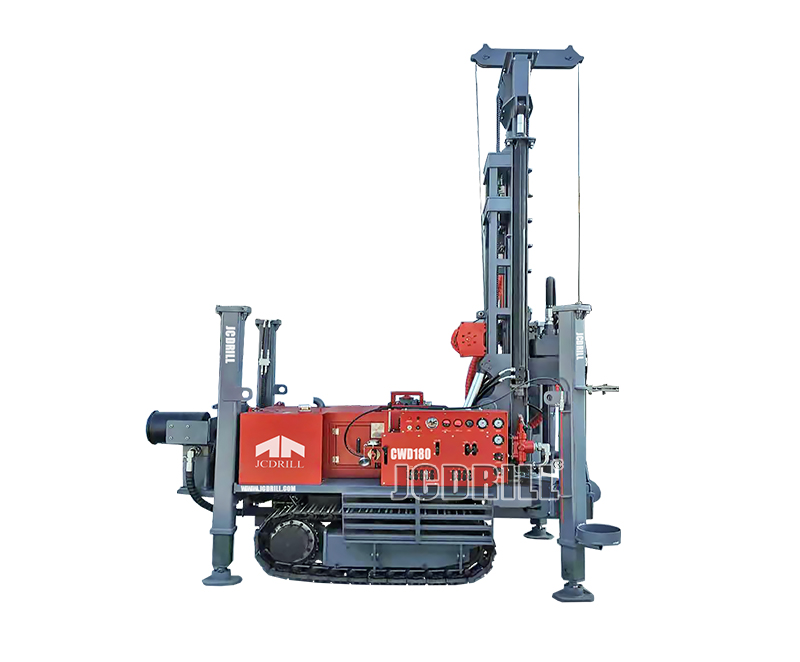

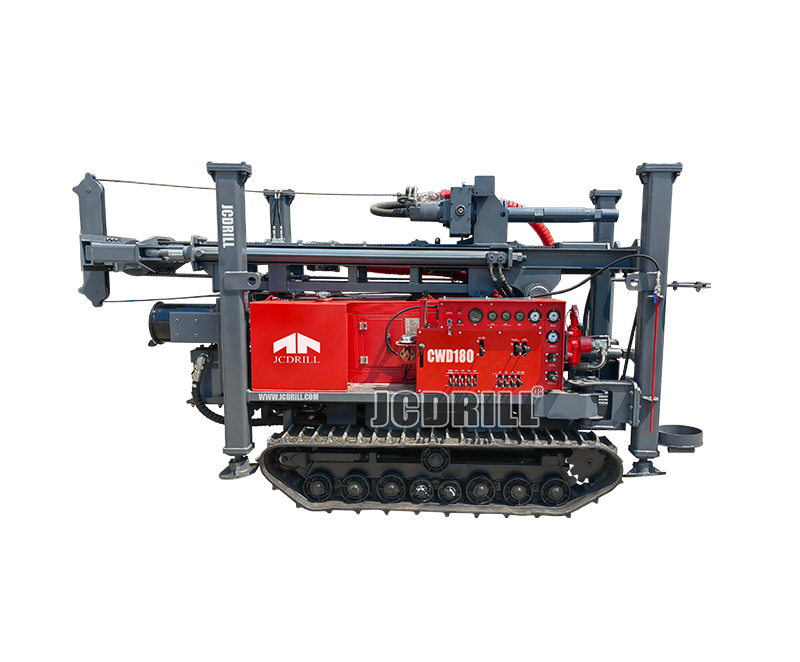

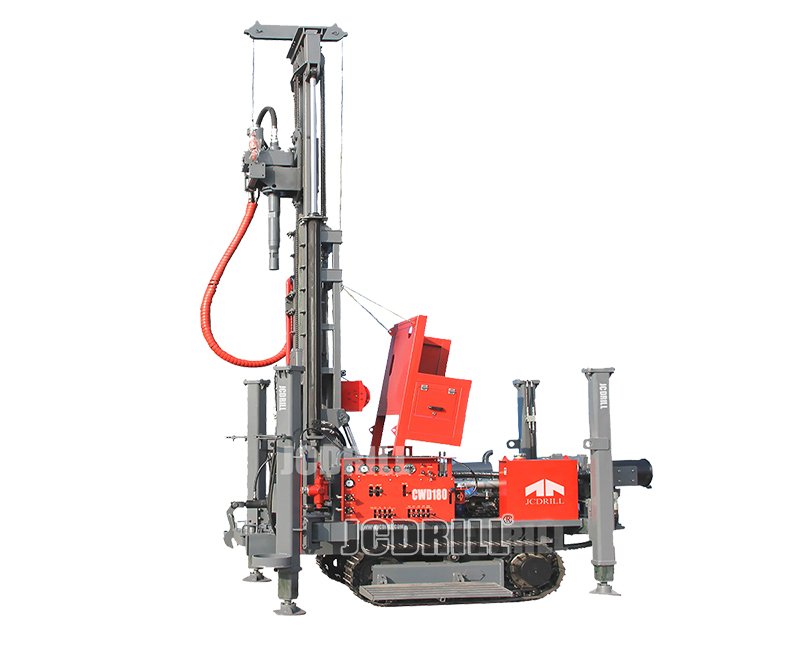

Multi-Functional Water Well Drilling Rig by Crawler Moving

Model: CWD180

Chassis: Rubber Track,Steel Track

Max. Drilling Depth: 180m

Drilling Method: Air Drilling & Mud Drilling

>> Application

CWD180 Multi-Functional Track Mounted Water Well Drilling Rig is a efficient,multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.



CWD180 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD180 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristics

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a Yunnei engine,55kw engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> Specification

GeneralGeology drilled
All Kind
Drilling Type
Crawler Type
Rubber Crawler(Steel Crawler Optional)
Operation System
Hole DiametermmΦ90—Φ350
Hole Depthm180
RotationRotation TorqueNm4200-5600
Rotation Speedrpm45-115
Feeding SystemDrill pipe diametermm76/89/102
Drill pipe lengthmm3000
Max. Feed SpeedM/min80
 Max. Lifting SpeedM/min40
Feed Strokemm3600
Winch Max. Pull back CapacityT12
Lifting force of Winch(Optional)T1.2
EngineDiesel Engine type
4Cylinder,water cooling
Diesel Engine Brand
YUNNEI(Cummins 60KW Optional)
Rated Horse powerKw55
Compressor required(Optional)Pressure RequiredMpa1.5-3.0
Air consumptionm³/min1.5-2.5
Mud Pump(Optional/Separate)Model
Discharge pressure (Mpa)Mpa2.5-7
DimensionNet WeightKgs4900
Transportation dimensionmm4070*1700*2180
Ground Clearancemm300

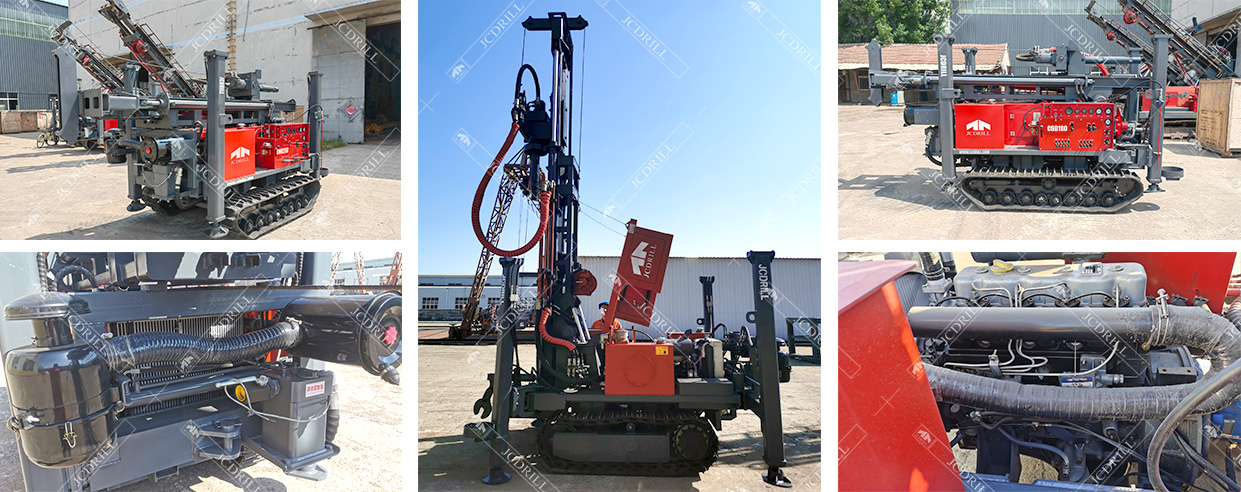

>> Shipping
