How Does Surface Drilling Work?

Mar. 23, 24

Surface drilling, also known as open-pit or open-cast drilling, is a method used in mining, quarrying, construction, and geotechnical engineering to extract minerals, rocks, or other materials from the earth's surface. The process involves drilling holes into the ground to access and extract valuable resources or to gather geological data for engineering purposes. Here's an overview of how surface drilling works:

1. Site Preparation: Before drilling begins, the site is prepared by clearing vegetation, removing topsoil, and leveling the ground to create a suitable working area for drilling equipment and personnel.

2. Selection of Drill Rig: Surface drilling operations utilize various types of drill rigs, depending on factors such as the depth of the hole, the hardness of the rock, and the required drilling method. Common types of drill rigs include rotary, percussion, and rotary-percussion rigs.

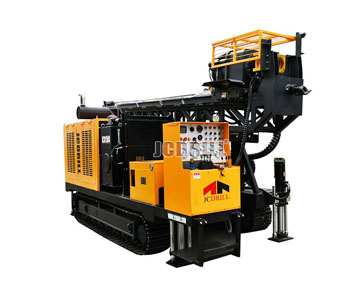

Mineral Exploration Drilling Rig

Mineral Exploration Drilling Rig

3. Drilling Process:

Drill Setup: The drill rig is positioned at the designated drilling location, often on a stable platform or drilling pad. The rig's mast is raised to a vertical position, and stabilizing legs or anchors are deployed to secure the rig in place.

Hole Preparation: The drilling process begins with hole preparation, where the drill bit is lowered into the ground to create a pilot hole. The pilot hole serves as a guide for subsequent drilling operations and helps maintain drilling accuracy.

Drilling Operation: Once the pilot hole is established, the drill rig continues drilling to the desired depth using rotary, percussion, or rotary-percussion drilling methods. During drilling, the drill bit rotates and applies downward force to penetrate the rock or soil formation.

Cuttings Removal: As the drill bit advances, it generates rock cuttings or soil fragments that need to be removed from the borehole to facilitate drilling progress. Cuttings are typically flushed to the surface using drilling fluid (mud) circulated through the drill string or by air or water jets.

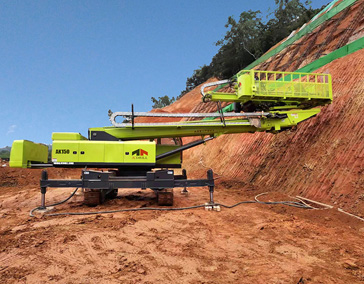

Engineering Drilling Rig

Engineering Drilling Rig

Sampling and Logging: At regular intervals, drilling may be paused to retrieve core samples or conduct geophysical logging to gather information about the subsurface geology, mineral composition, and structural characteristics.

Monitoring and Control: Throughout the drilling process, various parameters such as drilling depth, penetration rate, torque, and fluid circulation are monitored and controlled to optimize drilling performance and ensure safety.

4. Completion and Wellbore Stabilization: Once the desired depth is reached, the drill string is removed from the borehole, and casing may be installed to stabilize the wellbore and prevent collapse. Cement may be pumped into the annular space between the casing and the borehole wall to provide additional support and seal off groundwater zones.

5. Post-Drilling Activities: After drilling is completed, the site may undergo reclamation and rehabilitation efforts to restore natural habitats and minimize environmental impacts. Depending on the project requirements, additional activities such as blasting, blasting, or mineral extraction may follow surface drilling operations.

Overall, surface drilling plays a vital role in resource extraction, geological exploration, and infrastructure development, providing access to valuable resources and essential data for various industries. Efficient and safe drilling practices are essential to maximize productivity while minimizing environmental and safety risks.

For more details, please click here for What You Need to Know about Buying Drilling Rigs.
