>> Chassis Type
Truck Mounted
>> Max. Drilling depth
200m
>> Drilling Method
Air Drilling & Mud Drilling
>> Application
CSD200 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.
Share
PRODUCT DESCRIPTION

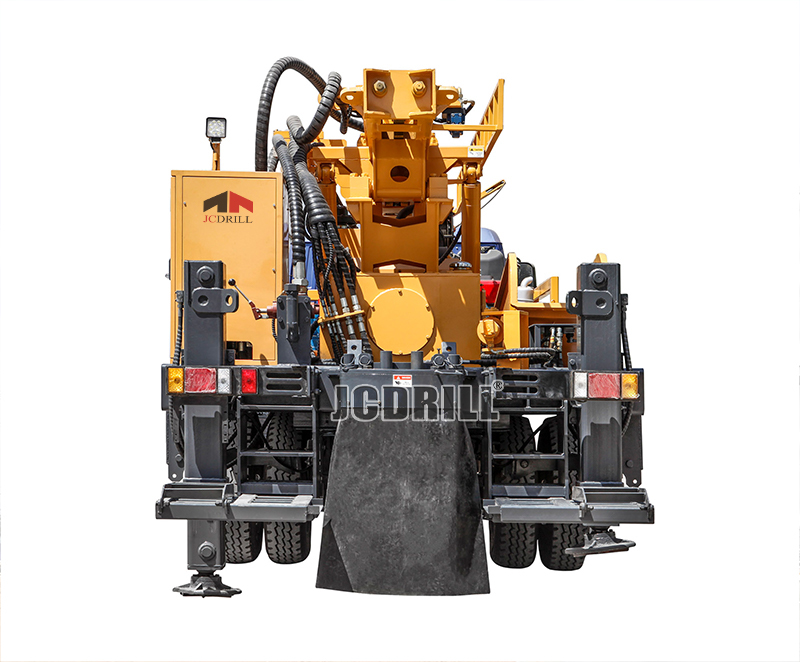

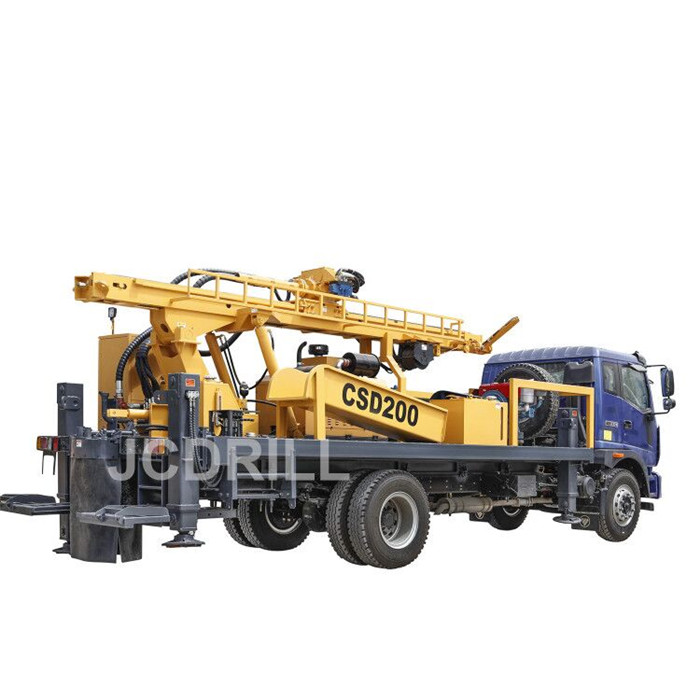

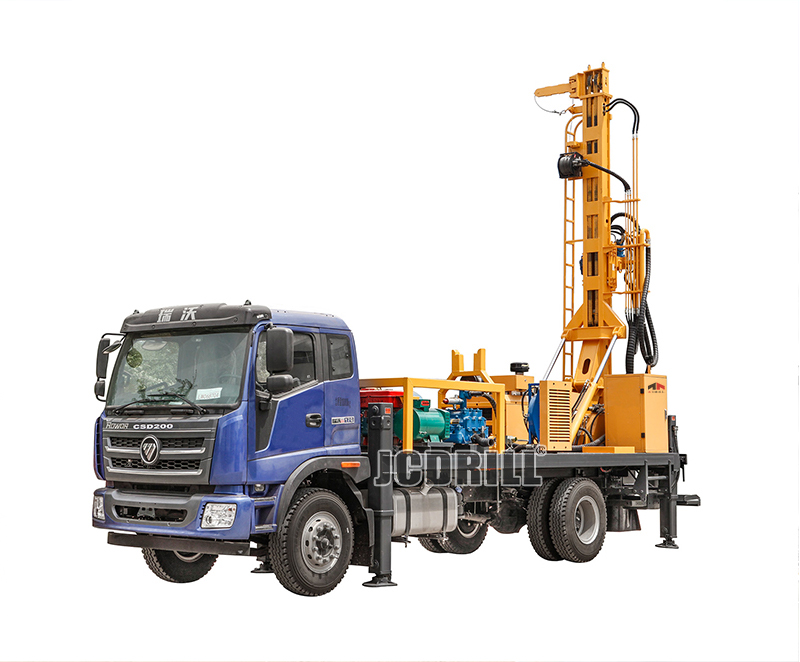

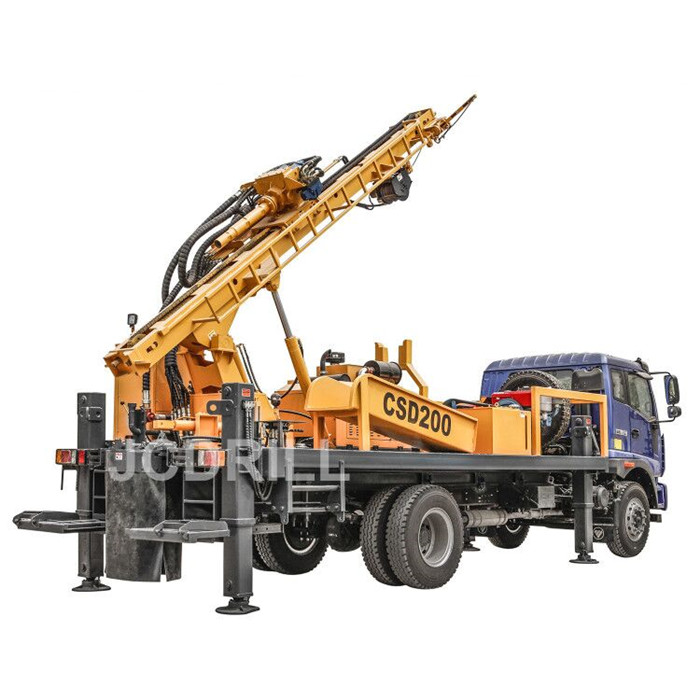

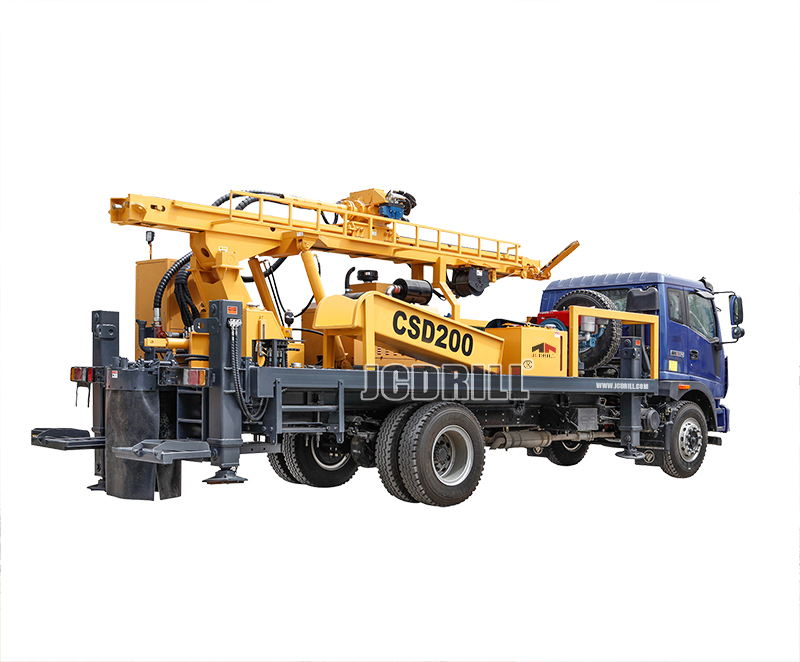

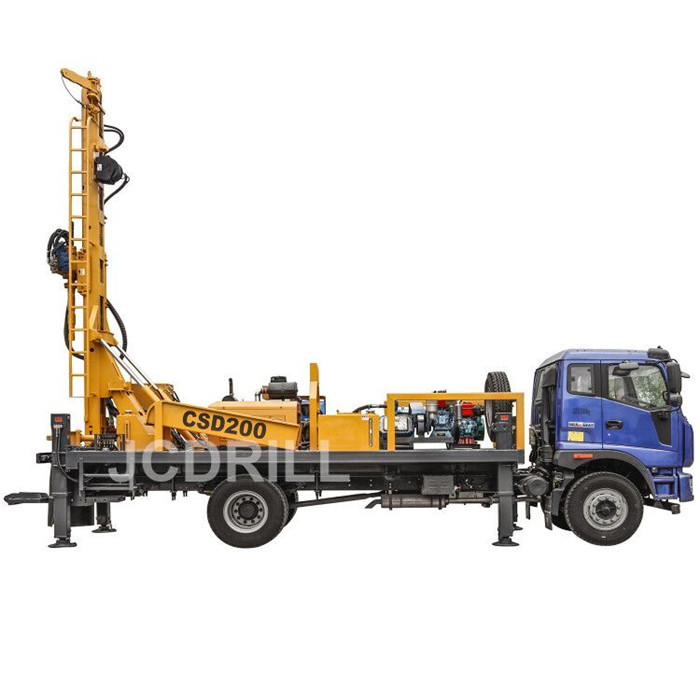

CSD200 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig,The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
>> Characteristics
The drilling rig can use air DTH Hammer drilling and mud drilling.
Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

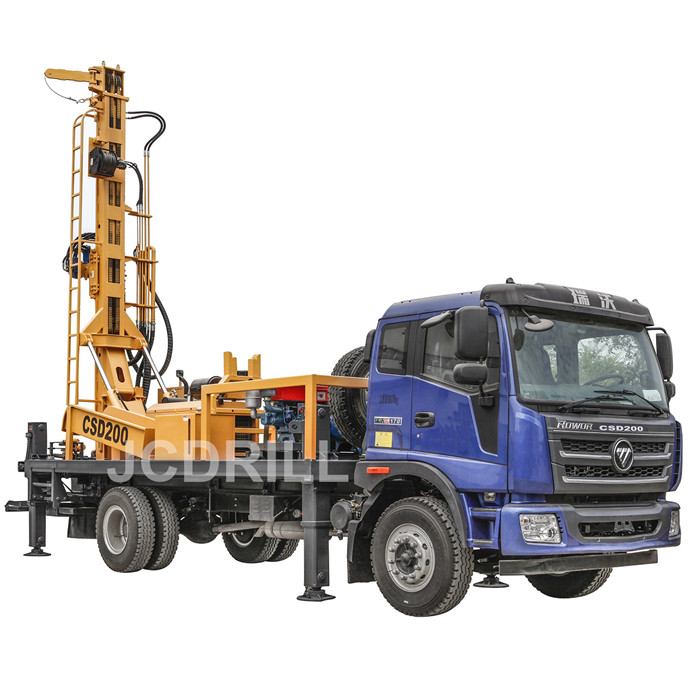

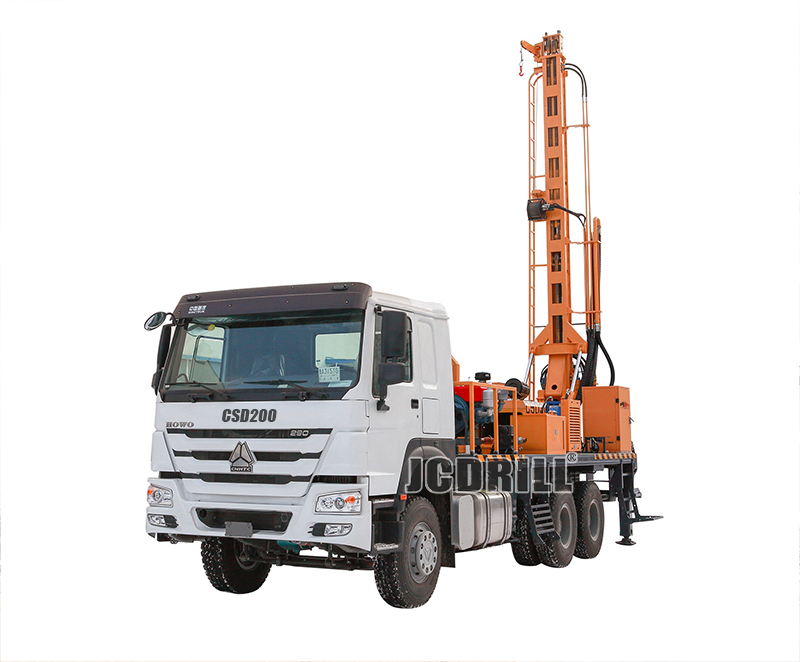

The truck chassis adopts the 4X2 or 4x4 special crane chassis of brand FOTON and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
The power of the drilling rig comes from a Yuchai engine,81kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
The rotary head,rotation speed is 0-115rpm stepless adjustment and the rotary torque is 4800Nm. 7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
It can set up a generator which is convenient to welding or illuminate for work at night.
Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope length of 100m.
The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
Competitive in price, low cost of maintain.
>> Specification
Item | Unit | Parameter |
Geology drilled | All kinds | |
Drilling Type | DTH & Mud Rotary | |
Drill system and operation | Hydraulic | |
Hole Diameter | mm | Φ90—Φ325 |
Hole Depth | m | 200 |
Rotation Torque | Nm | 4800 |
Rotation Speed | rpm | 0-102 |
Drill pipe diameter | mm | 76,89,102,114 |
Drill pipe length | mm | 3000 |
Max.Pull back capacity | Ton | 12 |
Max.Feed Speed | M/min | 18 |
Feed Stroke | mm | 3400 |
Lifting force of tool winch | T | 1.5 |
Length of steel wire rope(tool winch) | m | 100 |
Diesel Engine | Yuchai | |
Rated Horse power | Kw | 81 |
Truck | Foto | |
Truck Rated Horse power | HP | 168 |
Discharge Standard | EU-5 | |
Drive type | 4X2 | |
Truck Max.Speed | Km/h | 95 |
Truck Steering wheel | left/right(Optional) | |
Mud Pump | BW450 | |
Mud Pump Power type | Hydraulic or engine | |
Mud Pump Displacement | L/Min | 450 |
Mud Pump pressure | Mpa | 5 |
Weight&Dimension | ||
Net Weight | Kg | 10800 |
L*W*H | mm | 9100*2550*3400 |
Air Compressor | Optional | |
Compressor Type | Rotary Screw/Movable | |
Pressure Required | Mpa | 1.2—3.0 |
Air consumption | m³/min | 11—35 |
>> Shipping
