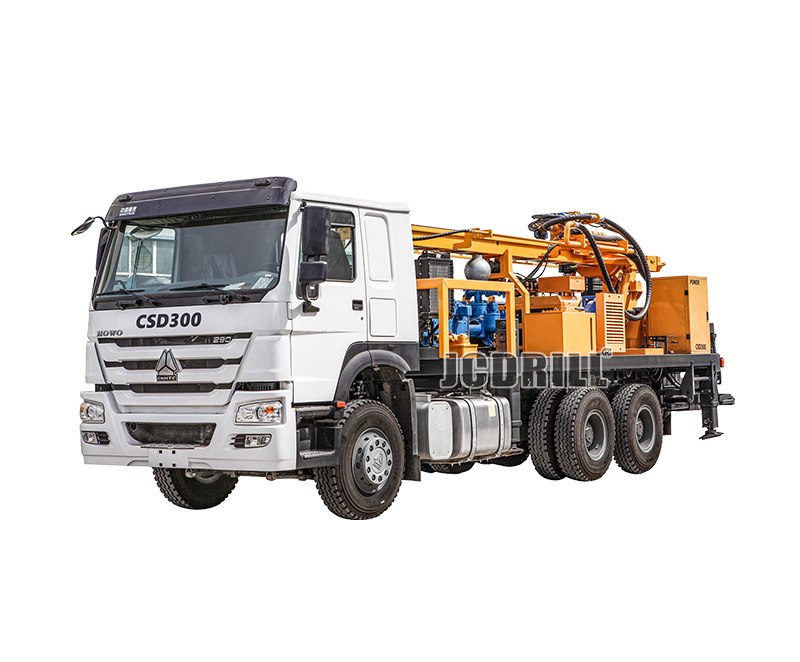

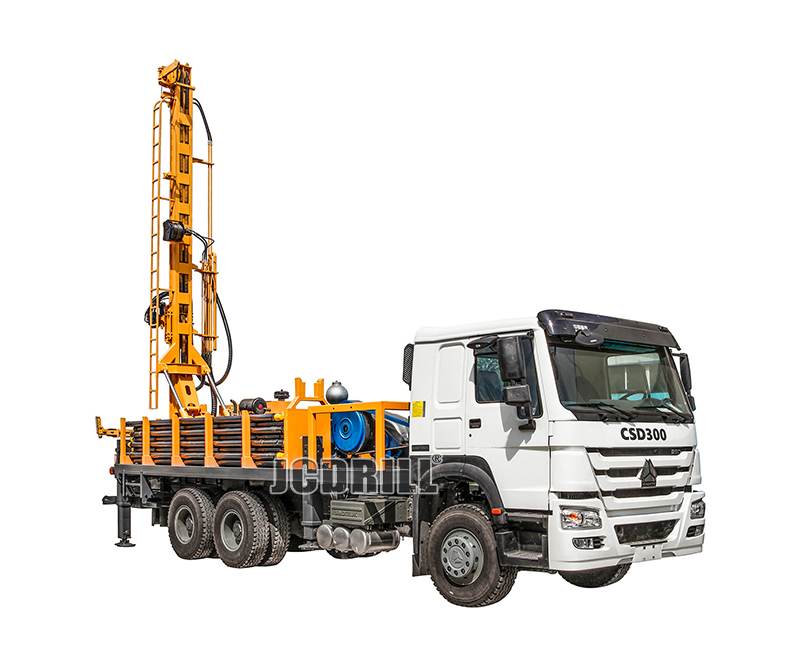

CSD300 Hydraulic Rotary Truck Mounted Borehole Drilling Rig

Model: CSD300

Type: Truck Mounted

Max. Drilling Depth: 300m

Drilling Method: Air Drilling & Mud Drilling

Inquire Now Chat Now

PRODUCT DESCRIPTION

Introduction

The hydraulic drilling of CSD300 is one type of rotary drilling rig and it is mainly used in fine particles and soft rock strata. The main purpose is hydrogeology exploration and survey the underlying for agricultural irrigation,industrial water drilling drilling water wells,underground tunnel ventilation,bridges and other engineering drilling. The water well drilling machine is equipped with fine adjustable drilling mechanism and mechanical screw unloading drilling tool.

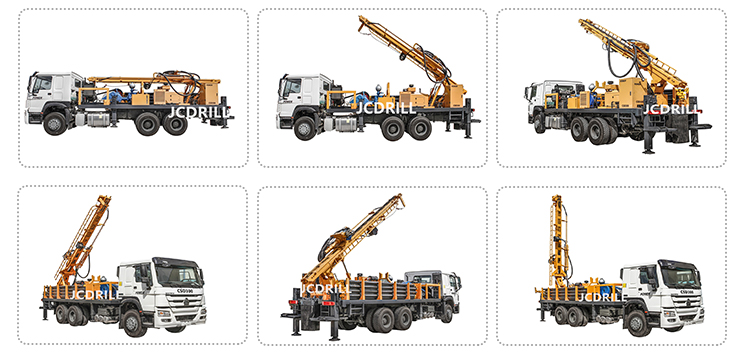

hydraulic drilling rig

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ140—Φ450
5	Hole Depth	m	300
6	Rotation Torque	Nm	4800-6500
7	Rotation Speed	rpm	60-120
8	Drill pipe diameter	mm	89/114
9	Drill pipe length	mm	4000/4500
10	Max. Push down capacity	T	5
11	Max. Pull up capacity	T	16
Winch
12	Lifting force of Main winch(Optional)	T	4
13	Lifting force of hoist	T	1. 5
14	Length of steel wire rope(tool winch)	m	100
15	Lifting height of tool winch	m	8
Engine
16	Diesel Engine type	YUCHAI
17	Rated Horse power	Kw	70
18	Electrical System	Volt	24
Compressor required
19	Compressor Type	Rotary Screw/Movable
20	Pressure Required	Mpa	1. 05—4. 5
21	Air consumption	m³/min	16—60
Truck
22	Manufacturer		SINOTRUCK HOWO
23	Model		ZZ1257M5847C
24	Engine		WD615. 93C
25	Rated Horse power	Hp	290
26	Discharge Standard		EU-2
27	Drive type		6*4
28	Max. Speed	Km/h	102. 9
29	Steering wheel		left/right(Optional)
Mud Pump
30	Power Type		Diesel engine
31	Model		BW450
32	Stroke	mm	110
33	Displacement	L/Min	450
34	Discharge pressure (Mpa)	Mpa	5
Dimension
35	Net Weight	T	20
36	Shipping Length	mm	11200
37	Shipping Width	mm	2500
38	Shipping Height	mm	3200
39	Working size（LWH）	mm	1100024807147

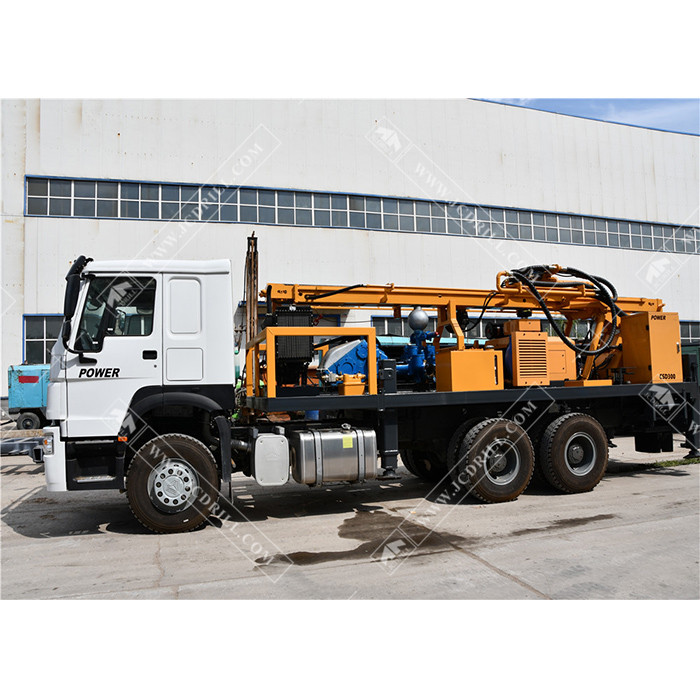

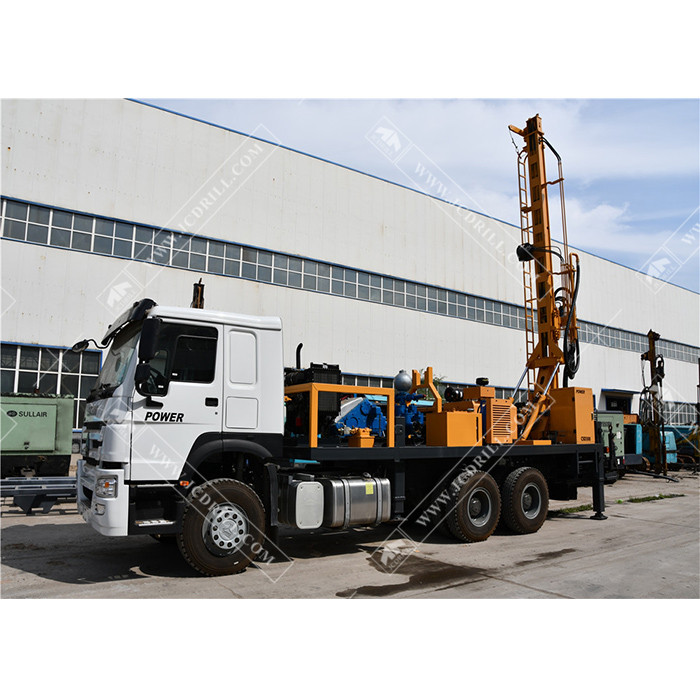

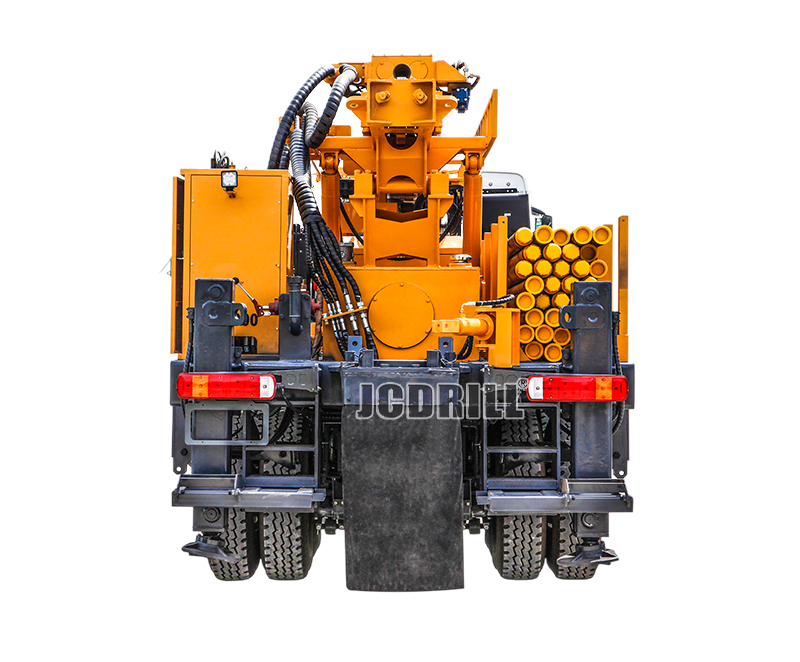

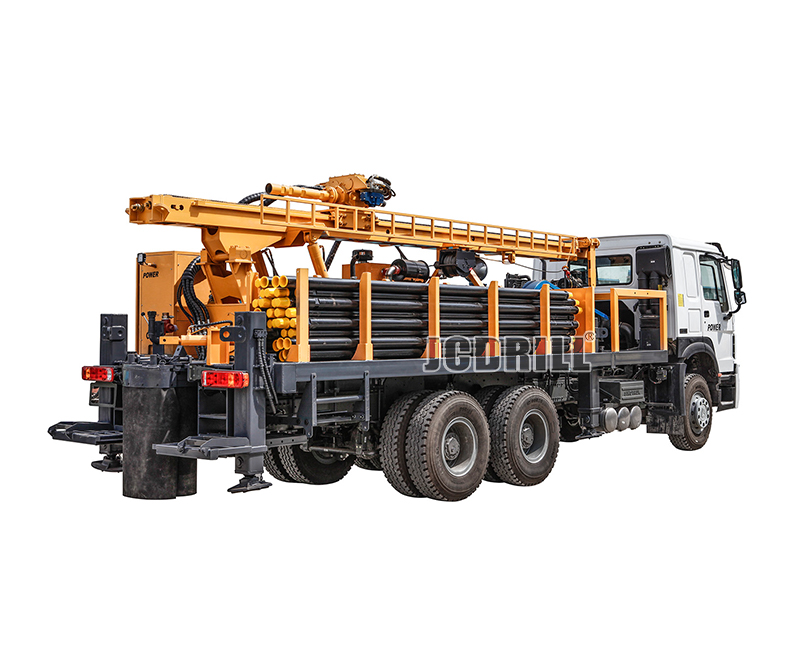

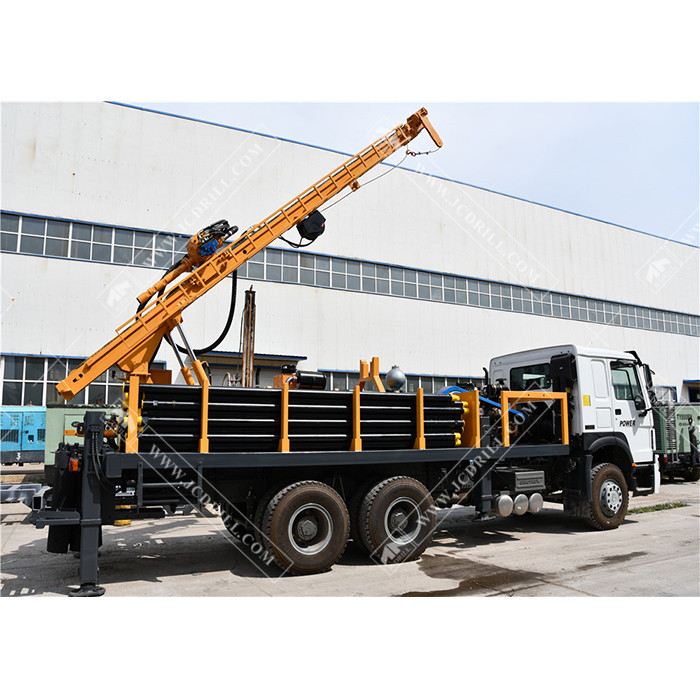

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 70KW Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, rotation speed is 60-120rpm stepless adjustment and the rotary torque is 4800-6500Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

12. Competitive in price, low cost of maintain.

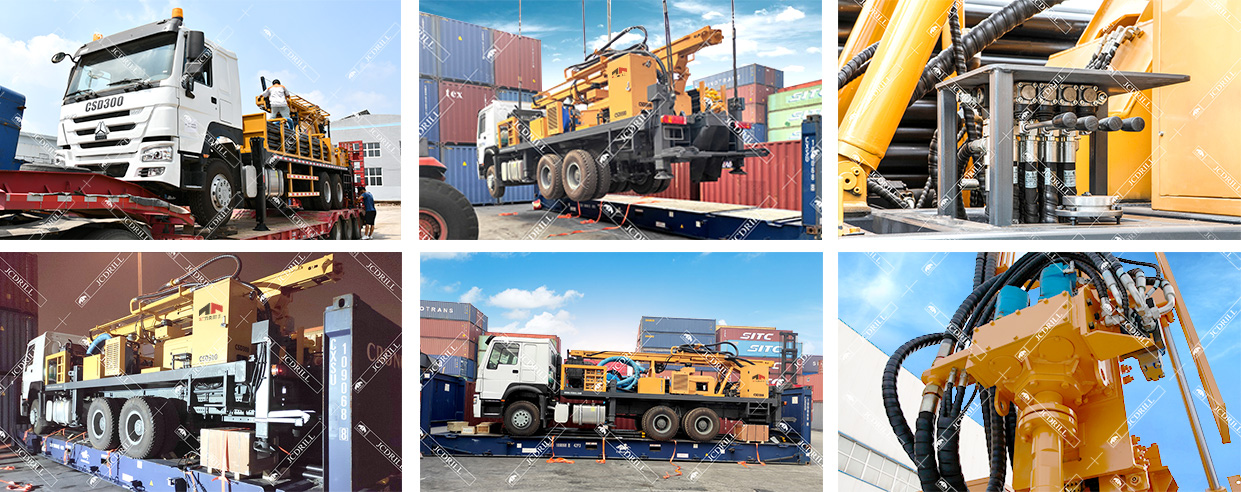

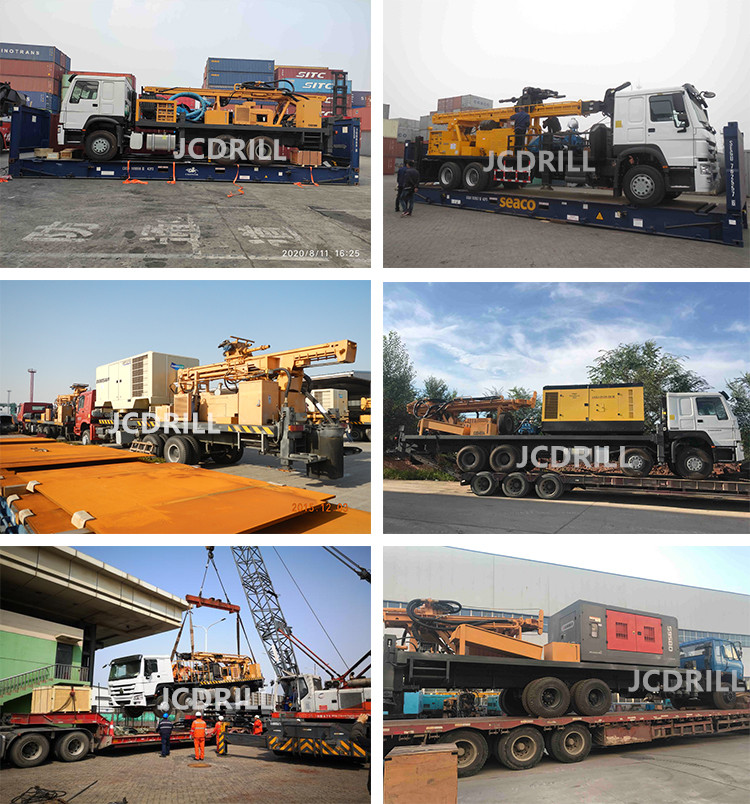

Shipping
