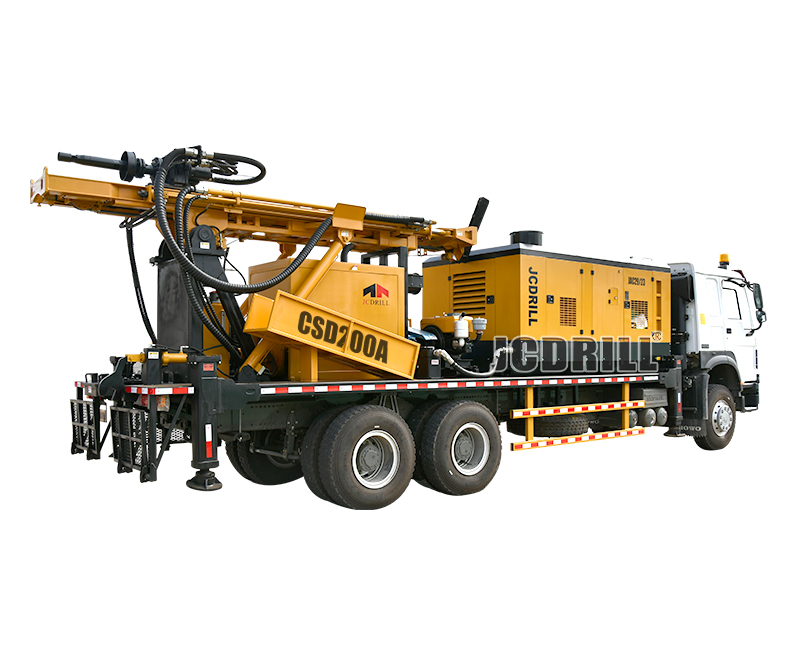

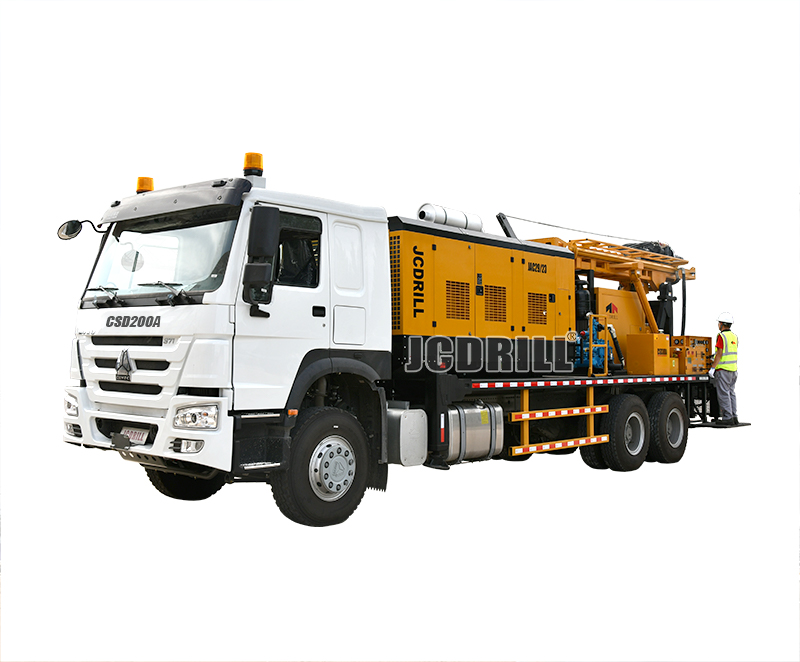

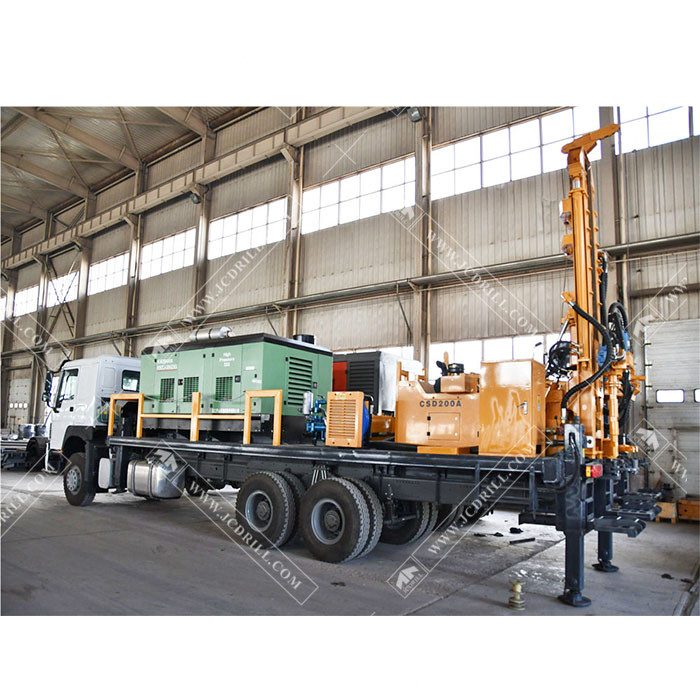

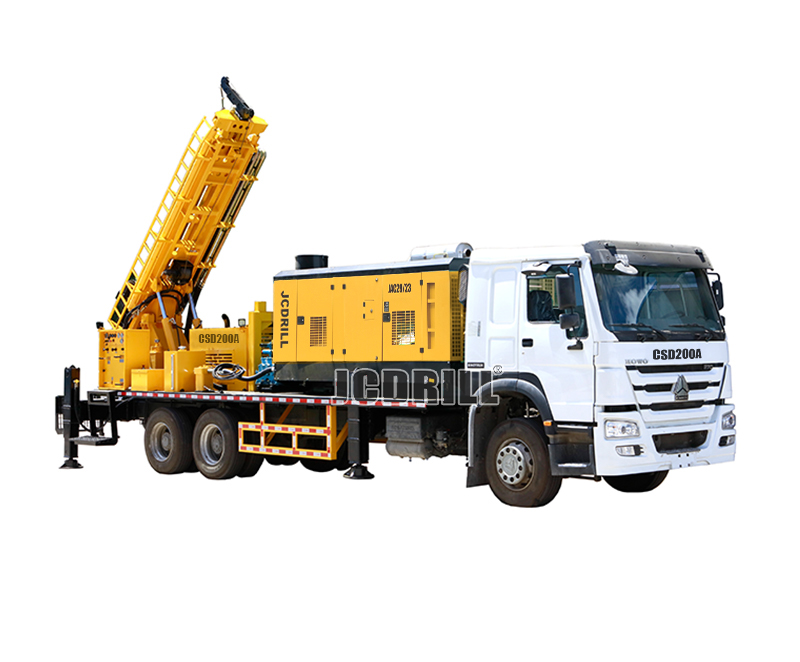

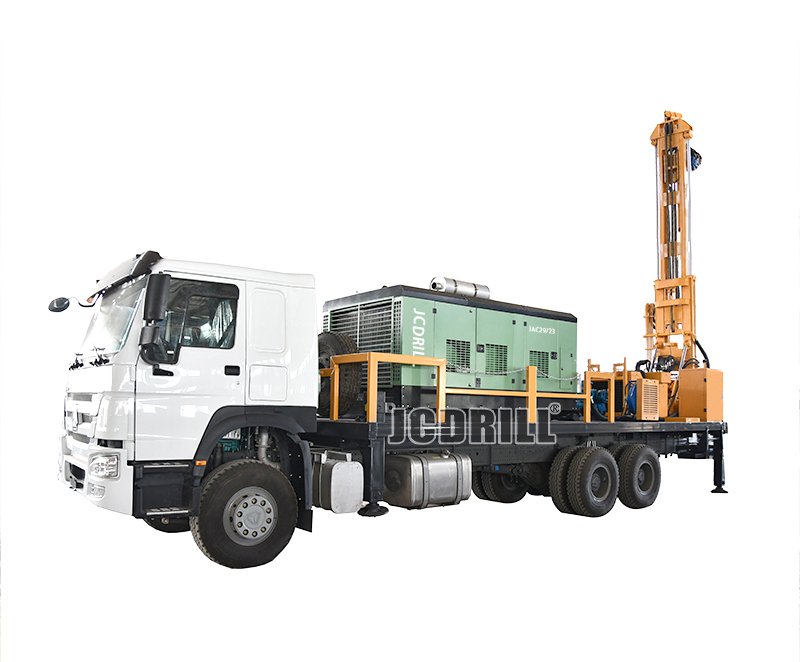

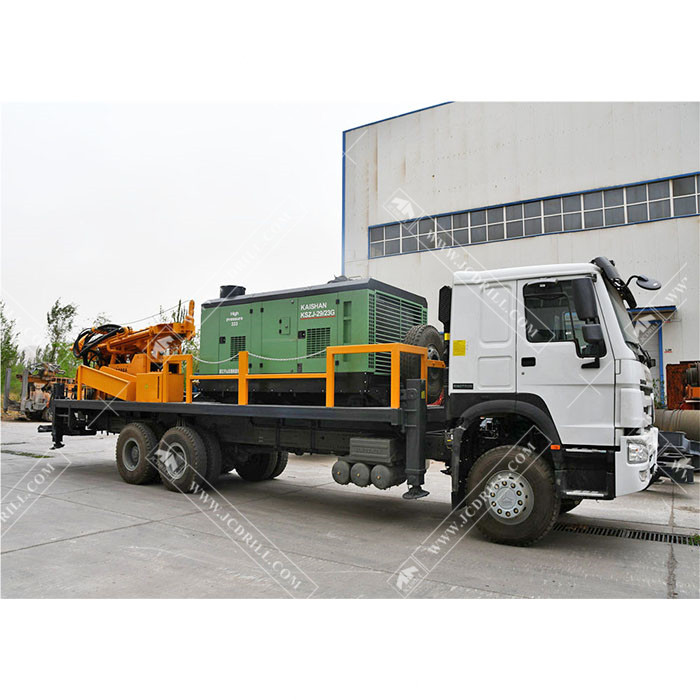

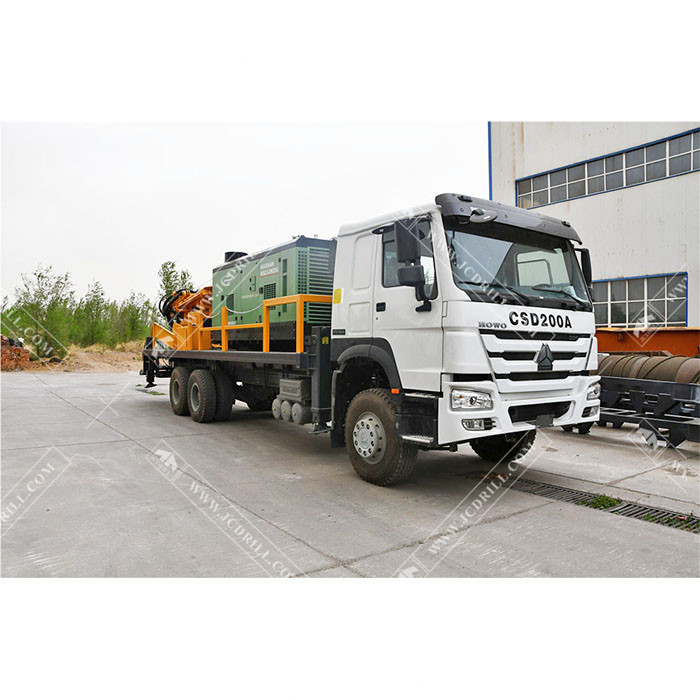

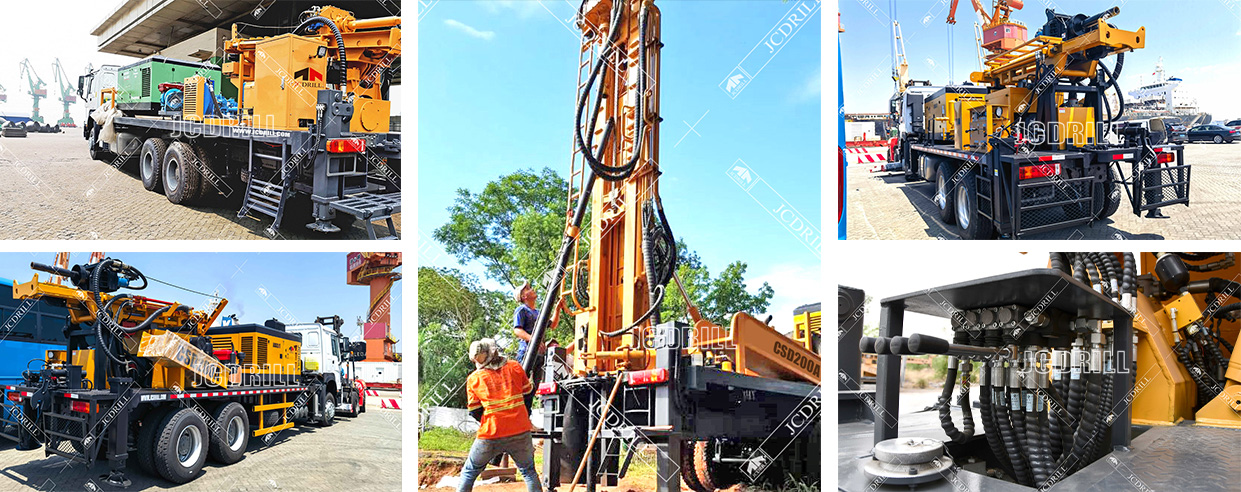

Model: CSD200A
Type: Truck Mounted 6x4 (Integral)
Max.Drilling Depth: 200m
Drilling Method: Air Drilling & Mud Drilling
Share
PRODUCT DESCRIPTION
Introduction
The truck water well drilling rigs CSD200A are multifunctional drilling machine with air compressor and it is used with air compressor and mud pump by full hydraulic rotary method. The drilling rigs are not only for drilling water well, it also can be used in other conditions according to project’s requirements. Truck drilling machines are used in industrial and agriculture water project, testing well, exploration borehole and so on. The type of drilling rigs are more efficiency, more economic, more durable and with a high comprehensive cost performance.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140—Φ450 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 3050-6100 |
| 7 | Rotation Speed | rpm | 60-120 |
| 8 | Drill pipe diameter | mm | 89/102/114 |
| 9 | Drill pipe length | mm | 3000/4500 |
| 10 | Max.Pull down capacity | T | 85KN |
| 11 | Max.Pull back capacity | T | 16 |
| Winch | |||
| 12 | Lifting force of Main winch(Optional) | T | 5 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 7.5 |
| Engine | |||
| 16 | Diesel Engine type | YUCHAI | |
| 17 | Rated Horse power | Kw | 70 |
| 18 | Electrical System | Volt | 24 |
| Compressor | |||
| 19 | Brand | KAISHAN | LGZJ18/17 |
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 17 |
| 22 | Air consumption | m³/min | 18 |
| Truck | |||
| 23 | Manufacturer | SINOTRUCK | |
| 24 | Model | EQ1208G7 | |
| 25 | Engine | WD615.47 | |
| 26 | Rated Horse power | kw | 273 |
| 27 | Discharge Standard | EU-2 | |
| 28 | Drive type | 6*4 | |
| 29 | Max.Speed | Km/h | 93 |
| 30 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 31 | Type | Hydraulic | |
| 32 | Model | BW250 | |
| 33 | Stroke | mm | 110 |
| 34 | Displacement | L/Min | 250 |
| 35 | Discharge pressure (Mpa) | Mpa | 4 |
| Dimension | |||
| 36 | Net Weight | T | 19.8 |
| 37 | Shipping Length | mm | 11500 |
| 38 | Shipping Width | mm | 2480 |
| 39 | Shipping Height | mm | 3550 |
| 40 | Working size（L*W*H） | mm | 11000*2480*6350 |
Characteristics
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a diesel engine, 70KW Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 3050-6100Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
12. Competitive in price, low cost of maintain.
