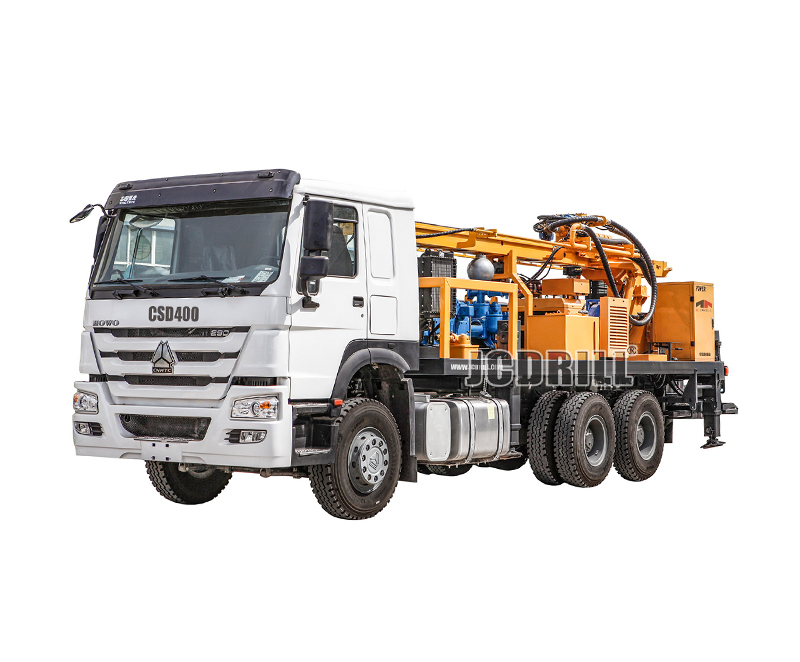

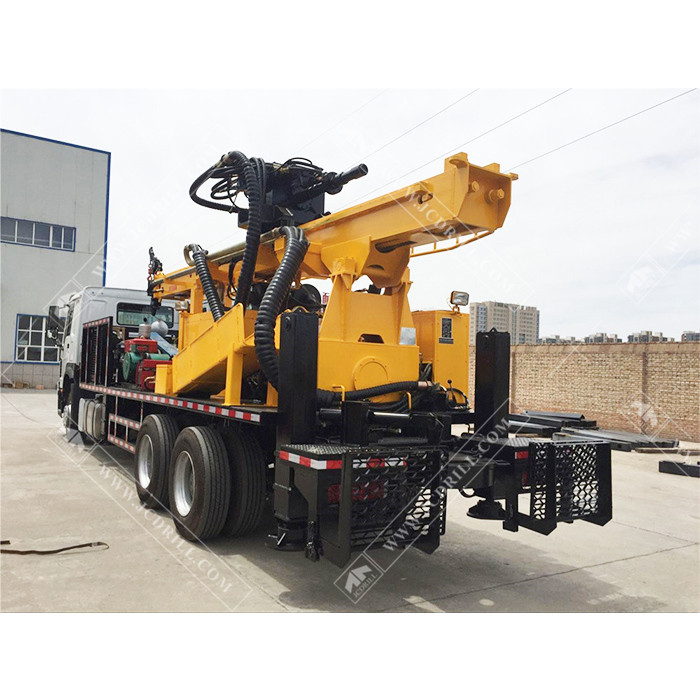

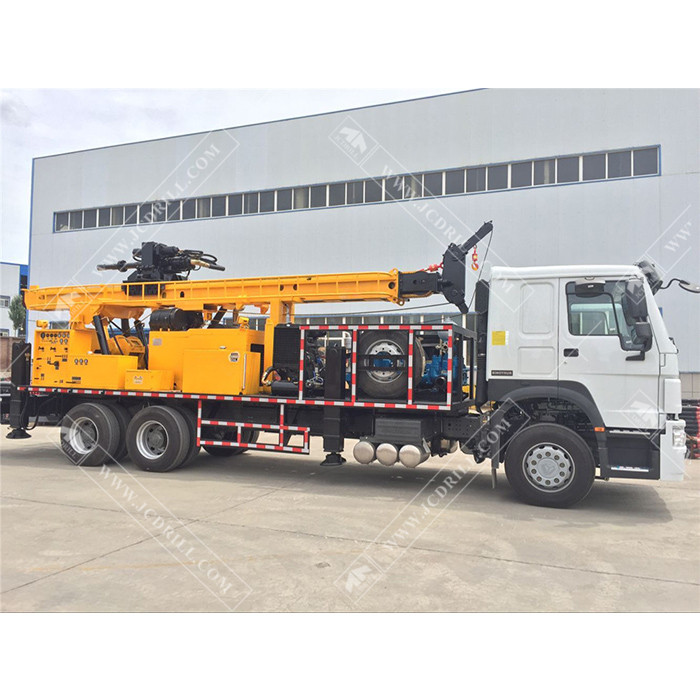

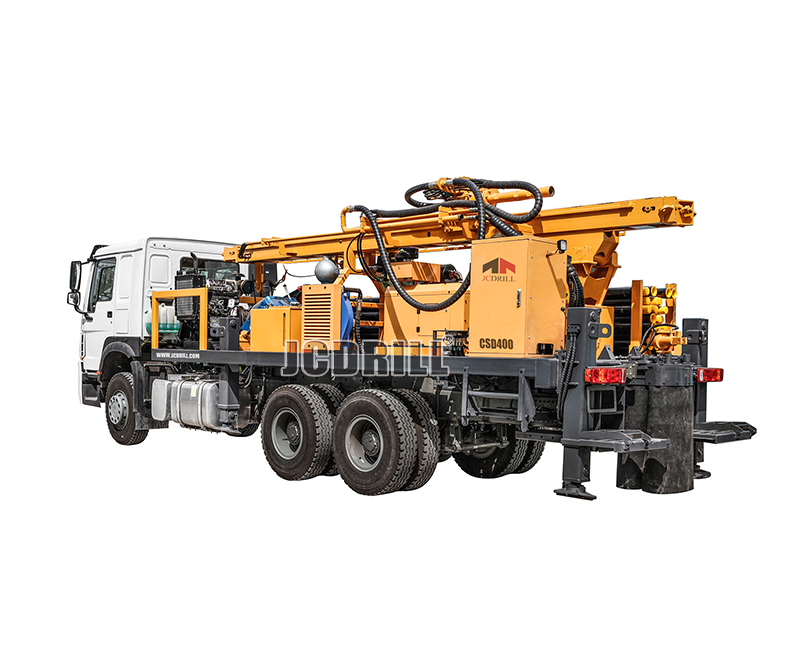

CSD400 Full Hydraulic DTH Water Well Drilling Rig

Model: CSD400

Type: Truck Mounted 6x4 (Portable)

Max. Drilling Depth: 400m

Drilling Method: Air Drilling & Mud Drilling

Inquire Now Chat Now

PRODUCT DESCRIPTION

Introduction

CSD series truck mounted water well drilling rig of CSD400 uses full hydraulic control and driver the rotation of drilling tools with high efficiency. In difficult roads, the truck machine is very flexible and it can used in exploration of hydrology wells, shallow layer of shale gas, terrestrial heat, coal-min gas exploration or salvage work and so on. The advantages of truck water well drilling rigs is full hydraulic, truck as chassis, feeding system and others.

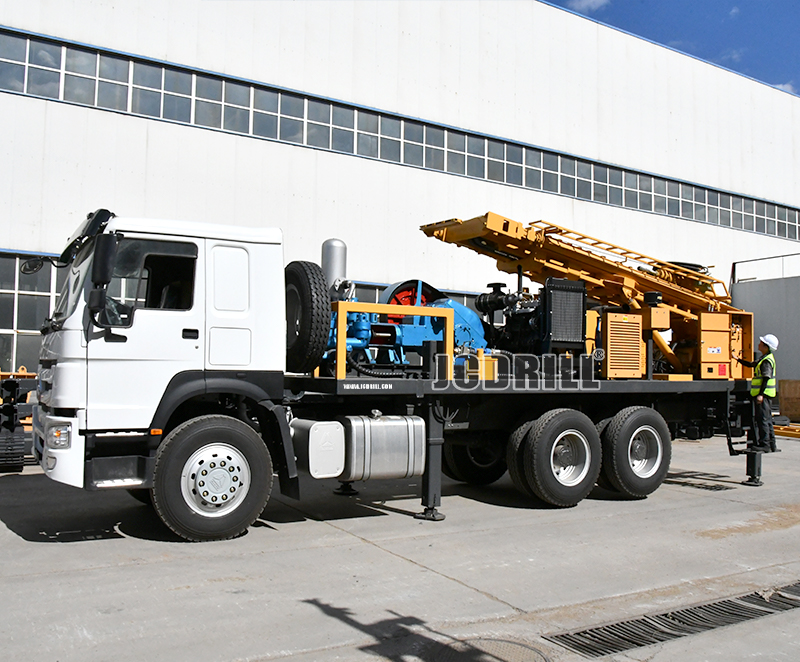

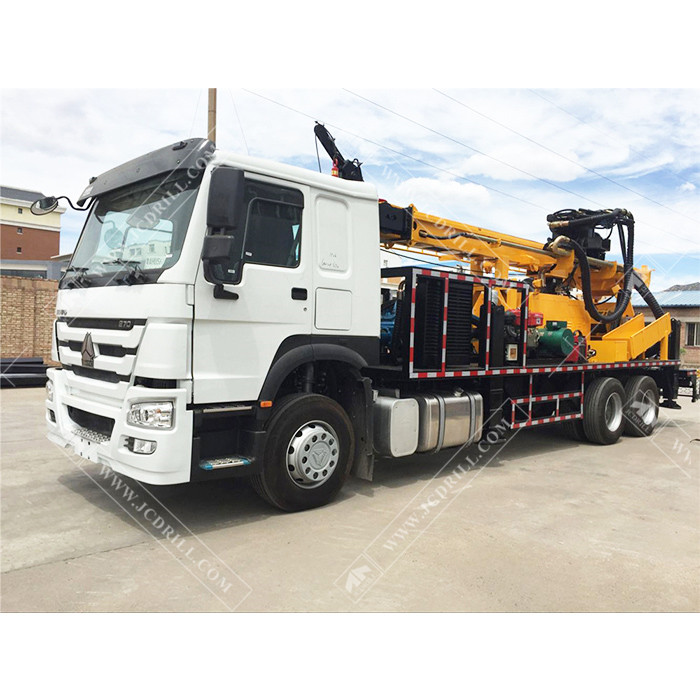

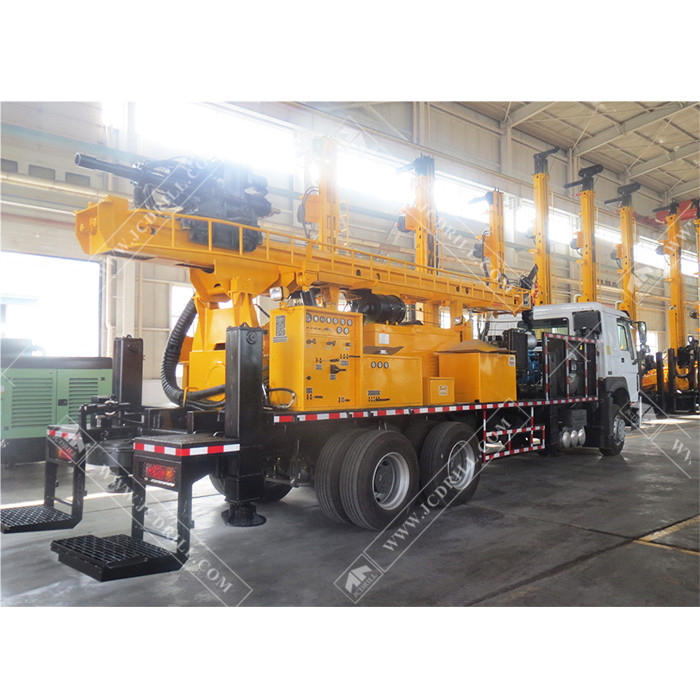

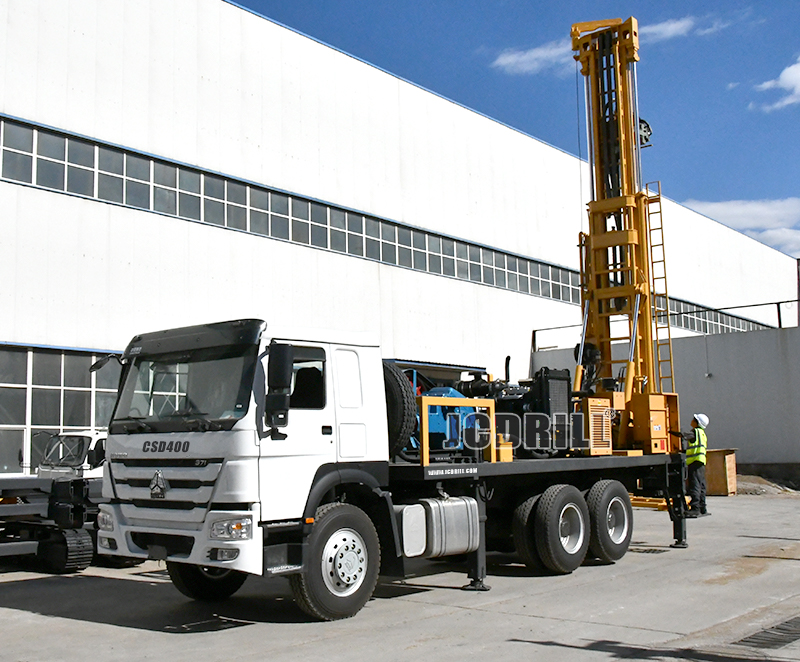

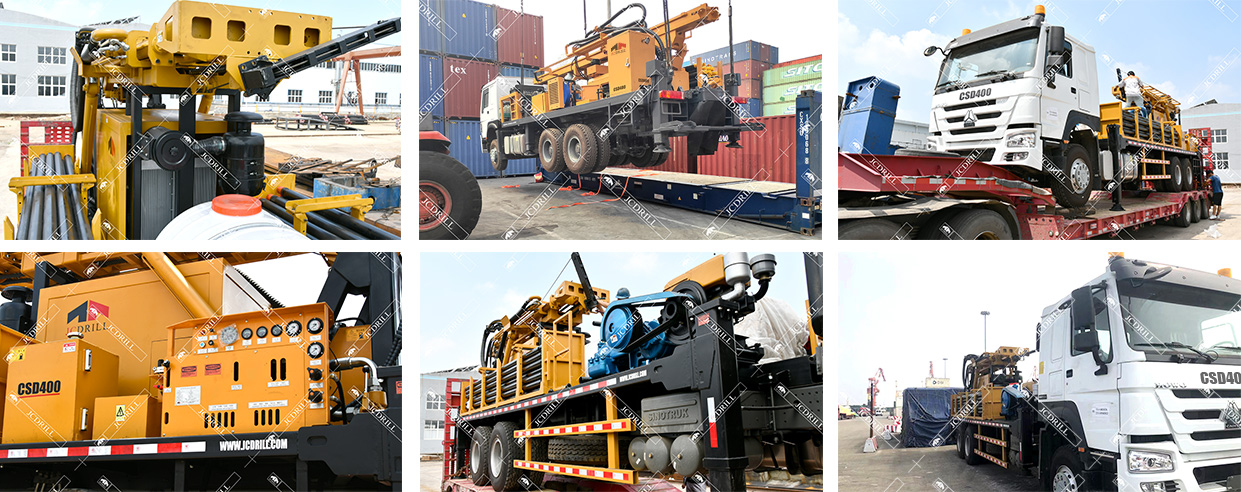

water well drilling rig

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ140—Φ350
5	Hole Depth	m	400
6	Rotation Torque	Nm	9600
7	Rotation Speed	rpm	60-120
8	Drill pipe diameter	mm	89/114
9	Drill pipe length	mm	4000/4500
10	Axial pressure	T	85KN
Winch
11	Max. Lifting force	T	20
12	Lifting force of Main winch(Optional)	T	4
13	Lifting force of hoist	T	1. 5
14	Length of steel wire rope(tool winch)	m	100
15	Lifting height of tool winch	m	8
Engine
16	Diesel Engine type	CUMMINS
17	Rated Horse power	Kw	112
18	Electrical System	24	Volt
Compressor required
19	Compressor Type	Rotary Screw/Movable
20	Pressure Required	Mpa	1. 05—4. 5
21	Air consumption	m³/min	16—60
Truck
22	Manufacturer		SINOTRUCK HOWO
23	Model		ZZ1257M5847C
24	Engine		WD615. 93C
25	Rated Horse power	kw	245
26	Discharge Standard		EU-3
27	Drive type		6*4
28	Max. Speed	Km/h	102. 9
29	Steering wheel		left/right(Optional)
Mud Pump
30	Type		Hydraulic
31	Model		BW850/2
32	Stroke	mm	110
33	Displacement	L/Min	850
34	Discharge pressure (Mpa)	Mpa	2
Dimension
35	Net Weight	T	20
36	Shipping Length	mm	10500
37	Shipping Width	mm	2480
38	Shipping Height	mm	3050
39	Working size（LWH）	mm	1100024807147

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 4X2 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a diesel engine, 112KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head, rotation speed is 60-120rpm stepless adjustment and the rotary torque is 9600Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

12. Competitive in price, low cost of maintain.
