Hydraulic Pneumatic Truck Rotary Borehole Water Well Drilling Rig



Max. Drilling depth:600m

Drilling Method:Air Drilling & Mud Drilling

>> Application

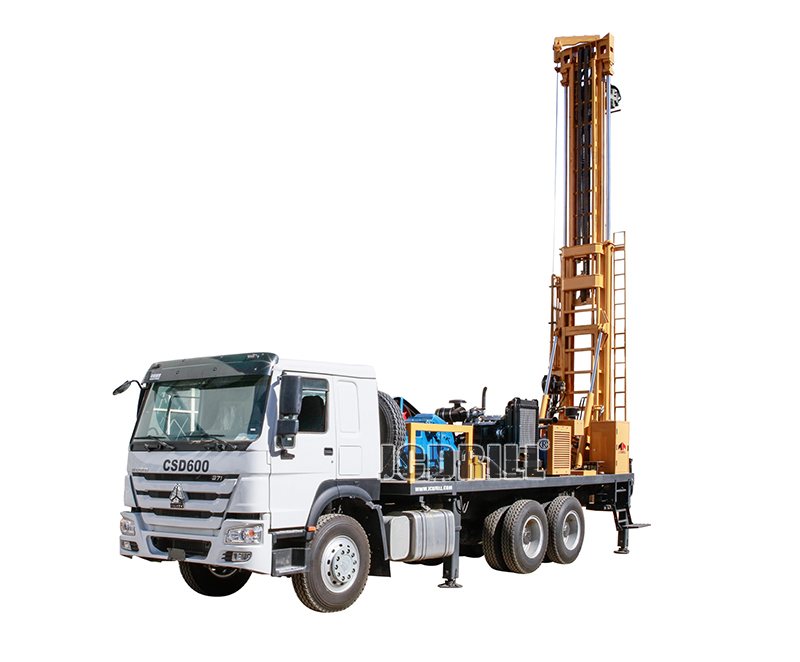

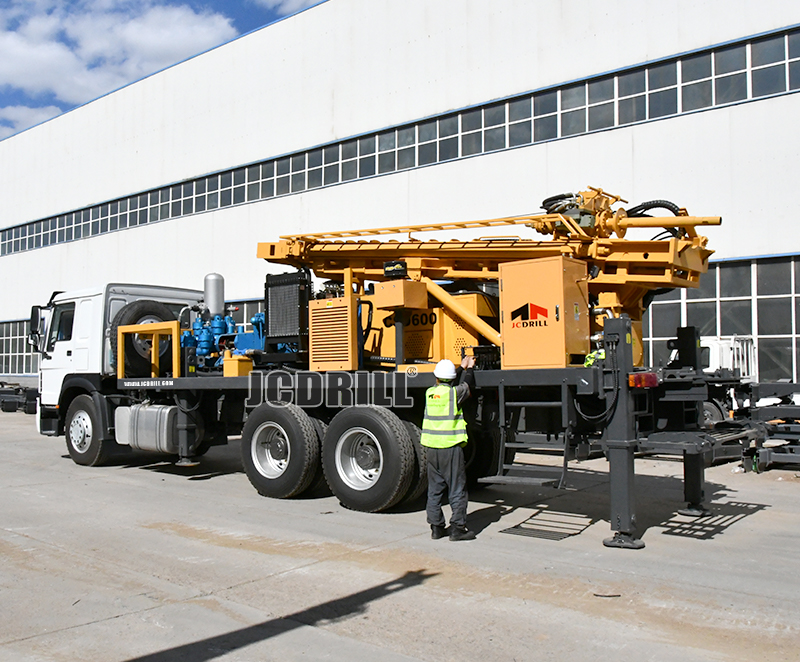

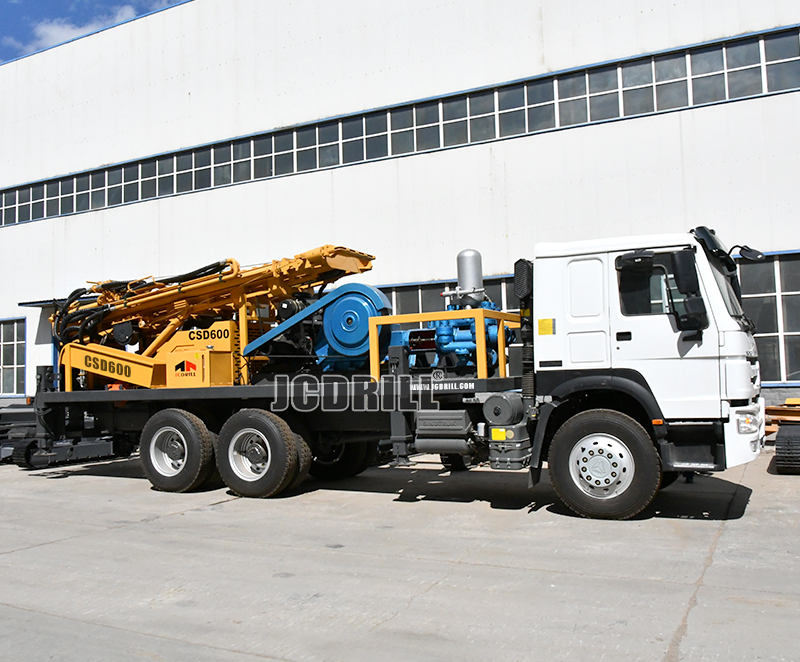

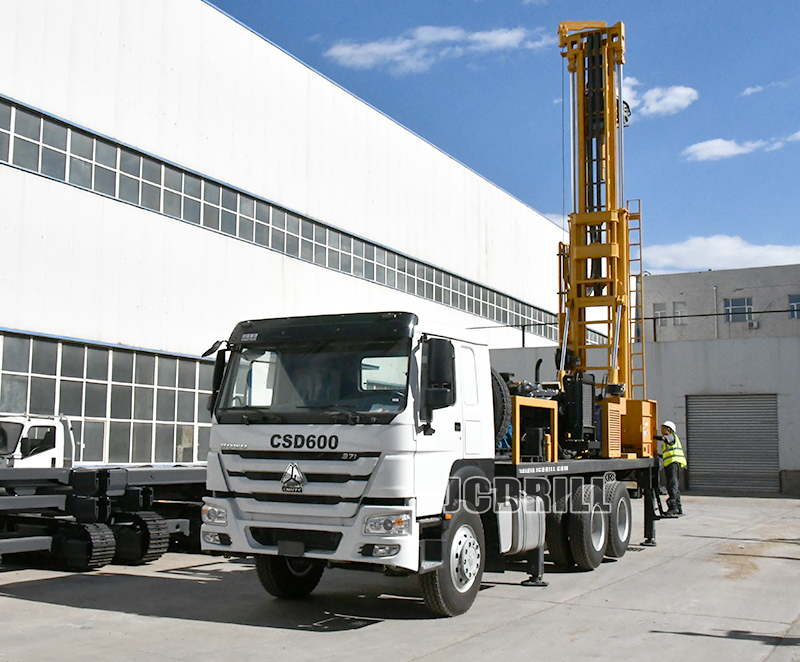

CSD600 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.



The versatile truck water well drilling rig a new, efficient and multifunctional hydraulic drilling rig, mainly used to kinds of drilling wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam and so on. The drilling machine is with full powerful hydraulic motor, heavy duty hydraulic drilling arm and high pressure DTH percussive hammer. In addition, the water well drilling machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>>The truck chassis adopts the 6x4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>>It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>>The power of drilling rig comes from a diesel engine, 132KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>>The rotary head, rotation speed is 93-186rpm stepless adjustment and the rotary torque is 6000-12000Nm.        >>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>>It can set up a generator which is convenient to welding or illuminate for work at night.

>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>> Specification

Geology Drilled
All kinds
Drilling Method
DTH & Mud Rotary
Hole Depthm600
Hole DiametermmΦ140—Φ500
RotationRotation TorqueNm6000-12000
Rotation Speedrpm93-186
Feeding SystemDrill Pipe Diametermm102/114/127
Drill pipe lengthmm4500/6000
Push down capacityT8
Pull back capacityT32
Fast lifting speedm/min29
Fast forwarding speedm/min42
Feed Strokemm6600
WinchLifting force of tool winchT1.5
Length of steel wire ropem100
EngineDiesel Engine type
Rated powerKw132
Electrical SystemVolt24
CompressorCompressor Type
Rotary Screw/Separate
Pressure RequiredMpa1.2—3.0
Air consumptionm³/min11—35
Rated Horse powerkw400
Discharge Standard
Drive type
Max. SpeedKm/h100
Steering wheel
Mud PumpModel
BW850/2 or BW850/5
Discharge pressure (Mpa)Mpa2 Or 5
Dimension&WeightNet WeightKgs19000
Shipping (L*W*H)mm11800*2550*3750
Working size(L*W*H)mm11000*2550*9800
All truck brand & Engine brand  available according to your requests!
