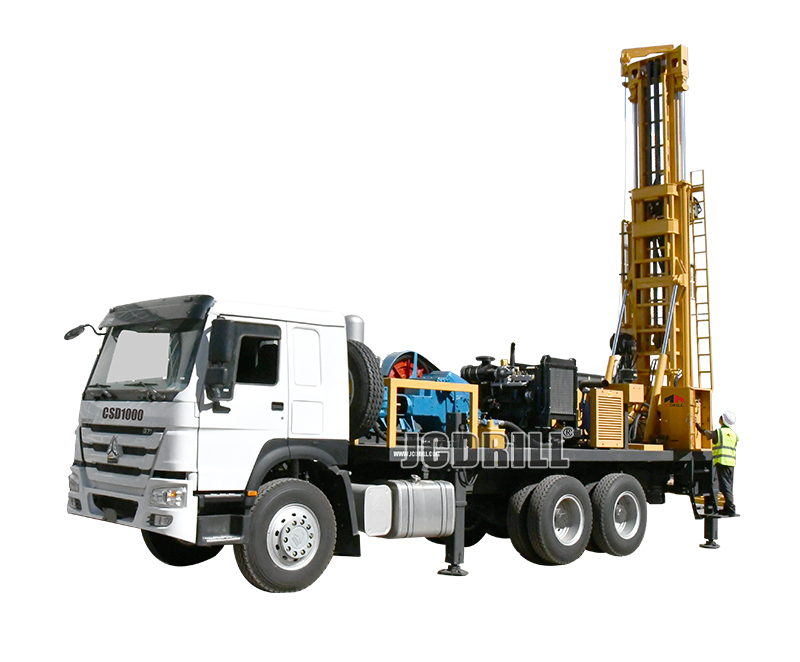

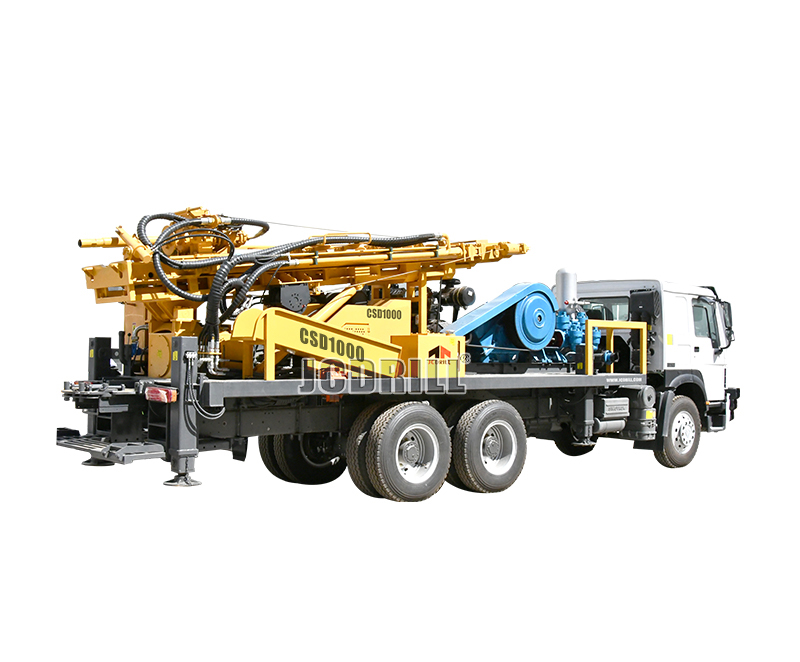

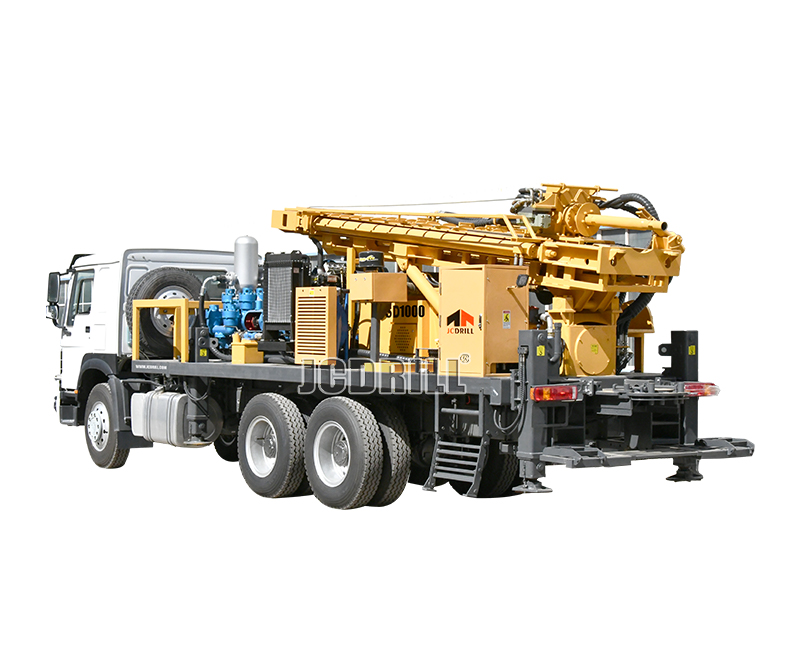

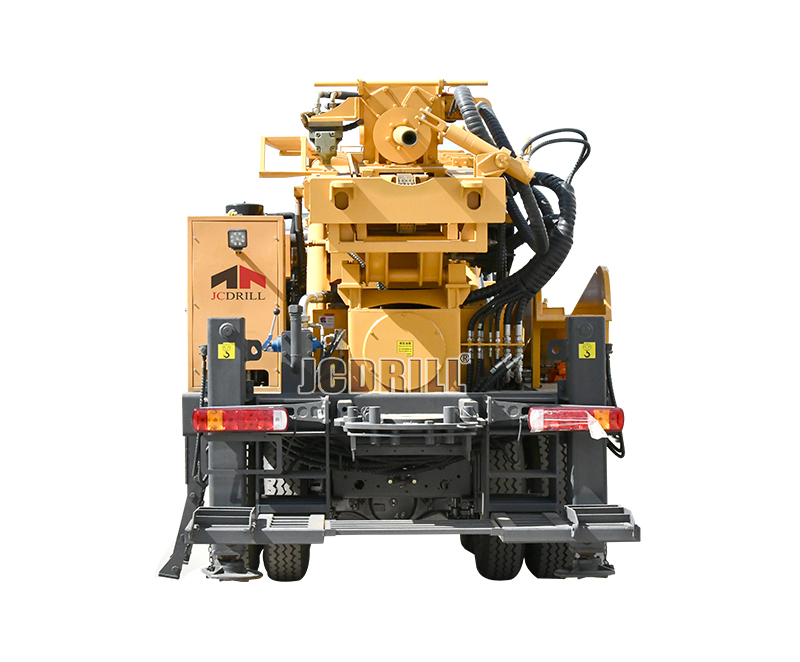

Hydraulic Pneumatic Truck Water Well Bore Hole Drilling Rig for 1000m

JCDRILL hydraulic portable truck mounted water well drilling rig is a versatile drilling equipment, which is mainly used for drilling wells, irrigation wells and other uses of the borehole, such as for mountain and rock formations of the water work. Using advanced technology and supporting high torque motor revolution. Using hydraulic system of plants to provide power for the engine. The hydraulic console is easy to operate. The truck chassis can be easily to move on kinds of road.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>>The truck chassis adopts the 6x4,8x4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>>It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>>The power of drilling rig comes from a diesel engine, 179KW COMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>>The rotary head,rotation speed is 0-110rpm stepless adjustment and the rotary torque is 9600-14500Nm.

>>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>>It can set up a generator which is convenient to welding or illuminate for work at night.

>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>>The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope length of 40m.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

 >> Specification

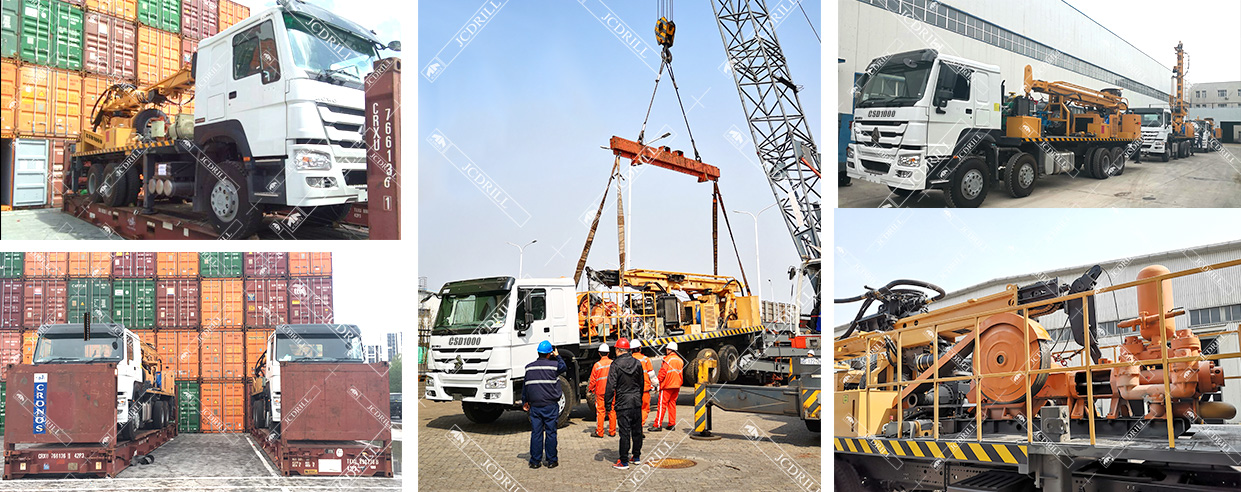

>> Shipping
