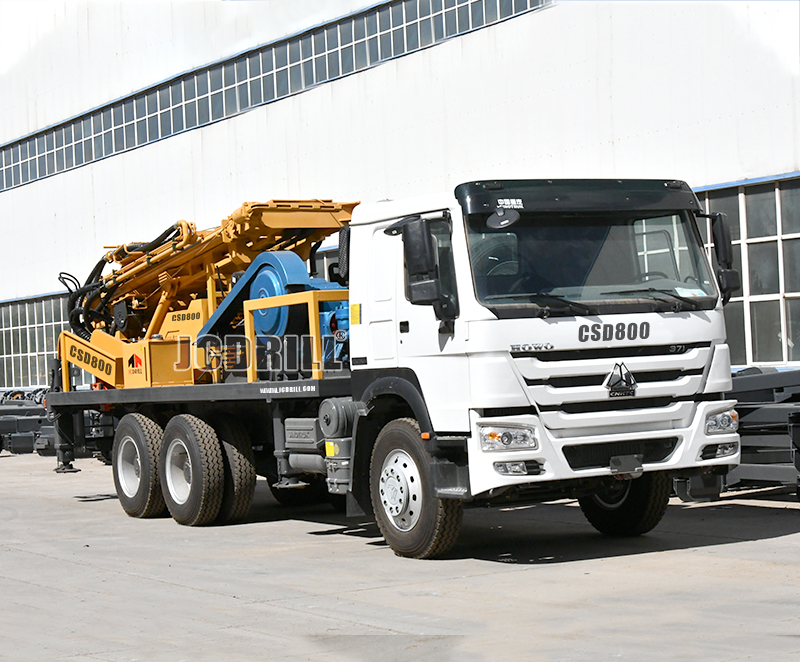

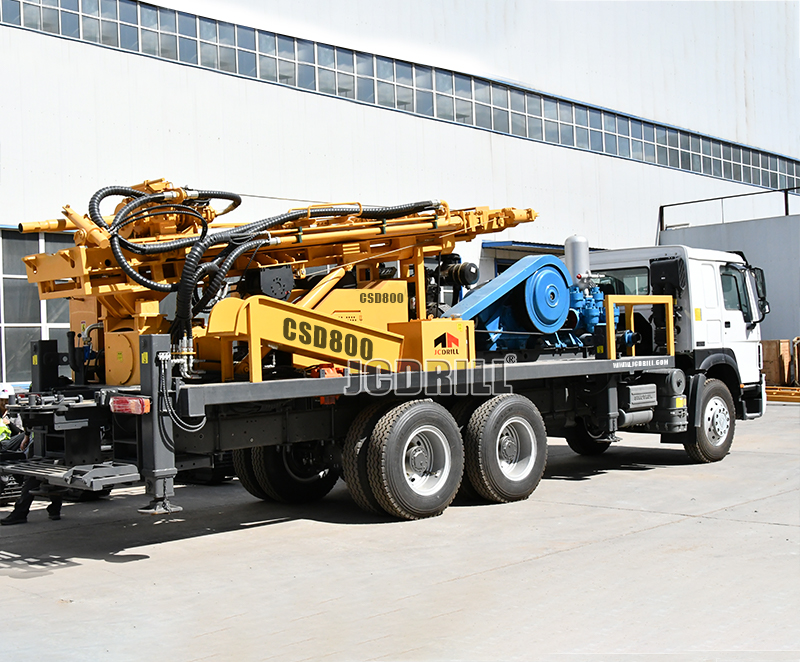

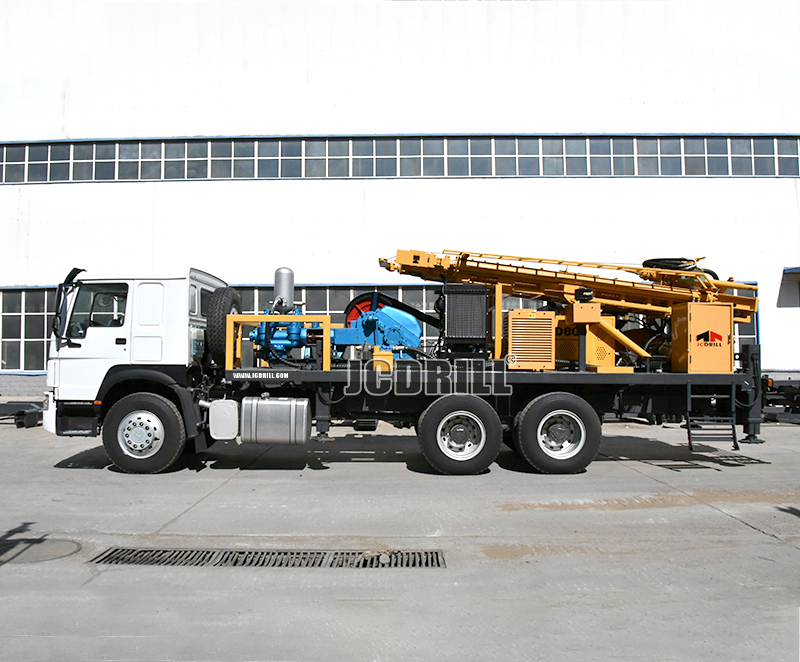

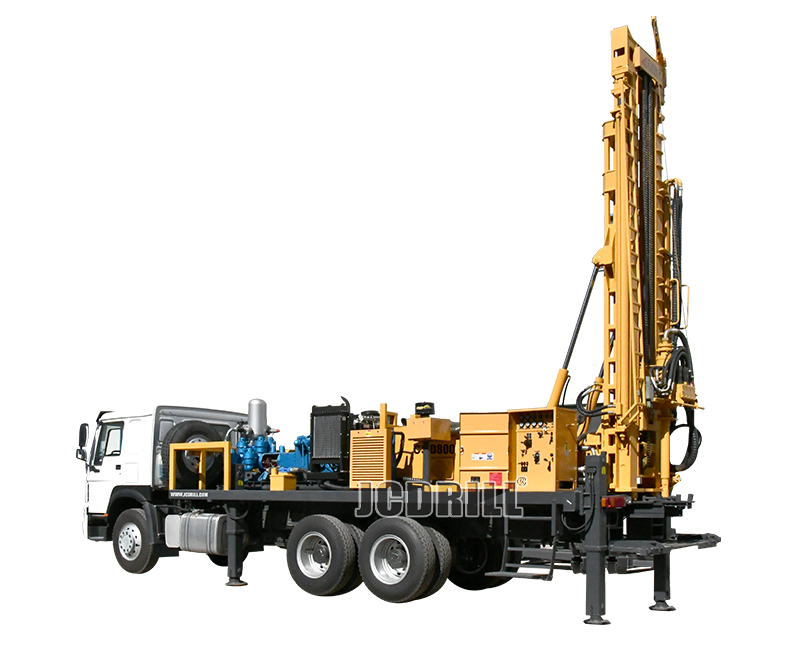

Borehole Truck Water Well Drill Machine with Air Compressor for Sale

Model:CSD800

Chassis:6X4,8X4

Max. Drilling depth:800m

Drilling Method:Air Drilling & Mud Drilling


>> Application

CSD800 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

Share

PRODUCT DESCRIPTION

Truck mounted water well drilling rig is designed by our professional engineers with the advanced technology concept and it is a hydraulic rotary drilling rig. The truck chassis adopts the special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis. This rig is a rotary drilling rig with directional circulation and It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>>The truck chassis adopts the 6X4,8X4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>>It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>>The power of drilling rig comes from a diesel engine, 76Hp Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>>The rotary head, rotation speed is 0-100rpm stepless adjustment and the rotary torque is 4000-4800Nm.

>>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>>It can set up a generator which is convenient to welding or illuminate for work at night.

>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>>The tools winch winch is used for auxiliary lifting and casing, optional main winch force of 1.5T, rope length of 40m.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>> Specification

ItemSpec.UnitParameter
GeneralChassis
6X48x4
Geology Drilled
All kindsAll kinds
Drilling Method
DTH & Mud RotaryDTH & Mud Rotary
Hole Depthm800800
Hole DiametermmΦ140—Φ650Φ140—Φ650
RotationRotation TorqueNm9600    1st Gear9600    1st Gear
14500   2nd Ger14500   2nd Ger
Rotation Speedrpm0-80    1st Gear0-80    1st Gear
0-110   2nd Ger0-110   2nd Ger
Feeding SystemDrill Pipe Diametermm102/114/127102/114/127
Drill pipe lengthmm3000/4500/60003000/4500/6000
Push down capacityT1010
Pull back capacityT4040
WinchLifting force of tool winchT44
Length of steel wire ropem100100
EngineDiesel Engine type
CUMMINSCUMMINS
Rated powerKw132132
Electrical SystemVolt2424
CompressorCompressor Type
Rotary Screw/SeparateRotary Screw/Separate
Pressure RequiredMpa1.2—3.01.2—3.0
Air consumptionm³/min11—3511—35
ChassisManufacturer
SINOTRUCKSINOTRUCK
Rated Horse powerHp400400
Discharge Standard
EU-2/EU-3EU-2/EU-3
Drive type
6*48*4
Max. SpeedKm/h102.9102.9
Steering wheel
left/right(Optional)left/right(Optional)
Mud PumpModel
BW850/5BW850/5
DisplacementL/Min850850
Discharge pressure (Mpa)Mpa55
GeneratorOptional
Engine or hydraulic DrivenEngine or hydraulic Driven
Dimension&WeightNet WeightKgs2200022000
Shipping (L*W*H)mm10800*2550*365011000*2550*3650
Working size(L*W*H)mm11000*2550*980011500*2550*9800
All truck brand & Engine brand  available according to your requests!

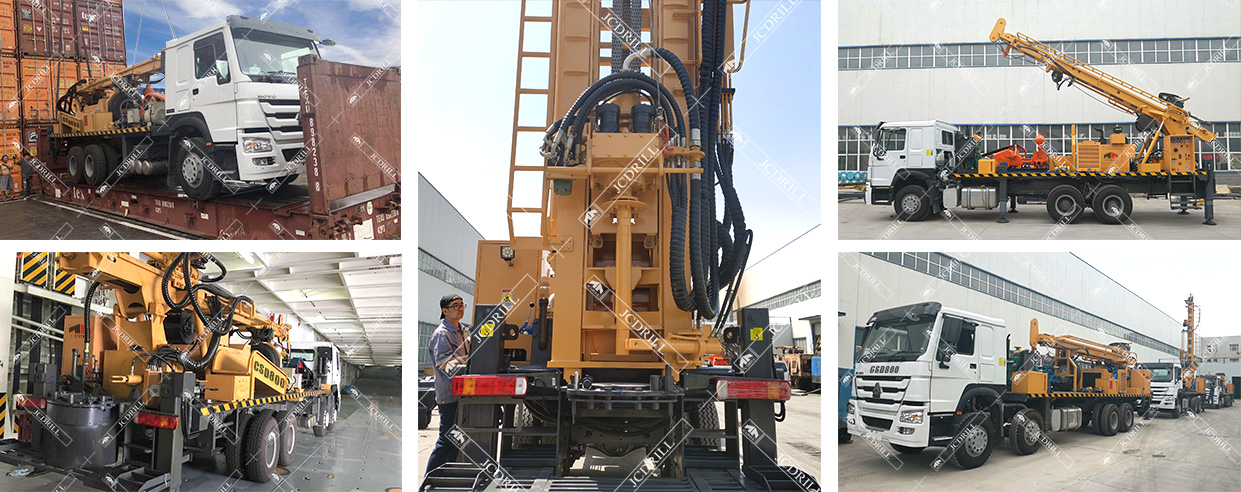

>> Shipping

Borehole Truck Water Well Drill Machine with Air Compressor for Sale
