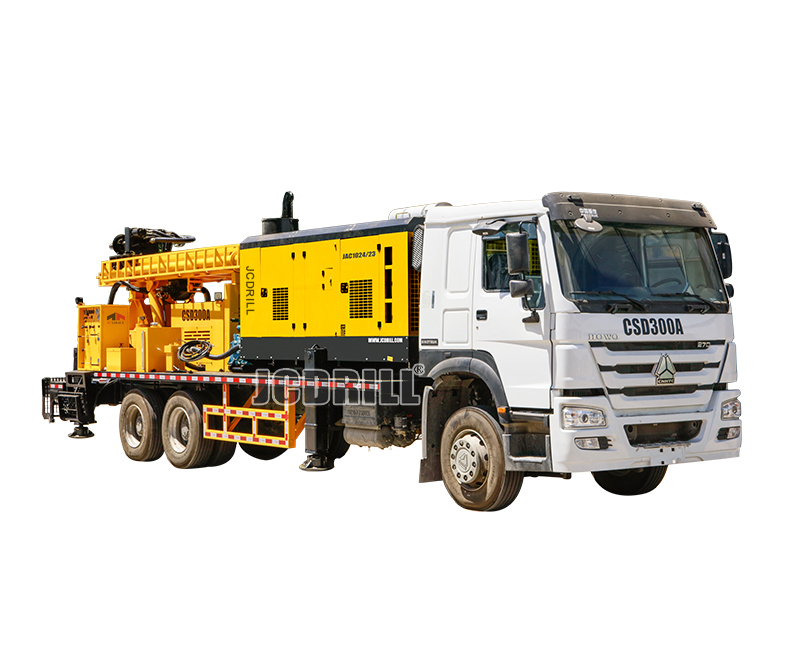

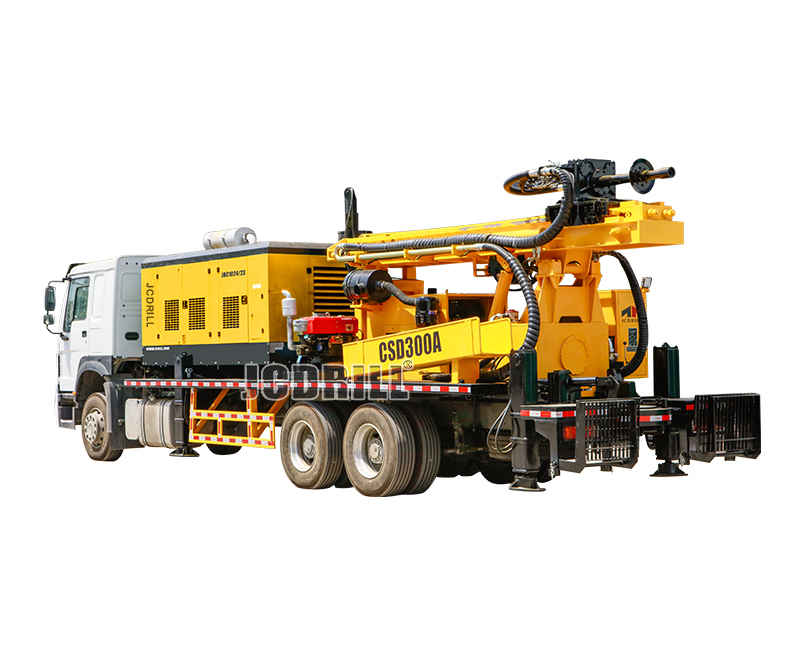

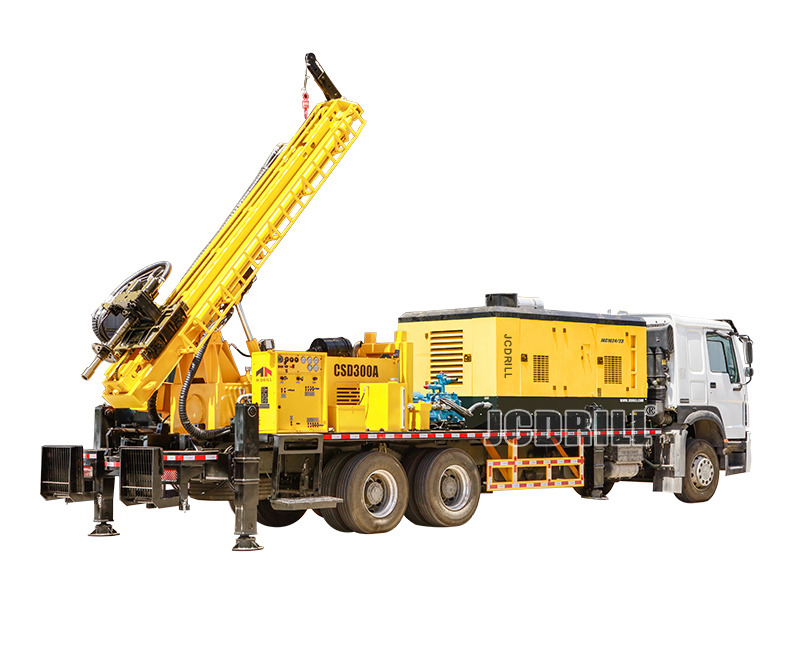

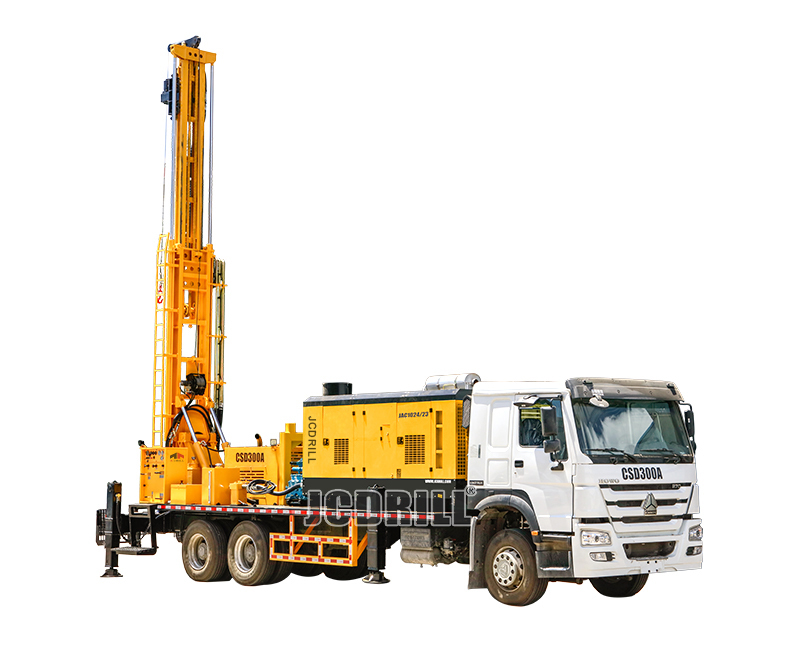

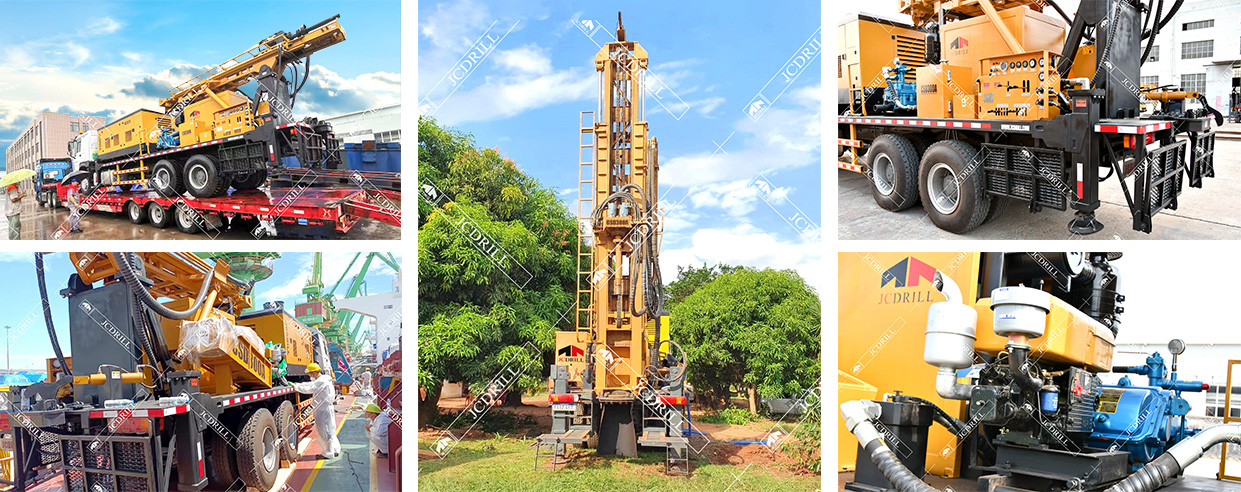

Borehole Drilling Rig Truck Mounted Water Well Drilling Rig with Air Compressor



Max. Drilling depth:300m

Drilling Method:Air Drilling & Mud Drilling

>> Application

CSD300A truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.



CSD300A Series Multi-Functional Truck Mounted Water Well Drilling Rig is a efficient, multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CSD300A Series truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling, DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CSD300A Series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristics

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The truck chassis adopts the 6X4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a diesel engine, 70KW Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 3050-6100Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>> The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>> Specification

Geology Drilled
All kinds
Drilling Method
DTH & Mud Rotary
Hole Depthm300
Hole DiametermmΦ140—Φ450
RotationRotation TorqueNm3050-6100
Rotation Speedrpm60-120
Feeding SystemDrill Pipe Diametermm89/102/114
Drill pipe lengthmm3000/4500
Push down capacityT6.5
Pull back capacityT16
WinchLifting force of tool winchT1.5
Length of steel wire ropem100
EngineDiesel Engine type
Rated power Kw85
Electrical SystemVolt24

Air Compressor

(On Board)

Compressor Type
Rotary Screw/2 Stage
Pressure RequiredBar23
Air consumptionm³/min29
Rated Horse powerHp400
Discharge Standard
Drive type
Steering wheel
Mud PumpModel
Discharge pressure (Mpa)Mpa5
Dimension&WeightNet WeightKgs19800
Shipping (L*W*H)mm10800*2550*3700
Working size(L*W*H)mm10500*2550*9830
All truck brand & Engine brand  available according to your requests!
