JCDRILL Unveils All-New JRC500BA Reverse Circulation Drilling Rig with Integrated Air Compressor for High-Efficiency Mining Exploration

BEIJING, China – JCDRILL, a leading manufacturer of specialized drilling equipment under Beijing Jincheng Mining Technology Co., Ltd., has announced the launch of its latest innovation: the JRC500BA reverse-circulation (RC) drilling rig. Building upon the proven performance of the JRC500B series, this new model introduces an integrated onboard air compressor as a standard feature, delivering a complete, self-contained drilling solution for demanding mining exploration projects worldwide.

The JRC500BA represents a significant evolution in RC drilling technology. While the JRC500B offers exceptional deep-hole exploration capabilities with a maximum drilling depth of 500 meters and hole diameters ranging from 105mm to 450mm, the new "BA" variant eliminates the need for separate air support equipment by incorporating a high-capacity air compressor directly onto the rig chassis—enhancing mobility, reducing setup time, and simplifying logistics for exploration campaigns in remote locations.

Integrated Air Compressor

The standout feature of the JRC500BA is its factory-integrated air compressor system, which provides the high-pressure airflow essential for efficient reverse circulation and down-the-hole (DTH) drilling. This onboard configuration eliminates the logistical complexity of towing or transporting separate compressor units, significantly reducing mobilization time and onsite footprint. The integrated design ensures optimal air delivery directly to the dual-wall drill pipe system, where compressed air drives the return of rock cuttings through the inner tube for clean, uncontaminated sample collection.

Proven Drilling Performance from the JRC500B Series

The JRC500BA inherits the robust drilling capabilities of the JRC500B platform. Powered by a 239kW Cummins diesel engine (Euro-2 compliant), the rig adopts a fully hydraulic system for rotation, feed, lifting, clamping, winch, stabilizing, and tramming functions. The rotary head delivers 11,800–5,900 N.m of torque at 0–74–148 rpm, while the feed system provides a 7,600mm stroke, 30-ton pullback capacity, and 0–15 ton push-down capacity for stable deep-hole drilling performance.

Automatic Rod Handling for Maximum Productivity

The JRC500BA is equipped with a fully automatic rod handling system that supports efficient rod changing with 6-meter RC drill pipes (compatible with 102mm, 114mm, and 127mm diameters). This hydraulic rod handling mechanism significantly reduces manual labor, minimizes non-productive downtime, and enhances operational safety—directly improving meters drilled per shift and overall project economics. The pipe rack accommodates up to 36 pipes (216 meters of 102mm × 6m RC drill pipe).

Three-Layer Cyclone Separator for Superior Sample Quality

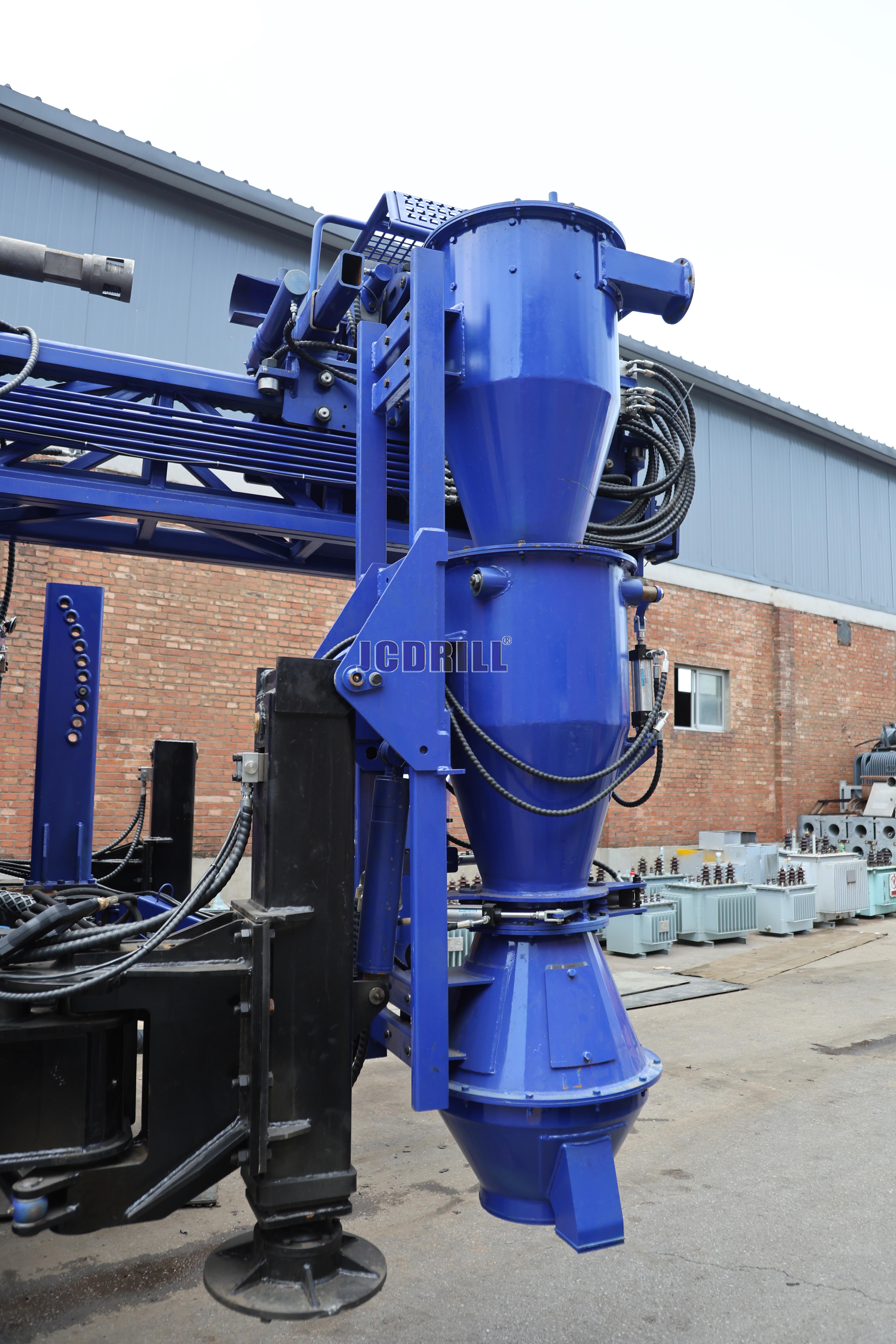

The rig features a three-layer cyclone and sampler system for efficient sample collection. Positioned at the rear side of the operator station for easy sample monitoring, the cyclone incorporates pneumatic stage separation and a hydraulic swing action for convenient positioning between operating and transport modes. This advanced sample collection system ensures high-quality, uncontaminated geological samples—critical for mineral exploration, resource assessment, and environmental studies.

Heavy-Duty Construction for Demanding Terrains

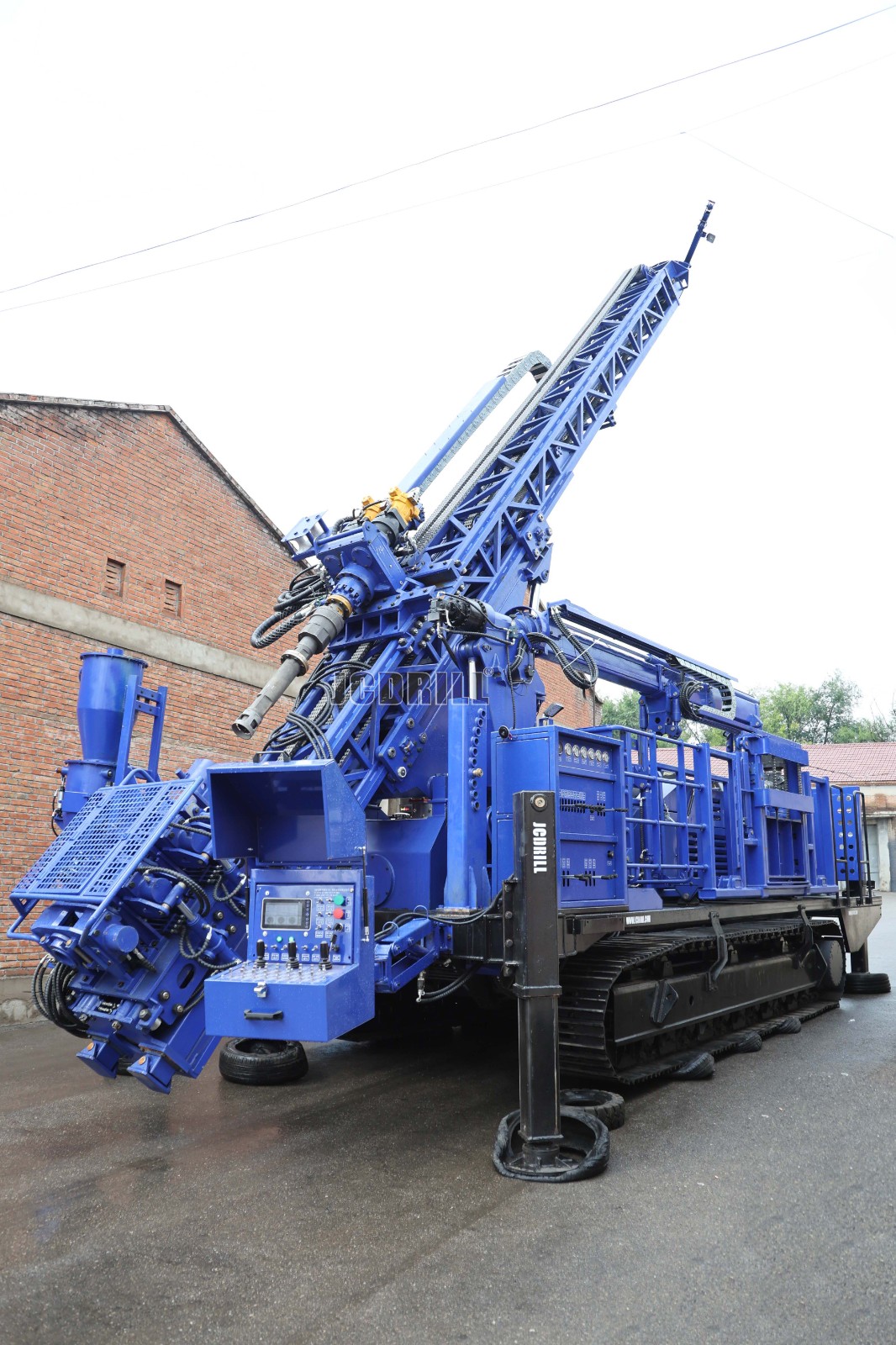

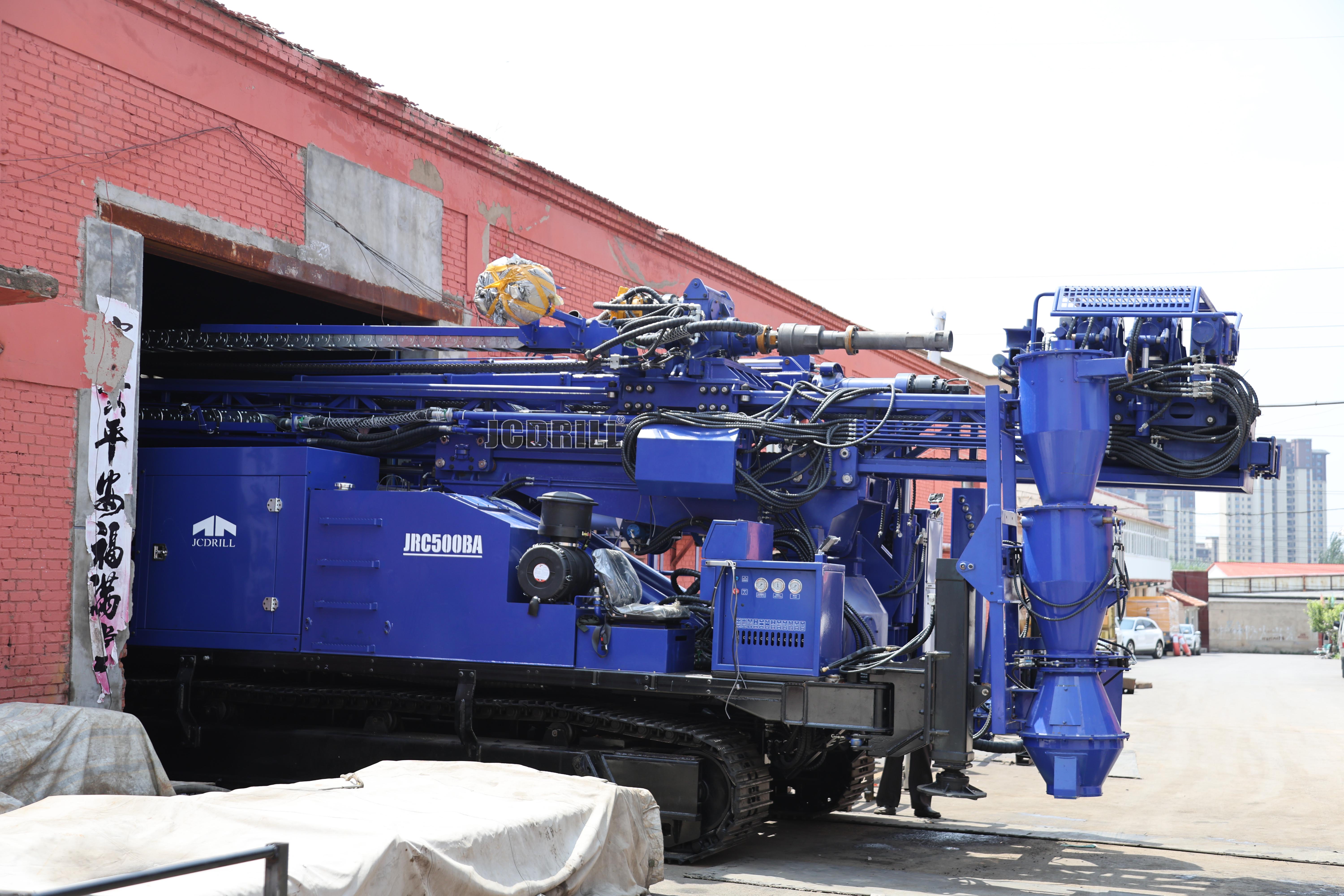

True to its "heavy machinery" designation, the JRC500BA features a rugged crawler-mounted chassis with a low center of gravity and balanced weight distribution. The walking system incorporates mechanical/hydraulic dual-brake torque motors and a ±10° automatic leveling device, ensuring stable and safe operation over rough, uneven terrain. With a shipping dimension of 12,000 × 2,900 × 3,000 mm and a net weight of 34 tons, the rig delivers exceptional stability under heavy drilling loads. Four hydraulic jacks with 600mm stroke provide additional stabilization during drilling operations.

All-Hydraulic Control and Intelligent Systems

The JRC500BA adopts a fully hydraulic operating system that controls all functions—including walking, rotation, feed, lifting, leg positioning, and rod changing—significantly reducing labor intensity and improving construction quality. The rig combines remote and valve control for flexible operation across different working conditions, improving operational convenience, visibility, and overall jobsite safety. The electronic control system features an imported controller, remote control interface, and proximity switches for precise operation management.

Versatile Applications

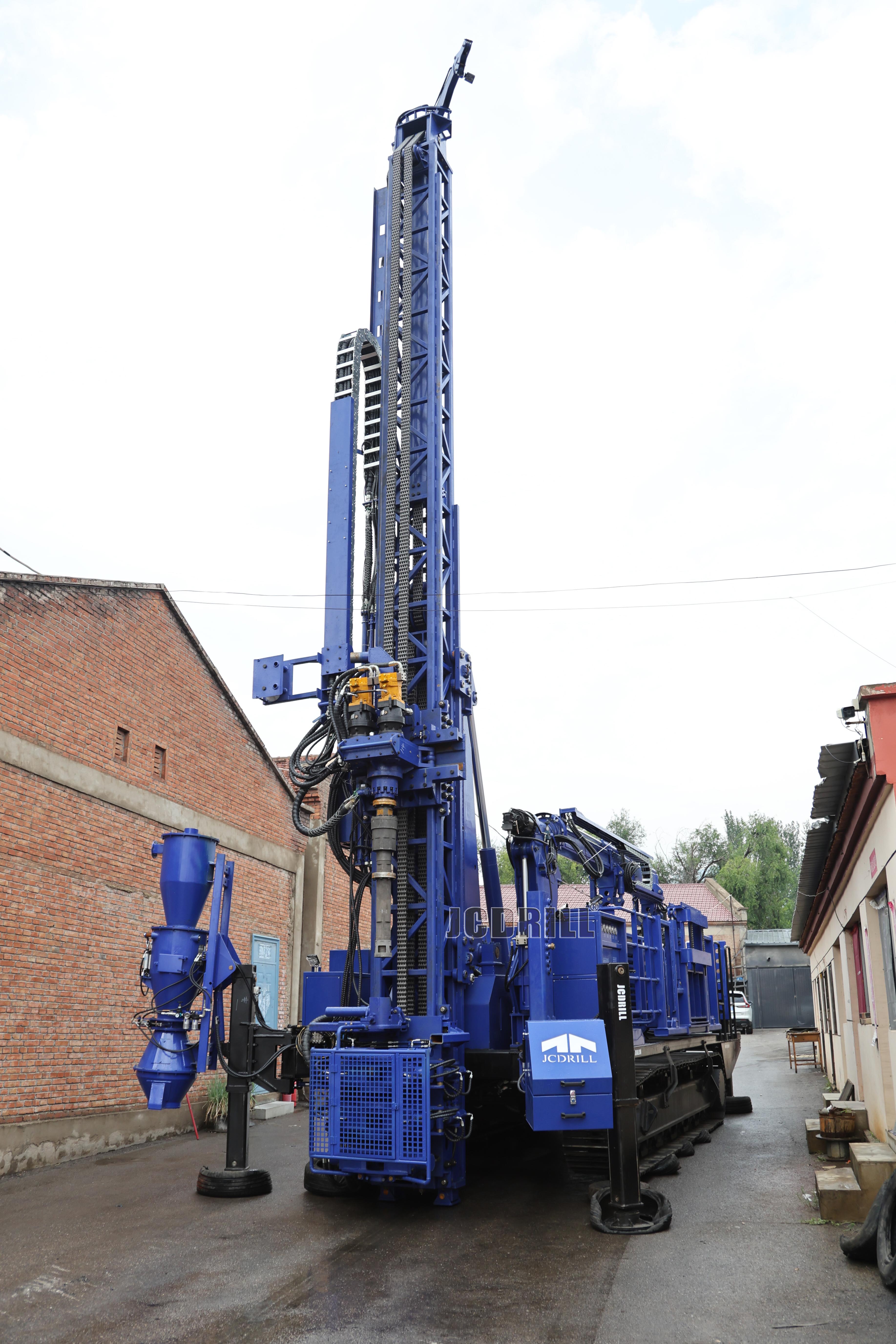

Suitable for a wide range of drilling applications, the JRC500BA is ideal for open-pit mining exploration, quarry development, geological sampling, water well drilling, monitoring wells, ground source heat pump installations, and geotechnical investigations. The mast supports drilling angle adjustment from 45° to 90° with a 1,500mm compensation distance, providing exceptional adaptability across diverse project requirements.

Global Field Support

JCDRILL offers comprehensive field support for the JRC500BA, with engineers available for dispatch to project sites for commissioning, operational guidance, and basic maintenance instruction. With professional machine support and years of export experience, JCDRILL ensures reliable after-sales service worldwide.

With the launch of the JRC500BA, JCDRILL continues to demonstrate its commitment to innovation and quality in the drilling equipment industry. For more information about the JRC500BA and JCDRILL's full product line, visit the company's website or contact the sales team directly.

About JCDRILL

JCDRILL (Beijing Jincheng Mining Technology Co., Ltd.) has over 20 years of experience in the research, development, and production of rock drilling equipment. The company specializes in water well drilling rigs, rock DTH blasting rigs, anchor drilling rigs, and reverse circulation (RC) drilling rigs, along with a comprehensive range of drilling tools and accessories. JCDRILL's products are ISO and CE certified, reflecting the company's dedication to international quality standards.
