Understanding the Gauges on Your Drill Rig

Jan. 19, 24

Understanding the Gauges on Your Drill Rig

Drill rigs are complex machines designed for various drilling applications, and the gauges on these rigs play a crucial role in monitoring and controlling essential parameters. Whether you're a seasoned operator or new to drill rig operations, understanding the gauges is vital for safe and efficient drilling. This guide provides insights into the key aspects of the gauges on your drill rig and what you need to know to ensure optimal performance and safety.

1. Hydraulic Pressure Gauge

The hydraulic pressure gauge on your drill rig measures the pressure of the hydraulic fluid within the system. Monitoring this gauge is essential to ensure that the hydraulic system operates within the recommended pressure range. Low or high hydraulic pressure can affect drilling performance and may indicate potential issues that require attention.

2. RPM (Revolutions Per Minute) Gauge

The RPM gauge provides real-time information about the rotation speed of the drill rig's drilling components, such as the drill bit or auger. Controlling and maintaining the proper RPM is crucial for efficient drilling and preventing equipment wear. Adjustments to the drilling speed can be made based on the geological conditions and the type of material being drilled.

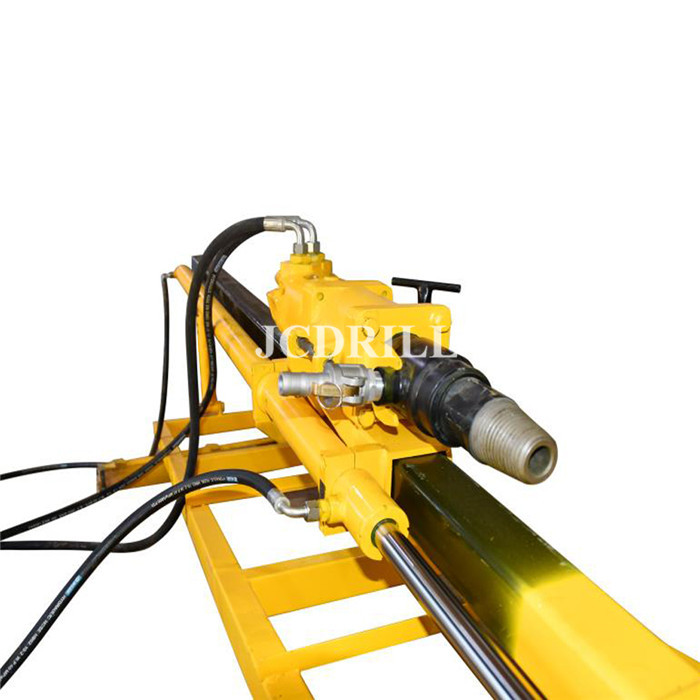

Hydraulic Portable Anchor Drilling Rig

Hydraulic Portable Anchor Drilling Rig

3. Torque Gauge

The torque gauge measures the twisting force applied to the drilling components. It is essential for assessing the resistance encountered during drilling. Monitoring torque helps prevent overloading the rig and ensures that drilling proceeds smoothly. Anomalies in torque readings may indicate changes in geological conditions or potential equipment issues.

4. Depth Gauge

The depth gauge provides information about the depth reached during drilling. Accurate depth measurement is crucial for project planning and ensuring that drilling reaches the desired target depth. Regularly checking and calibrating the depth gauge is important for precision in drilling operations.

5. Weight on Bit (WOB) Gauge

The Weight on Bit gauge measures the downward force applied to the drill bit during drilling. Maintaining the appropriate WOB is essential for efficient drilling and preventing bit damage. Adjustments to the weight on bit may be necessary based on the hardness of the material being drilled.

6. Temperature Gauge

The temperature gauge monitors the temperature of critical components, such as the engine or hydraulic system. Overheating can lead to equipment failure and decreased performance. Regularly checking the temperature gauge allows for preventive measures to be taken, such as adjusting drilling speed or addressing cooling system issues.

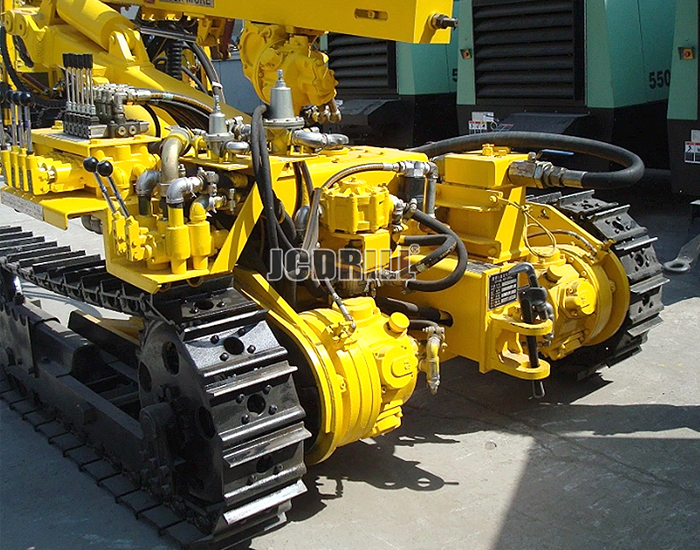

Pneumatic Rock Blasting DTH Drilling Rig

Pneumatic Rock Blasting DTH Drilling Rig

7. Fuel Gauge

The fuel gauge provides information about the remaining fuel in the drill rig. Keeping an eye on the fuel level is crucial for planning drilling activities and preventing unexpected shutdowns. Regular refueling and monitoring fuel consumption help maintain continuous drilling operations.


Understanding the gauges on your drill rig is essential for safe, efficient, and productive drilling operations. Regular monitoring of hydraulic pressure, RPM, torque, depth, weight on bit, temperature, and fuel levels enables operators to make informed decisions, prevent potential issues, and optimize drilling performance. Familiarity with these gauges enhances overall drill rig operation and contributes to successful drilling projects.

Frequently Asked Questions about Drill Rig Gauges

Q: What should I do if I notice abnormal readings on the gauges?

A: Abnormal readings may indicate potential issues. Stop drilling, assess the situation, and consult the drill rig manual or a qualified technician to determine the cause and necessary actions.

Q: How often should I calibrate the depth gauge?

A: Depth gauge calibration frequency may vary, but it's generally recommended to calibrate it regularly, especially when starting a new drilling project or if you suspect inaccurate readings.

Q: Can I continue drilling if the temperature gauge shows high readings?

A: Drilling should be paused if the temperature gauge indicates overheating. Continuing to drill under such conditions can lead to equipment damage. Identify and address the cause of overheating before resuming drilling.
