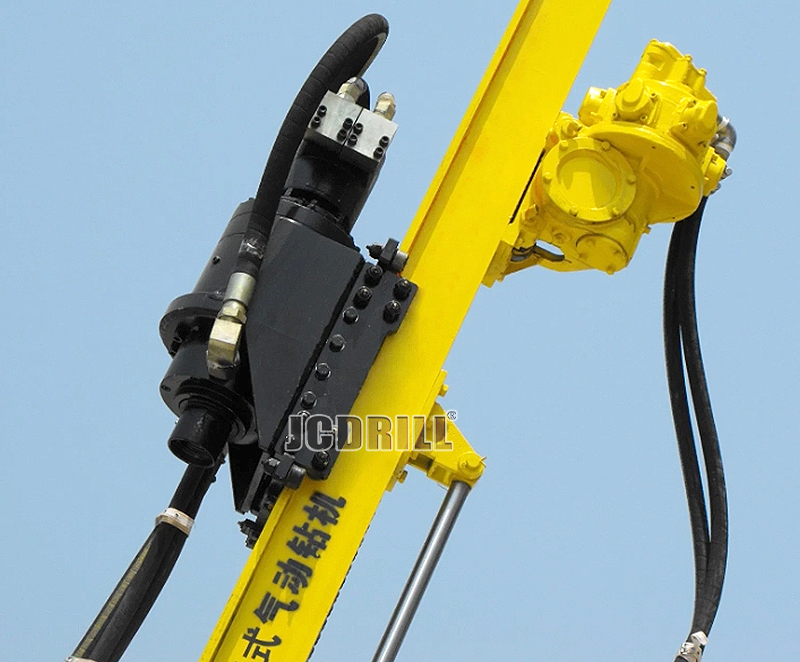

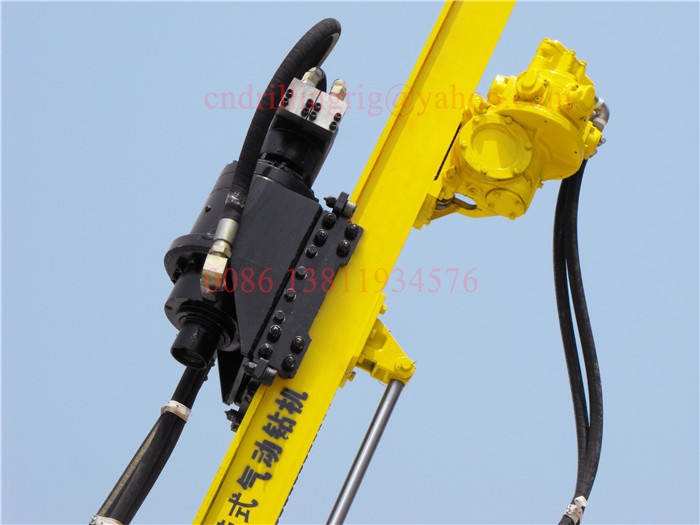

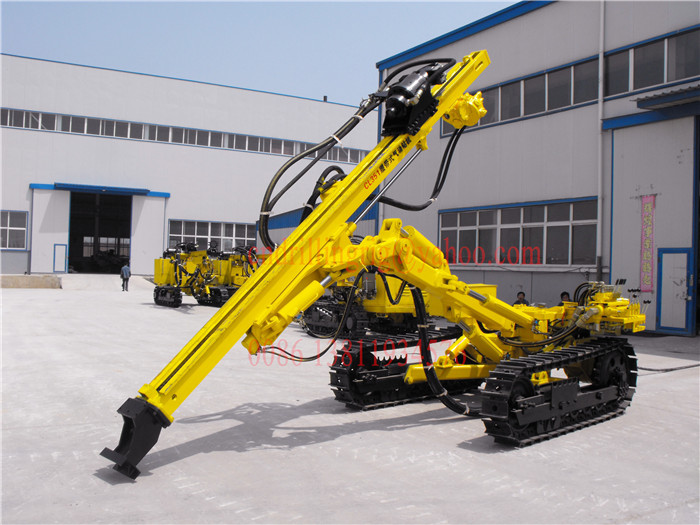

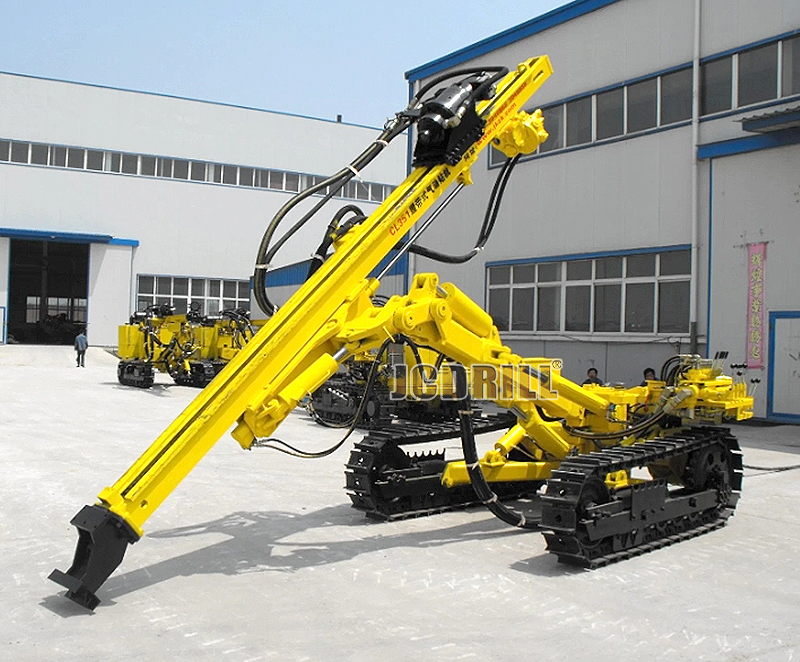

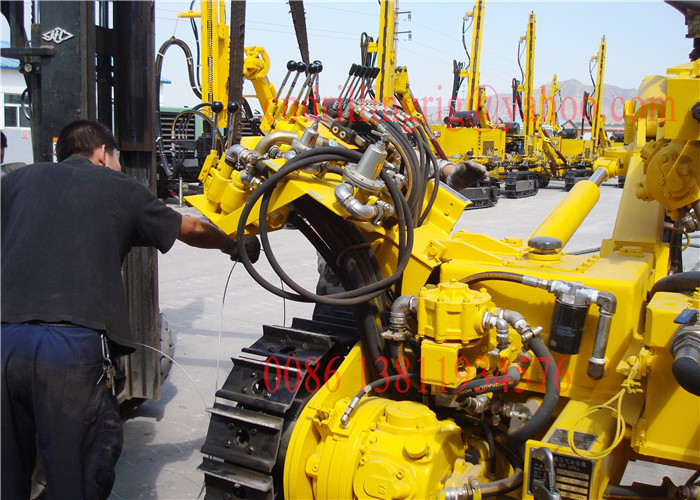

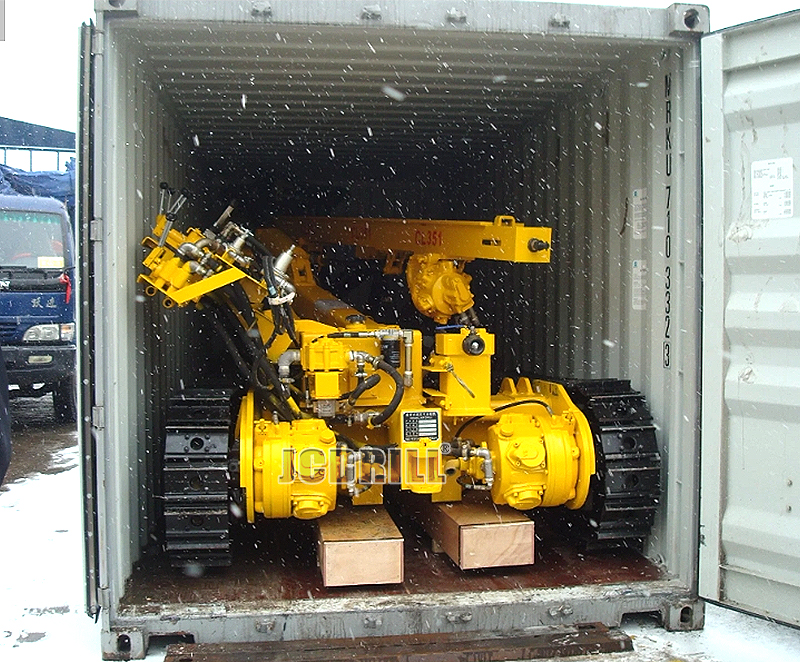

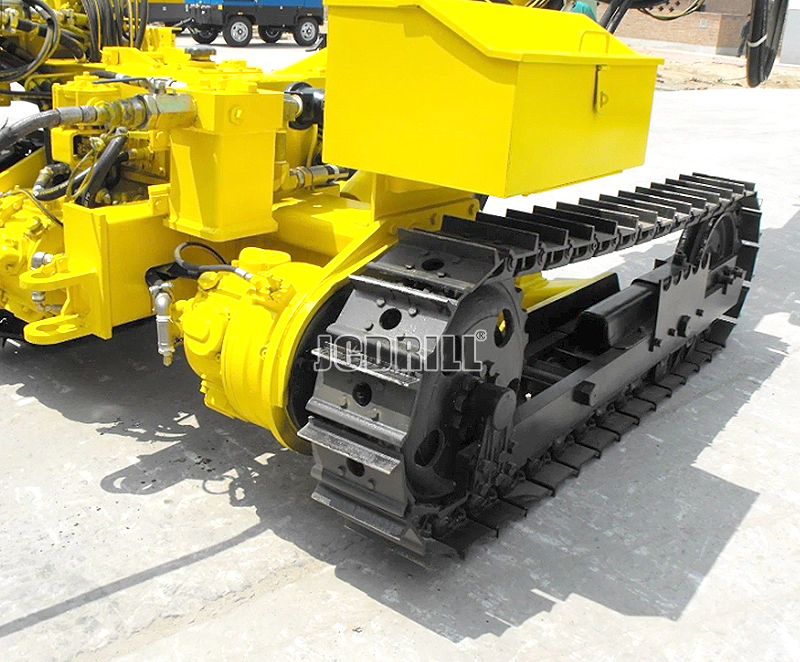

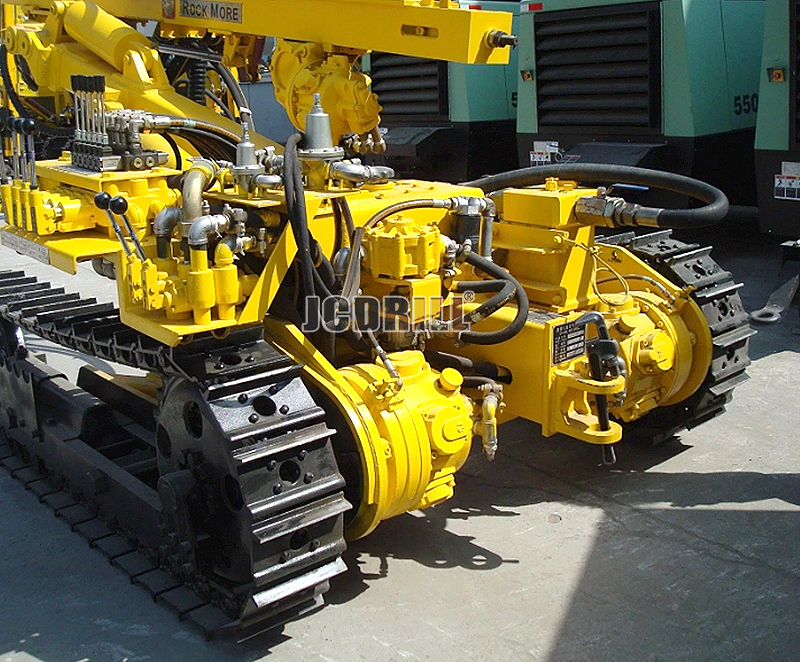

CL351 crawler pneumatic DTH drilling rig powered by air compressor,the rock drilling machine is equipped with a high power pneumatic motor, the heavy-duty hydraulic drill arm and the main parts are all imported from famous international brands, which guarantee the reliable quality of the air track drill, especially realize much less energy consumption of rolling fraction than that of sliding fraction and make the wear of sliding framework be lower,the CL351 wagon drill have been produced more than 20 years.
Share
PRODUCT DESCRIPTION
| No. | Specification | Code |
| 1 | Rock Hardness | F=6-20 |
| 2 | Hole Diameter | 90-165mm |
| 3 | Hole Depth | 30m |
| 4 | Air Pressure | 1.05-2.46Mpa |
| 5 | Air consumption | 17-21 m³/min |
| 6 | Max swing of guide | Lift50° Right35° |
| 7 | Max dump of guide | 180° |
| 8 | Rotation Speed | 0-72rpm |
| 9 | Rotation Power | 18.34kw |
| 10 | Rotation Torque | 2510N.m |
| 11 | Max horizontaldrilling | 3.38m |
| 12 | Gradeability | 35° |
| 13 | propulsive force | 13620N |
| 14 | pushing power | 3.36kw |
| 15 | Outside Dimensions(L×W×H) | 5900×2210×1470mm |
| 16 | Driving power | 8.8×2kw |
| 17 | Traveling Speed | 3 km/h |
| 18 | Feed Stroke | 3.66m |
| 19 | Net weight | 5000kg |
| 20 | Max swing of boom | Lift 45° Right45° |
| 21 | Max dump of boom | Up 60° Down19° |
| 22 | Drill Hammer | QL40 DHD340 DHD350Q DHD360 |
| 23 | Dust | Wet/dry(Optional) |
