Model:JCM400
Max. Drilling depth:400M
Drilling Method: DTH, Mud, Auger & RC Drilling (Optional)
Share
PRODUCT DESCRIPTION
>> Characteristics

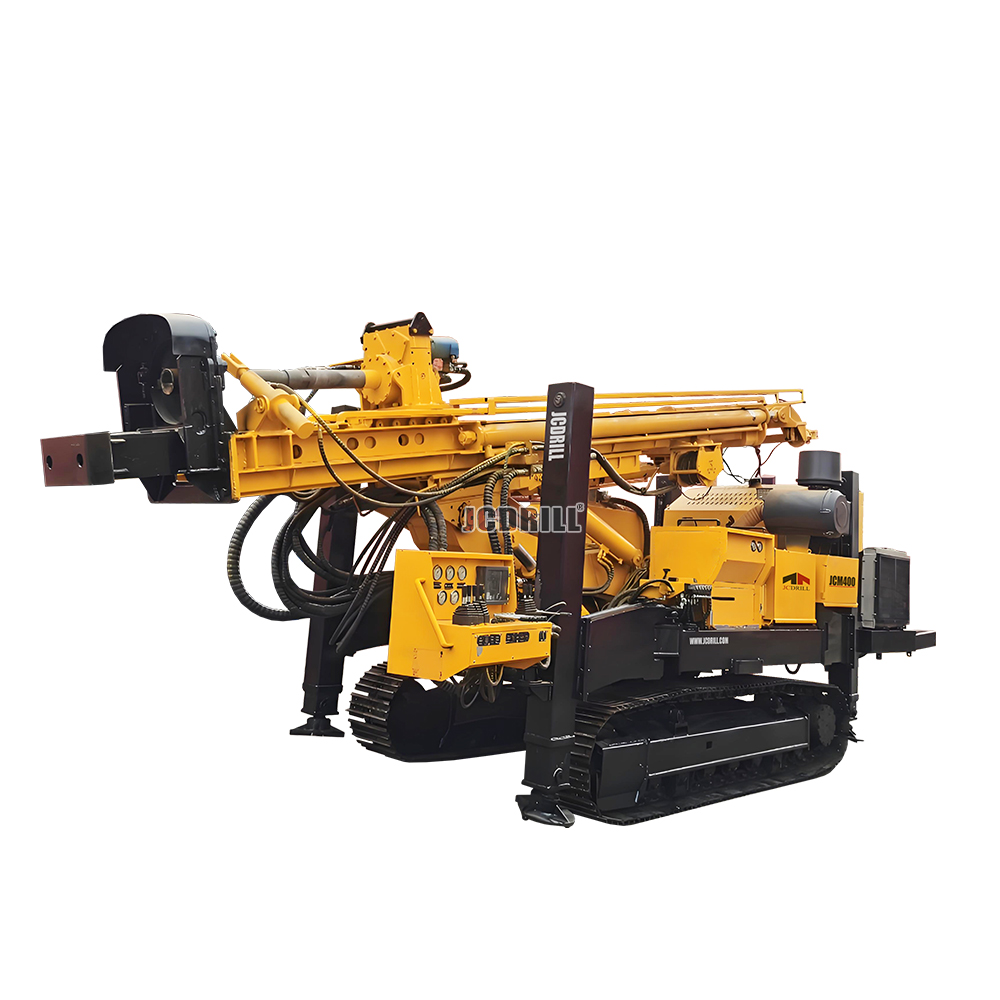

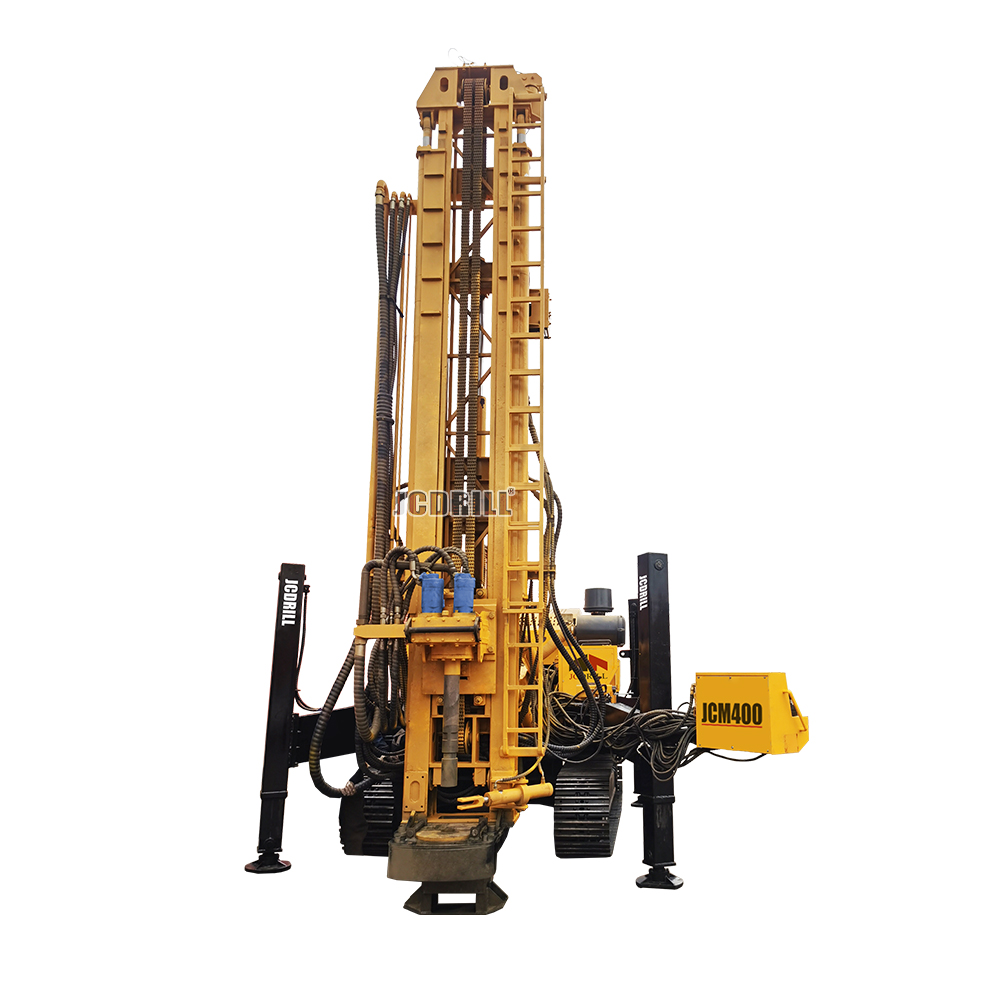

The JCM400 is a fully hydraulic top-drive rotary crawler drilling rig designed for versatile applications, including tunnel pipe roofing support holes, pilot survey holes, urban deep foundation pit anchoring, grouting reinforcement, slope stabilization (large-tonnage prestressed anchor holes), geothermal heat pump well drilling, and small-to-medium foundation pile holes, water wells, and blast holes.
Fully Hydraulic Control: Adjustable rotation speed, torque, feed pressure, and lifting speed for optimal performance across different drilling conditions.
Top-Drive System: Integrated impact, rotation, and feed/lift mechanisms enable efficient rod handling and reduce auxiliary time. Supports pipe-following drilling.
High Efficiency: Compatible with multiple drilling techniques (DTH, air reverse circulation, auger, etc.), ensuring fast penetration and lower operational costs.
Crawler Mobility: High-leg design for easy loading/unloading without a crane. Crawler undercarriage ensures stability on muddy or uneven terrain (20° gradeability).
>> Specification
| Specification | Unit | JCM400 | Specification | Unit | JCM400 |
| Drilling Specification | Wast dumpling angle | ° | 100 | ||
| Rock Hardness | F=6-20 | Hydraulic Winch | |||
| Hole Diameter | mm | 115-380 | Winch capacity | T | 1.5 |
| Hole Depth | m | 400 | Engine | ||
| Hydraulic system pressure | Mpa | 22 | Brand | Weichai | |
| Drill Pipe | Model | WP10-330 | |||
| Drilling Rod Diameter | mm | 76,89,102,114 | Typed | Water Cooling,6cylinder | |
| Drill rod Length | m | 3.4.5.6 | Rated Power | Kw/Rpm | 247/2200 |
| Hammer size | Inch | 4"-8” | Fuel tank capacity | L | 120 |
| Rotation | Undercarriage | ||||
| Rotation Speed | rpm | 60-120 | Undercarriage Rotation angle | ° | 360 |
| Max Rotation torgue | Nm | 8000-16000 | Track width | mm | 400 |
| Feed System | Ground Clearance | mm | ≥350 | ||
| Feeding method | Cylinder+Chain | Oscillation | ° | 10 | |
| Feed Stroke | mm | 6.6 | Walking Speed | km/h | 2-3 |
| Feed foroe | T | 0-10 | Grade Ability | ° | 20 |
| Pull bacl capacity | T | 0-25 | Dust Collector(Optional) | ||
| Normal Feeding Speed | M/min | 3.95 | Collecting type | Full hydraulic | |
| Fast feeding speed | M/min | 0.5-5.2 | Dimension & Weight | ||
| Normal lilting speed | M/min | 19.9 | Shipping Length | mm | 7500 |
| Fast lifting speed | M/min | 26.4 | Shipping width | mm | 2250 |
| Mast Extension | mm | 1400 | Shipping Height | mm | 2900 |
| Mast lifting angle | ° | -15-40 | Weight | kgs | 19000 |
>> Shipping
>> Applications
Tunneling & Underground Works: Pipe roofing, pilot holes.
Geotechnical Engineering: Slope anchoring, grouting, drainage holes.
Renewable Energy: Geothermal well drilling.
Civil Engineering: Foundation piles, water wells, blast holes.
>> Optional Accessories
Mud pump, foam pump, generator (customizable).
Fully hydraulic dust collector (optional).
