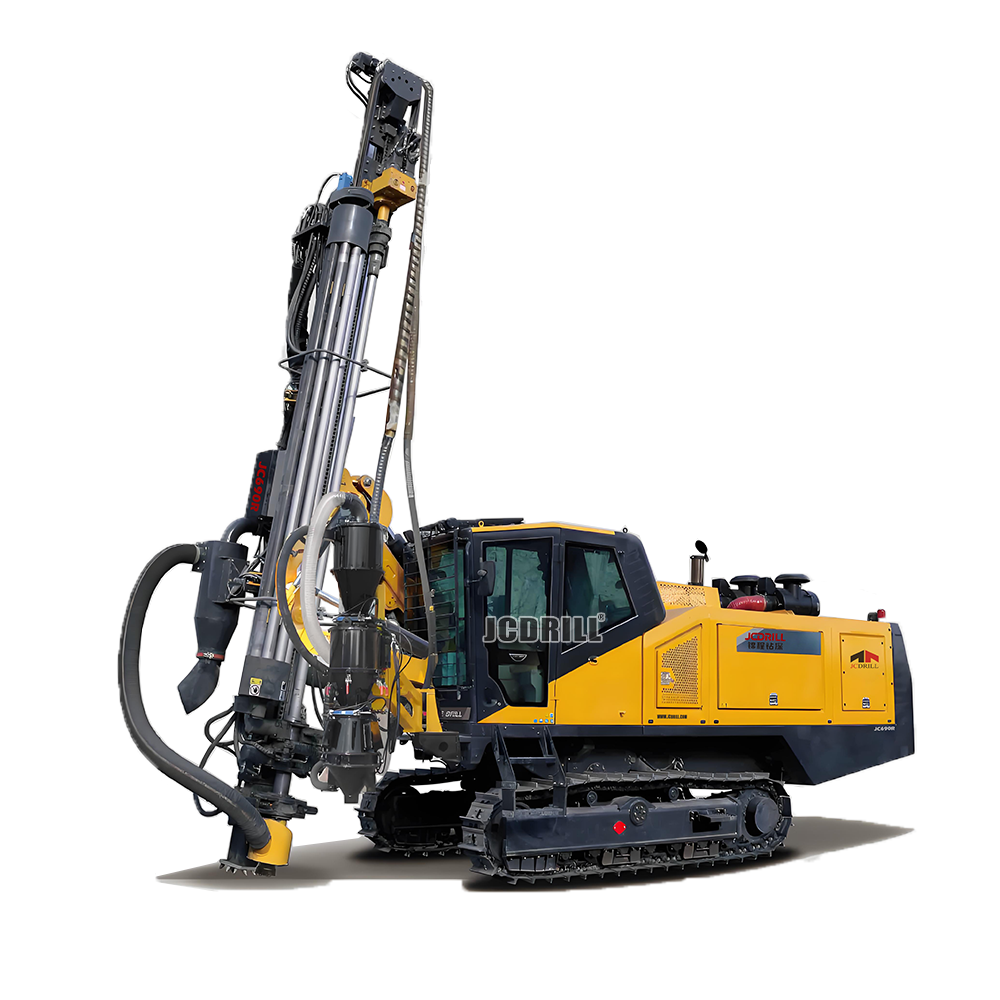

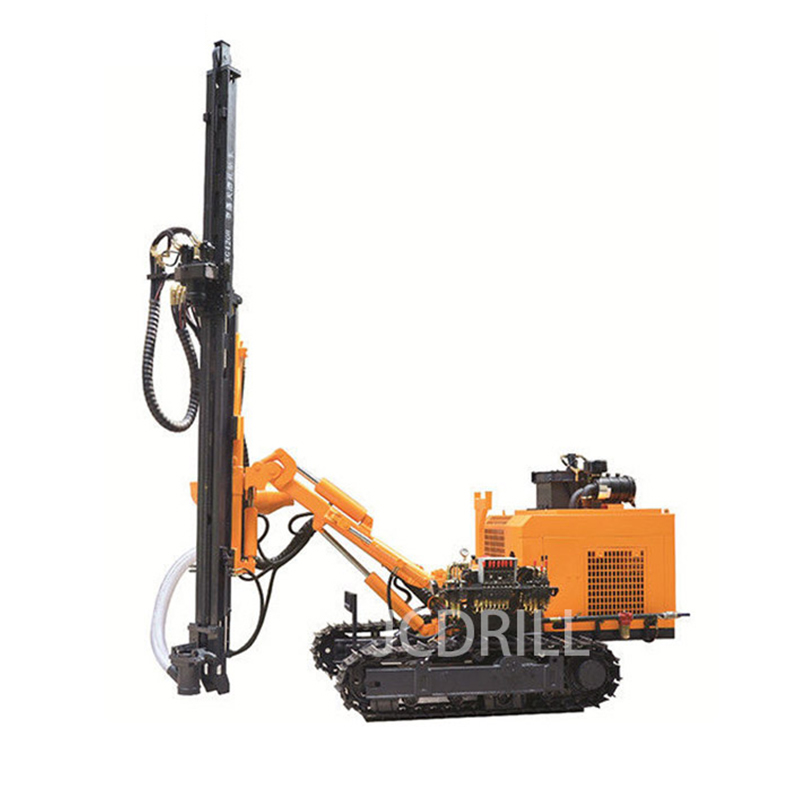

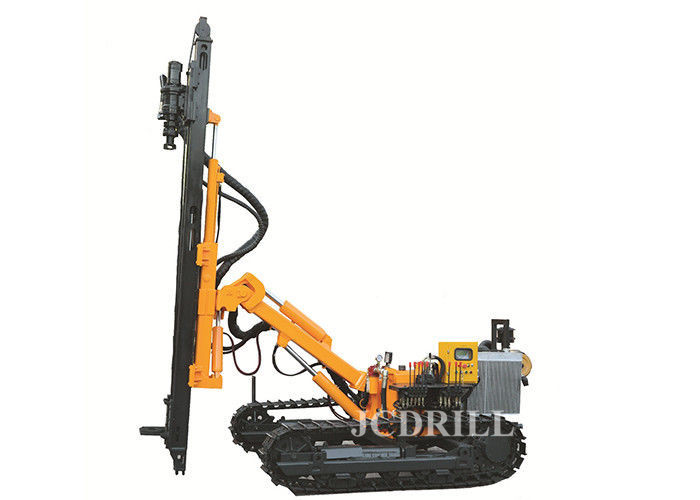

The KG310/KG310H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level.
The hydraulic system has been improved, leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring (plate) makes handling and lifting easier.

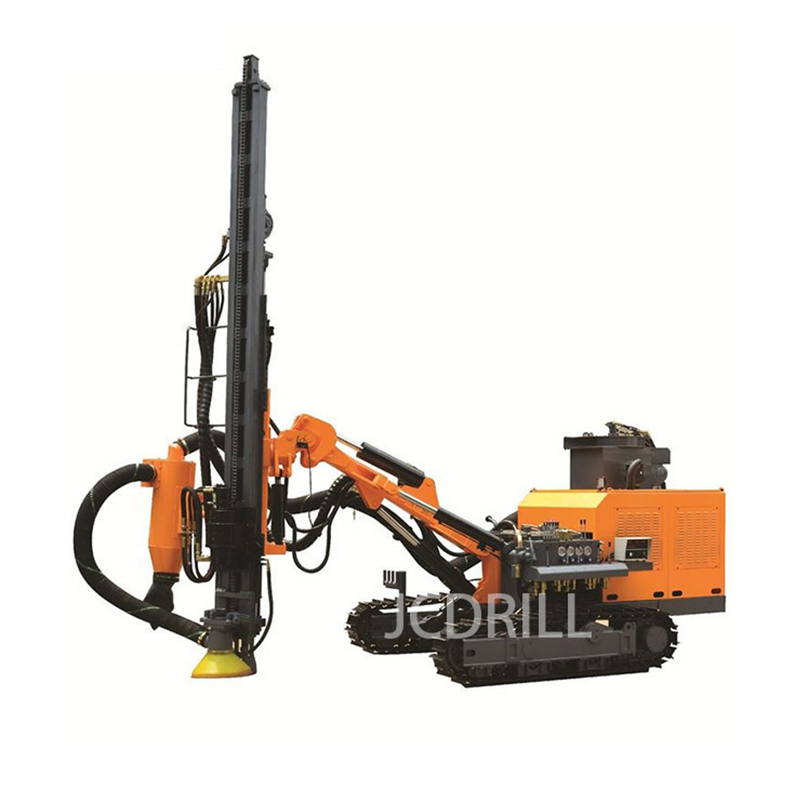

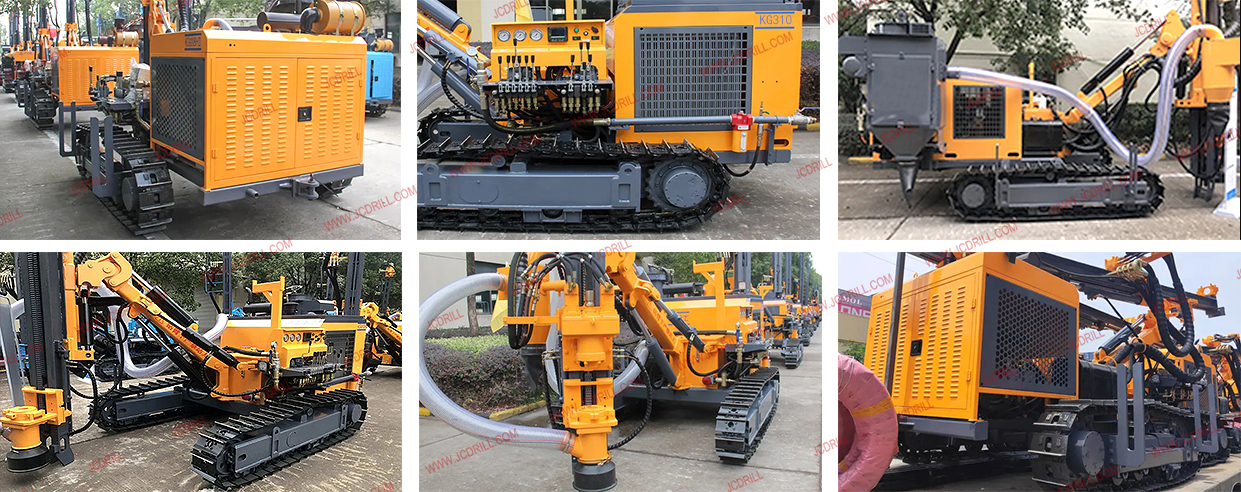

The KG310H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
|Size of drill machine||4650x2000x2200mm||4650x2500x2200mm|
|Diameter of hole||Φ80-105mm|
|Depth of economical drilling||20m|
|Feed way||oil cylinder-chain|
|Pitch angle of beam||Blow 145°,up55°, total 190°|
|Pitch angle of drill arm||Blow 50°,up25°, total 75°|
|Swing angle of drill arm||Left100°,right45°,total 145°|
|Compensation length of beam||900mm|
|Max height of horizontal hole||2875mm|
|Min height of horizontal hole||360mm|
