Model:KG610
Max. Drilling depth:40m
Drilling Method:Air Drilling & DTH Drilling
Share
PRODUCT DESCRIPTION
>> Characteristics

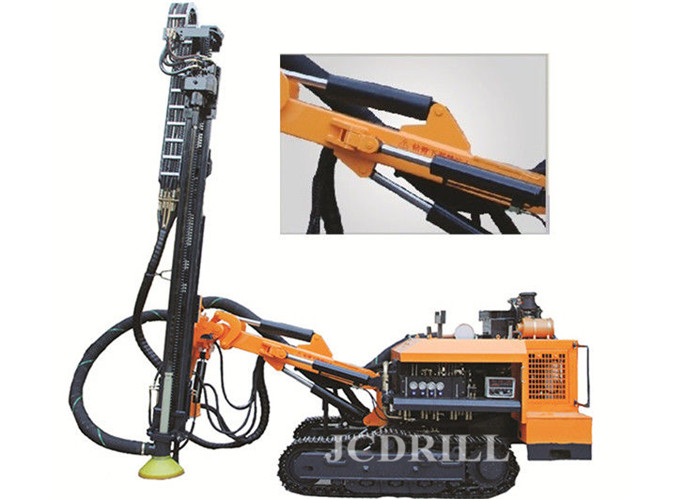

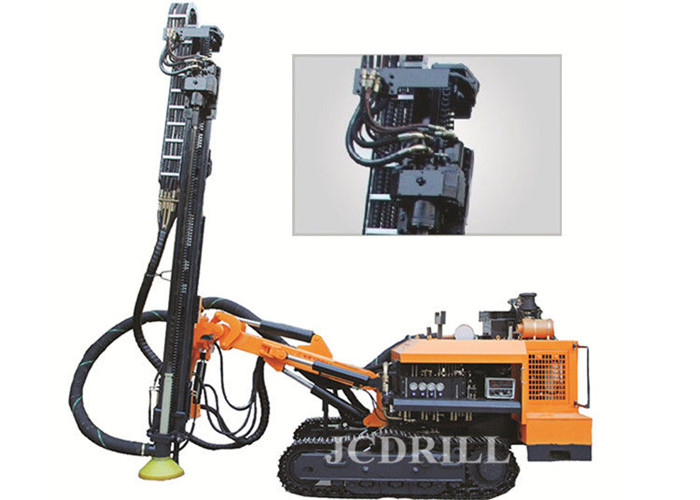

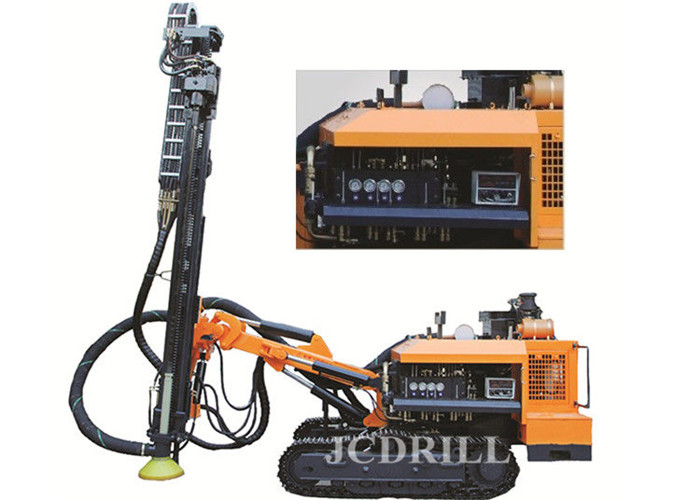

The KG610/KG610H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Cummins four-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The folding frame track,four-wheel drive are adopted and track leveling and the imported walking motor of plunger piston improve the working pressure and climbing capacity.The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position.The double motor is installed to raise the rotary torque and revolving speed;and the lifting hydraulic cylinder and chain are expanded to raise the lifting force and reliability.The dust collector is enlarged to produce a better effect on dust collection.The thickened profile folder is used for the housing,thus improving its level of intensity and rigidity;and the additional ring makes handing and lifting convenient
The KG610H down the hole drill rig for open use is equipped with a dust collector as optional parts,thus making operation more environment-friendly and reliable.
>> Specification
| KG610 drilling rig | |
| Model | KG610/KG610H |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ105-202mm |
| Depth of economical drilling | 40m |
| Rotation speed | 0-110r/min |
| Rotation torque | 4500N·m |
| Lift power | 25000N |
| Feed way | Motor-roller chain |
| Feed distance | 4010mm |
| Walk speed | 0-2.5Km/h |
| Gradeability | ≤30° |
| Ground clearance | 440mm |
| Weight | 7100kg |
| Size of drill machine | 6700x2250x2850 |
| Sliding carriage pitch angle | Blow 135°,up50°, total 185° |
| Sliding carriage swing angle | Left100°,right45°,total 145° |
| Sliding carriage suppling length | 900mm |
| Power | CUMMINS QSB3.9-C125(92KW/2200r/min) |
| Drill pipe | Φ76x3000mm/φ89X3000mm |
| Air consumption | 15-26m³/min |
| Max height of horizontal hole | 2850mm |
| Min height of horizontal hole | 900mm |
