Model:KG520
Max. Drilling depth:20m
Drilling Method:Air Drilling & DTH Drilling
Share
PRODUCT DESCRIPTION
>> Characteristics

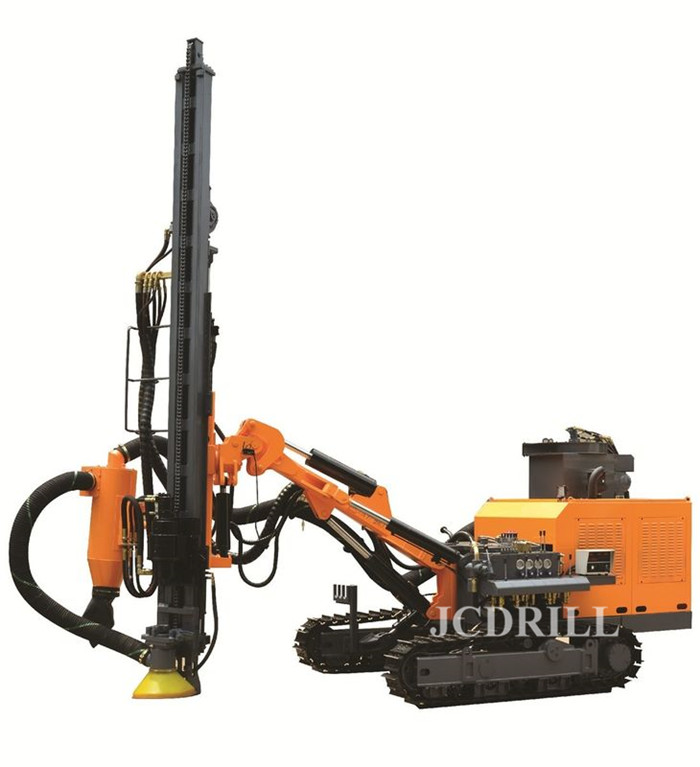

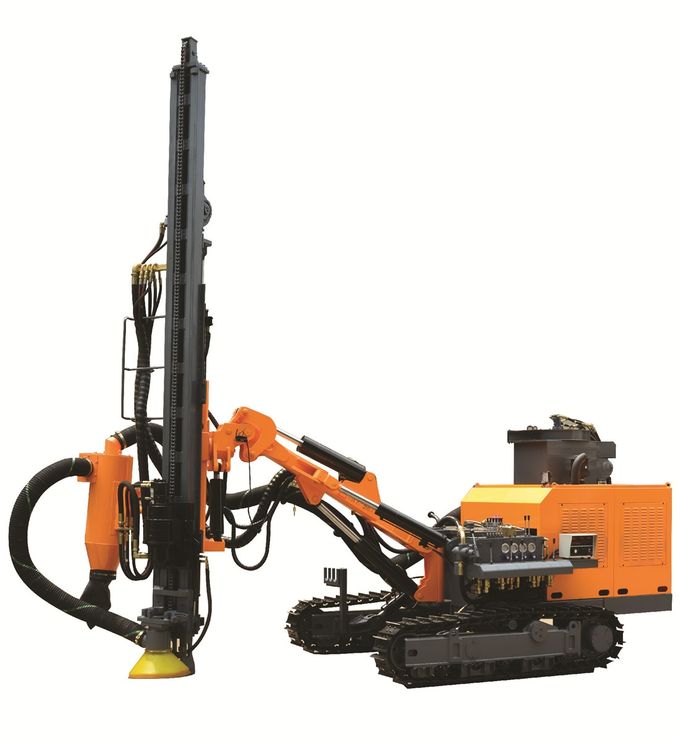

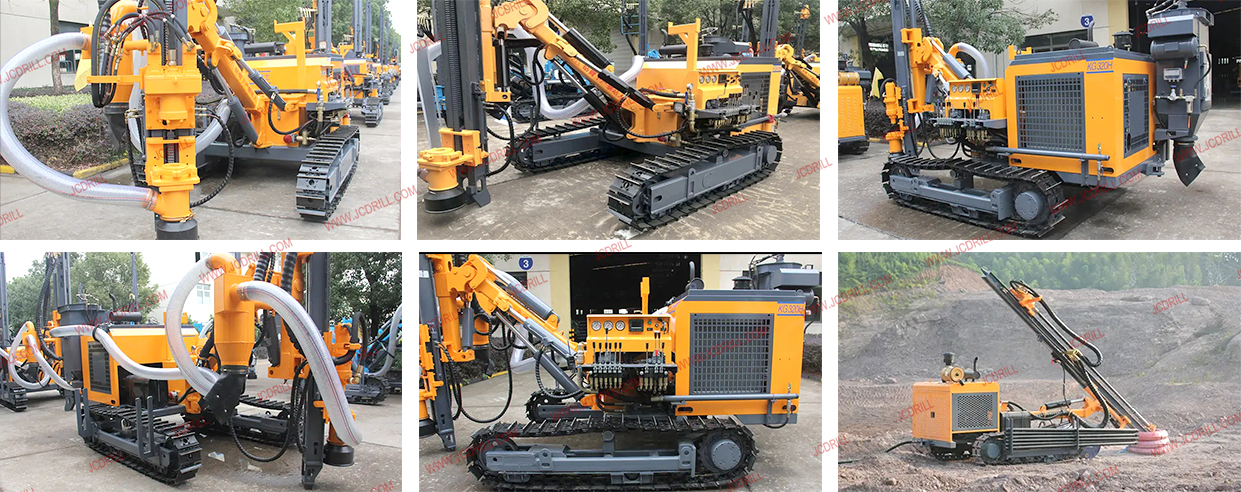

The KG520 down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions.The drill rig is equipped with the two independent systems,namely diesel engine and motoe,capable of separate operations pressure and climbing capacity.
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
The KG520 down the hole drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable
>> Specification
| KG520 drilling rig | |
| Model | KG520/KG520H |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ105-152mm |
| Depth of economical drilling | 25m |
| Rotation speed | 0-100r/min |
| Rotation torque | 3500N·m |
| Lift power | 25KN |
| Feed way | Motor-roller chain |
| Feed distance | 4150 mm |
| Walk speed | 0-2.5Km/h |
| Gradeability | ≤30° |
| Ground clearance | 900mm |
| Weight | 6500kg |
| Size of drill machine | 6800x2200x2850 |
| Sliding carriage pitch angle | Blow 135°,up50°, total 185° |
| Sliding carriage swing angle | Left100°,right45°,total 145° |
| Sliding carriage suppling length | 900mm |
| Power | 4DKC4G3-100(70KW/2200r/min) |
| Drill pipe | Φ76x3000mm/ 89*3000mm |
| Air consumption | 15-22m³/min |
| Max height of horizontal hole | 2850mm |
| Min height of horizontal hole | 900mm |
