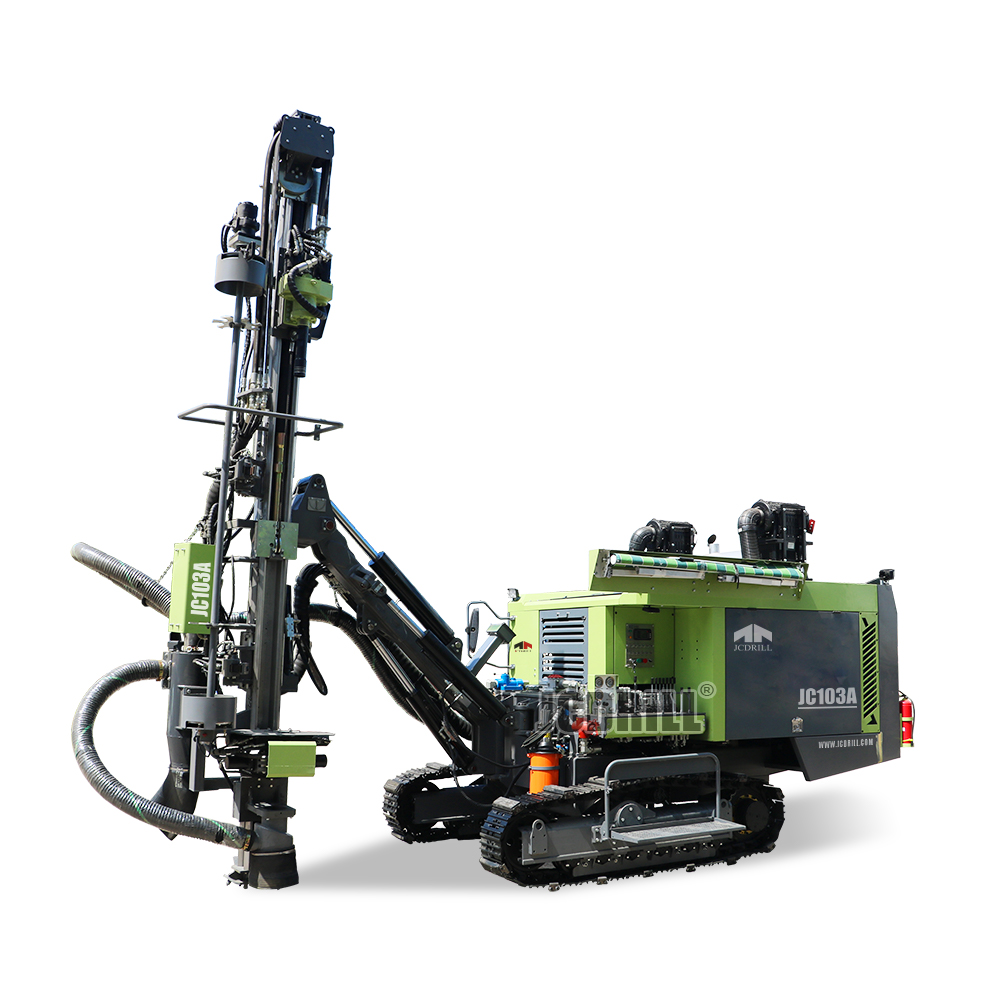

JC103A DTH Rock Integrated Drilling Rig – High-Efficiency Hydraulic Drill for Mining & Quarrying

JC103A  is powered by a high-performance diesel engine (YUCHAI or optional CUMMINS)coupled with a hydraulic oil pump system.    Alldrilling, feeding, lifting, and walking movements are driven by hydraulic motors and cylinders, ensuring smooth and efficient motion control

The Eaton 6K series rotation motor delivers a maximum torque of 1700 Nm under 13 MPa pressure, ensuring powerful penetration in hard rock formations (f=6-20).

JC103A hydraulic down-the-hole drilling rig is designed to meet the demanding requirements of open-pit mining and quarry drilling.    The upgraded control system integrates a humanized operating platform, enabling operators to perform all core functions with greater ease and precision.    The fully automatic rod handling system allows for single-person operation, significantly improving working efficiency and reducing labor costs.

The double-stage screw alr compressorsystem (15 m³/min, 18 bar) delivers strong.   efficient airflow for deep hole drilling.    A 14-coredust collector system with 14 m³ filtration area effectively handles dust generated during operation.

Dual-stage air filters provide added protection in heavily dusty mining environments

>> Characteristics

>> Operating system: Humanized integrated control platform, simple and intuitive, reduces operator fatigue and improves efficiency.

>> Electrical System: Imported IP56-rated components, dustproof and waterproof for reliable operation in harsh environments.

>> Rod Handling: Fully automatic rod loading/unloading, enabling fast and easy single-person operation.

>> Feed Beam: Lightweight aluminum alloy design for stable and efficient drilling.

>> Air Compressor: Two-stage screw compressor, high efficiency with 1 5 m*/min air supply at 18 bar.

>> Rotation Motor: Eaton 6K series, delivers 1700 N·m torque for stable drilling performance.    >> Dust Collection: Large-area filtration system effectively reduces dust during drilling.

>> Air Filtration: Dual-stage filter ensures clean air intake, protecting engine performance.

>> Maintenance: Extra-large maintenance space simplifies wear part replacement and reducesdowntime.
