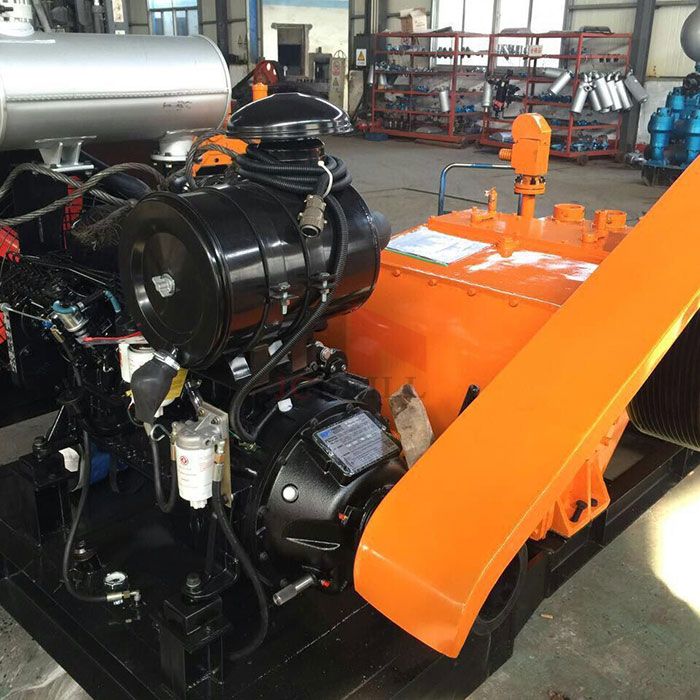

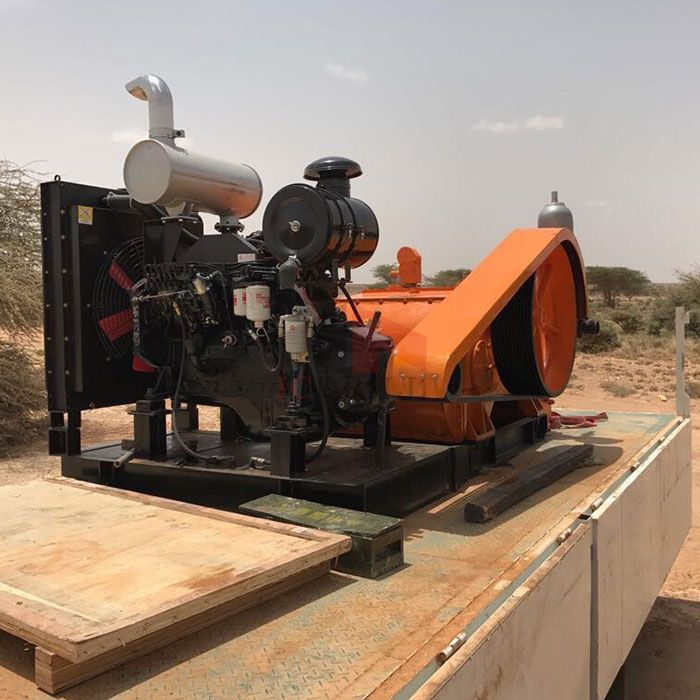

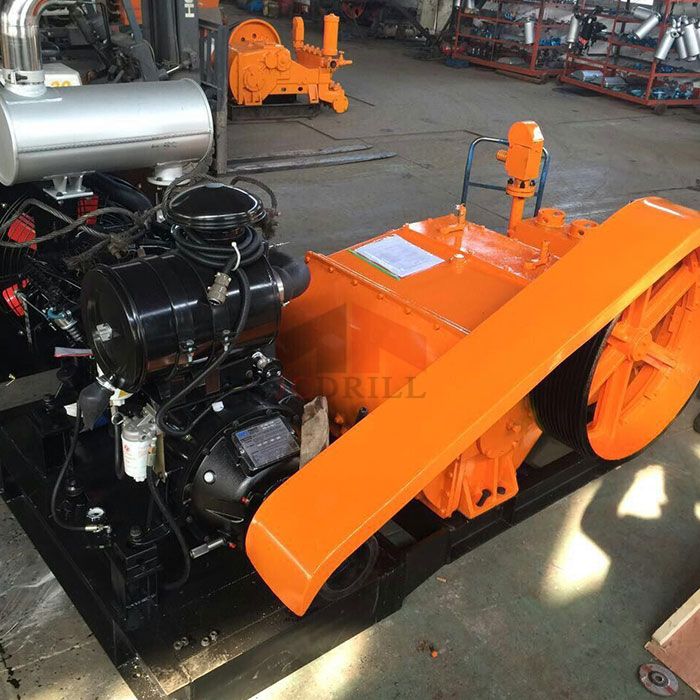

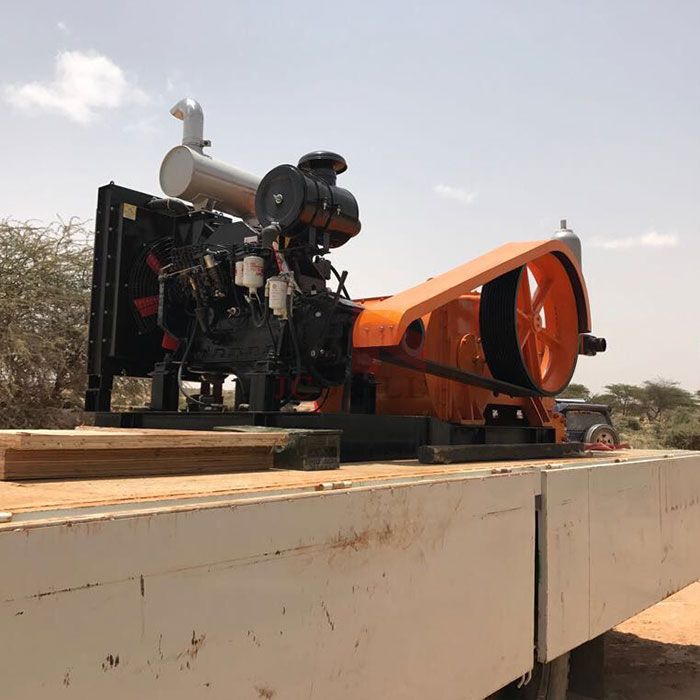

BW1500-12 Mud Pump for Drilling Rigs

BW1500-12 mud pump used for various engineering drilling rigs, geological drilling rig when drilling would like to nip the circulating fluid (mud or water), which is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.

BW1500-12 mud pump is a horizontal single-acting cylinder reciprocating piston pump with variable speed to change the displacement and pressure selected for use.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.


Share

PRODUCT DESCRIPTION

Characteristics:

1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well : Small hole diameter water well drilling;

4. Pipe-installing : Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Specification:

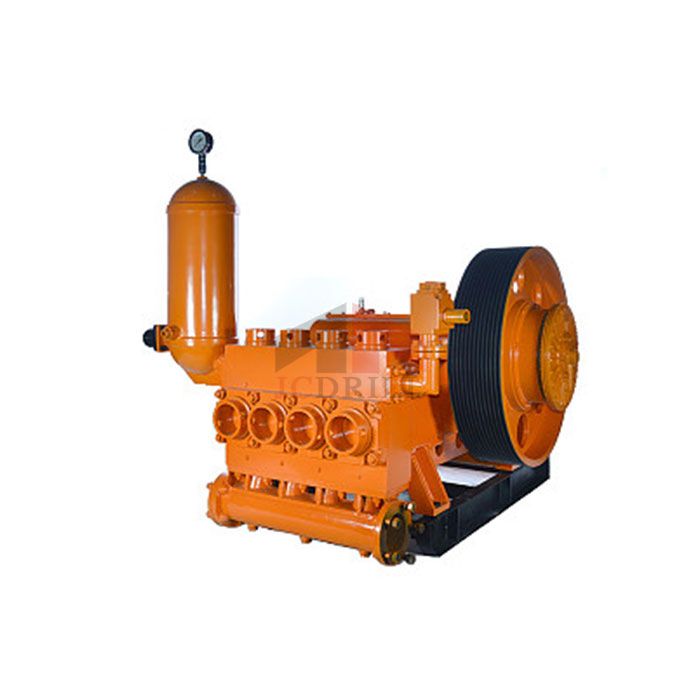

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engine


TypeHorizontal single cylinder reciprocating double action piston pump
Cylinder diameter(mm)153
Stroke(mm)150
Pump speed(Time/min)13698
Flow(L/min)15001080
Pressure(MPa)812
Belt700XC-5
V-belt speed470r/min
Engine BrandCummins
Power(Kw)132
Inlet pipe inner diameter127mm
Drain pipe inner diameter76mm
Return pipe inner diameter40mm
Shape Size1800*1400*1500
Weight(kg)2450
