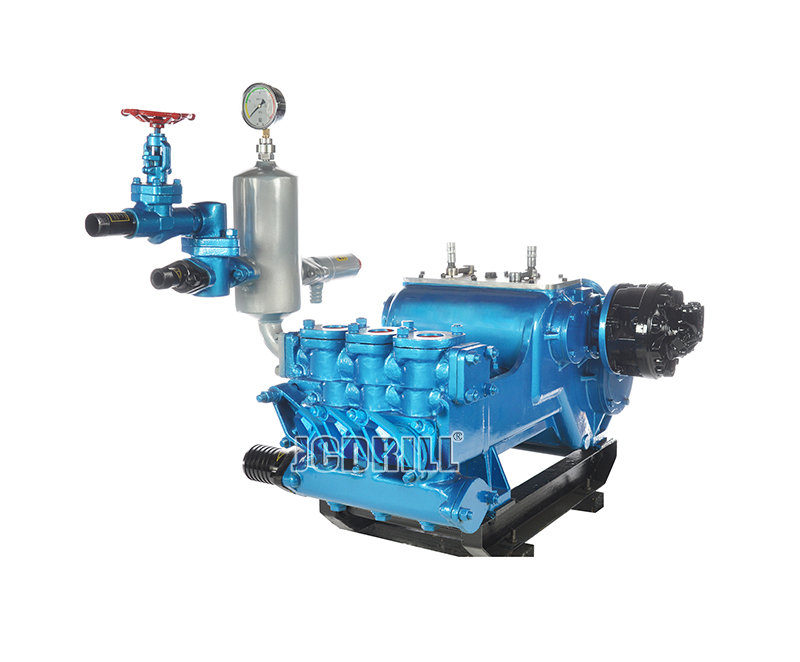

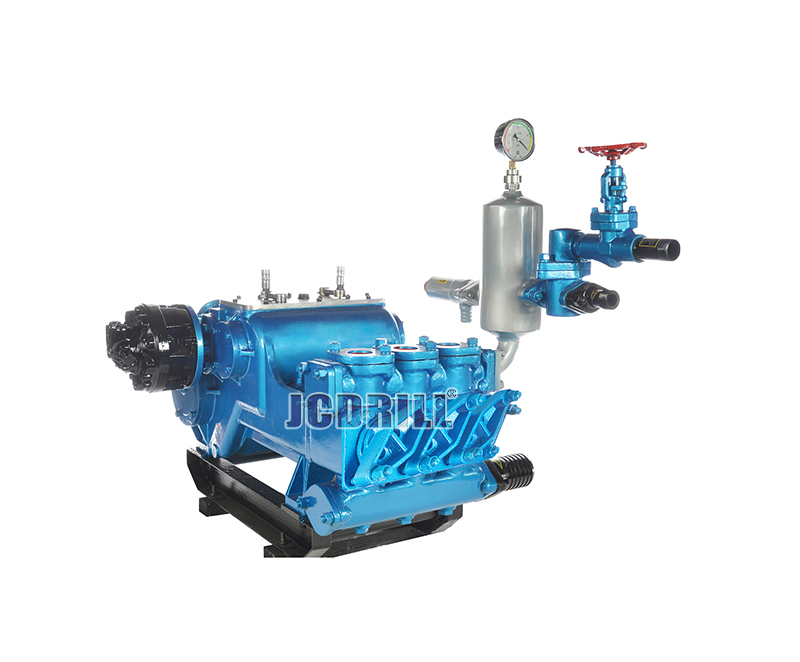

BW320 Mud Pump from Mud Pump Manufacturers

Flow Rate:320 230 180 165 118 L/min

Pressure:4 5 6 8 9 Mpa

Power Type:Available option driven by diesel engine,electric motor,hydraulic motor

>> Application

BW320 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure, lift much, less energy consumption, easy operation, high quality and durable, easy to move, especially for mountain terraces of irrigation.

BW320 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with 1800meters drilling rig, it also can be used cement perfusion.



They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

BW320 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.

>> Characteristics

>> Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

>> Exploration: Coal mining exploration, Ore exploration;

>> Water well: Small hole diameter water well drilling;

>> Pipe-installing: Geothermal pipe-installing for heat pump;

>> Foundation piling: Small-diameter hole foundation piling drilling.

>> Specification

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in the engine

TypeSingle-acting triplex plunger
Pump speed (s.p.m)214, 153, 109, 78214, 153, 109, 78
Output volume (l.p.m)320, 230, 165, 118180, 130, 92, 66
Discharge pressure (Mpa)4.0, 5.0, 6.0, 8.06.0, 8.0, 9.0, 10.0
Input power (Kw)30
Suction pipe dia (mm)75
Discharge pipe dia (mm)50
Drilling hole depth (m)Diamond core drilling < 3000
Conventional core drilling < 2000
Weight (Kg)650 (without power)
1000 (with motor)
Overall dimensions (mm)1280*855*750
