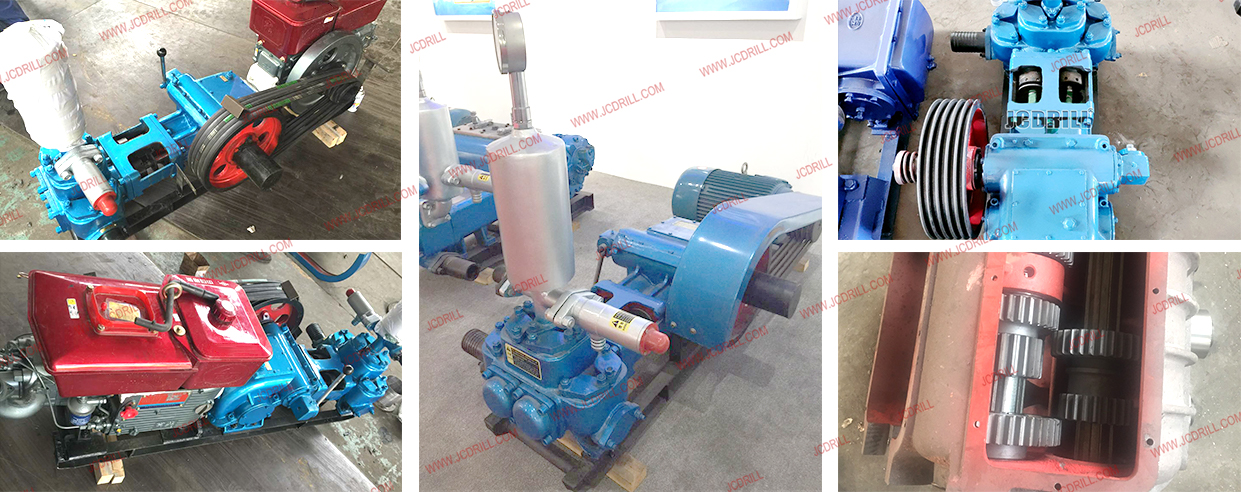

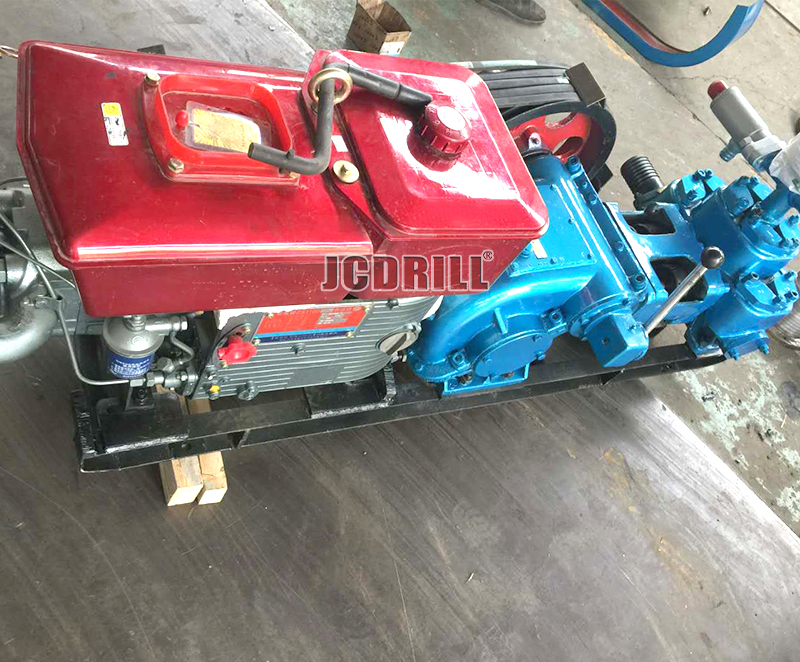

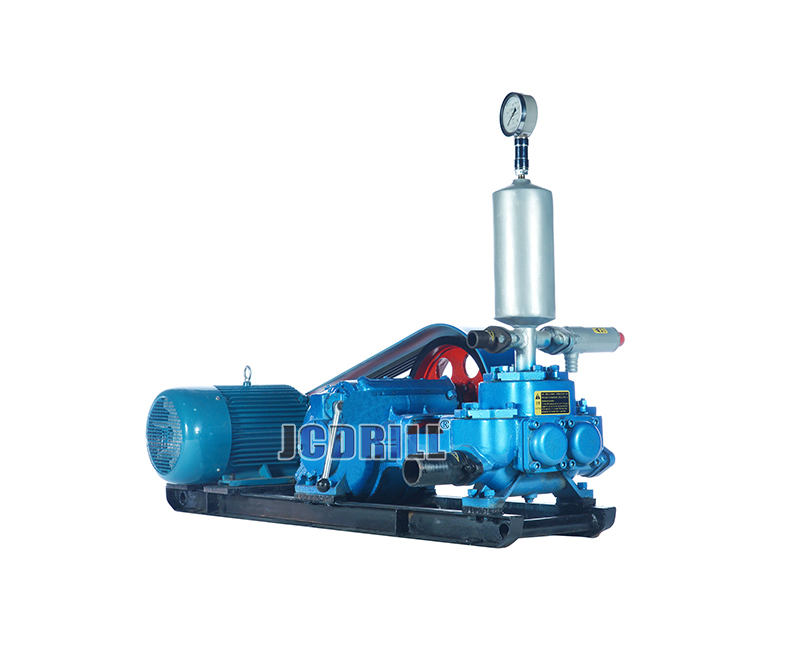

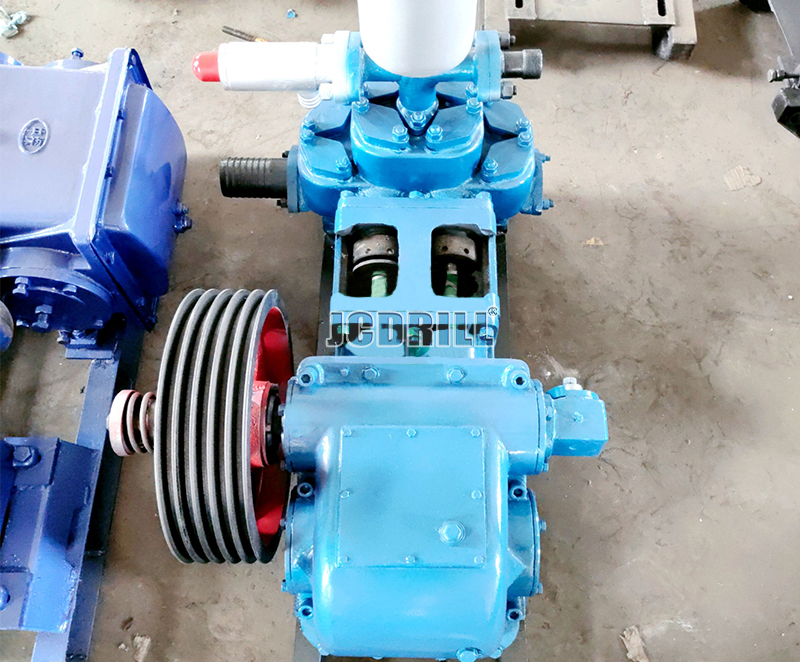

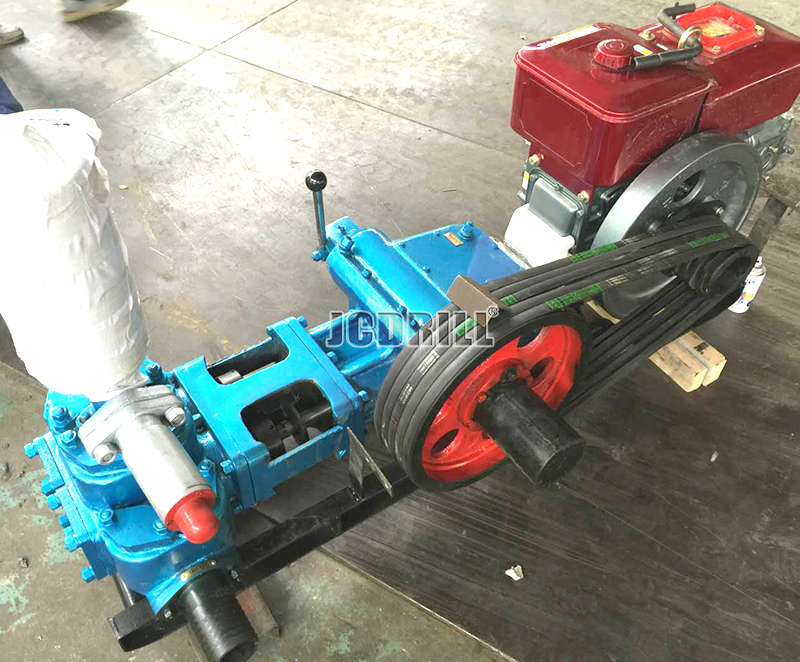

BW200 Piston Mission Drill Mud Pump For Water Well Drilling

Flow Rate:200 125 L/min

Pressure: 4 6 Mpa

Power Type:Available option driven by diesel engine,electric motor,hydraulic motor

>> Application

BW200 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.

BW200 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure, lift much, less engergy consumption, easy operation, high quality and duarable, easy to move, especially for mountain terraces of irrigation.



BW200 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with 1800meters driling rig, it also can be used cement perfusion.

They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

>> Characteristics

>> Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

>> Exploration: Coal mining exploration, Ore exploration;

>> Water well: Small hole diameter water well drilling;

>> Pipe-installing: Geothermal pipe-installing for heat pump;

>> Foundation piling: Small-diameter hole foundation piling drilling.

>> Specification

Horizontal double cylinder reciprocating double acting piston pump
Cylinder quantity
Cylinder diametermm80:65
Travel (mm)mm85
Pump SpeedTime/min145
Rate offowL/min200125
PowerKW13.2kw Diesel Engine
Pitch of belt pulleymm385
Belt pulleymmB type,five solts,410 mm
Diesel engine/Electric motor/hydraulic/no power for optional
Suction pipe dia.(mm)mm65 mm
Scupper pipe dia.mm37 mm
Dimensions(lxWxH)mm1050*630*820(without engine)
