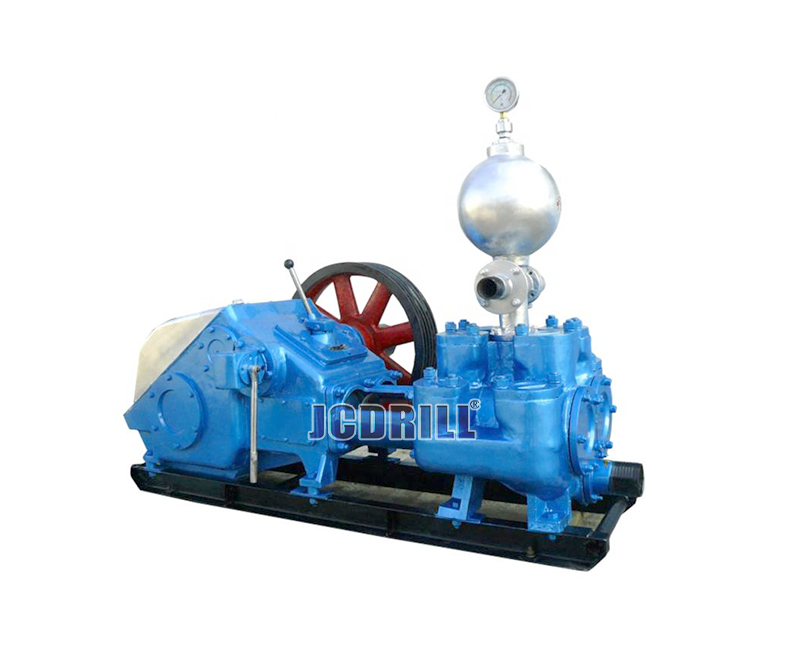

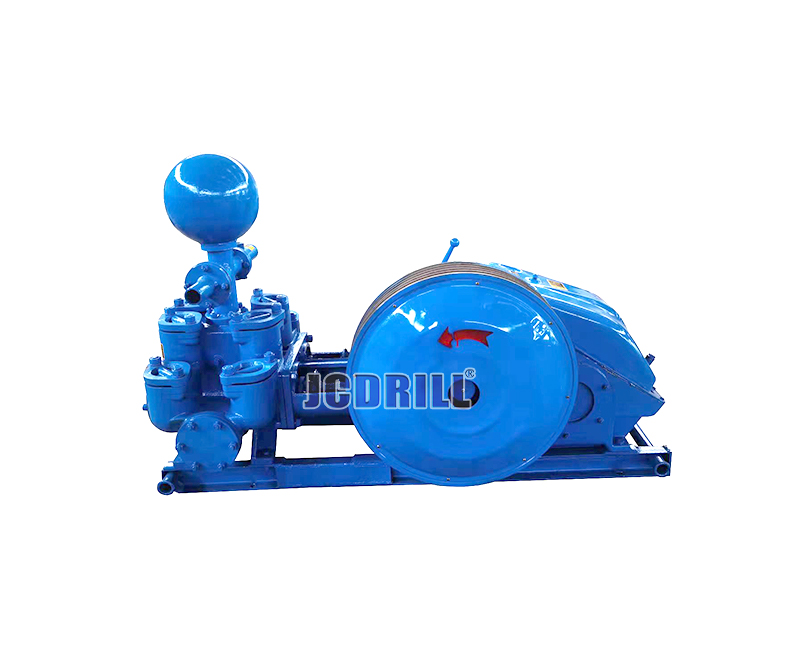

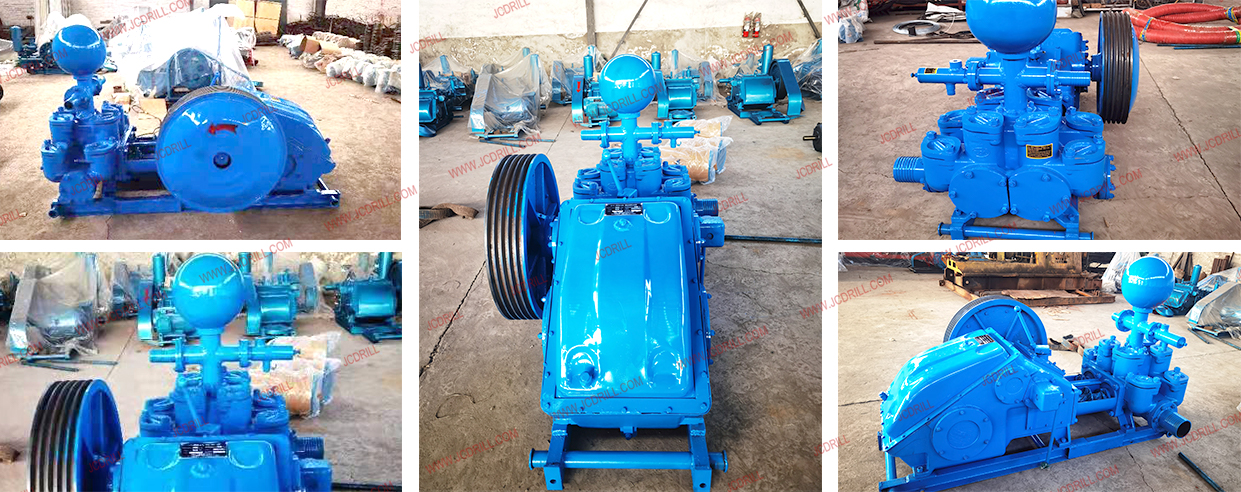

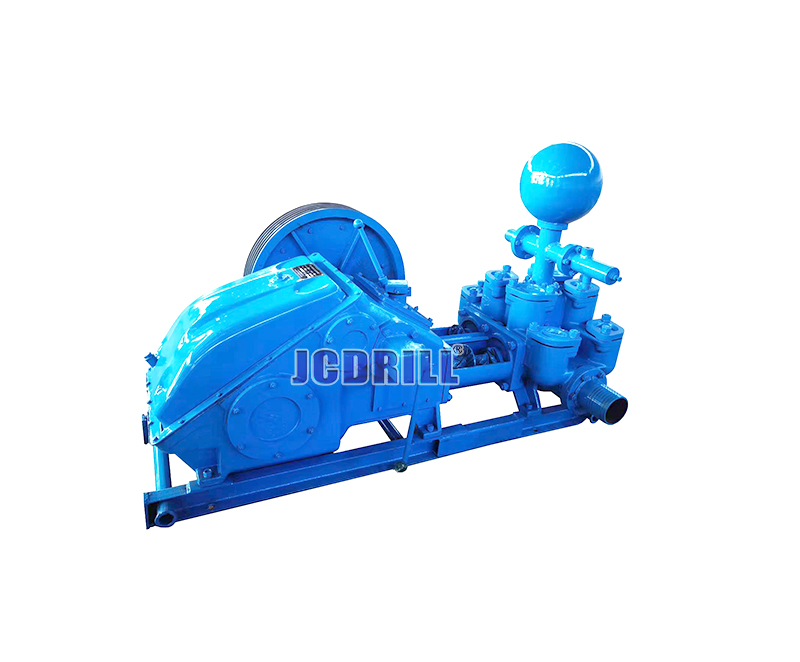

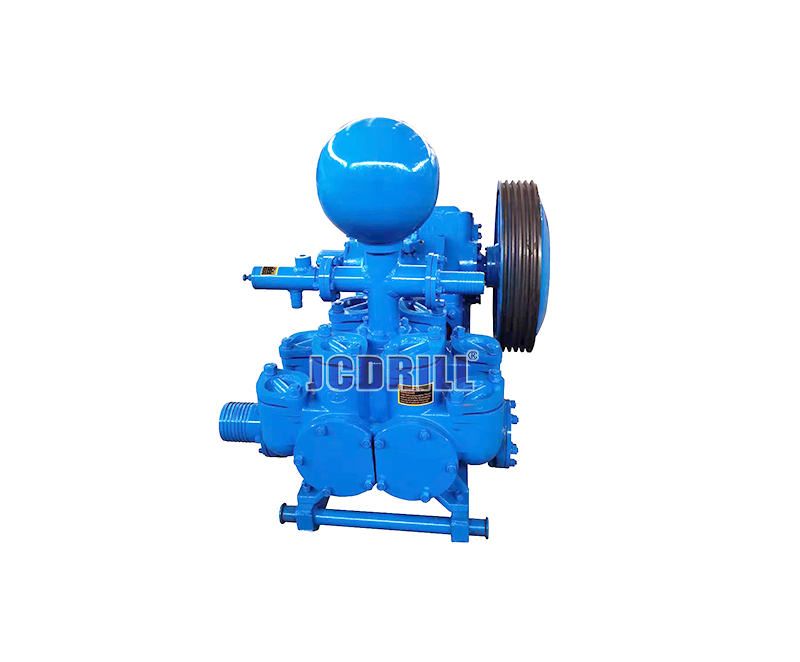

BW850-2 Hydraulic Mud Pumps

BW850-2 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.

BW850-2 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less energy consumption,easy operation,high quality and durable,easy to move,especially for mountain terraces of irrigation.
BW850-2 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters drilling rig,it also can be used cement perfusion.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.


Share

PRODUCT DESCRIPTION

Characteristics:

1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well: Small hole diameter water well drilling;

4. Pipe-installing: Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Specification:

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engine


No.ModelUnitBW850/2
1Type
Horizontal double cylinder reciprocating double action piston pump
2Cylinder diametermm150
3Strokemm180
4Pump speedTime/min8258
5FlowL/min850600
6PressureMpa23
7Belt
700XC-5
8V-belt speed
470r/min
9PowerKw37
10Inlet pipe inner diametermm125mm
11Drain pipe inner diametermm65mm
12Return pipe inner diametermm40mm
13A deceleration
36/27=1.33
14
41/22=1.86
15Gear
82/19=4.31
16shape size
2000*1030*1400
17Weight
1500
