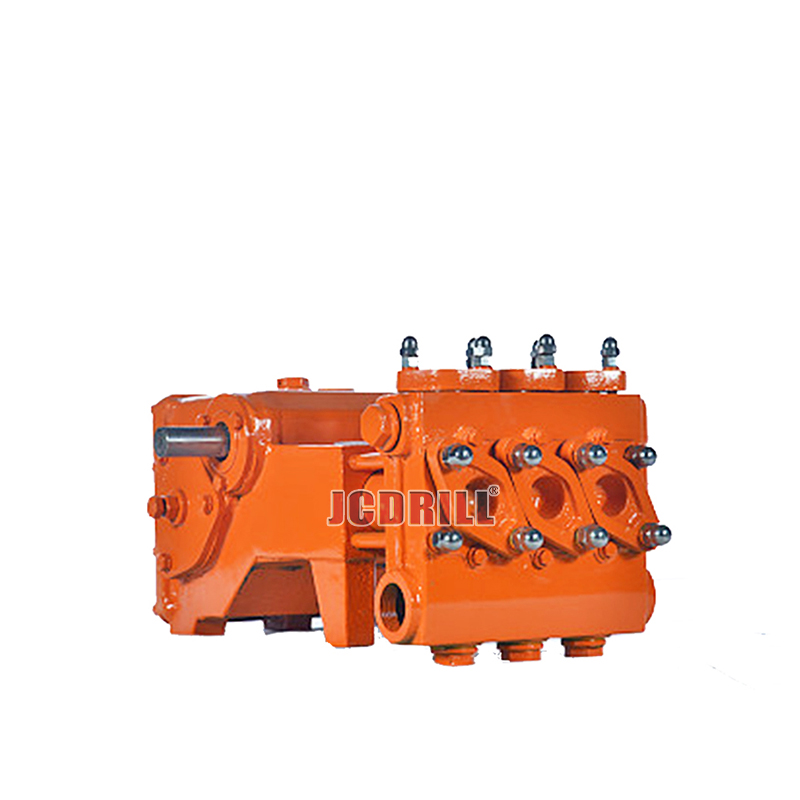

BW250 High Quality Reciprocation Piston Drilling Mud Pump

Flow Rate: 250 L/min

Pressure:2.5 Mpa

Power Type:Available option driven by diesel engine,electric motor,hydraulic motor

>> Application

BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.



BW 250 water Drilling Mud Pump, 250L/min with 25bar triplex. single acting reciprocation piston pump

BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure, lift much, less energy consumption, easy operation, high quality and durable, easy to move, especially for mountain terraces of irrigation.
They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

>> Characteristics

>> Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

>> Exploration: Coal mining exploration, Ore exploration;

>> Water well: Small hole diameter water well drilling;

>> Pipe-installing: Geothermal pipe-installing for heat pump;

>> Foundation piling: Small-diameter hole foundation piling drilling.

>> Specification

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engine

TypeHorizontal,Three-cylinder single-acting,
reciprocal piston pump
Stroke100 mm
Liner Dia80mm65mm
Pump Speed20011672422001167242
Volume fraction85%
Combined efficiency72%
Input power15 Kw
TriangleType B ×5 Groove 410 mm
leather belt
pitch dia.
Input speed500 r/min
Max2.5 m
Suction head
Suctionφ76 mm
Pipe Dia.
Dischargeφ51 mm
Pipe Dia.
Measurement1100 × 995 × 650 mm
Weight500 Kg
