Flow Rate: 450 350 340 240 172 L/min
Pressure:1.2 2 3 4 5 Mpa

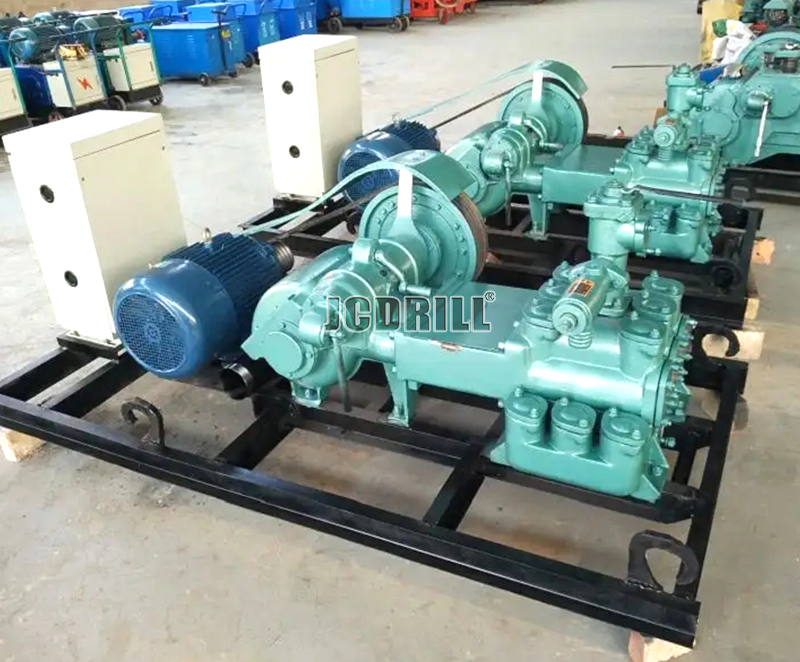

Power Type:Available option driven by diesel engine,electric motor,hydraulic motor
>> Application

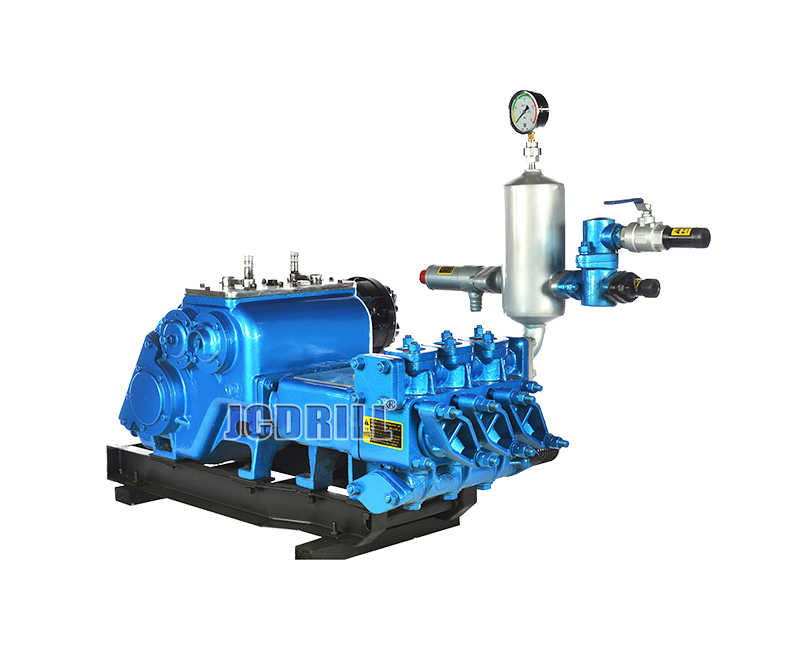

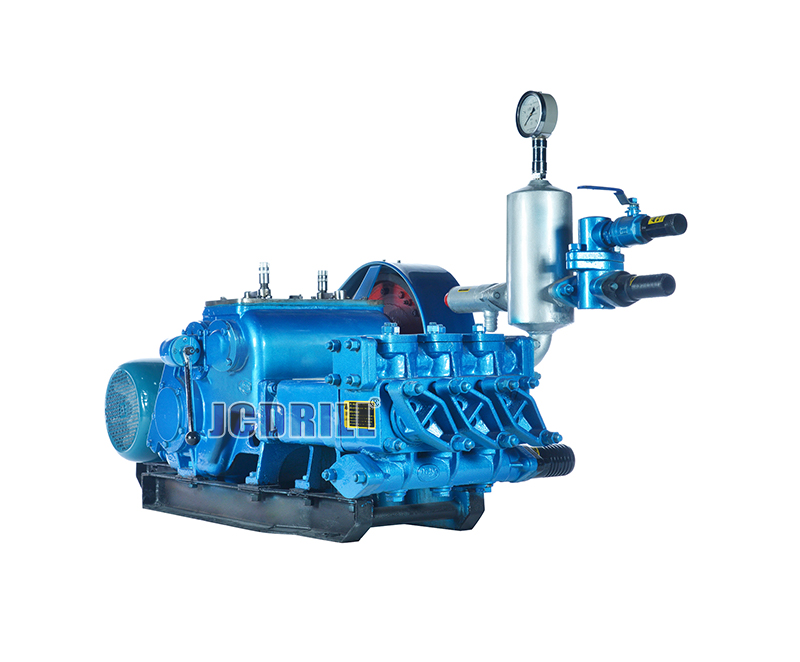

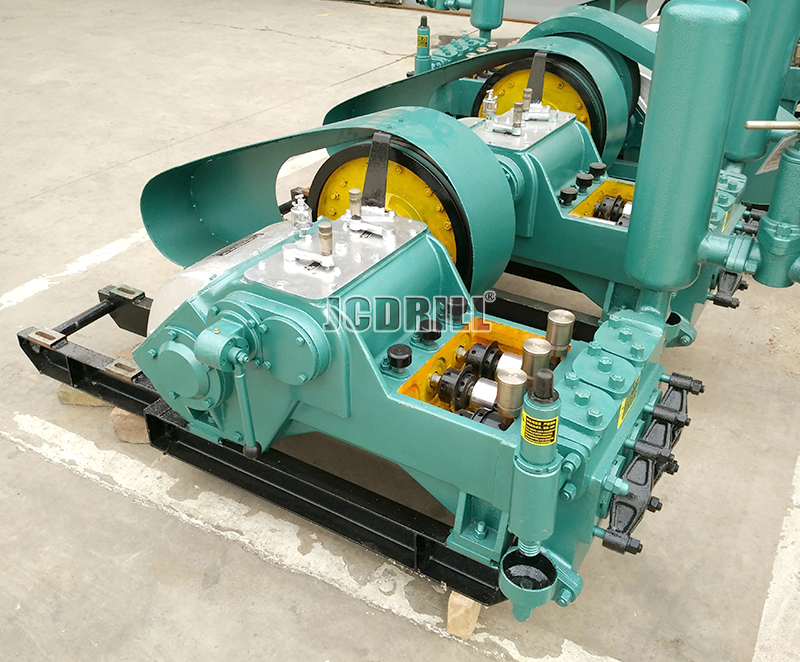

The BW450 is horizontal tri-cylinder dual role penthouse Detroit piston pump. It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension, light weight, the pump is suitable for transportation in mountain.
BW450/5 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters drilling rig,it also can be used cement perfusion.
Share
PRODUCT DESCRIPTION
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
BW450 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.
>> Characteristics
>> Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
>> Exploration: Coal mining exploration, Ore exploration;
>> Water well: Small hole diameter water well drilling;
>> Pipe-installing: Geothermal pipe-installing for heat pump;
>> Foundation piling: Small-diameter hole foundation piling drilling.
>> Specification
Horizontal,three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee
| Model | Unit | BW450/2 | BW450/5 | ||||
| Type | Horizontal, Triplex, Double Acting Reciprocating | Horizontal three-cylinder reciprocating single-acting piston pump | |||||
| Cylinder quantity | 3 | 3 | |||||
| Cylinder diameter | mm | 100 | 95 | ||||
| Travel (mm) | mm | 85 | 100 | ||||
| Pump Speed | Time/min | 170 | 115 | 223 | 168 | 112 | 86 |
| Rate of flow | L/min | 450 | 350 | 450 | 340 | 240 | 172 |
| Pressure | Mpa | 1.2 | 2 | 2 | 3 | 4 | 5 |
| Engine | CHANGCHAI L28 | ||||||
| Power | Hp | 18.5 | 28 | ||||
| Engine Speed | r/min | 2200 | |||||
| Pitch of belt pulley | mm | 385 | |||||
| Belt pulley | mm | B type, five slots,410 mm | |||||
| Suction pipe dia.(mm) | mm | φ89 mm | φ76 mm | ||||
| Scupper pipe dia. | mm | φ51 mm | φ51 mm | ||||
| Dimensions(L×W×H) | mm | 1350×820×1040 | 1100×995×650 | ||||
| Weigh | kg | 540 | 520 | ||||
