How to Select the Right Air Compressor for Water Well Drilling

Choosing the correct air compressor is a critical decision that directly impacts the efficiency, cost, and success of your water well drilling project. An undersized compressor will lead to poor performance and stalled operations, while an oversized one incurs unnecessary capital and fuel costs.

This guide breaks down the key factors to consider.

1. Primary Function: Understand the Role of Air

In drilling, compressed air serves two primary functions:

· Down-the-Hole (DTH) Hammer Operation: This is the most air-demanding task. The compressor must provide sufficient volume (CFM) and pressure (PSI) to power the pneumatic hammer at the bottom of the hole, which fractures the rock.

· Cuttings Removal (Air Lifting): The air is used to lift the drilled cuttings from the bottom of the hole to the surface. This requires a high volume of air to create a high-velocity air stream in the annulus (the space between the drill rod and the borehole wall).

2. Key Selection Criteria

A. Pressure (PSI or Bar)

· Standard Range: Most DTH hammers require 250 to 350 PSI (17 to 24 Bar) to operate efficiently.

· Deep Well Consideration: As the well gets deeper, the pressure required to overcome the backpressure from the water column in the hole increases. For deep wells (over 400 feet / 120 meters), you may need a compressor capable of 350 to 500 PSI (24 to 34 Bar).

· Rule of Thumb: Always select a compressor with a maximum working pressure higher than your hammer's requirement to account for depth, hose pressure loss, and system inefficiencies.

B. Volume (CFM or m³/min)

This is the most critical and often misunderstood factor. Required volume depends on:

· Hole Diameter: Larger hole diameters require a much higher volume of air to achieve the upward velocity needed to clean the hole effectively. A common target is an annular velocity of 3,000 to 4,000 feet per minute (15-20 m/s).

· Drill Pipe and Hammer Size: The manufacturer of your DTH hammer will provide a recommended CFM range for optimal performance.

· Well Depth: Deeper wells have more annular space to fill and require sustained volume.

· Geology: Wet, sticky formations or those with high water inflow require more air to lift the heavier column of fluid and cuttings.

C. Compressor Type

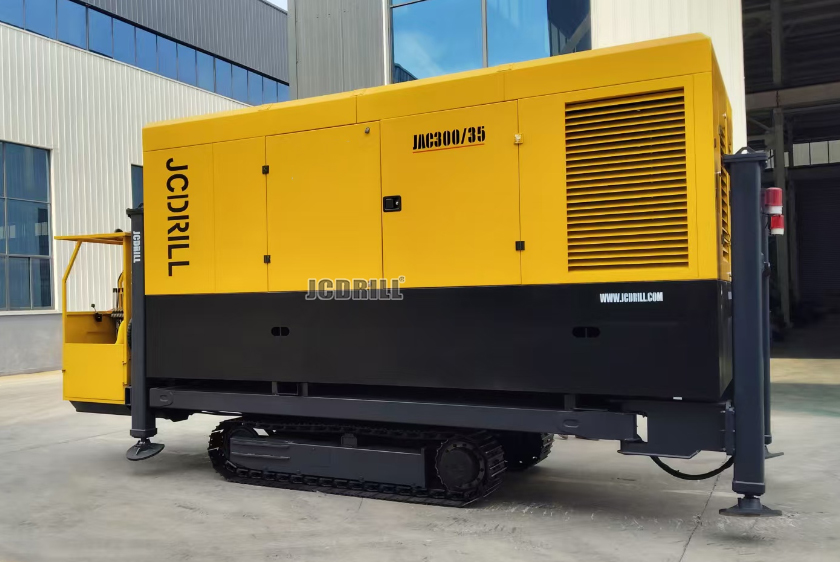

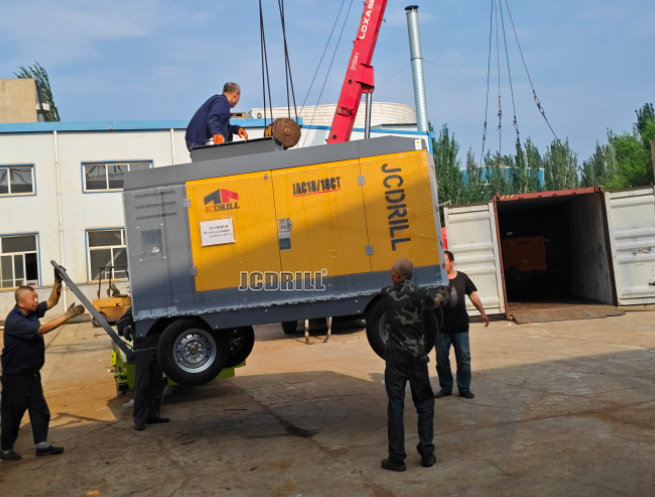

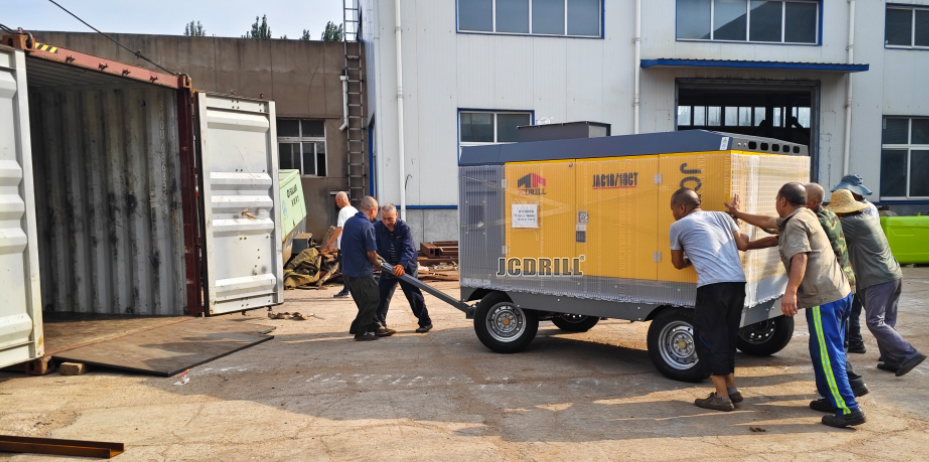

· Portable Rotary Screw Compressors: This is the modern standard for most drilling rigs. They are trailer-mounted or skid-mounted, integrate directly with the rig, and are highly reliable. They provide a constant flow of air and are efficient over long periods.

· Reciprocating Piston Compressors: Less common for primary drilling air today. They can be used but are often louder, require more maintenance, and are typically used in a "bank" of multiple units to achieve the required CFM.

D. Power Source

· Diesel Engine: The most common and versatile power source for remote sites. It provides independent power and high torque.

· Electric Motor: A cost-effective and low-noise option, but only viable if a reliable and powerful electrical supply is available on-site.

3. A Step-by-Step Selection Process

1. Define Your Project Scope:

   · Maximum planned hole diameter (inches/mm)

   · Maximum planned drilling depth (feet/meters)

   · Predicted geology (e.g., dry rock, water inflow)

2. Consult Your Hammer Specs:

   · Identify the DTH hammer model you will use for the toughest part of the project.

   · Note its required PSI and recommended CFM.

3. Calculate Air Volume Requirements:

   · Use an annular velocity calculator or the rule of thumb that a 6-inch hole typically needs 600-800 CFM, while an 8-inch hole may need 1,000-1,200 CFM or more.

   · Always err on the side of more CFM. Inadequate air is the single biggest cause of poor drilling performance, stuck rods, and lost time.

4. Choose Your Compressor:

   · Based on the above, select a compressor that meets or exceeds your required PSI and CFM.

   · Example: For drilling a 6-inch hole to 500 feet in hard rock, a 750 CFM at 350 PSI rotary screw compressor would be a standard and effective choice.

Summary: Key Questions to Answer

· What is the maximum hole diameter I will drill?

· What is the deepest I will drill?

· What DTH hammers will I be using, and what are their PSI/CFM requirements?

· Do I need primary air only, or a booster for deeper sections?

Investing in the right compressor from the start is an investment in productivity. It ensures faster penetration rates, efficient hole cleaning, and overall project success.
