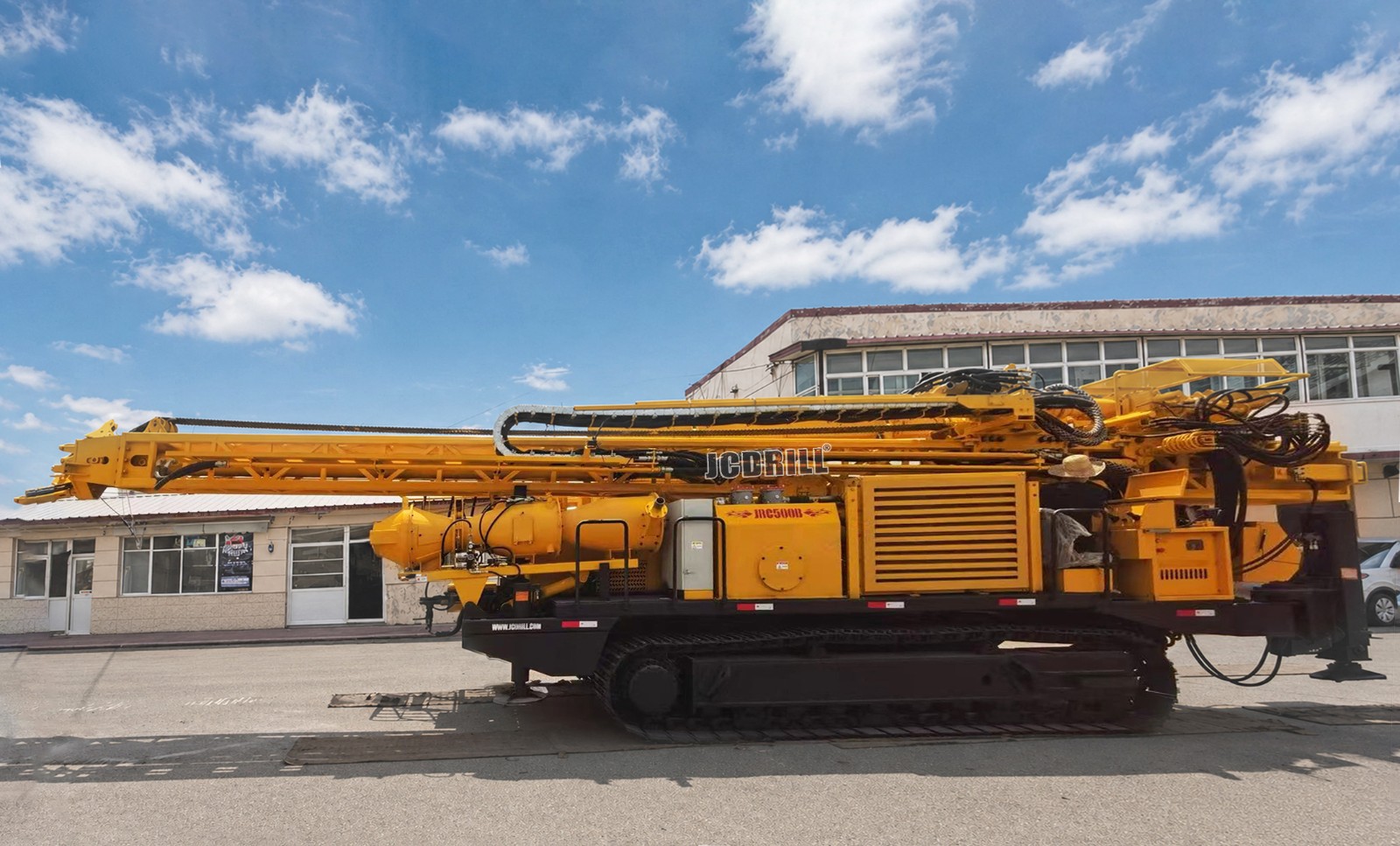

Automated Rod Handling Systems for RC Exploration Rigs: Enhancing Cycle Efficiency and Rig Floor Safety

Reverse circulation (RC) drilling is widely recognized for its ability to deliver fast, high-quality sample recovery in mineral exploration. Within this established operational framework, rod handling — the process of adding and breaking drill rods — is a routine activity that has traditionally been performed manually by crew members on the rig floor. As a supplier of advanced drilling equipment, we offer a fully integrated automated rod handling system purpose-built for RC exploration rigs. This system provides exploration contractors with an alternative approach to rod handling, supporting consistent cycle times and enhanced safety outcomes.

The Role of Rod Handling in RC Exploration Operations

A typical RC exploration hole of 300–600 meters depth requires multiple rod connections (using standard 3 m or 6 m rods). Each connection involves taking a rod from the rack, positioning it into the mast, stabbing, spinning up, applying makeup torque, and later breaking out the connection during rod retrieval. Our automated system is designed to perform these actions with precision, offering a reliable method that complements the skills of the drilling crew.

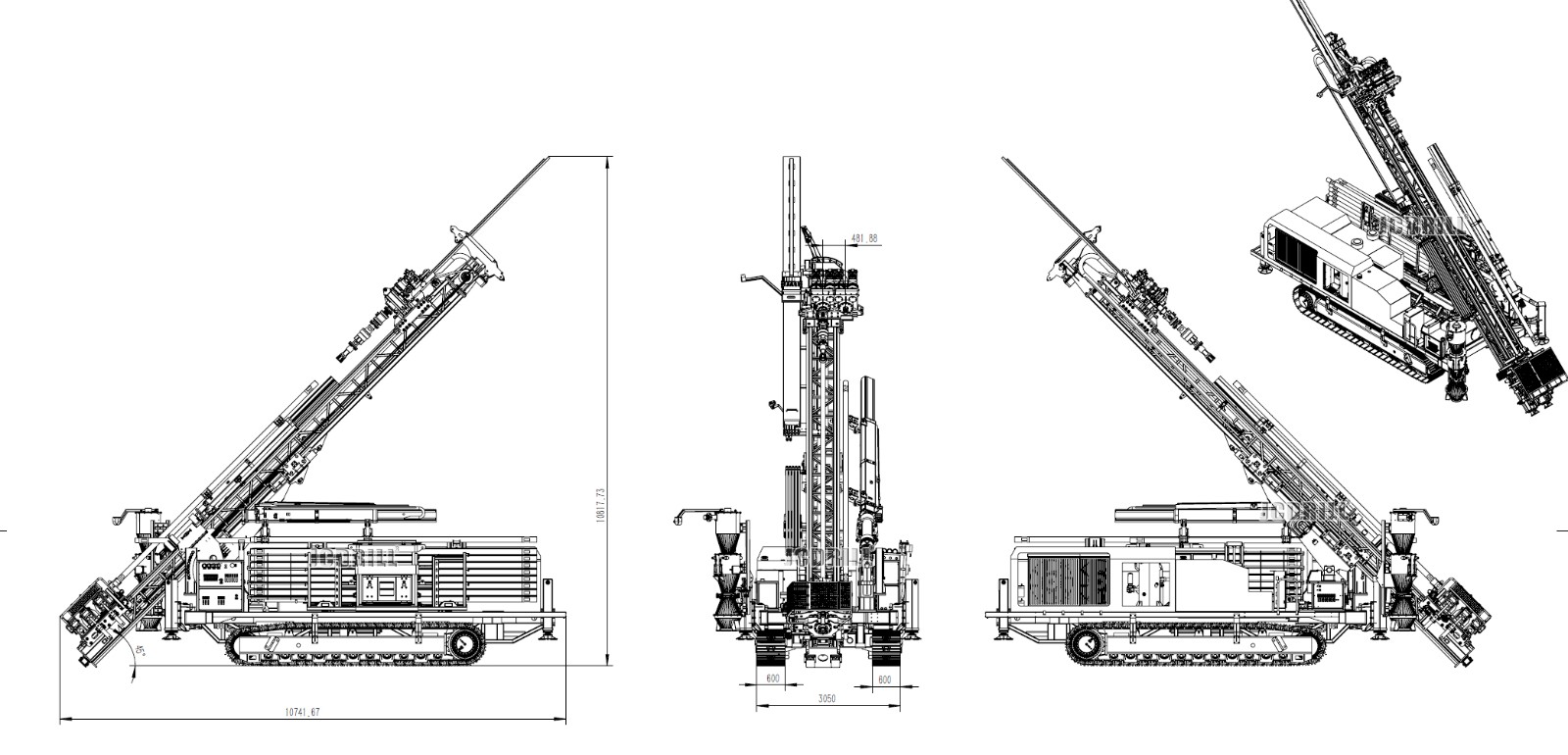

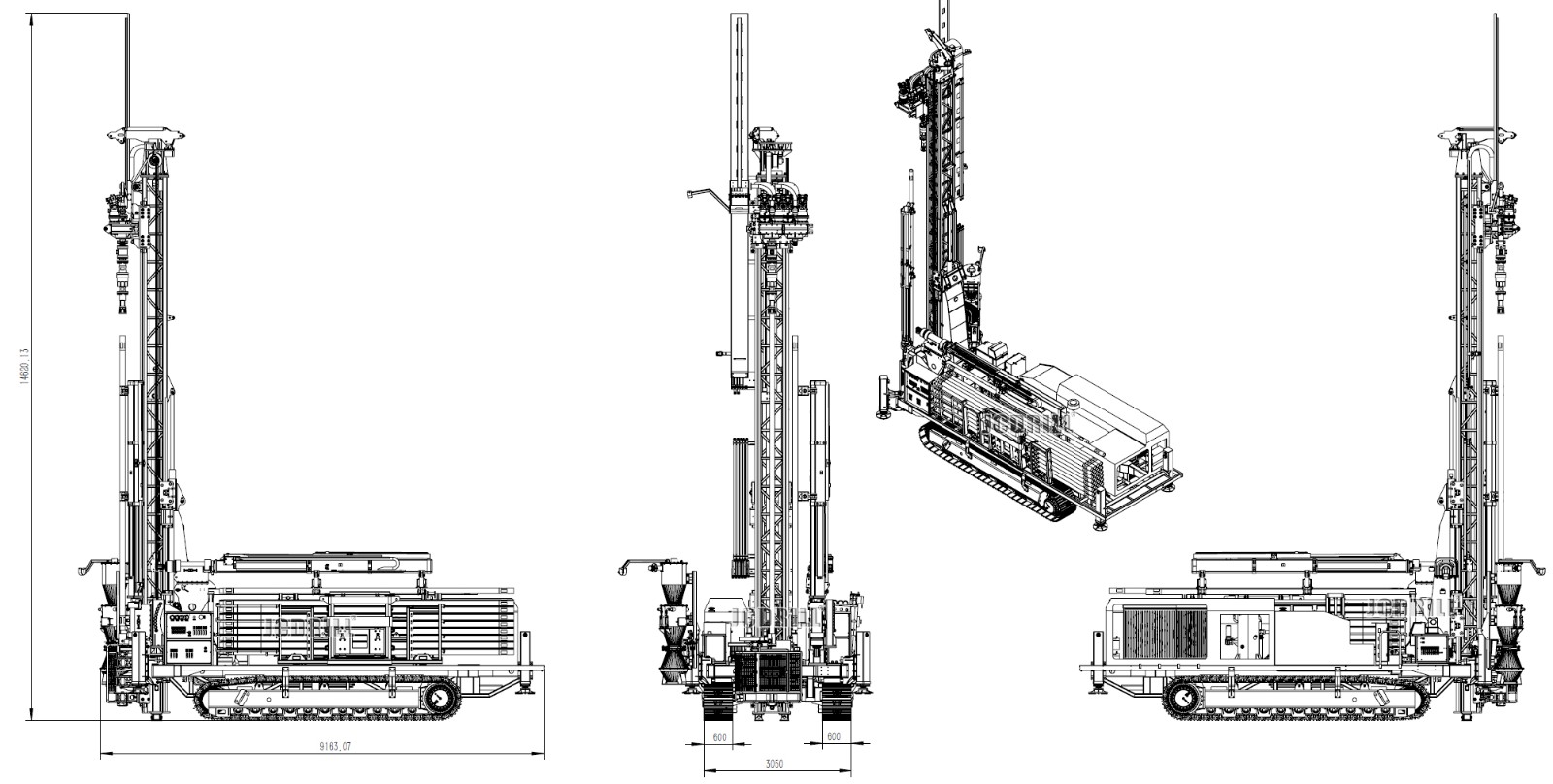

How Our Automated Rod Handling System Works

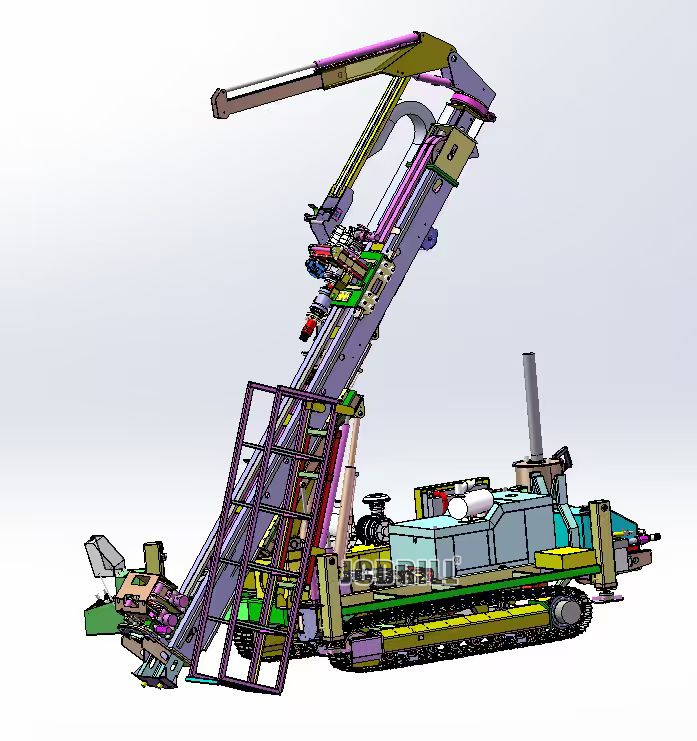

Our system is engineered as a bolt-on, fully integrated solution for modern RC exploration rigs. It consists of four core components:

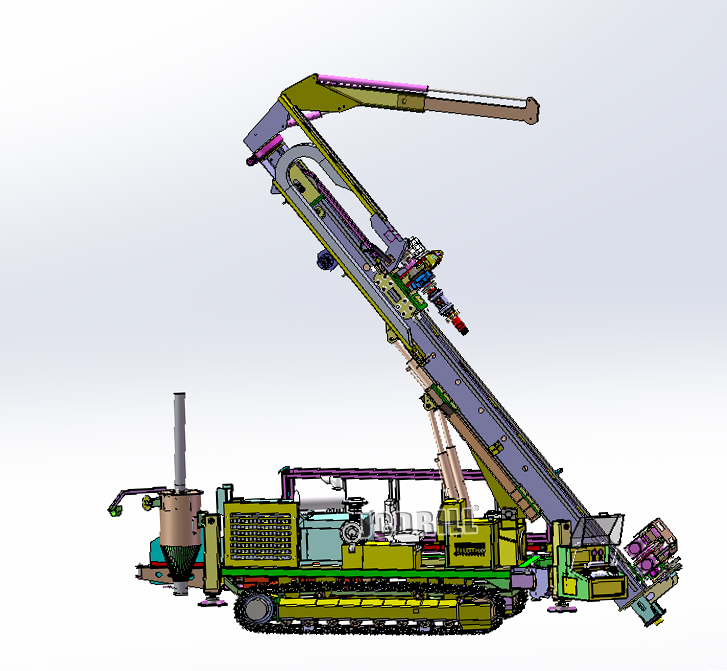

1. Articulated hydraulic rod arm – Picks a single rod from the horizontal or vertical magazine, pivots it smoothly into alignment with the drill string, and presents it to the mast. All movements are servo-controlled for precise positioning.

2. Intelligent breakout wrench – Equipped with torque sensors and programmable profiles for different thread types (e.g., API, Metzke, custom). Delivers consistent makeup torque and controlled breakout torque to support thread longevity.

3. Compact rod carousel or cassette magazine – Holds 8 to 12 rods in a compact footprint, allowing multiple connections before a manual reload is needed. The magazine can be configured for 3 m or 6 m rods based on rig type.

4. PLC-based control with remote pendant or cab integration – The driller operates the entire cycle from a safe position, such as inside the climate-controlled cab. Interlocks and position sensors ensure proper sequencing.

With our system, the complete “rod add to drilling resumed” cycle is typically completed in 45–60 seconds. The driller remains at the control station throughout, and crew members are not required to be on the rig floor during the rod change sequence.

Performance Characteristics

Field trials on RC rigs operating in gold, copper, and lithium exploration programs have demonstrated consistent performance:

Metric With Our Automation System

Cycle time per rod 45–60 seconds

Daily footage (typical hard rock) 240–310 meters

Rod thread condition Consistent makeup torque supports thread life

Rig floor personnel exposure during rod change None

Over a typical 3-month exploration campaign, efficient rod handling supports increased productive drilling time, allowing contractors to maximize meterage within seasonal access windows.

Safety Design Features

Our system is designed with a clear engineering principle: keep personnel away from the rod handling envelope during the automated cycle. Key safety features include:

· Physical separation between the operator and moving components during rod add/breakout sequences

· Interlocked guarding and position sensors that prevent unintended movement

· Programmable torque control to avoid excessive stress on connections

Exploration companies that have deployed our automation report consistent safety performance, with no rod-handling-related incidents recorded on those rigs over multi-year tracking periods. Improved crew comfort and reduced physical demands also contribute to positive operator feedback and retention.

Conclusion

Our automated rod handling system provides RC exploration contractors with a reliable, efficient alternative to manual rod handling. By reducing cycle times, supporting consistent daily footage, and keeping personnel away from the rig floor during rod changes, the system delivers measurable operational benefits. The automation is a proven upgrade that supports both productivity and safety objectives in modern exploration drilling.

Interested in learning how our automated rod handling system can be integrated into your RC exploration fleet? Contact our technical sales team to arrange a demo or request a retrofitting proposal.
