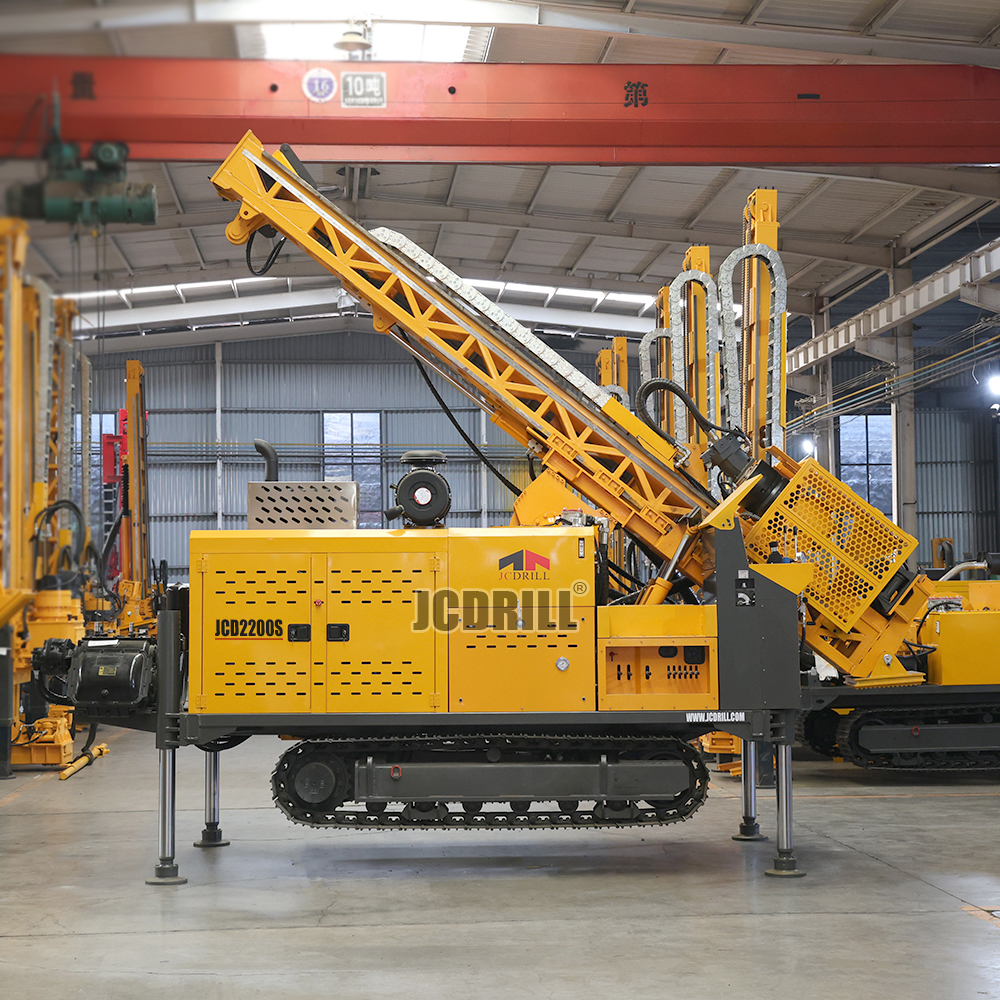

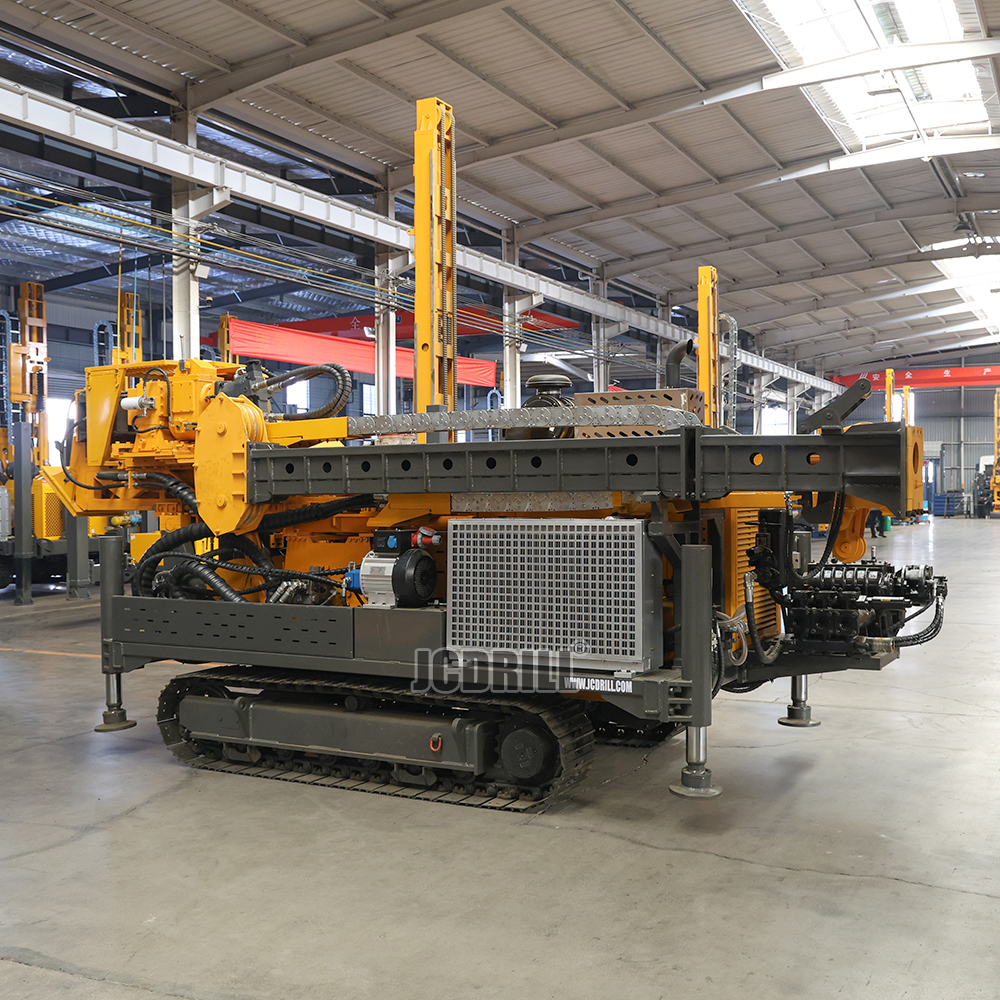

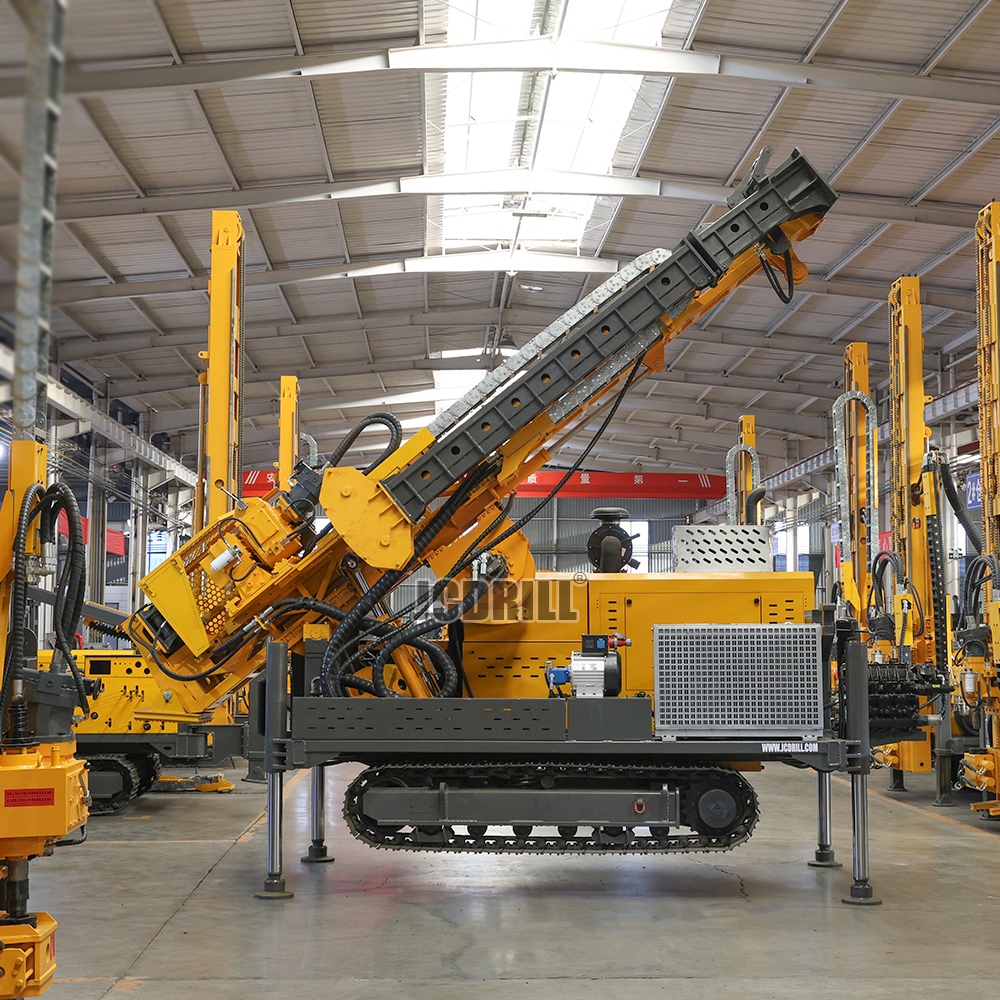

JCD2200S Full Hydraulic Core Fast Drilling Speed Rig Mineral Exploration for Slope and Straight Holes Drilling

Drilling Capacity: HTW-NTW-BTW

Drilling Depth: 2800 2200 1100 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD2200 Hydraulic Core Drilling Rig is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.JCD2200 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.

Inquire Now Chat Now

PRODUCT DESCRIPTION

JCD2200 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling,

it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.

>> Characteristics

>> Reliable Quality

The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves

and hydraulic accessories, are all products with well-known brands.

>> High Efficiency

Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet)

drilling rod guarantee the high operation efficiency of the rig.

>> Environmental Protection

The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which

makes the rig proper to be operated in urban areas.

>> Energy Saving

The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge

to the minimum extent.

JCD2200 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system.

All these factors have made the rig the best choice among the same products in both domestic and abroad markets.

>> Specification

Specification	Unit	JCD2200S
Drilling Capacity
Drilling Capacity		HTW-NTW-BTW
Drill Depth	m	1100-2200-2800
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	479
Heat Dissipation		Air Cooling
Engine
Brand		CUMMINS
Type		Turbocharger
Rated Speed	RPM	2200
Rated Power	kW	179
Drilling System
Torque	N.M.	1600-10000
Speed	RPM	1200
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3600
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	44
Max. Push Down Capacity	Ton	22
Rope Hoist
Lifting Capacity	kg	1000/ 15000
Speed	RPM	100-400/ 0-50
Wire Rope Diameter	mm	6/ 24
Rope Capacity	m	2200/ 45
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-320
Flow	L/MIN	0-320
Pressure	MPA	0-10
Hydraulic Generator
Type		Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/ 380
Weight & Dimensions
Transport Size	mm	6060* 2170* 2500
Weight	Ton	13
