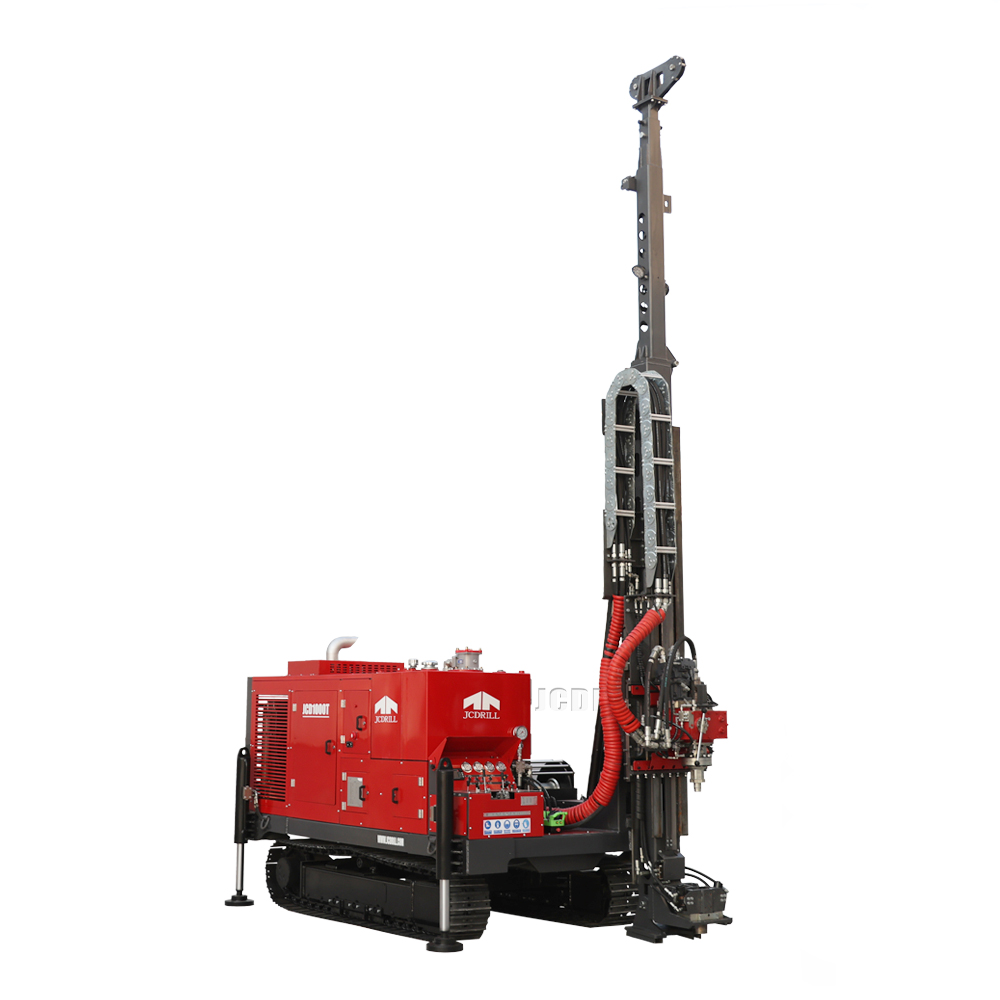

JCD1000T Hydraulic Crawler Mounted Diamond Core Mining Drilling Rig Mining Machine

Hold Diameter: 121 mm

Drilling Depth:1000 700 500 300 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD1000T The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.

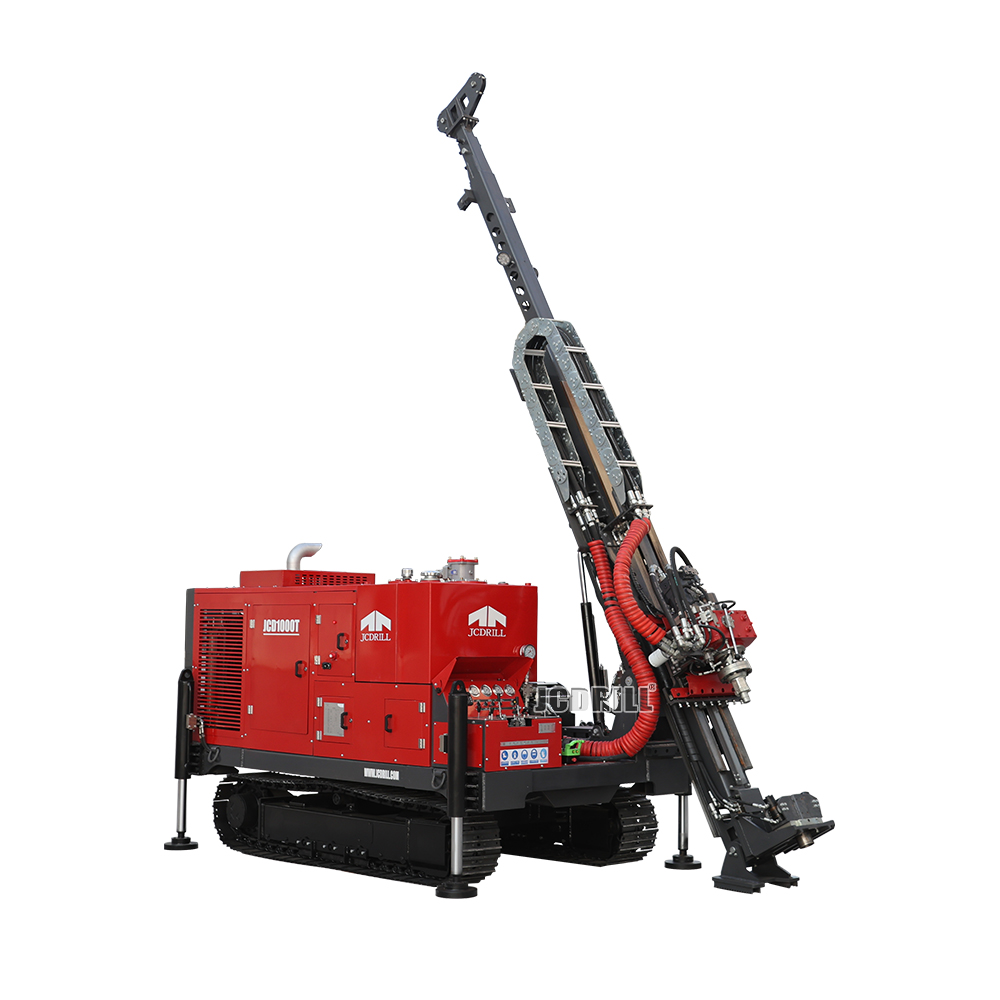

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

>> Specification

Specification	Unit	JCD1000T
Drilling Capacity
Drilling Capacity		BTW-NTW-HTW-PTW
Drill Depth	m	1200-900-600-200
Drive Head
Drive Mode		Forward & Reverse
Transmission Type		Gear Drive
Spindle Speed	rpm	200–1200 rpm
Max Torque	N·m	2300
Feeding System
Stroke	mm	2200
Feeding Speed		Variable
Feeding Force	T	4
Drilling Angle	°	10–90
Drill Pipe Length	mm	1500
Engine
Brand / Power	kW	Cummins 132
Rated Speed	rpm	2200
Rod Holder
Max Inner Diameter	mm	118
Holding Capacity	kg	13,000
Hydraulic Winch
Lifting Capacity	T	0.6
Lifting Speed	m/min	150
Wire Rope Capacity	m × mm	1200 × 6
Dimensions & Weight
Overall Weight	kg	7600
Dimensions (L×W×H)	mm	4500 × 2300 × 2400
